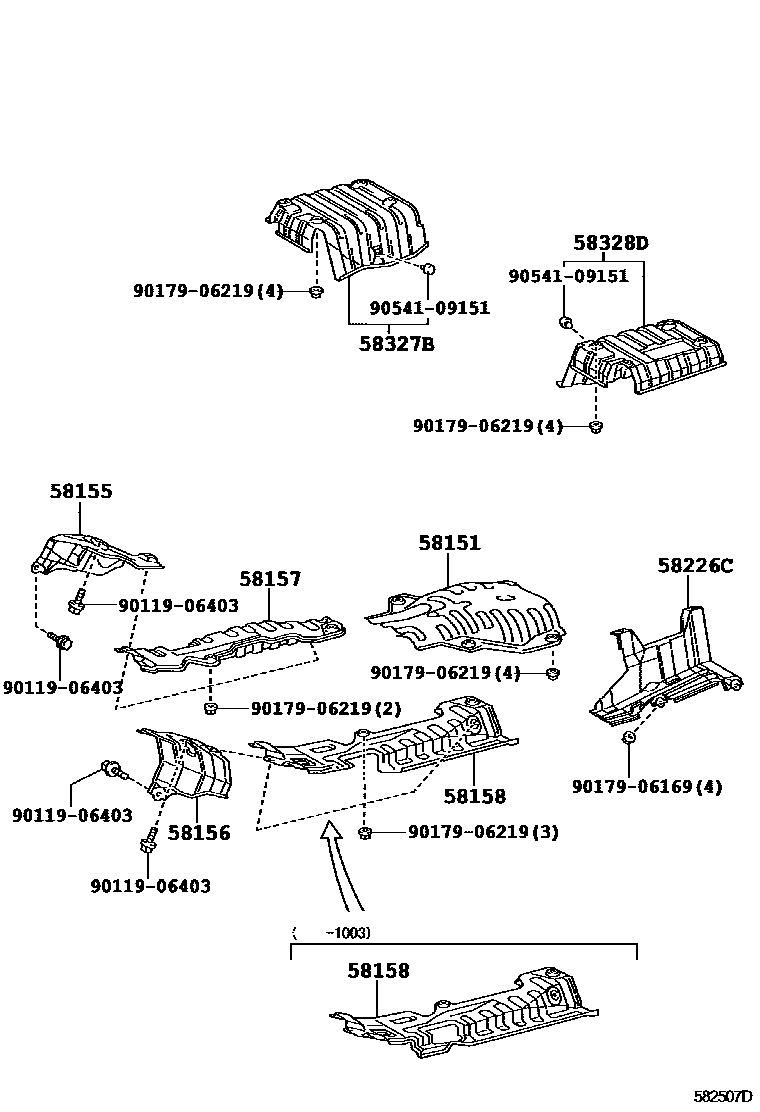

FLOOR INSULATOR

0001 1 0002 1

58151INSULATOR, FRONT FLOOR HEAT, NO.1

main58151-30130iALE20,GSE20200508-201008

58155INSULATOR, FRONT FLOOR HEAT, NO.3

main58155-30040iGSE20200508-201008

58156INSULATOR, FRONT FLOOR HEAT, NO.4

main58156-30080iGSE20200508-201008

58157INSULATOR, FRONT FLOOR HEAT, NO.5

main58157-30071iALE20,GSE20200508-201003

sub58157-30072

main58157-30072iALE20,GSE20201004-201110

sub58157-30073

main58157-30073iALE20,GSE2#201111

58158INSULATOR, FRONT FLOOR HEAT, NO.6

main58158-30061iGSE20200508-201003

sub58158-30062

main58158-30062iGSE20201004-201201

sub58158-30063

main58158-30063iGSE2#201202

58226CPLATE, AIR GUIDE, OUTSIDE RH

main58226-53010iALE20,GSE20200508-201008

58327BINSULATOR, MAIN MUFFLER HEAT

main58327-53010iALE20,GSE20200508-200709

sub58327-53020

main58327-53020iALE20,GSE20200710-201008

58328DINSULATOR, MAIN MUFFLER HEAT, LH

main58328-53010iGSE20200508-200709

sub58328-53020

main58328-53020iGSE20200710-201008

9011906403

main90119-06403

9017906169

main90179-06169

9017906219

main90179-06219

9054109151

main90541-09151

12 parts on this diagram · 2 diagrams in section
