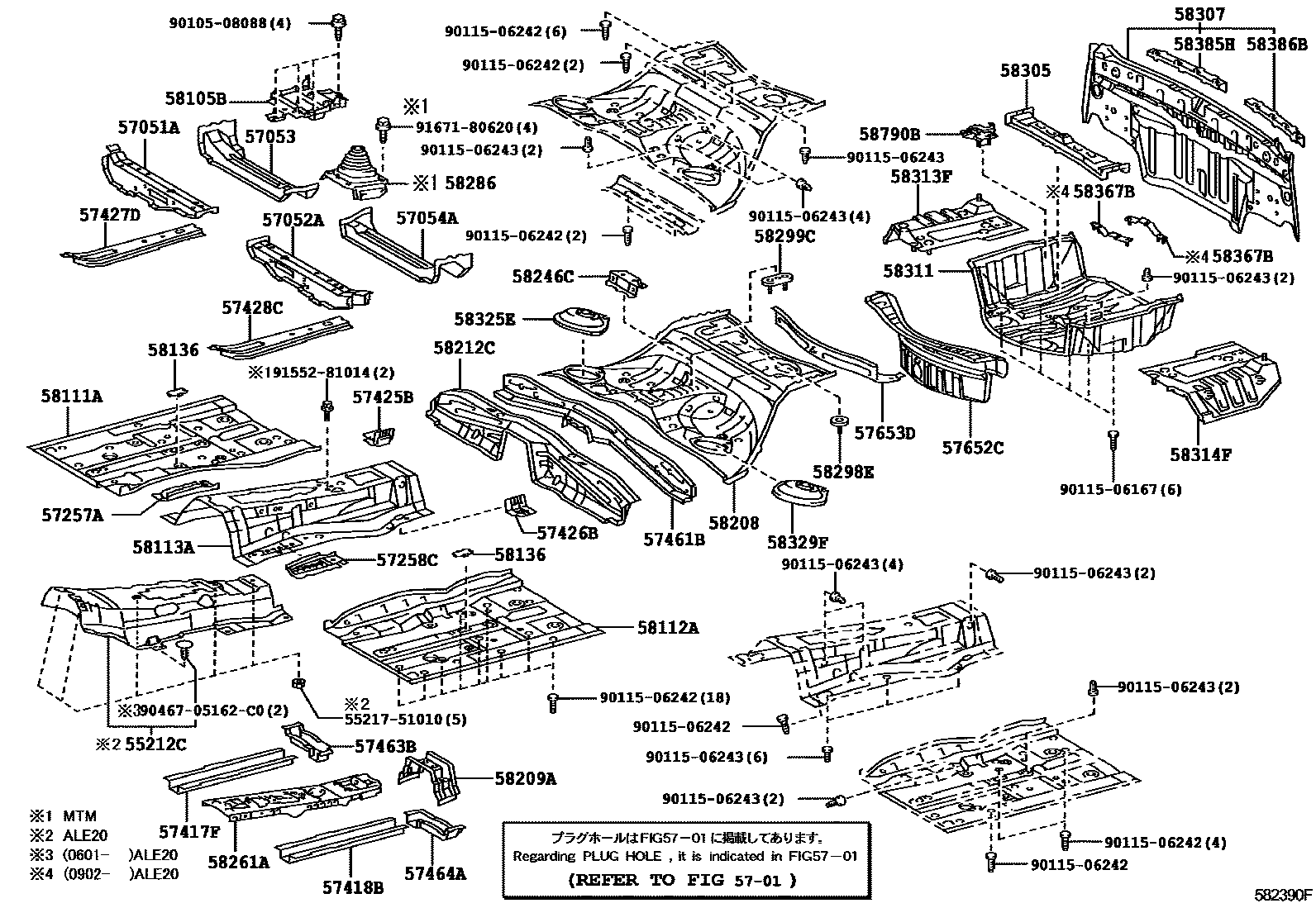

FLOOR PAN & LOWER BACK PANEL
55212CSILENCER, FRONT PANEL, LOWER
5701
57051AMEMBER SUB-ASSY, FRONT FLOOR CROSS, RH
57052AMEMBER SUB-ASSY, FRONT FLOOR CROSS, LH
57053REINFORCEMENT SUB-ASSY, FRONT FLOOR CROSSMEMBER, RH
57054AREINFORCEMENT SUB-ASSY, FRONT FLOOR CROSSMEMBER, LH
57417FREINFORCEMENT, FRONT FLOOR UNDER, RH
sub57417-24040
57418BREINFORCEMENT, FRONT FLOOR UNDER, LH
sub57417-24040
57425BREINFORCEMENT, FRONT FLOOR, NO.2 RH
57426BREINFORCEMENT, FRONT FLOOR, NO.2 LH
57427DREINFORCEMENT, FRONT FLOOR, NO.3 RH
57428CREINFORCEMENT, FRONT FLOOR, NO.3 LH
57461BMEMBER SUB-ASSY, CENTER FLOOR CROSS, NO.1
57463BREINFORCEMENT, CENTER FLOOR CROSSMEMBER, RH
57464AREINFORCEMENT, CENTER FLOOR CROSSMEMBER, LH
57652CMEMBER, REAR FLOOR CROSS, NO.1
57653DMEMBER, REAR FLOOR CROSS, NO.2
58105BPANEL SUB-ASSY, FRONT FLOOR REAR UPPER SUB
58111APAN, FRONT FLOOR, RH
sub58111-24050
58112APANEL, FRONT FLOOR, LH
sub58112-24040
58113APANEL, FRONT FLOOR, CENTER
58136COVER, FRONT FLOOR HOLE
58209AREINFORCEMENT SUB-ASSY, DRIVE SHAFT CENTER SUPPORT
58212CPAN, CENTER FLOOR, FRONT
58246CBRACKET, REAR SEAT HINGE, CENTER NO.2
58286BOOT, SHIFT & SELECT LEVER, NO.1
58298EBRACKET, HOT AIR INTAKE, NO.1
58299CBRACKET, HOT AIR INTAKE, NO.2
58305BRACKET SUB-ASSY, SPARE WHEEL CLAMP
58313FEXTENSION, REAR FLOOR PAN TO QUARTER PANEL, RH
58314FEXTENSION, REAR FLOOR PAN TO QUARTER PANEL, LH
58325ECOVER, REAR FLOOR SERVICE HOLE
58329FCOVER, REAR FLOOR SERVICE HOLE, NO.2
58367BBRACKET, FUEL TUBE
58385HBRACKET, REAR BUMPER COVER, NO.1
58386BBRACKET, REAR BUMPER COVER, NO.2
58790BCARRIER ASSY, JACK
5521751010STRIP, DASH PANEL SILENCER FINISH
main55217-51010
9010508088
main90105-08088
9011506167
main90115-06167
9011506242
main90115-06242
9011506243
main90115-06243
9046705162C0
main90467-05162C0
9155281014
main91552-81014
9167180620
main91671-80620
51 parts on this diagram · 3 diagrams in section
