INSTRUMENT PANEL & GLOVE COMPARTMENT

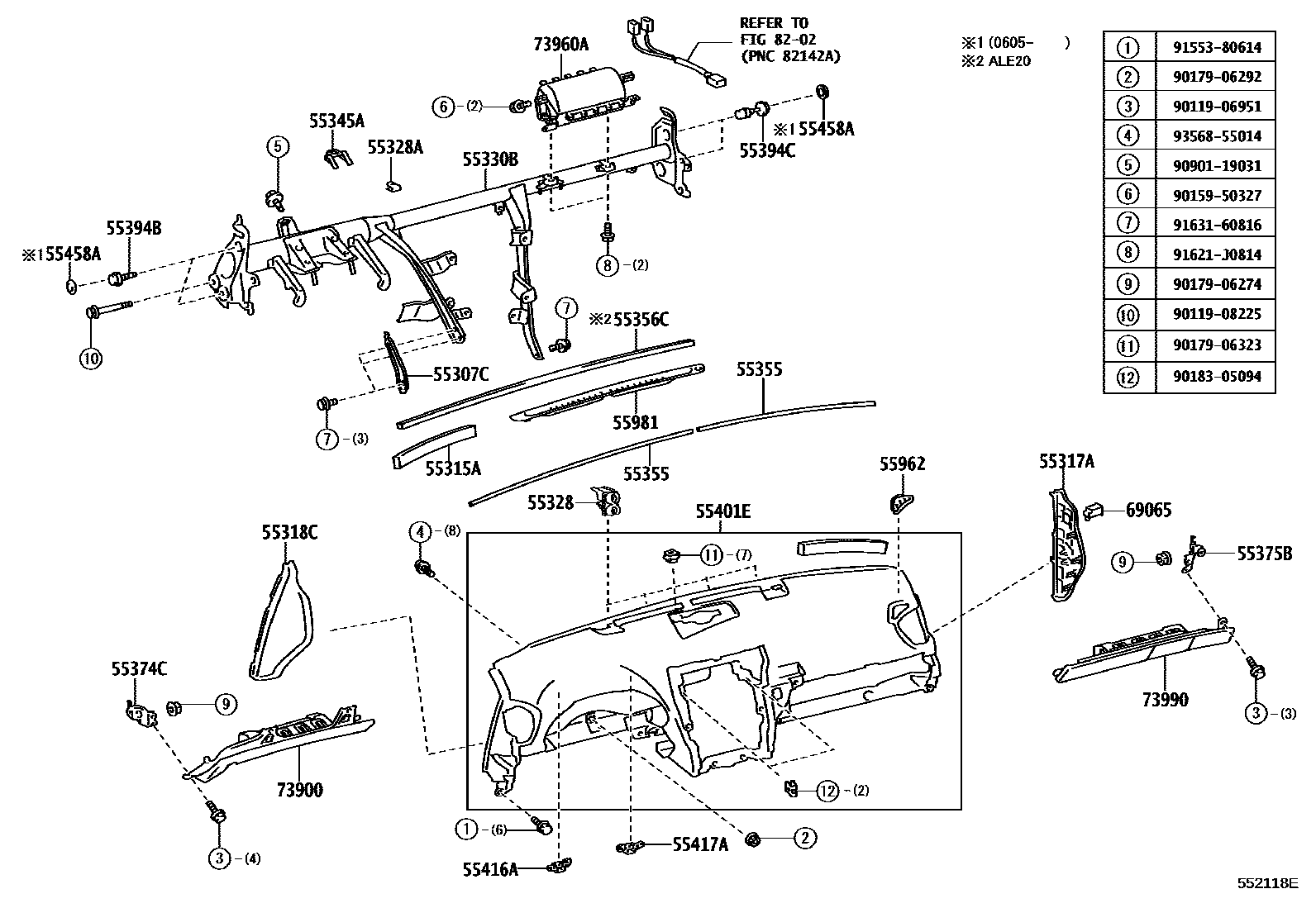

Parts diagram
55307CBRACE SUB-ASSY, INSTRUMENT PANEL, NO.2
main55352-53040i200508-201008
55315ASPACER, INSTRUMENT PANEL, NO.1
main55315-53010i200508-201008
55317APANEL, INSTRUMENT SIDE, RH
main55317-53070-C0i200808-201304
TAIWAN SPEC,BLACK,TRIM1#,2#
main55317-53070-C0i200808-201304
CHILE SPEC,BLACK,TRIM1#,2#
main55317-53070-C0i200808-201304
BLACK,TRIM1#,2#
main55317-53070-C0i200508-200808
BLACK,TRIM0#,1#,2#
main55317-53070-E0i200808-201304
ORCHID BROWN,TRIM0#
main55317-53070-E0i200808-201304
TAIWAN SPEC,ORCHID BROWN,TRIM0#
main55317-53070-E0i200808-201304
CHILE SPEC,ORCHID BROWN,TRIM0#
main55317-53080-C0i200808-201304
BLACK,TRIM1#,2#
main55317-53080-C0i200508-200808
BLACK,TRIM0#,1#,2#
main55317-53080-E0i200808-201304
ORCHID BROWN,TRIM0#
55318CPANEL, INSTRUMENT SIDE, LH
main55318-53040-C0i200808-201304
NEW ZEALAND SPEC,BLACK,TRIM1#,2#
main55318-53040-C0i200508-200808
BLACK,TRIM0#,1#,2#
main55318-53040-C0i200508-200808
NEW ZEALAND SPEC,BLACK,TRIM0#,1#,2#
main55318-53040-C0i200508-200808
AUSTRALIA SPEC,BLACK,TRIM0#,1#,2#
main55318-53040-C0i200808-201304
BLACK,TRIM1#,2#
main55318-53040-C0i200808-201304
HONG KONG SPEC,BLACK,TRIM1#,2#
main55318-53040-C0i200808-201304
SINGAPORE SPEC,BLACK,TRIM1#,2#
main55318-53040-C0i200808-201304
THAILAND SPEC,BLACK,TRIM1#,2#
main55318-53040-C0i200808-201304
AUSTRALIA SPEC,BLACK,TRIM1#,2#
main55318-53040-C0i200808-201008
SOUTH AFRICA SPEC,BLACK,TRIM1#,2#
main55318-53040-C0i200808-201304
MALAYSIA SPEC,BLACK,TRIM1#,2#
main55318-53040-E0i200808-201304
MALAYSIA SPEC,ORCHID BROWN,TRIM0#
main55318-53040-E0i200808-201304
NEW ZEALAND SPEC,ORCHID BROWN,TRIM0#
main55318-53040-E0i200808-201304
HONG KONG SPEC,ORCHID BROWN,TRIM0#
main55318-53040-E0i200808-201304
SINGAPORE SPEC,ORCHID BROWN,TRIM0#
main55318-53040-E0i200808-201304
THAILAND SPEC,ORCHID BROWN,TRIM0#
main55318-53040-E0i200808-201304
AUSTRALIA SPEC,ORCHID BROWN,TRIM0#
main55318-53040-E0i200808-201008
SOUTH AFRICA SPEC,ORCHID BROWN,TRIM0#
main55318-53040-E0i200808-201304
ORCHID BROWN,TRIM0#
main55318-53050-C0i200508-200808
BLACK,TRIM0#,1#,2#
main55318-53050-C0i200808-201304
BLACK,TRIM1#,2#
main55318-53050-E0i200808-201304
ORCHID BROWN,TRIM0#
55328PIN, INSTRUMENT PANEL, NO.1
main55328-30140i200508-201008
55328ASTAY, INSTRUMENT PANEL, NO.3
main55328-30160i200508-200707
sub55328-50170
main55328-48110i201010
main55328-50170i200708-201009
55330BREINFORCEMENT ASSY, INSTRUMENT PANEL
main55330-53040i200602-200603
sub55330-53041
main55330-53041i200604-200704
sub55330-53240
main55330-53060i200602-200603
sub55330-53061
main55330-53061i200604-200704
sub55330-53260
main55330-53080i200509-200603
sub55330-53081
main55330-53081i200604-200907
sub55330-53280
main55330-53090i200508-200603
sub55330-53091
main55330-53091i200604-200907
sub55330-53290
main55330-53100i200509-200603
sub55330-53101
main55330-53101i200604-200907
sub55330-53300
main55330-53110i200508-200603
sub55330-53111
main55330-53111i200604-200907
sub55330-53310
main55330-53280i200908-201208
main55330-53290i200908-201008
main55330-53300i200908-201208
main55330-53310i200908-201008
55345ACLIP, INSTRUMENT PANEL, NO.1
main55345-30050i200508-200707
sub55345-30060
main55345-30060i200708-201008
55355CUSHION, INSTRUMENT PANEL, NO.1
main55355-30060i200508-200803
main55355-30100i200804-201304
55356CCUSHION, INSTRUMENT PANEL, NO.2
main55355-53040i200511-201008
55374CBRACKET, INSTRUMENT PANEL LOWER MOUNTING, NO.1
main55374-53010i200508-201008
main55374-53020i200508-201008
55375BBRACKET, INSTRUMENT PANEL LOWER MOUNTING, NO.2
main55375-53040i200508-201008
main55375-53050i200508-201008
55394BBOLT, INSTRUMENT PANEL
main55394-30021i200605-201008
main55394-53010i200508-200604
sub55394-30021
55394CBOLT, INSTRUMENT PANEL
main55394-33041i200808-201008
main55394-51011i200605-200808
main55394-53020i200508-200604
sub55394-33041
55401EPAD SUB-ASSY, INSTRUMENT PANEL SAFETY
main55400-53901i200508-200612
sub55400-53903
main55400-53902i200508-200612
sub55400-53904
main55400-53903i200701-200801
sub55400-53905
sub55315-53010
sub55355-53050
sub90179-06323
sub90183-05094
main55400-53904i200701-200801
sub55400-53906
sub55315-53010
sub55355-53050
sub90179-06323
sub90183-05094
main55400-53905-C0i200808-201304
BLACK,TRIM1#,2#
sub55400-53905
main55400-53905-C0i200801-200808
BLACK,TRIM0#,1#,2#
sub55400-53905
main55400-53905-E0i200808-201304
ORCHID BROWN,TRIM0#
sub55400-53905
main55400-53906-C0i200808-201304
BLACK,TRIM1#,2#
sub55400-53906
sub55400-53909
main55400-53906-C0i200801-200808
BLACK,TRIM0#,1#,2#
sub55400-53906
sub55400-53909
main55400-53906-E0i200808-201304
ORCHID BROWN,TRIM0#
sub55400-53906
sub55400-53909
55416ARETAINER, METER HOOD, NO.1
main55416-30150i200508-201008
55417ARETAINER, METER HOOD, NO.2
main55417-30070i200508-201008
55458ACAP, INSTRUMENT PANEL SAFETY PAD
main55458-50100i200605-201008
55962NOZZLE, SIDE DEFROSTER, NO.2
main55962-53010-C0i200508-200808
BLACK,TRIM0#,1#,2#
main55962-53010-C0i200808-201304
BLACK,TRIM1#,2#
main55962-53010-E0i200808-201304
ORCHID BROWN,TRIM0#
main55962-53020-C0i200808-201304
BLACK,TRIM1#,2#
main55962-53020-C0i200508-200808
BLACK,TRIM0#,1#,2#
main55962-53020-E0i200808-201304
ORCHID BROWN,TRIM0#
55981GARNISH, DEFROSTER NOZZLE, NO.1
main55981-53010-C0i200508-200808
BLACK,TRIM0#,1#,2#
main55981-53010-C0i200808-201304
BLACK,TRIM1#,2#
main55981-53010-E0i200808-201304
ORCHID BROWN,TRIM0#
69065CYLINDER SUB-ASSY, AIRBAG CUT OFF SW
main69065-12460i201208
SOUTH AFRICA SPEC
main69065-47040i200912-201208
sub69065-12460
main69065-53010i200508-200911
sub69065-12460
73900AIRBAG ASSY, INSTRUMENT PANEL, LOWER NO.1
main73900-53010-A0i200508-200808
IVORY,TRIM0#
sub73900-53010
main73900-53010-A1i200808-201304
ECRU,TRIM0#
sub73900-53010
main73900-53010-B0i200508-200808
FROSTY GRAY,TRIM1#
sub73900-53010
main73900-53010-B1i200808-201304
LT.GRAY,TRIM1#
sub73900-53010
main73900-53010-C0i200508-201304
BLACK,TRIM2#
sub73900-53010
main73900-53020-A0i200508-200808
IVORY,TRIM0#
sub73900-53020
main73900-53020-A1i200808-201304
ECRU,TRIM0#
sub73900-53020
main73900-53020-B0i200508-200808
FROSTY GRAY,TRIM1#
sub73900-53020
main73900-53020-B1i200808-201304
LT.GRAY,TRIM1#
sub73900-53020
main73900-53020-C0i200508-201304
BLACK,TRIM2#
sub73900-53020
73960AAIRBAG ASSY, INSTRUMENT PANEL PASSENGER W/O DOOR
main73960-53010i200508-201304
sub73960-53011
main73960-53020i200508-200902
sub73960-53060
main73960-53060i200903-201304
sub73960-53190
73990AIRBAG ASSY, INSTRUMENT PANEL, LOWER NO.2
main73990-53010-A0i200508-200808
IVORY,TRIM0#
sub73990-53010
main73990-53010-A1i200808-201304
ECRU,TRIM0#
sub73990-53010
main73990-53010-B0i200508-200808
FROSTY GRAY,TRIM1#
sub73990-53010
main73990-53010-B1i200808-201304
LT.GRAY,TRIM1#
sub73990-53010
main73990-53010-C0i200508-201304
BLACK,TRIM2#
sub73990-53010
main73990-53020-A0i200508-200808
IVORY,TRIM0#
sub73990-53020
main73990-53020-A1i200808-201304
ECRU,TRIM0#
sub73990-53020
main73990-53020-B0i200508-200808
FROSTY GRAY,TRIM1#
sub73990-53020
main73990-53020-B1i200808-201304
LT.GRAY,TRIM1#
sub73990-53020
main73990-53020-C0i200508-201304
BLACK,TRIM2#
sub73990-53020
8202
9011906951
main90119-06951
9011908225
main90119-08225
9015950327
main90159-50327
9017906274
main90179-06274
9017906292
main90179-06292
9017906323
main90179-06323
9018305094
main90183-05094
9090119031
main90901-19031
9155380614
main91553-80614
91621J0814
main91621-J0814
9163160816
main91631-60816
9356855014
main93568-55014

37 parts on this diagram · 15 diagrams in section
