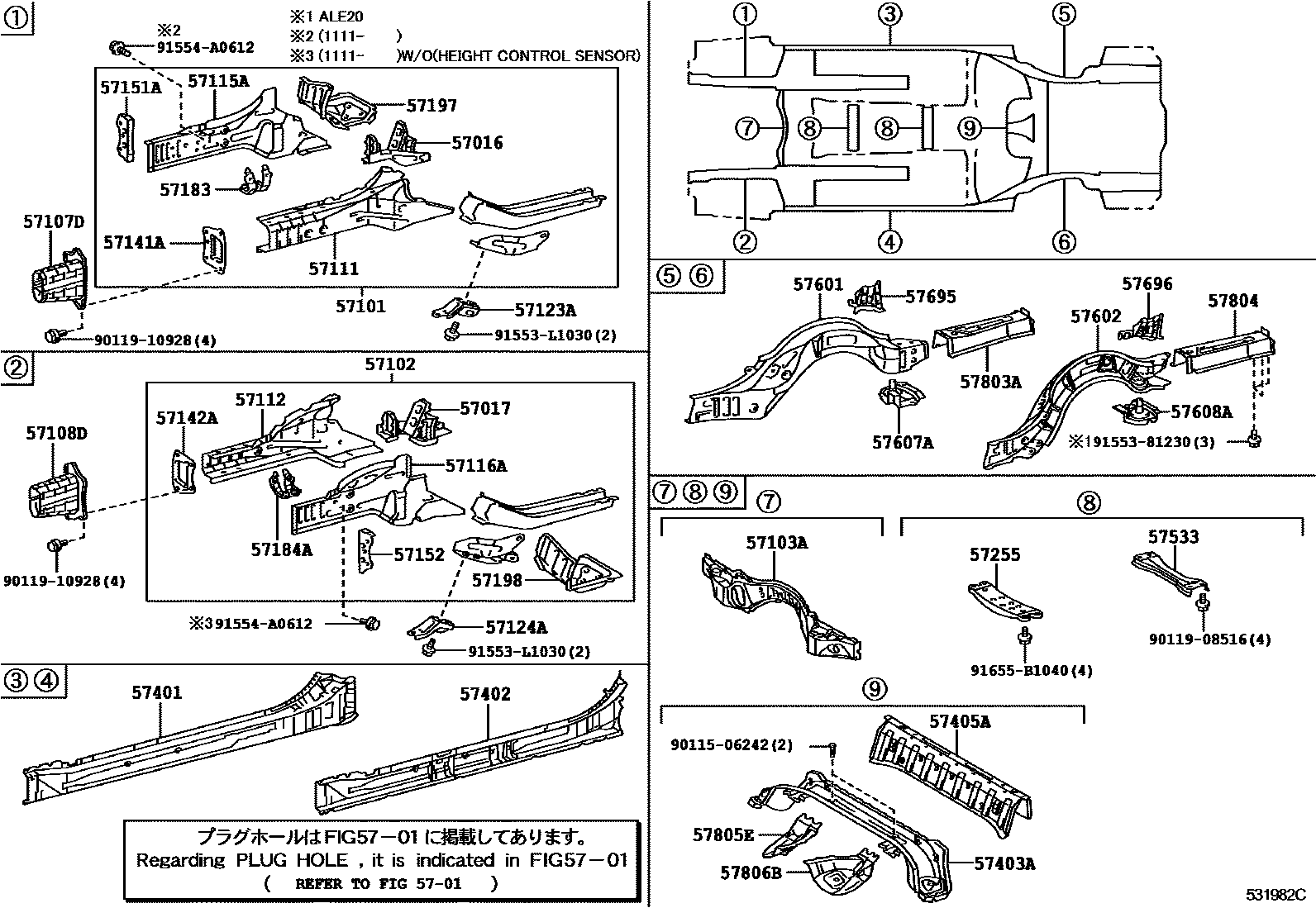

FLOOR SIDE MEMBER

5701

57016REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, RH

main57016-30040iALE20..RHD..SPO200508-201304

57017REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, LH

main57017-30040iALE20,GSE20200508-201304

57101MEMBER SUB-ASSY, FRONT SIDE, RH

main57101-30163iALE20,GSE20200508-201304

57102MEMBER SUB-ASSY, FRONT SIDE, LH

main57102-30143iALE20,GSE20200508-201304

57103ACROSSMENBER SUB-ASSY, FLOOR, NO.3

main57103-30021iALE20..RHD..SPO200508-201205

sub57103-30022

main57103-30022iALE20,GSE2#..RHD201206

main57103-30030iALE20,GSE20..LHD200508-201205

sub57103-30031

main57103-30031iALE20,GSE20..LHD201206

57107DREINFORCE SUB-ASSY, FRONT BUMPER MOUNTING, RH

main57107-53010iALE20,GSE2#200508-201008

57108DREINFORCE SUB-ASSY, FRONT BUMPER MOUNTING, LH

main57108-53010iALE20,GSE20200508-200908

sub57108-53011

main57108-53011iALE20,GSE20200909-201304

sub57108-53012

57111MEMBER, FRONT SIDE, RH

main57111-30082iALE20,GSE20200508-201304

57112MEMBER, FRONT SIDE, LH

main57112-30082iALE20..RHD..SPO200508-201304

57115APLATE, FRONT SIDE MEMBER, OUTER RH

main57115-30060iALE20,GSE20200508-201304

57116APLATE, FRONT SIDE MEMBER, OUTER LH

main57116-30030iALE20,GSE20200508-201304

57123AREINFORCEMENT, STRUT BAR BRACKET, RH

main57305-30010iALE20,GSE20200508-201008

57124AREINFORCEMENT, STRUT BAR BRACKET, LH

main57306-30010iALE20,GSE20200508-201008

57141ASUPPORT, FRONT BUMPER ARM, RH

main57141-30040iALE20,GSE20200508-201304

57142ASUPPORT, FRONT BUMPER ARM, LH

main57142-30040iALE20,GSE20200508-201304

57151AREINFORCEMENT, FRONT SIDE MEMBER, NO.1 RH

main57151-30040iALE20,GSE20200508-201304

57152REINFORCEMENT, FRONT SIDE MEMBER, NO.1 LH

main57152-30040iALE20,GSE20200508-201304

57183PLATE, FRONT SIDE MEMBER, NO.4 RH

main57183-30030iALE20,GSE20200508-201304

57184APLATE, FRONT SIDE MEMBER, NO.4 LH

main57184-30020iALE20..LHD..SPO;ALE20,GSE20..LUX200508-201304

57197BOX, TORQUE, FRONT RH

main57197-30040iALE20,GSE20200508-201304

57198BOX, TORQUE, FRONT LH

main57198-30041iALE20,GSE20200508-201304

57255MEMBER, ENGINE REAR MOUNTING

main57255-30130iALE20,GSE20200508-201008

57401MEMBER SUB-ASSY, MAIN FLOOR SIDE, RH

main57401-53020iALE20,GSE20200508-201105

sub57401-53021

main57401-53021iALE20,GSE2#201106

57402MEMBER SUB-ASSY, MAIN FLOOR SIDE, LH

main57402-53020iALE20,GSE20200508-201105

sub57402-53021

main57402-53021iALE20,GSE2#201106

57403AMEMBER SUB-ASSY, CENTER FLOOR CROSS, NO.3

main57430-30011iALE20,GSE20200508-201211

main57430-30012iGSE2#201211-201304

57405AMEMBER SUB-ASSY, CENTER FLOOR CROSS, NO.2

main57405-30050iALE20,GSE20200508-201008

57533BRACE, FRONT FLOOR, CENTER

main57533-30050iALE20,GSE20200508-201008

57601MEMBER SUB-ASSY, REAR FLOOR SIDE, RH

main57601-30917iALE20,GSE20200508-201208

sub57601-30922

main57601-30922iGSE2#201209

57602MEMBER SUB-ASSY, REAR FLOOR SIDE, LH

main57602-30928iALE20,GSE20200508-201208

sub57602-30934

main57602-30934iGSE2#201209

57607AMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.3

main57607-53020iALE20,GSE20200508-201008

57608AMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.4

main57608-53030iALE20,GSE20200508-201008

57695EXTENSION, REAR FLOOR CROSS REAR SIDE, RH

main57695-22020iALE20,GSE20200508-200902

main57695-53030iALE20..RHD..SPO200902-201008

57696EXTENSION, REAR FLOOR CROSS REAR SIDE, LH

main57696-22020iALE20,GSE20200508-200902

main57696-53020iALE20..RHD..SPO200902-201008

57803AREINFORCEMENT SUB-ASSY, REAR FLOOR SIDE MEMBER, REAR RH

main57803-53030iALE20,GSE20200508-201008

57804REINFORCEMENT SUB-ASSY, REAR FLOOR SIDE MEMBER, REAR LH

main57804-53030iALE20,GSE20200508-201008

57805EREINFORCEMENT SUB-ASSY, BELT ANCHOR, RH

main57805-30060iALE20,GSE20200508-201008

57806BREINFORCEMENT SUB-ASSY, BELT ANCHOR, LH

main57806-30050iALE20,GSE20200508-201008

9011506242

main90115-06242

9011908516

main90119-08516

9011910928

main90119-10928

9155381230

main91553-81230

91553L1030

main91553-L1030

91554A0612

main91554-A0612

91655B1040

main91655-B1040

45 parts on this diagram · 1 diagram in section
