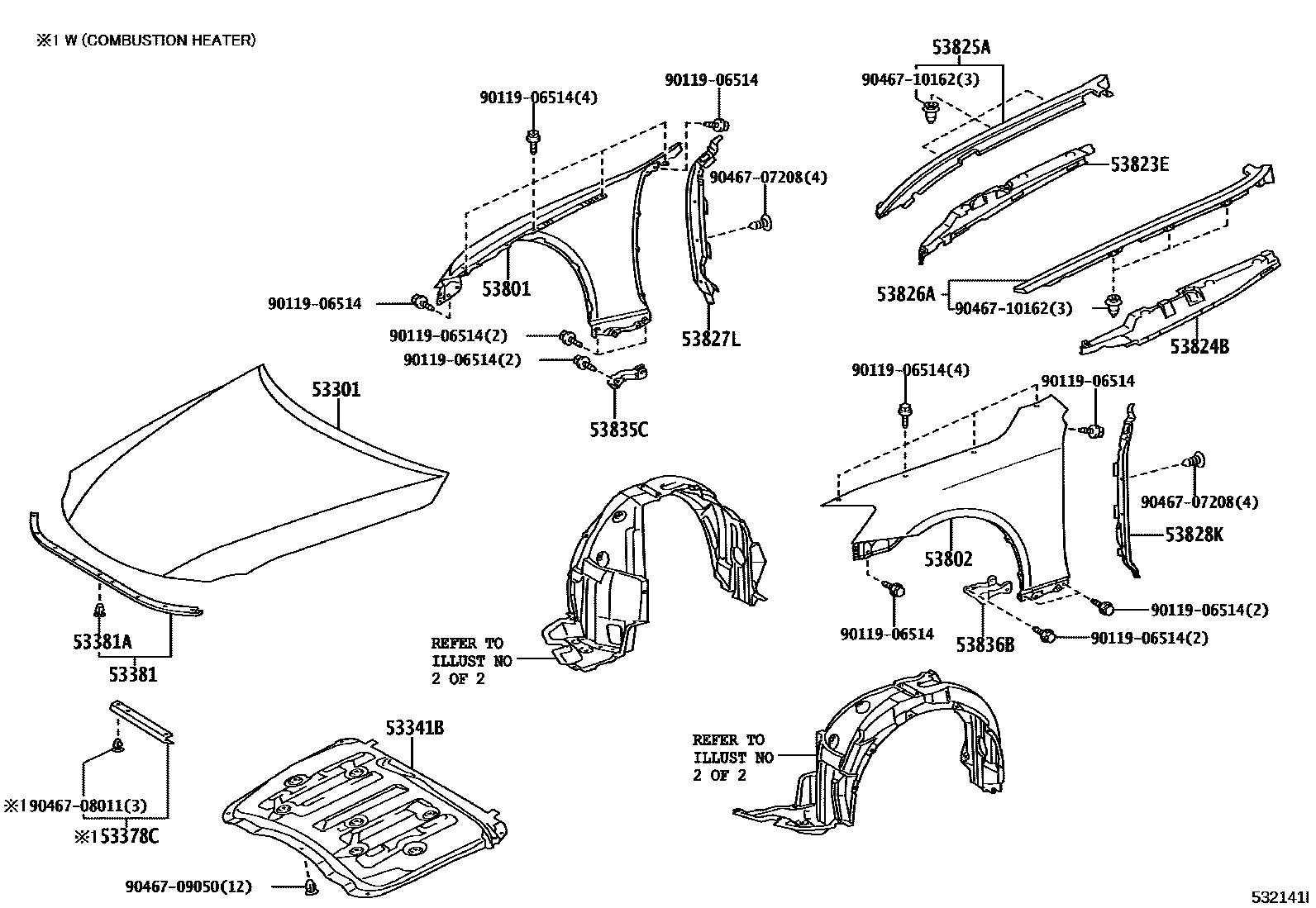

HOOD & FRONT FENDER

0001 1 0002 1

53301HOOD SUB-ASSY

main53301-53030iALE20,GSE20200508-201304

53341BINSULATOR, HOOD

main53341-53030iALE20,GSE20200508-201008

53378CSEAL, HOOD AIR INTAKE DUCT

53381SEAL, HOOD TO RADIATOR SUPPORT

main53381-53020iALE20..LHD..SPO;ALE20,GSE20..LUX200508-201008

53381ACLIP(FOR HOOD TO RADIATOR SUPPORT SEAL)

main90467-08011iALE20,GSE20200508-201008

53801FENDER SUB-ASSY, FRONT RH

main53801-53050iALE20,GSE20200508-200808

main53801-53060iALE20,GSE20200808-201304

53802FENDER SUB-ASSY, FRONT LH

main53802-53050iALE20,GSE20200508-200808

main53802-53060iALE20,GSE20200808-201304

53823EPROTECTOR, FRONT SIDE PANEL, NO.2 RH

main53823-53010iALE20,GSE20200508-201008

53824BPROTECTOR, FRONT SIDE PANEL, NO.2 LH

main53824-53010iALE20,GSE20200508-201008

53825APROTECTOR, FRONT FENDER, UPPER RH

main53807-53010iGSE20200508-200511

sub53807-53011

main53807-53011iALE20..RHD..SPO200512-201008

53826APROTECTOR, FRONT FENDER, UPPER LH

main53808-53010iGSE20200508-200511

sub53808-53011

main53808-53011iALE20,GSE20200512-201008

53827LPROTECTOR, FRONT FENDER SIDE PANEL, RH

main53827-53020iALE20,GSE20200508-201008

53828KPROTECTOR, FRONT FENDER SIDE PANEL, LH

main53828-53020iALE20,GSE20200508-201008

53835CBRACKET, FRONT SIDE PANEL, RH

main53835-53010iALE20,GSE20200508-201008

53836BBRACKET, FRONT SIDE PANEL, LH

main53836-53010iALE20,GSE20200508-201008

9011906514

main90119-06514

9046707208

main90467-07208

9046708011

main90467-08011

9046709050

main90467-09050

9046710162

main90467-10162

20 parts on this diagram · 2 diagrams in section
