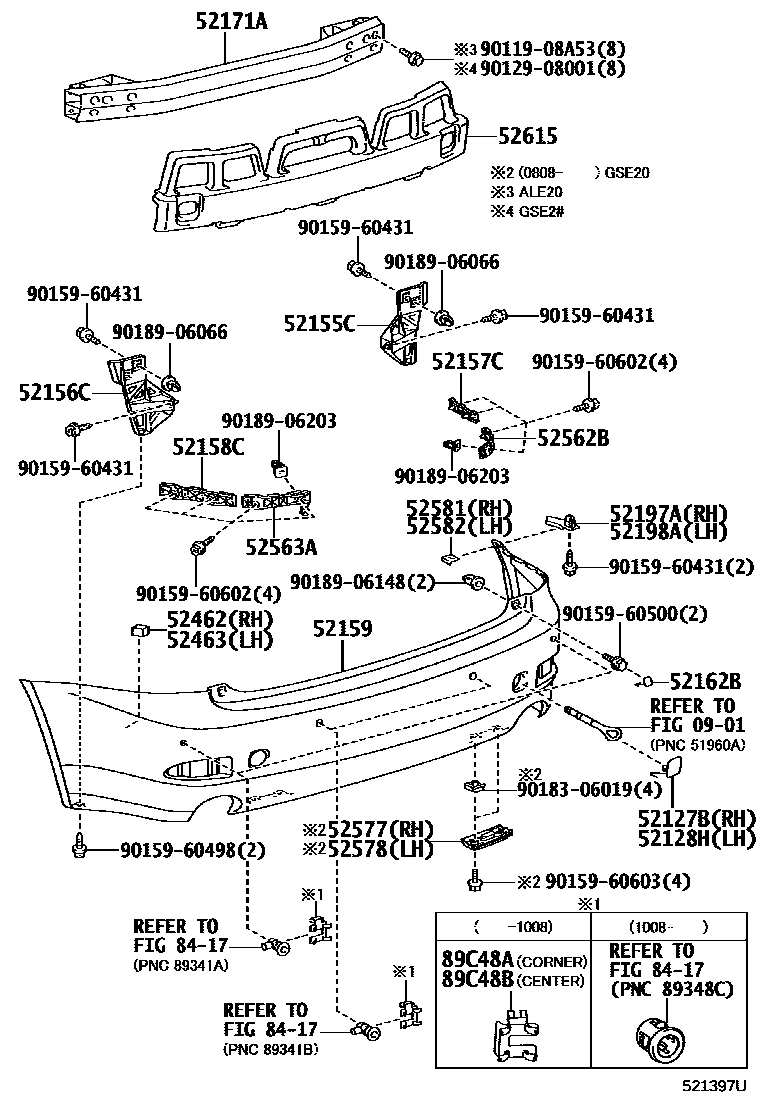

REAR BUMPER & BUMPER STAY
0901
52127BCOVER, REAR BUMPER HOLE, RH
52128HCOVER, REAR BUMPER HOLE, LH
52155CSUPPORT, REAR BUMPER SIDE, NO.1 RH
52156CSUPPORT, REAR BUMPER SIDE, NO.1 LH
52157CSUPPORT, REAR BUMPER SIDE, NO.2 RH
52158CSUPPORT, REAR BUMPER SIDE, NO.2 LH
52159COVER, REAR BUMPER
PAINT REQ.
PAINT REQ.
PAINT REQ.
52162BPLATE, REAR BUMPER, NO.1
52171AREINFORCEMENT, REAR BUMPER, NO.1
52197ABRACKET, REAR BUMPER SEAL, RH
52198ABRACKET, REAR BUMPER SEAL, LH
52462PAD, REAR BUMPER, RH
52463PAD, REAR BUMPER, LH
52562BRETAINER, REAR BUMPER, UPPER RH
52563ARETAINER, REAR BUMPER, UPPER LH
52577RETAINER, REAR BUMPER SIDE, NO.2 RH
52578RETAINER, REAR BUMPER SIDE, NO.2 LH
52581PROTECTOR, REAR BUMPER, RH
52582PROTECTOR, REAR BUMPER, LH
8417
89C48ARETAINER, ULTRASONIC SENSOR, REAR CORNER
89C48BRETAINER, ULTRASONIC SENSOR, REAR CENTER
9011908A53
main90119-08A53
9012908001
main90129-08001
9015960431
main90159-60431
9015960498
main90159-60498
9015960500
main90159-60500
9015960602
main90159-60602
9015960603
main90159-60603
9018306019
main90183-06019
9018906066
main90189-06066
9018906148
main90189-06148
9018906203
main90189-06203
35 parts on this diagram · 1 diagram in section
