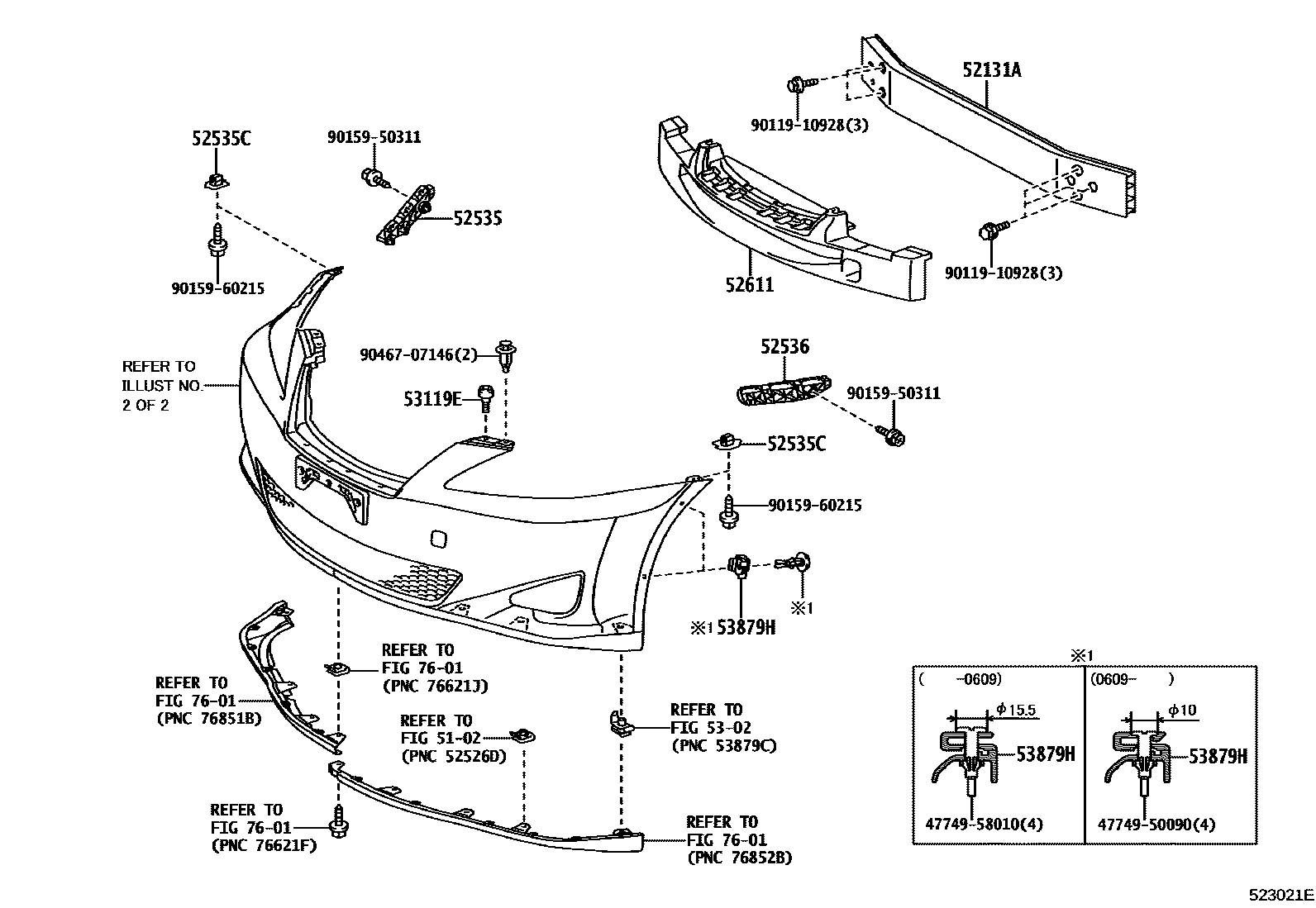

FRONT BUMPER & BUMPER STAY

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1

5102

52131AREINFORCEMENT, FRONT BUMPER

main52131-53040iALE20,GSE20200508-201304

52535RETAINER, FRONT BUMPER SIDE, RH

main52535-53010iALE20,GSE20200508-200802

sub52535-53011

main52535-53011iALE20,GSE20200803-201304

52535CRETAINER, FRONT BUMPER SIDE

main52535-50060iALE20,GSE20200508-201304

52536RETAINER, FRONT BUMPER SIDE, LH

main52536-53010iALE20,GSE20200508-200802

sub52536-53011

main52536-53011iALE20,GSE20200803-201304

52611ABSORBER, FRONT BUMPER ENERGY

main52611-53050iALE20,GSE20200508-200808

main52611-53090iALE20..RHD..SPO200808-201008

main52611-53130iALE20,GSE2#201008-201304

5302

53119EPROTECTOR, RADIATOR GRILLE

main53119-53020iALE20,GSE20200508-200606

sub53119-53021

main53119-53021iALE20,GSE2#200606-201304

53879HRETAINER, FRONT FENDER LINER

main53879-50020iALE20,GSE2#200609-201304

main53879-58010iALE20,GSE20200508-200609

7601

4774950090CLIP, PIN HOLD

main47749-50090

4774958010CLIP, PIN HOLD

main47749-58010

9011910928

main90119-10928

9015950311

main90159-50311

9015960215

main90159-60215

9046707146

main90467-07146

16 parts on this diagram · 6 diagrams in section
