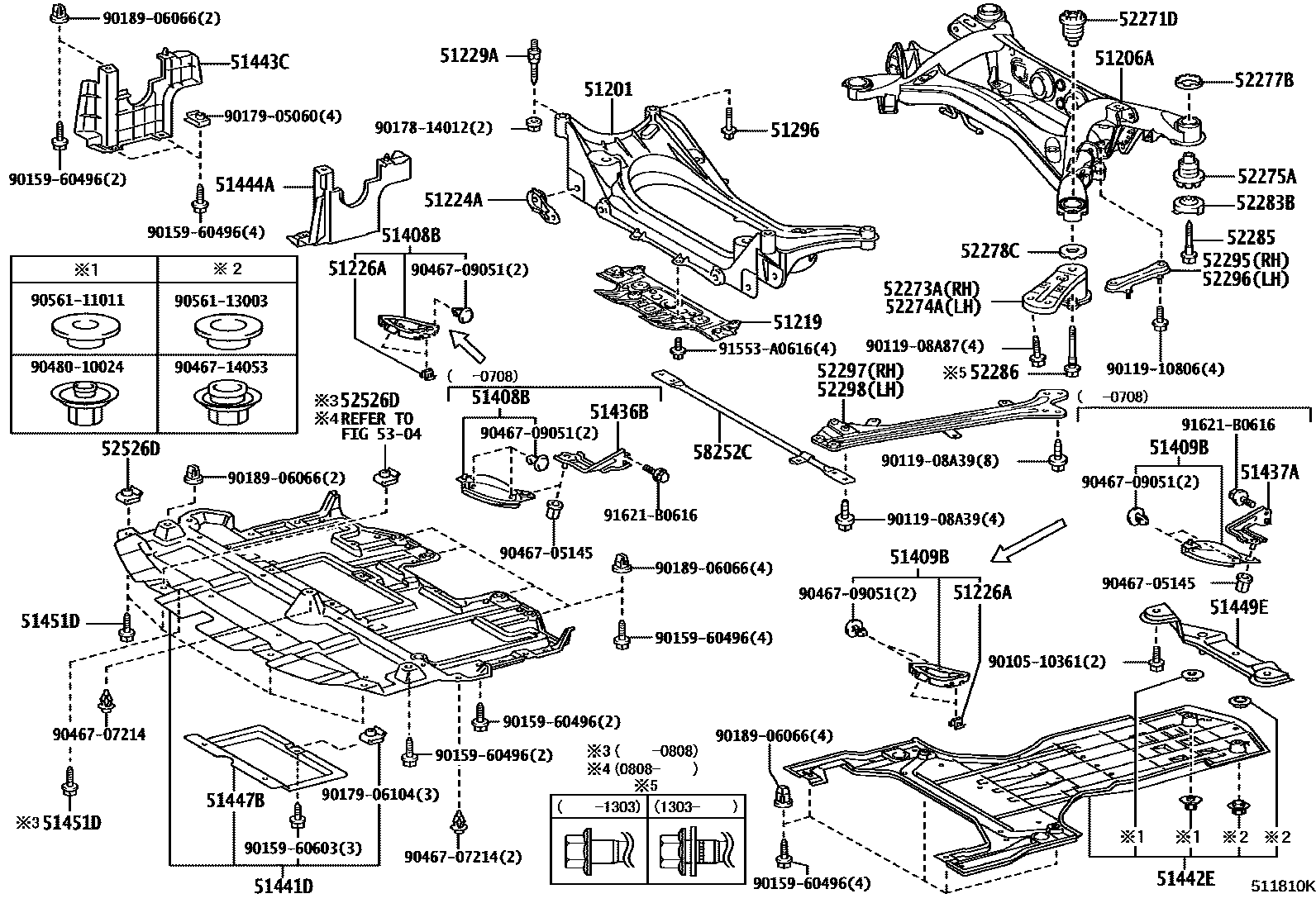

SUSPENSION CROSSMEMBER & UNDER COVER

0001 1 0003 1

51201CROSSMEMBER SUB-ASSY, FRONT SUSPENSION

main51201-30130iALE20..LHD..SPO;ALE20,GSE20..LUX200508-201011

sub51201-30140

main51201-30140iALE20,GSE2#201012

51206AMEMBER SUB-ASSY, REAR SUSPENSION

main51206-30080iGSE20200508-200812

sub51206-30081

main51206-30081iGSE20200901-201008

sub51206-30082

main51206-30100iALE20200511-200812

sub51206-30101

main51206-30101iALE20..RHD..SPO200901-201008

sub51206-30160

51219PROTECTOR, FRONT SUSPENSION MEMBER, LWR

main51219-30031iALE20,GSE2#200508-201008

51224APLATE, FRONT SUSPENSION MENBER BRACE

main51224-30030iALE20,GSE20200508-201008

51226ABRACKET, FRONT SUSPENSION MEMBER, LH

main51226-30020iALE20,GSE20200709-201008

51229ABOLT, FRONT SUSPENSION MEMBER MOUNTING

main90951-01004iALE20,GSE20200508-201111

main90951-01006iALE20,GSE2#201111

51296BOLT, FRONT SUSPENSION MEMBER MOUNTING

main90119-16013iALE20,GSE20200508-201111

main90119-16021iALE20,GSE2#201111

51408BCOVER SUB-ASSY, ENGINE UNDER, RH

main51408-30050iALE20,GSE20200508-200708

main51408-30060iALE20,GSE20200709-201008

51409BCOVER SUB-ASSY, ENGINE UNDER, LH

main51409-30050iALE20,GSE20200508-200708

main51409-30060iALE20,GSE20200709-201008

51436BBRACKET, ENGINE SIDE COVER, NO.1 RH

main51436-30030iALE20,GSE20200508-200709

51437ABRACKET, ENGINE SIDE COVER, NO.1 LH

main51437-30010iALE20,GSE20200508-200709

51441DCOVER, ENGINE UNDER

main51410-53060iALE20,GSE20200508-200808

main51410-53090iGSE20..ATM200808-200909

sub51410-53091

main51410-53091iGSE20..ATM200908-201008

main51410-53120iALE20,GSE2#201008

51442ECOVER, ENGINE UNDER, NO.2

main51442-30150iALE20,GSE20200508-200907

sub51442-30151

main51442-30151iALE20,GSE20200908-201106

sub51442-30152

main51442-30152iGSE2#201106-201208

main51442-30181iGSE2#201108

51443CCOVER, ENGINE UNDER, REAR RH

main51443-30140iALE20,GSE20200508-200907

sub51443-30141

main51443-30141iALE20,GSE20200908-201008

51444ACOVER, ENGINE UNDER, REAR LH

main51444-30170iALE20,GSE20200508-200907

sub51444-30171

main51444-30171iALE20,GSE20200908-201008

51447BPROTECTOR, OIL PAN

main51447-53010iALE20,GSE20200508-200910

sub51447-53011

main51447-53011iGSE20..ATM200908-201008

51449EBRACKET, ENGINE UNDER COVER AIR GUIDE

main51449-53010iALE20,GSE20..MTM200509-200709

sub51449-53050

main51449-53030iGSE20..ATM200508-201108

main51449-53050iALE20,GSE20..MTM200710-201208

51451DSCREW, NO.1

main90159-60477iALE20,GSE20200508-201304

52271DCUSHION, REAR SUSPENSION MEMBER BODY MOUNTING, FRONT

main52271-30120iALE20,GSE2#200808-201008

main52271-53030iALE20,GSE20200508-200808

52273ASTOPPER, REAR SUSPENSION MEMBER, LOWER RH

main52203-30070iALE20..RHD..SPO200808-201008

main52203-53020iALE20,GSE20200508-200808

52274ASTOPPER, REAR SUSPENSION MEMBER, LOWER LH

main52204-30050iALE20..RHD..SPO200808-201008

main52204-53020iALE20,GSE20200508-200808

52275ACUSHION, REAR SUSPENSION MEMBER BODY MOUNTING, REAR

main52275-30130iALE20..LHD..SPO;ALE20,GSE20..LUX200808-201008

main52275-53030iALE20,GSE20200508-200808

52277BSTOPPER, REAR SUSPENSION MEMBER, REAR UPPER

main52277-30060iALE20..RHD..SPO200808-201003

sub52277-30070

main52277-30060iALE20,GSE20201003-201008

*258

sub52277-30070

main52277-30070iALE20,GSE2#201003-201008

*259

main52277-53020iALE20,GSE20200508-200808

52278CSTOPPER, REAR SUSPENSION MEMBER, REAR LOWER

main52278-30050iALE20,GSE20201003-201008

*258

sub52278-30080

main52278-30050iALE20..RHD..SPO200808-201003

sub52278-30080

main52278-30080iALE20,GSE2#201003-201008

*259

main52278-53020iALE20,GSE20200508-200808

52283BSTOPPER, DIFFERENTIAL SUPPORT MEMBER, LOWER

main52283-30060iALE20,GSE20200508-201008

52285BOLT, DIFFERENTIAL SUPPORT MEMBER MOUNTING, NO.1

main52285-30021iALE20,GSE20200508-201207

main90119-14154iALE20,GSE2#201207

52286BOLT, DIFFERENTIAL SUPPORT MEMBER MOUNTING, NO.2

main52286-53020iALE20,GSE20200508-201008

main52286-53020iALE20,GSE2#201008-201303

REFER ILLUST.

main90119-14148iGSE2#201303-201304

REFER ILLUST.

52295BRACE, REAR SUSPENSION MEMBER, RH

main52295-30030iALE20,GSE20200508-201008

52296BRACE, REAR SUSPENSION MEMBER, LH

main52295-30030iALE20,GSE20200508-201008

52297BRACE, REAR SUSPENSION MEMBER, REAR LOWER RH

main52297-53030iALE20,GSE20200508-201008

52298BRACE, REAR SUSPENSION MEMBER, REAR LOWER LH

main52298-53030iALE20,GSE20200508-201008

52526DRETAINER, FRONT BUMPER, LOWER

main52526-53020iALE20,GSE20200508-201304

5304

58252CBRACE, FLOOR PANEL, REAR NO.1

main58252-53010iALE20,GSE20200508-201008

9010510361

main90105-10361

9011908A39

main90119-08A39

9011908A87

main90119-08A87

9011910806

main90119-10806

9015960496

main90159-60496

9015960603

main90159-60603

9017814012

main90178-14012

9017905060

main90179-05060

9017906104

main90179-06104

9018906066

main90189-06066

9046705145

main90467-05145

9046707214

main90467-07214

9046709051

main90467-09051

9046714053

main90467-14053

9048010024

main90480-10024

9056111011

main90561-11011

9056113003

main90561-13003

91553A0616

main91553-A0616

91621B0616

main91621-B0616

53 parts on this diagram · 2 diagrams in section
