REAR SPRING & SHOCK ABSORBER

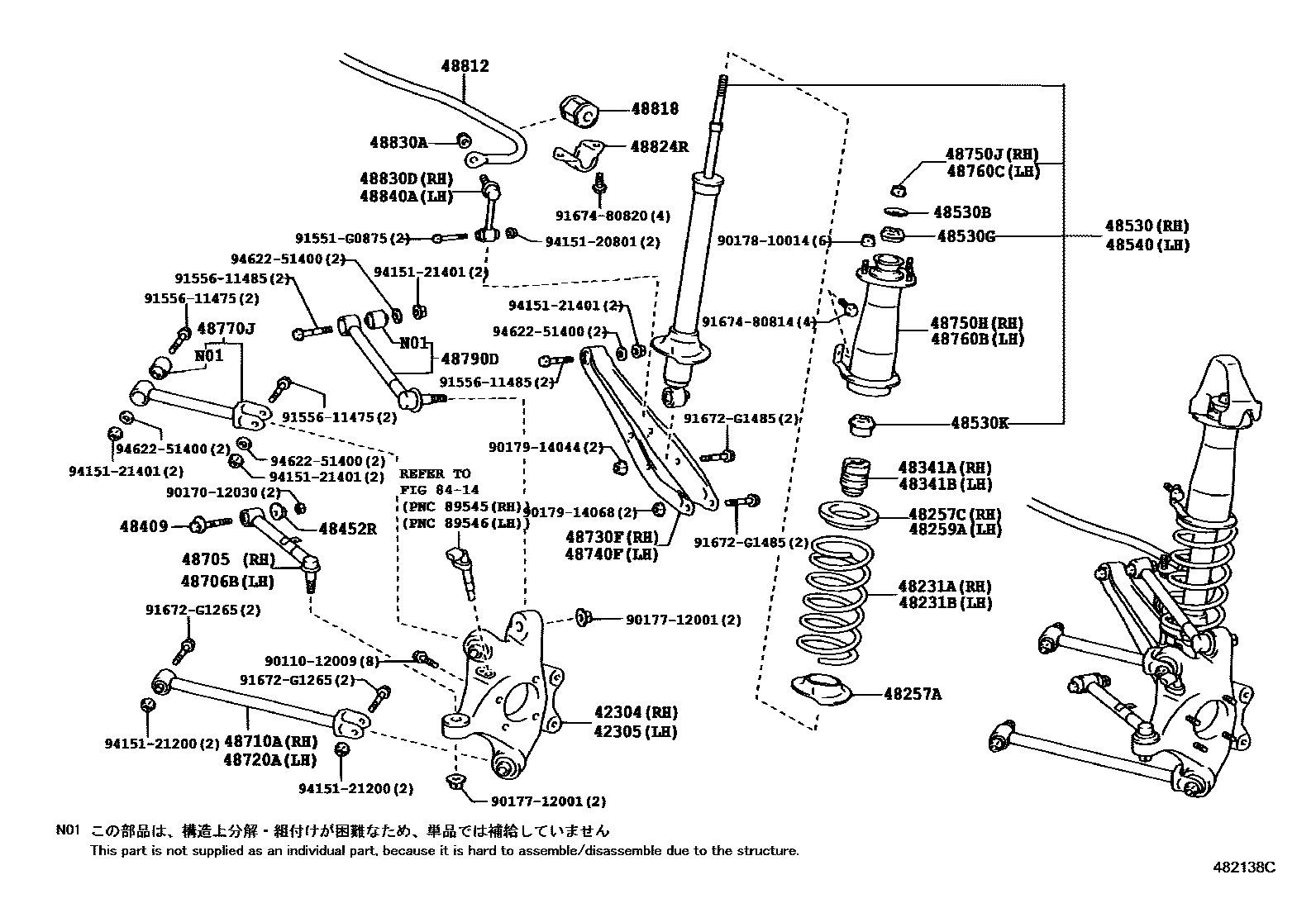

Parts diagram
42304CARRIER SUB-ASSY, REAR AXLE, RH
main42304-30090i200508-201212
sub42304-30110
main42304-53030i201212-201304
sub42304-30150
42305CARRIER SUB-ASSY, REAR AXLE, LH
main42305-30090i200508-201212
sub42305-30110
main42305-53030i201212-201304
sub42305-30150
48231ASPRING, COIL, REAR RH
main48231-53181i201008
TIRE & DISC WHEEL-225/40R18+255/40R18,SUMMER TIRE,ALUMI
main48231-53181i201008
SINGAPORE SPEC&TIRE & DISC WHEEL-225/45R17+245/45R17,GEN
main48231-53181i201008
THAILAND SPEC&TIRE & DISC WHEEL-225/45R17+245/45R17,GEN
main48231-53181i201008
SOUTH AFRICA SPEC&TIRE & DISC WHEEL-225/45R17+245/45R17,GEN
main48231-53181i201008
CHILE SPEC&TIRE & DISC WHEEL-225/45R17+245/45R17,GEN
main48231-53181i201008
TIRE & DISC WHEEL-225/45R17+245/45R17,ALUMINUM
main48231-53181i201008
RUSSIA SPEC&TIRE & DISC WHEEL-225/40R18+255/40R18,SUMMER TIRE,ALUMI
main48231-53181i201008
CROATIA SPEC&TIRE & DISC WHEEL-225/40R18+255/40R18,SUMMER TIRE,ALUMI
main48231-53181i201008
HONG KONG SPEC&TIRE & DISC WHEEL-225/45R17+245/45R17,GEN
main48231-53200i200508-200704
sub48231-53201
main48231-53201i200705-200808
main48231-53201i201008
MALAYSIA SPEC&SUSPENSION-WITH(HEIGHT-UP SHOCK ABSORBER)&TIRE & DISC WHEEL-225/45R17+245/45R17,GEN
main48231-53201i201008
SOUTH AFRICA SPEC&SUSPENSION-WITH(HEIGHT-UP SHOCK ABSORBER)&TIRE & DISC WHEEL-225/40R18+255/40R18,SUMMER TIRE,ALUMI
main48231-53201i201008
UKRAINE,KAZAKHSTAN,BELARUS SPEC&SUSPENSION-WITH(HEIGHT-UP SHOCK ABSORBER)&TIRE & DISC WHEEL-225/45R17+245/45R17,GEN
main48231-53201i200808-201008
TURKEY SPEC&SUSPENTION-WITH(HEIGHT-UP SHOCK ABSORBER)&TIRE & DISC WHEEL-225/45R17+245/45R17,GENERAL COUNTRIES
main48231-53230i200511-200704
sub48231-53231
main48231-53231i200705-200908
main48231-53231i200808-201008
TURKEY SPEC&SUSPENTION-WITH(HEIGHT-UP SHOCK ABSORBER)
main48231-53231i201008-201208
TURKEY SPEC&SUSPENSION-WITH(HEIGHT-UP SHOCK ABSORBER)
48231BSPRING, COIL, REAR LH
main48231-53181i201008
SINGAPORE SPEC&TIRE & DISC WHEEL-225/45R17+245/45R17,GEN
main48231-53181i201008
RUSSIA SPEC&TIRE & DISC WHEEL-225/40R18+255/40R18,SUMMER TIRE,ALUMI
main48231-53181i201008
CROATIA SPEC&TIRE & DISC WHEEL-225/40R18+255/40R18,SUMMER TIRE,ALUMI
main48231-53181i201008
HONG KONG SPEC&TIRE & DISC WHEEL-225/45R17+245/45R17,GEN
main48231-53181i201008
THAILAND SPEC&TIRE & DISC WHEEL-225/45R17+245/45R17,GEN
main48231-53181i201008
SOUTH AFRICA SPEC&TIRE & DISC WHEEL-225/45R17+245/45R17,GEN
main48231-53181i201008
CHILE SPEC&TIRE & DISC WHEEL-225/45R17+245/45R17,GEN
main48231-53181i201008
TIRE & DISC WHEEL-225/45R17+245/45R17,ALUMINUM
main48231-53181i201008
TIRE & DISC WHEEL-225/40R18+255/40R18,SUMMER TIRE,ALUMI
main48231-53200i200508-200704
sub48231-53201
main48231-53201i201008
UKRAINE,KAZAKHSTAN,BELARUS SPEC&SUSPENSION-WITH(HEIGHT-UP SHOCK ABSORBER)&TIRE & DISC WHEEL-225/45R17+245/45R17,GEN
main48231-53201i201008
SOUTH AFRICA SPEC&SUSPENSION-WITH(HEIGHT-UP SHOCK ABSORBER)&TIRE & DISC WHEEL-225/40R18+255/40R18,SUMMER TIRE,ALUMI
main48231-53201i201008
MALAYSIA SPEC&SUSPENSION-WITH(HEIGHT-UP SHOCK ABSORBER)&TIRE & DISC WHEEL-225/45R17+245/45R17,GEN
main48231-53201i200705-200808
main48231-53201i200808-201008
TURKEY SPEC&SUSPENTION-WITH(HEIGHT-UP SHOCK ABSORBER)&TIRE & DISC WHEEL-225/45R17+245/45R17,GENERAL COUNTRIES
main48231-53230i200511-200704
sub48231-53231
main48231-53231i200705-200908
main48231-53231i201008-201208
TURKEY SPEC&SUSPENSION-WITH(HEIGHT-UP SHOCK ABSORBER)
main48231-53231i200808-201008
TURKEY SPEC&SUSPENTION-WITH(HEIGHT-UP SHOCK ABSORBER)
48257AINSULATOR, REAR COIL SPRING, LOWER
main48158-30020i200508-201008
48257CINSULATOR, REAR COIL SPRING, UPPER RH
main48257-30070i200508-201008
48259AINSULATOR, REAR COIL SPRING, UPPER LH
main48257-30070i200508-201008
48341ABUMPER, REAR SPRING, NO.1 RH
main48341-30110i201008
CROATIA SPEC&TIRE & DISC WHEEL-225/40R18+255/40R18,SUMMER TIRE,ALUMI
main48341-30110i201008
UKRAINE,KAZAKHSTAN,BELARUS SPEC&SUSPENSION-WITH(HEIGHT-UP SHOCK ABSORBER)&TIRE & DISC WHEEL-225/45R17+245/45R17,GEN
main48341-30110i201008
HONG KONG SPEC&TIRE & DISC WHEEL-225/45R17+245/45R17,GEN
main48341-30110i201008
SINGAPORE SPEC&TIRE & DISC WHEEL-225/45R17+245/45R17,GEN
main48341-30110i201008
THAILAND SPEC&TIRE & DISC WHEEL-225/45R17+245/45R17,GEN
main48341-30110i201008
SOUTH AFRICA SPEC&TIRE & DISC WHEEL-225/45R17+245/45R17,GEN
main48341-30110i201008
MALAYSIA SPEC&SUSPENSION-WITH(HEIGHT-UP SHOCK ABSORBER)&TIRE & DISC WHEEL-225/45R17+245/45R17,GEN
main48341-30110i201008
CHILE SPEC&TIRE & DISC WHEEL-225/45R17+245/45R17,GEN
main48341-30110i201008
SUSPENSION-SPORTS&TIRE & DISC WHEEL-225/40R18+255/40R18,SUMMER TIRE,ALUMI
main48341-30110i201008
TIRE & DISC WHEEL-225/45R17+245/45R17,ALUMINUM
main48341-30110i201008
TIRE & DISC WHEEL-225/40R18+255/40R18,SUMMER TIRE,ALUMI
main48341-30110i201008
RUSSIA SPEC&TIRE & DISC WHEEL-225/40R18+255/40R18,SUMMER TIRE,ALUMI
main48341-53010i200508-201008
main48341-53020i200511-201208
48341BBUMPER, REAR SPRING, NO.1 LH
main48341-30110i201008
CHILE SPEC&TIRE & DISC WHEEL-225/45R17+245/45R17,GEN
main48341-30110i201008
RUSSIA SPEC&TIRE & DISC WHEEL-225/40R18+255/40R18,SUMMER TIRE,ALUMI
main48341-30110i201008
CROATIA SPEC&TIRE & DISC WHEEL-225/40R18+255/40R18,SUMMER TIRE,ALUMI
main48341-30110i201008
UKRAINE,KAZAKHSTAN,BELARUS SPEC&SUSPENSION-WITH(HEIGHT-UP SHOCK ABSORBER)&TIRE & DISC WHEEL-225/45R17+245/45R17,GEN
main48341-30110i201008
HONG KONG SPEC&TIRE & DISC WHEEL-225/45R17+245/45R17,GEN
main48341-30110i201008
SINGAPORE SPEC&TIRE & DISC WHEEL-225/45R17+245/45R17,GEN
main48341-30110i201008
THAILAND SPEC&TIRE & DISC WHEEL-225/45R17+245/45R17,GEN
main48341-30110i201008
SOUTH AFRICA SPEC&TIRE & DISC WHEEL-225/45R17+245/45R17,GEN
main48341-30110i201008
MALAYSIA SPEC&SUSPENSION-WITH(HEIGHT-UP SHOCK ABSORBER)&TIRE & DISC WHEEL-225/45R17+245/45R17,GEN
main48341-30110i201008
SUSPENSION-SPORTS&TIRE & DISC WHEEL-225/40R18+255/40R18,SUMMER TIRE,ALUMI
main48341-30110i201008
TIRE & DISC WHEEL-225/45R17+245/45R17,ALUMINUM
main48341-30110i201008
TIRE & DISC WHEEL-225/40R18+255/40R18,SUMMER TIRE,ALUMI
main48341-53010i200508-201008
main48341-53020i200511-201208
48409CAM SUB-ASSY, REAR SUSPENSION TOE ADJUST
main48409-30020i200508-201008
48452RPLATE, REAR SUSPENSION TOE ADJUST, NO.2
main48452-30040i200508-201008
48530ABSORBER ASSY, SHOCK, REAR RH
main48530-80286i200508-200609
MARK 48530-53130
sub48530-80412
main48530-80290i200511-200609
MARK 48530-53140
sub48530-80416
main48530-80412i200609-200808
MARK 48530-53131
sub48530-80507
main48530-80416i200609-200808
MARK 48530-53141
main48530-80506i201008
MARK 48530-53240
main48530-80506i201008
MARK 48530-53240,CROATIA SPEC&TIRE & DISC WHEEL-225/40R18+255/40R18,SUMMER TIRE,ALUMI
main48530-80506i201008
MARK 48530-53240,HONG KONG SPEC&TIRE & DISC WHEEL-225/45R17+245/45R17,GEN
main48530-80506i201008
MARK 48530-53240,SINGAPORE SPEC&TIRE & DISC WHEEL-225/45R17+245/45R17,GEN
main48530-80506i201008
MARK 48530-53240,THAILAND SPEC&TIRE & DISC WHEEL-225/45R17+245/45R17,GEN
main48530-80506i201008
MARK 48530-53240,SOUTH AFRICA SPEC&TIRE & DISC WHEEL-225/45R17+245/45R17,GEN
main48530-80506i201008
MARK 48530-53240,CHILE SPEC&TIRE & DISC WHEEL-225/45R17+245/45R17,GEN
main48530-80506i201008
MARK 48530-53240,TIRE & DISC WHEEL-225/45R17+245/45R17,ALUMINUM
main48530-80506i201008
MARK 48530-53240,TIRE & DISC WHEEL-225/40R18+255/40R18,SUMMER TIRE,ALUMI
main48530-80506i201008
MARK 48530-53240,RUSSIA SPEC&TIRE & DISC WHEEL-225/40R18+255/40R18,SUMMER TIRE,ALUMI
main48530-80507i200808-201008
MARK 48530-53250
main48530-80509i200808-201208
MARK 48530-53270
main48530-80509i200808-201008
MARK 48530-53270,TURKEY SPEC&SUSPENTION-WITH(HEIGHT-UP SHOCK ABSORBER)
main48530-80509i201008-201208
MARK 48530-53270,TURKEY SPEC&SUSPENSION-WITH(HEIGHT-UP SHOCK ABSORBER)
48530BWASHER, REAR SHOCK ABSORBER CUSHION, NO.1
main90948-03021i200508-201008
48530GCUSHION, REAR SHOCK ABSORBER, NO.1
main90948-01089i200508-201008
48530KCUSHION, REAR SHOCK ABSORBER, NO.2
main90948-01090i200508-201008
48540ABSORBER ASSY, SHOCK, REAR LH
main48530-80286i200508-200609
MARK 48530-53130
sub48530-80412
main48530-80290i200511-200609
MARK 48530-53140
sub48530-80416
main48530-80412i200609-200808
MARK 48530-53131
sub48530-80507
main48530-80416i200609-200808
MARK 48530-53141
main48530-80506i201008
MARK 48530-53240,RUSSIA SPEC&TIRE & DISC WHEEL-225/40R18+255/40R18,SUMMER TIRE,ALUMI
main48530-80506i201008
MARK 48530-53240,CROATIA SPEC&TIRE & DISC WHEEL-225/40R18+255/40R18,SUMMER TIRE,ALUMI
main48530-80506i201008
MARK 48530-53240,HONG KONG SPEC&TIRE & DISC WHEEL-225/45R17+245/45R17,GEN
main48530-80506i201008
MARK 48530-53240,SINGAPORE SPEC&TIRE & DISC WHEEL-225/45R17+245/45R17,GEN
main48530-80506i201008
MARK 48530-53240,THAILAND SPEC&TIRE & DISC WHEEL-225/45R17+245/45R17,GEN
main48530-80506i201008
MARK 48530-53240,SOUTH AFRICA SPEC&TIRE & DISC WHEEL-225/45R17+245/45R17,GEN
main48530-80506i201008
MARK 48530-53240,CHILE SPEC&TIRE & DISC WHEEL-225/45R17+245/45R17,GEN
main48530-80506i201008
MARK 48530-53240,TIRE & DISC WHEEL-225/45R17+245/45R17,ALUMINUM
main48530-80506i201008
MARK 48530-53240,TIRE & DISC WHEEL-225/40R18+255/40R18,SUMMER TIRE,ALUMI
main48530-80506i201008
MARK 48530-53240
main48530-80507i200808-201008
MARK 48530-53250
main48530-80509i200808-201208
MARK 48530-53270
main48530-80509i200808-201008
MARK 48530-53270,TURKEY SPEC&SUSPENTION-WITH(HEIGHT-UP SHOCK ABSORBER)
main48530-80509i201008-201208
MARK 48530-53270,TURKEY SPEC&SUSPENSION-WITH(HEIGHT-UP SHOCK ABSORBER)
48705LINK SUB-ASSY, TOE CONTROL, RH
main48705-53020i200508-201008
48706BLINK SUB-ASSY, TOE CONTROL, LH
main48706-53020i200508-201008
48710AARM ASSY, REAR SUSPENSION, NO.1 RH
main48710-53020i200508-201008
48720AARM ASSY, REAR SUSPENSION, NO.1 LH
main48710-53020i200508-201008
48730FARM ASSY, REAR SUSPENSION, NO.2 RH
main48730-30090i200508-201008
48740FARM ASSY, REAR SUSPENSION, NO.2 LH
main48740-30110i200508-201008
48750HSUPPORT ASSY, REAR SUSPENSION, RH
main48750-30150i200508-201008
48750JNUT(FOR REAR SUPPORT TO REAR SHOCK ABSORBER RH)
main90179-12127i200508-201008
48760BSUPPORT ASSY REAR SUSPENSION, LH
main48750-30150i200508-201008
48760CNUT(FOR REAR SUPPORT TO REAR SHOCK ABSORBER LH)
main90179-12127i200508-201008
48770JARM ASSY, UPPER CONTROL, REAR NO.1
main48770-30080i200508-200808
main48770-30090i200808-201008
sub48770-30110
48790DARM ASSY, UPPER CONTROL, REAR NO.2
main48790-53030i200508-201008
48812BAR, STABILIZER, REAR
main48812-53030i200508-200808
main48812-53080i200808-201008
TYPE A:REFER ILLUST.
48818BUSH, STABILIZER, REAR
main48818-30210i200508-200808
48824RBRACKET, STABILIZER(FOR REAR)
main48832-30060i200508-200808
48830ANUT(FOR REAR STABILIZER LINK)
main90179-12151i200508-201008
48830DLINK ASSY, REAR STABILIZER, RH
main48830-30090i200508-201008
48840ALINK ASSY, REAR STABILIZER, LH
main48830-30090i200508-201008
8414
9011012009
main90110-12009
9017012030
main90170-12030
9017712001
main90177-12001
9017810014
main90178-10014
9017914044
main90179-14044
9017914068
main90179-14068
91551G0875
main91551-G0875
9155611475
main91556-11475
9155611485
main91556-11485
91672G1265
main91672-G1265
91672G1485
main91672-G1485
9167480814
main91674-80814
9167480820
main91674-80820
9415120801
main94151-20801
9415121200
main94151-21200
9415121401
main94151-21401
9462251400
main94622-51400

52 parts on this diagram · 2 diagrams in section
