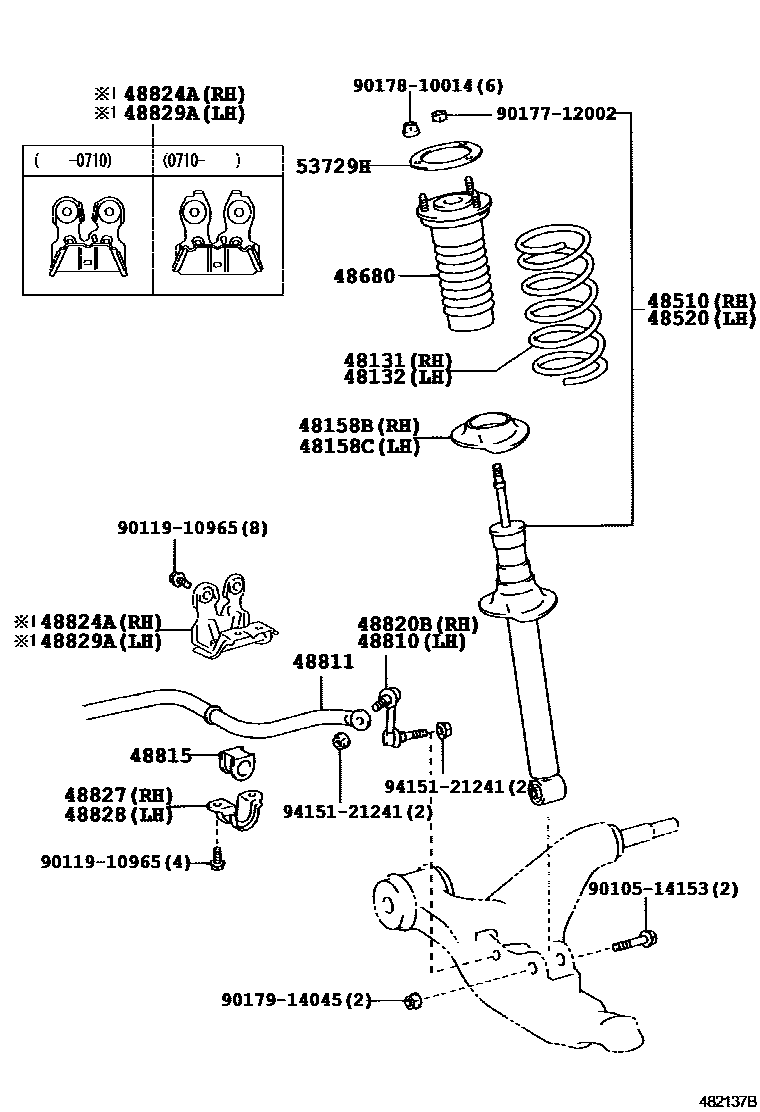

FRONT SPRING & SHOCK ABSORBER
48131SPRING, FRONT COIL, RH
sub48131-53181
TURKEY SPEC&SUSPENSION-WITH(HEIGHT-UP SHOCK ABSORBER)
TURKEY SPEC&SUSPENTION-WITH(HEIGHT-UP SHOCK ABSORBER)
48132SPRING, FRONT COIL, LH
sub48131-53181
TURKEY SPEC&SUSPENTION-WITH(HEIGHT-UP SHOCK ABSORBER)
TURKEY SPEC&SUSPENSION-WITH(HEIGHT-UP SHOCK ABSORBER)
48158BINSULATOR, FRONT COIL SPRING, LOWER RH
48158CINSULATOR, FRONT COIL SPRING, LOWER LH
48510ABSORBER ASSY, SHOCK, FRONT RH
MARK 48510-53160
MARK 48510-53140
MARK 48510-53161
MARK 48510-53230,ISRAEL SPEC&SPORT PACKAGE
MARK 48510-53230,CHILE SPEC&SPORT PACKAGE
MARK 48510-53230
MARK 48510-53230,RUSSIA SPEC&SUSPENTION-WITH(HEIGHT-UP SHOCK ABSORBER)
MARK 48510-53240
MARK 48510-53240,TURKEY SPEC&SUSPENTION-WITH(HEIGHT-UP SHOCK ABSORBER)
MARK 48510-53240,TURKEY SPEC&SUSPENSION-WITH(HEIGHT-UP SHOCK ABSORBER)
48520ABSORBER ASSY, SHOCK, FRONT LH
MARK 48520-53080
MARK 48520-53060
MARK 48520-53081
MARK 48520-53150
MARK 48520-53150,TURKEY SPEC&SUSPENTION-WITH(HEIGHT-UP SHOCK ABSORBER)
MARK 48520-53150,TURKEY SPEC&SUSPENSION-WITH(HEIGHT-UP SHOCK ABSORBER)
MARK 48520-53140,RUSSIA SPEC&SUSPENTION-WITH(HEIGHT-UP SHOCK ABSORBER)
MARK 48520-53140,ISRAEL SPEC&SPORT PACKAGE
MARK 48520-53140
MARK 48520-53140,CHILE SPEC&SPORT PACKAGE
48810LINK ASSY, FRONT STABILIZER, LH
48811BAR, STABILIZER, FRONT
48820BLINK ASSY, FRONT STABILIZER, RH
48827BRACKET, FRONT STABILIZER, NO.2 RH
48828BRACKET, FRONT STABILIZER, NO.2 LH
53729HREINFORCEMENT, FRONT SPRING SUPPORT, NO.3
ADDITIONAL HEATER-COMBUSTION HEATER
9010514153
main90105-14153
9011910965
main90119-10965
9017712002
main90177-12002
9017810014
main90178-10014
9017914045
main90179-14045
9415121241
main94151-21241
22 parts on this diagram · 2 diagrams in section
