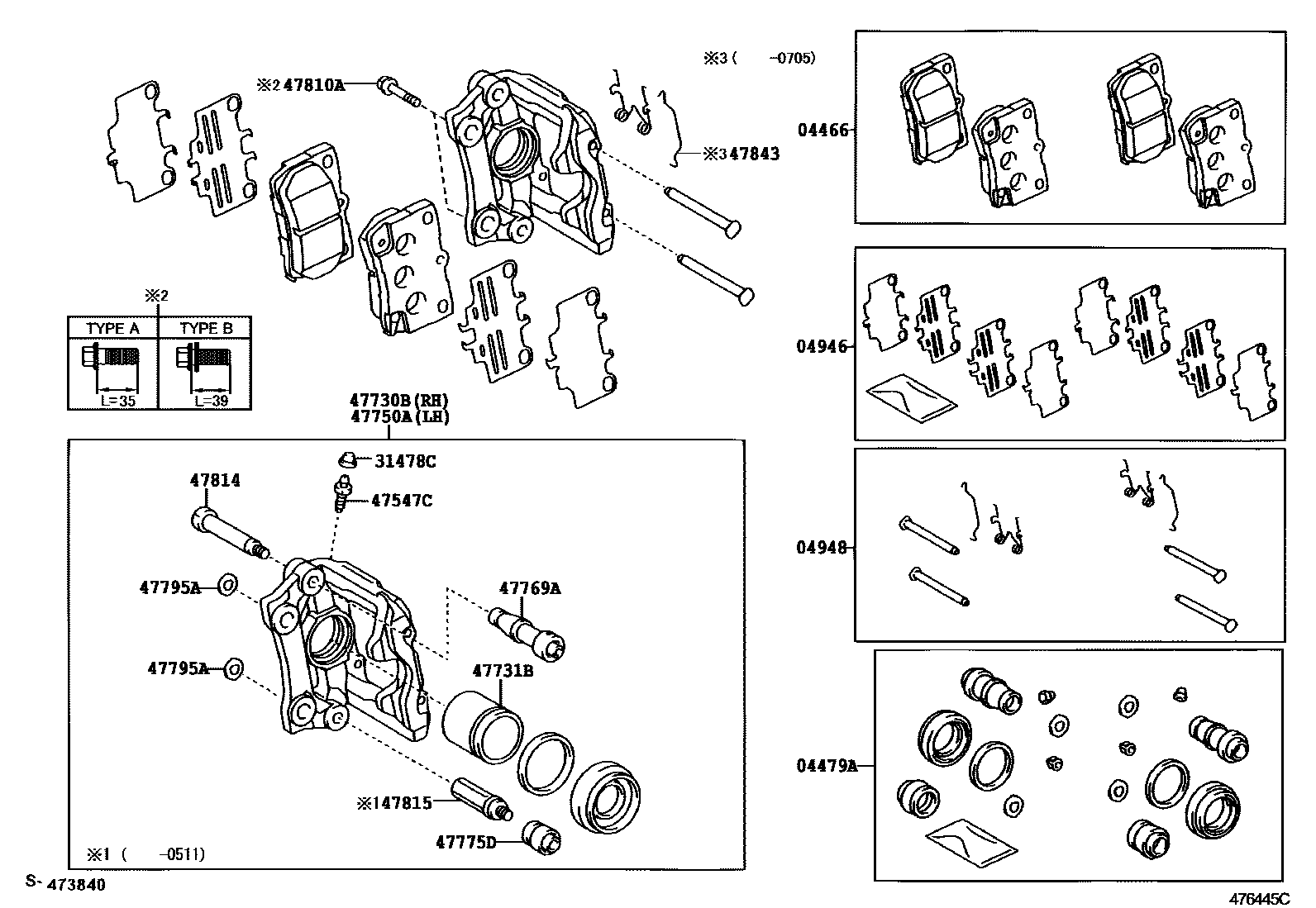

REAR DISC BRAKE CALIPER & DUST COVER

04466PAD KIT, DISC BRAKE, REAR

main04466-22190iGSE20..RHD201008-201304

MARK NBK PN529H,AUSTRALIA SPEC&SUSPENSION-SPORTS

main04466-22190iALE20,GSE20200508-201304

MARK NBK PN529H

main04466-22190iALE20,GSE2#201008-201304

MARK NBK PN529H,NEW ZEALAND SPEC&SUSPENSION-SPORTS

main04466-22190iALE20,GSE2#201008-201304

MARK NBK PN529H,HONG KONG SPEC&SUSPENSION-SPORTS

main04466-22190iALE20,GSE2#201008-201304

MARK NBK PN529H,TAIWAN SPEC&SUSPENSION-SPORTS

main04466-53010iALE20,GSE20200602-200607

MARK NBK PN529H

04479ACYLINDER KIT, DISC BRAKE, REAR

main04479-22170iGSE21201104

main04479-30340iGSE20200508-200511

sub04479-30550

main04479-30450iALE20,GSE20200511-200709

sub04479-30510

main04479-30510iALE20,GSE20200709-201104

sub04479-53070

main04479-53070iALE20,GSE20201104

main04479-61040iGSE21201008-201104

sub04479-22170

04946SHIM KIT, ANTI SQUEAL(FOR REAR DISC BRAKE)

main04946-22090iGSE21201008

main04946-30110iALE20,GSE20200508-201008

04948FITTING KIT, DISC BRAKE, REAR

main04948-22090iALE20,GSE20200607-200705

sub04948-30210

main04948-30140iALE20,GSE20200508-200607

sub04948-30220

main04948-30210iGSE20..RHD201008

NEW ZEALAND SPEC&SUSPENSION-SPORTS

main04948-30210iALE20,GSE20200705-201008

main04948-30210iALE20,GSE2#201008

HONG KONG SPEC&SUSPENSION-SPORTS

main04948-30210iALE20,GSE2#201008

AUSTRALIA SPEC&SUSPENSION-SPORTS

main04948-30210iALE20,GSE2#201008

TAIWAN SPEC&SUSPENSION-SPORTS

31478CCAP, BLEEDER PLUG(FOR REAR DISC BRAKE)

main31478-30010iGSE20200508-201304

47547CPLUG, BLEEDER(FOR REAR DISC BRAKE)

main47547-27030iGSE20200508-201304

47730BCYLINDER ASSY, REAR DISC BRAKE, RH

main47830-22221iGSE21201008-201212

PNC 47810A=TYPE A

main47830-30400iGSE21201212-201304

PNC 47810A=TYPE B

main47830-53050iGSE20200508-200511

sub47830-53051

main47830-53051iALE20,GSE20200511-200607

main47830-53070iGSE20..RHD201008-201212

HONG KONG SPEC&SUSPENSION-SPORTS,PNC 47810A=TYPE A

main47830-53070iGSE20..RHD201008-201212

AUSTRALIA SPEC&SUSPENSION-SPORTS,PNC 47810A=TYPE A

main47830-53070iGSE20..RHD201008-201212

TAIWAN SPEC&SUSPENSION-SPORTS,PNC 47810A=TYPE A

main47830-53070iGSE20..RHD201008-201212

PNC 47810A=TYPE A

main47830-53070iGSE20..RHD201008-201212

NEW ZEALAND SPEC&SUSPENSION-SPORTS,PNC 47810A=TYPE A

main47830-53070iALE20,GSE20200607-201008

main47830-53071iGSE20..RHD201212-201304

AUSTRALIA SPEC&SUSPENSION-SPORTS,PNC 47810A=TYPE B

main47830-53071iGSE20201212-201304

PNC 47810A=TYPE B

main47830-53071iGSE20201212-201304

NEW ZEALAND SPEC&SUSPENSION-SPORTS,PNC 47810A=TYPE B

main47830-53071iGSE20201212-201304

HONG KONG SPEC&SUSPENSION-SPORTS,PNC 47810A=TYPE B

main47830-53071iGSE20201212-201304

TAIWAN SPEC&SUSPENSION-SPORTS,PNC 47810A=TYPE B

main47830-53071iGSE20201212-201304

SINGAPORE SPEC&SUSPENSION-SPORTS,PNC 47810A=TYPE B

47731BPISTON, REAR DISC BRAKE

main47831-22220iGSE21201008-201304

main47831-30300iGSE20200508-201304

47750ACYLINDER ASSY, DISC BRAKE, REAR LH

main47850-22221iGSE21201008-201212

PNC 47810A=TYPE A

main47850-30400iGSE21201212-201304

PNC 47810A=TYPE B

main47850-53050iGSE20200508-200511

sub47850-53051

main47850-53051iALE20,GSE20200511-200607

main47850-53070iALE20,GSE20200607-201008

main47850-53070iALE20,GSE20201008-201212

PNC 47810A=TYPE A

main47850-53070iALE20,GSE20201008-201212

NEW ZEALAND SPEC&SUSPENSION-SPORTS,PNC 47810A=TYPE A

main47850-53070iALE20,GSE20201008-201212

HONG KONG SPEC&SUSPENSION-SPORTS,PNC 47810A=TYPE A

main47850-53070iALE20,GSE20201008-201212

AUSTRALIA SPEC&SUSPENSION-SPORTS,PNC 47810A=TYPE A

main47850-53070iALE20,GSE20201008-201212

TAIWAN SPEC&SUSPENSION-SPORTS,PNC 47810A=TYPE A

main47850-53071iGSE20..LHD201212-201304

AUSTRALIA SPEC&SUSPENSION-SPORTS,PNC 47810A=TYPE B

main47850-53071iGSE20201212-201304

PNC 47810A=TYPE B

main47850-53071iGSE20201212-201304

NEW ZEALAND SPEC&SUSPENSION-SPORTS,PNC 47810A=TYPE B

main47850-53071iGSE20201212-201304

HONG KONG SPEC&SUSPENSION-SPORTS,PNC 47810A=TYPE B

main47850-53071iGSE20201212-201304

TAIWAN SPEC&SUSPENSION-SPORTS,PNC 47810A=TYPE B

main47850-53071iGSE20201212-201304

SINGAPORE SPEC&SUSPENSION-SPORTS,PNC 47810A=TYPE B

47769ABUSH, CYLINDER SLIDE, NO.1(FOR REAR DISC BRAKE)

main47879-30300iGSE20200508-201304

47775DBOOT, BUSH DUST(FOR REAR DISC BRAKE)

main47775-32050iGSE20200508-200511

main47875-22221iALE20,GSE20200511-200707

sub47875-30340

main47875-30340iALE20,GSE20200707-201104

sub47875-30341

main47875-30341iALE20,GSE2#201104-201304

47795APLATE, REAR DISC BRAKE CALIPER, NO.1

main47895-30300iGSE20200508-201304

47810ABOLT, HEXAGON(FOR REAR CALIPER)

main90105-10525iALE20,GSE20200508-201008

main90105-10525iALE20,GSE2#201008-201212

TYPE A:REFER ILLUST.

main90119-12416iGSE2#201212-201304

TYPE B:REFER ILLUST.

47814PIN, CYLINDER SLIDE, NO.1(FOR REAR DISC BRAKE)

main47814-30300iGSE20200508-201304

47815PIN, REAR CYLINDER SLIDE, NO.2(FOR REAR DISC BRAKE)

main47815-30300iGSE20200508-200511

47843CLIP, REAR DISC BRAKE PIN HOLD

main47843-30300iALE20,GSE20200508-200705

16 parts on this diagram · 1 diagram in section
