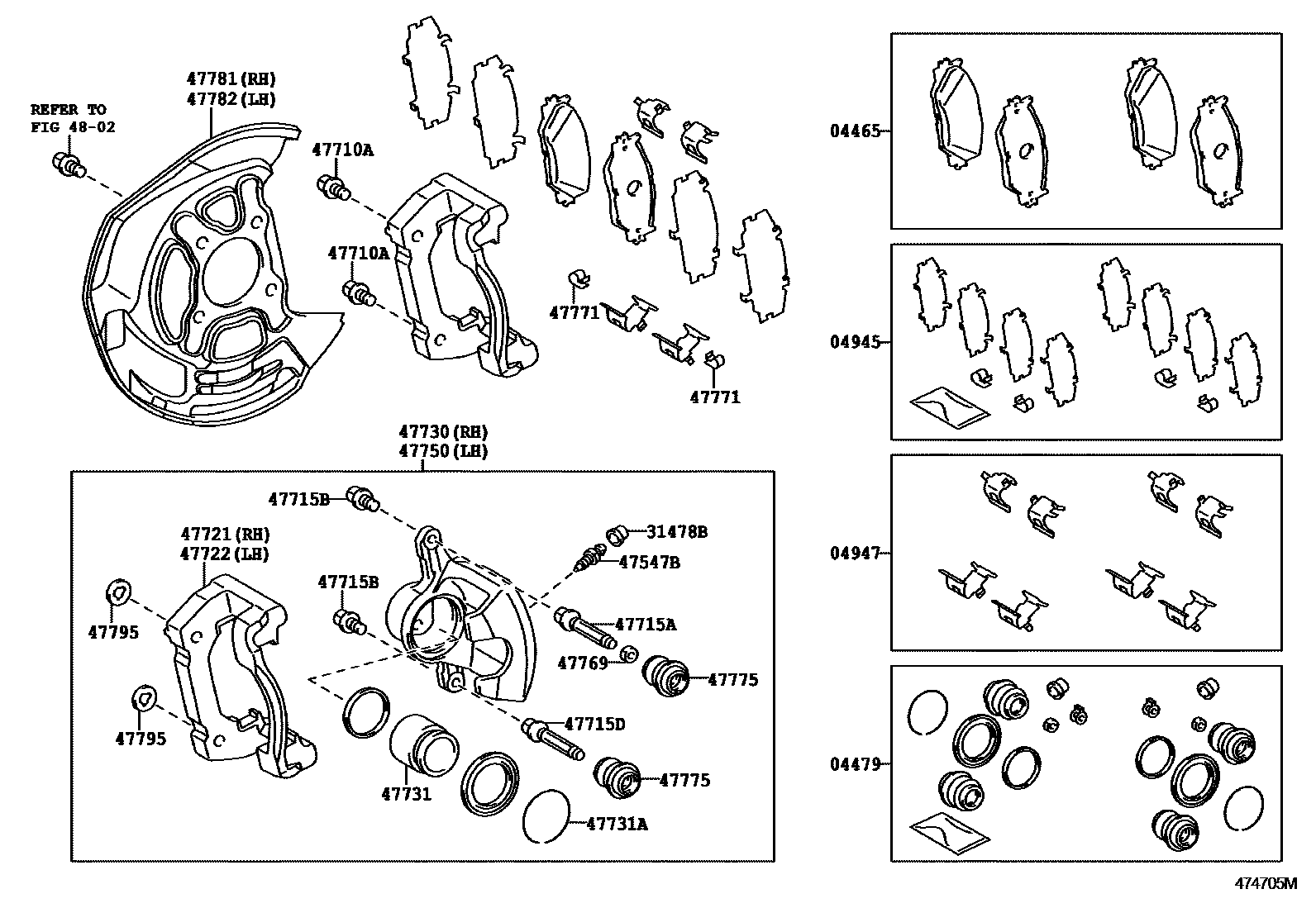

FRONT DISC BRAKE CALIPER & DUST COVER

0001 1 0002 1

04465PAD KIT, DISC BRAKE, FRONT

main04465-30410iGSE21201008-201212

MARK TEXTAR T4146

sub04465-30500

main04465-30500iGSE21201212-201304

MARK TEXTAR T4146

main04465-53020iALE20,GSE20200508-200708

MARK TEXTAR T4146

sub04465-53040

main04465-53040iALE20,GSE20200708-201304

MARK TEXTAR T4146

04479CYLINDER KIT, DISC BRAKE, FRONT

main04478-22040iGSE21201008

main04478-30250iALE20..RHD..SPO200808-201008

main04479-30151iALE20,GSE20200508-200808

sub04478-53020

04945SHIM KIT, ANTI SQUEAL, FRONT

main04945-22152iGSE21201008-201212

sub04945-30350

main04945-30350iGSE21201212-201304

main04945-53030iALE20,GSE20200508-200512

sub04945-53040

main04945-53040iALE20,GSE20200512-200804

sub04945-53050

main04945-53050iALE20..LHD..SPO;ALE20,GSE20..LUX200805-201304

04947FITTING KIT, DISC BRAKE, FRONT

main04947-22070iGSE21201008

main04947-53010iALE20,GSE20200508-200706

main04947-53020iALE20..RHD..SPO200706-201008

31478BCAP, BLEEDER PLUG(FOR FRONT DISC BRAKE)

main31478-14010iGSE21201008

main31478-30010iALE20,GSE20200508-201008

47547BPLUG, BLEEDER(FOR FRONT DISC BRAKE)

main47547-27030iALE20..RHD..SPO200508-201008

main47547-50010iGSE21201008

47710ABOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER)

main90119-12415iALE20,GSE2#201111-201304

*12-1.25PX45-30

main91552-K1240iALE20,GSE20200508-201111

*12-1.25PX40-30

47715APIN, FRONT DISC BRAKE CYLINDER SLIDE

main47715-22070iALE20..RHD..SPO200508-201008

47715BBOLT(FOR FRONT DISC BRAKE CYLINDER SLIDE)

main90105-08164iALE20,GSE20200508-201008

47715DPIN, FRONT DISC BRAKE CYLINDER SLIDE, NO.2

main47715-52190iALE20,GSE20200508-201008

47721MOUNTING, FRONT DISC BRAKE CYLINDER, RH

main47721-53060iALE20..LHD..SPO;ALE20,GSE20..LUX200508-201008

47722MOUNTING, FRONT DISC BRAKE CYLINDER, LH

main47722-53060iALE20..LHD..SPO;ALE20,GSE20..LUX200508-201008

47730CYLINDER ASSY, FRONT DISC BRAKE, RH

main47730-22460iGSE21201008

main47730-53060iALE20..LHD..SPO;ALE20,GSE20..LUX200508-201008

47731PISTON, FRONT DISC BRAKE

main47731-50070iGSE21201008

main47731-53060iALE20,GSE20200508-201008

sub47731-12A10

47731ARING, SET(FOR FRONT DISC BRAKE PISTON)

main90520-86005iALE20,GSE20200508-201008

47750CYLINDER ASSY, DISC BRAKE, LH

main47750-22460iGSE21201008

main47750-53060iALE20,GSE20200508-201008

47769BUSH, CYLINDER SLIDE, NO.1(FOR FRONT DISC BRAKE)

main47769-50010iALE20..RHD..SPO200508-201008

47771PLATE, PAD WEAR INDICATOR, NO.1

main47771-33340iALE20,GSE20200508-201008

47775BOOT, BUSH DUST(FOR FRONT DISC BRAKE)

main47775-30070iALE20,GSE20200508-200605

sub47775-50010

main47775-50010iALE20,GSE20200605-201008

47781COVER, DISC BRAKE DUST, FRONT RH

main47781-22200iGSE21201008-201304

main47781-30220iALE20,GSE20200508-201304

47782COVER, DISC BRAKE DUST, FRONT LH

main47782-22200iGSE21201008-201304

main47782-30220iALE20,GSE20200508-201304

47795PLATE, FRONT DISC BRAKE CALIPER, NO.1

main47795-30520iALE20,GSE20200508-201008

4802

23 parts on this diagram · 2 diagrams in section
