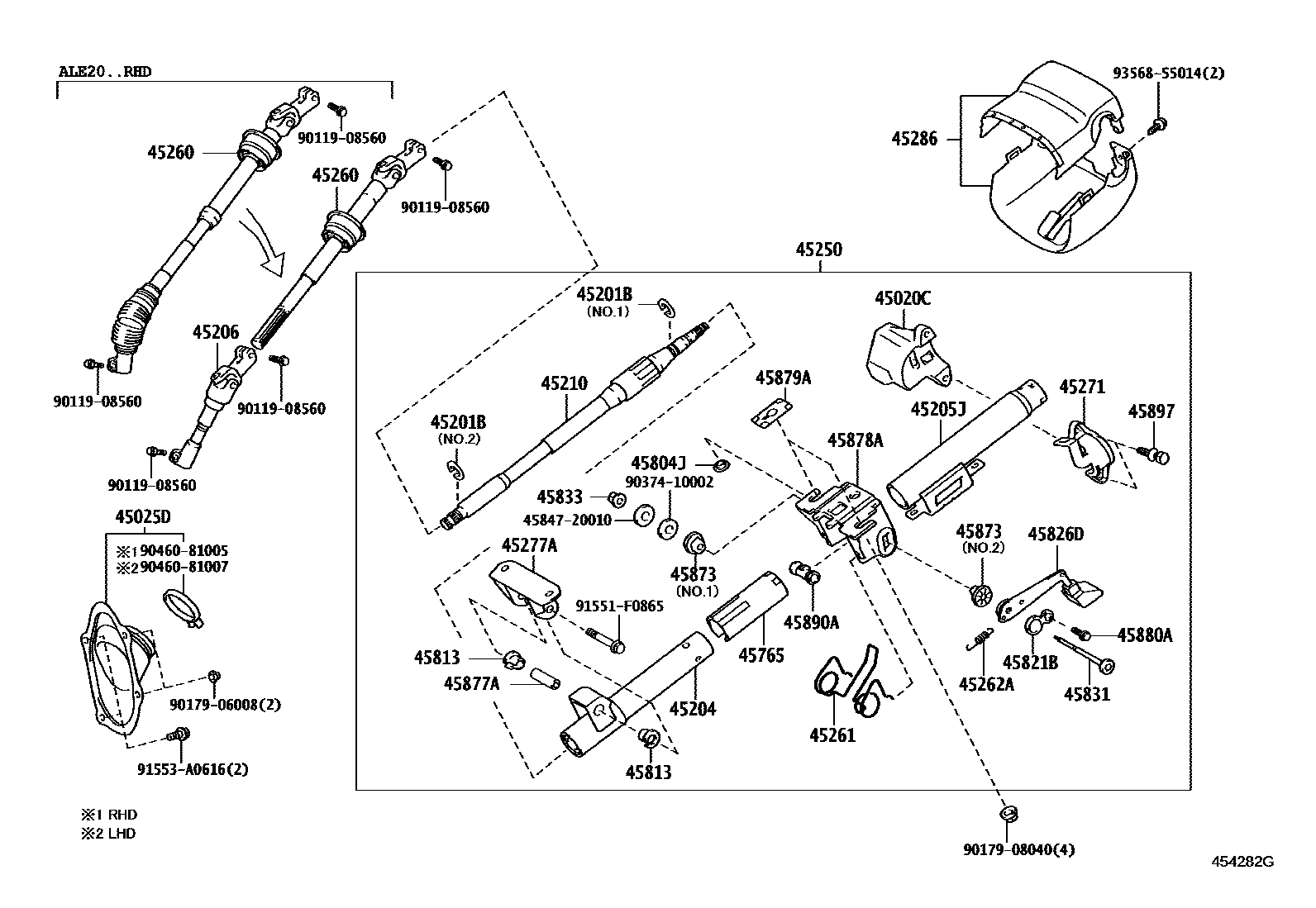

STEERING COLUMN & SHAFT
45020CACTUATOR ASSY, STEERING LOCK(W/ECU)
45025DCOVER SUB-ASSY, STEERING COLUMN HOLE, NO.1
45201BRING, SHAFT SNAP(FOR STEERING MAIN SHAFT)
T=1.20,NO.2
T=1.20,NO.1
45204TUBE ASSY, STEERING COLUMN, LOWER
45205JTUBE SUB-ASSY, STEERING COLUMN, UPPER
45250COLUMN ASSY, STEERING
sub45250-53032
sub45250-53051
sub45250-53061
45261SPRING, TILT STEERING JUMP UP
45262ASPRING, TILT LEVER RETURN
45271CLAMP, STEERING COLUMN, UPPER
sub45271-22031
45286COVER, STEERING COLUMN
BLACK,TRIM0#,1#,2#
45765GUIDE, TELESCOPIC STEERING
45804JCOLLAR SUB-ASSY, BREAK AWAY
45813COLLAR, TILT STEERING SUPPORT, NO.1
OD=24-16
45821BREINFORCE, TILT STEERING SUPPORT, NO.1
45826DLEVER, STEERING TELESCOPIC
45831BOLT, TILT LEVER LOCK, NO.1
45833NUT, TILT STEERING ADJUSTING, NO.1
45873STOPPER, STEERING COLUMN TUBE
NO.1
NO.2
45877ASPACER, STEERING COLUMN BRACKET
45879ACAPSULE, BREAK AWAY
45880ABOLT(FOR STEERING TILT LEVER)
45890APAWL ASSY, TILT STEERING
45897BOLT, STEERING LOCK SET
4584720010
main45847-20010
9011908560
main90119-08560
9017906008
main90179-06008
9017908040
main90179-08040
9037410002
main90374-10002
9046081005
main90460-81005
9046081007
main90460-81007
91551F0865
main91551-F0865
91553A0616
main91553-A0616
9356855014
main93568-55014
38 parts on this diagram · 4 diagrams in section
