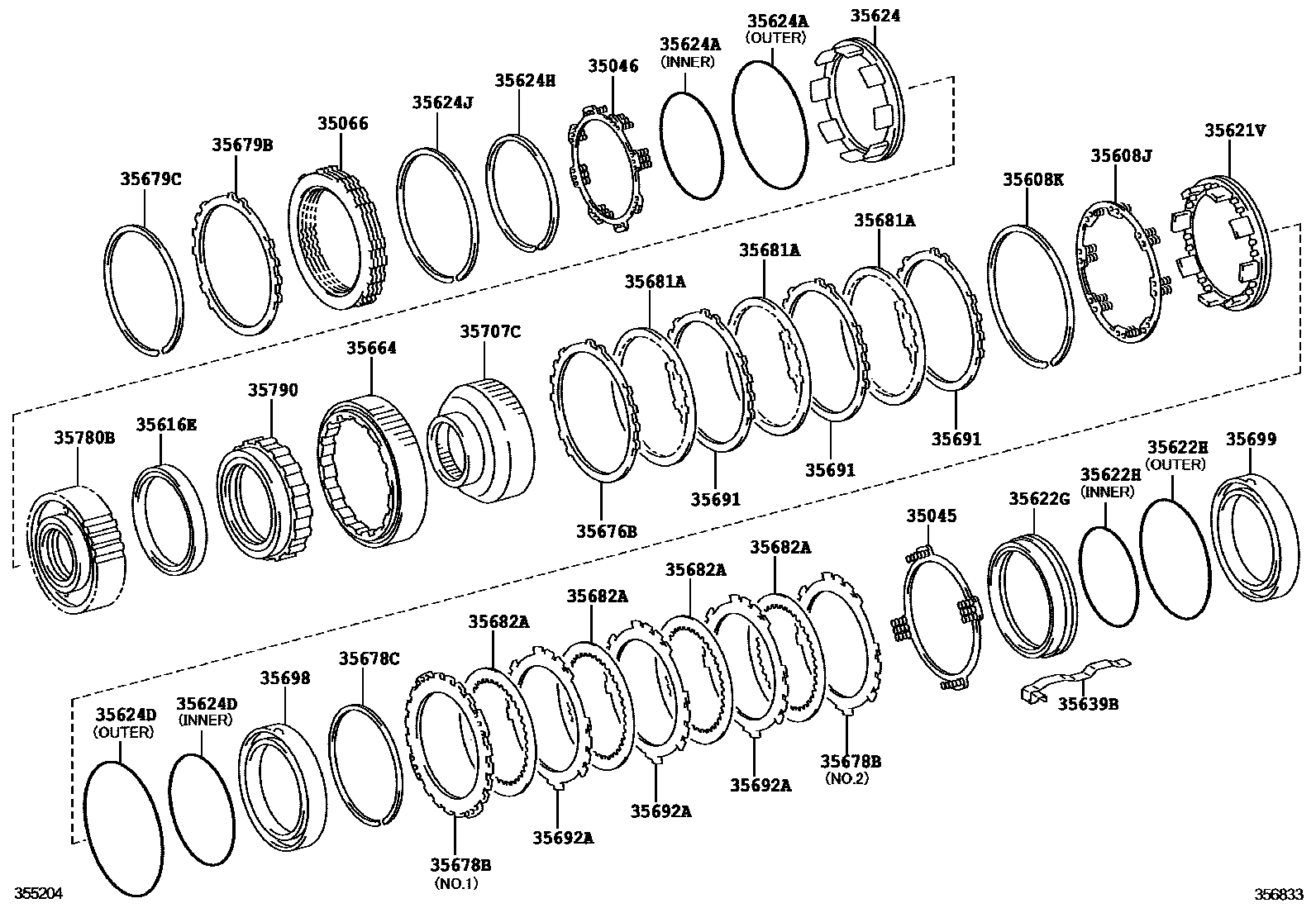

CENTER SUPPORT & PLANETARY SUN GEAR (ATM)
35046SPRING SUB-ASSY, BRAKE PISTON RETURN, NO.3
35608JSPRING SUB-ASSY, BRAKE PISTON RETURN
35608KRING, SNAP (FOR BRAKE PISTON RETURN SPRING)
35616EWASHER,CLUTCH DRUM THRUST
35622HRING, O (FOR BRAKE PISTON NO.2)
OUTER
INNER
OUTER
INNER
35624ARING, O (FOR 2ND BRAKE PISTON)
INNER
INNER
OUTER
OUTER
35624DRING, O (FOR BRAKE PISTON NO.4)
INNER
OUTER
INNER
OUTER
35624HRING, SNAP (FOR 2ND BRAKE PISTON)
35624JRING, HOLE SNAP (FOR 2ND BRAKE PISTON)
35639BSPRING, BRAKE PLATE STOPPER
35676BFLANGE, BRAKE, NO.1
T=2.0,MARK 0
T=2.2,MARK 1
T=2.4,MARK 2
T=2.6,MARK 3
T=2.0,MARK 0
T=2.2,MARK 1
T=2.4,MARK 2
T=2.6,MARK 3
35678BFLANGE, BRAKE, NO.2
T=4.6,NO.1
NO.1
T=2.0,NO.2
NO.2,T=2.0
T=2.1,NO.2
NO.2,T=2.1
T=2.2,NO.2
NO.2,T=2.2
T=2.3,NO.2
NO.2,T=2.3
NO.2,T=2.4
T=2.4,NO.2
T=2.5,NO.2
NO.2,T=2.5
T=2.6,NO.2
NO.2,T=2.6
NO.2,T=2.7
T=2.7,NO.2
T=4.6,NO.1
T=2.0 MARK 0,NO.2
T=2.1 MARK 1,NO.2
T=2.2 MARK 2,NO.2
T=2.3 MARK 3,NO.2
T=2.4 MARK 4,NO.2
T=2.5 MARK 5,NO.2
T=2.6 MARK 6,NO.2
T=2.7 MARK 7,NO.2
35707CRACE SUB-ASSY, 1 WAY CLUTCH, INNER
30 parts on this diagram · 2 diagrams in section
