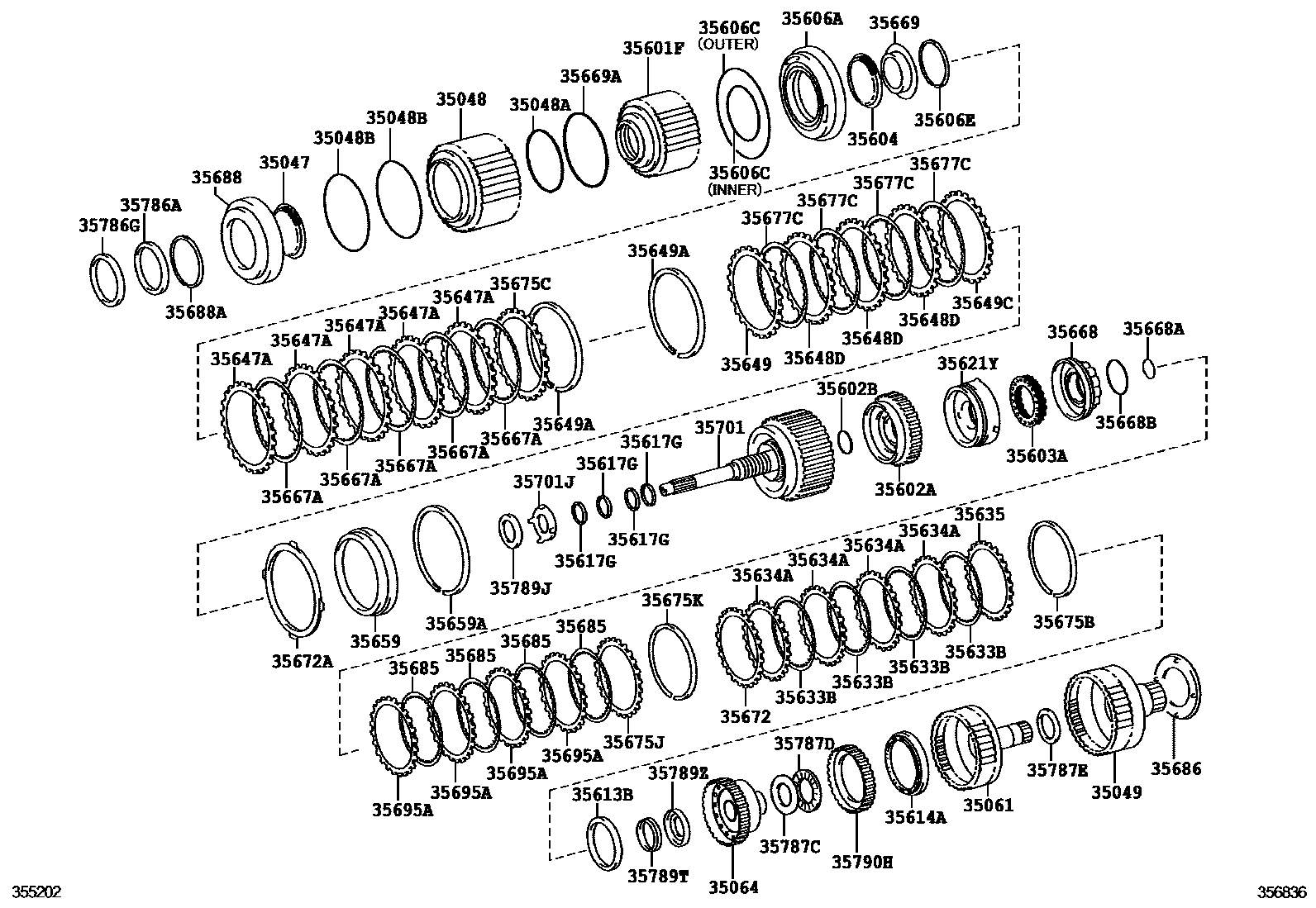

BRAKE BAND & MULTIPLE DISC CLUTCH (ATM)
35047SPRING SUB-ASSY, REVERSE CLUTCH RETURN
35048PISTON SUB-ASSY, REVERSE CLUTCH
35048ARING, O (FOR REVERSE CLUTCH PISTON)
OUTER
INNER
35048BRING, O (FOR REVERSE CLUTCH PISTON)
35601DRUM SUB-ASSY, CLUTCH
35601FDRUM SUB-ASSY, REVERSE CLUTCH
35602APISTON SUB-ASSY, FORWARD CLUTCH
35602BRING, O (FOR FORWARD CLUTCH PISTON)
35603ASPRING SUB-ASSY, FORWARD CLUTCH RETURN
35604SPRING SUB-ASSY, DIRECT CLUTCH RETURN
35606CRING, O (FOR DIRECT CLUTCH PISTON)
OUTER
INNER
INNER
OUTER
35606ERING, SHAFT SNAP (FOR DIRECT CLUTCH PISTON RETURN SPRING)
35613RING, CLUTCH PISTON OIL SEAL, OUTER
35614AWASHER, CLUTCH HUB THRUST, NO.3
35633BDISC, CLUTCH (FOR FORWARD MULTIPLE DISC CLUTCH)
35634APLATE, CLUTCH (FOR FORWARD MULTIPLE DISC CLUTCH)
T=1.8
T=2.4
35635FLANGE, FORWARD CLUTCH
T=3.0,MARK 0
T=3.1,MARK 1
T=3.2,MARK 2
T=3.3,MARK 3
T=3.4,MARK 4
T=3.5,MARK 5
T=3.6,MARK 6
T=3.7,MARK 7
T=3.8,MARK 8
T=3.9,MARK 9
T=3.0,MARK 0
T=3.1,MARK 1
T=3.2,MARK 2
T=3.3,MARK 3
T=3.4,MARK 4
T=3.5,MARK 5
T=3.6,MARK 6
T=3.7,MARK 7
T=3.8,MARK 8
T=3.9,MARK 9
T=4.0,MARK A
35647APLATE, CLUTCH (FOR DIRECT MULTIPLE DISC CLUTCH)
35649FLANGE, REVERSE CLUTCH
T=3.0,MARK 6
T=3.0,MARK 2
T=3.1.MARK 3
T=3.2,MARK 4
T=3.3,MARK 5
T=3.4,MARK 6
T=3.5,MARK 7
T=3.6,MARK 8
T=3.7,MARK 9
T=3.8,MARK A
35649ARING, HOLE SNAP(FOR REVERSE CLUTCH FLANGE)
35649CFLANGE, REVERSE CLUTCH
T=2.4,MARK 0
T=2.5,MARK 1
T=2.6,MARK 2
T=2.7,MARK 3
T=2.8,MARK 4
T=2.9,MARK 5
T=3.0,MARK 6
T=3.1,MARK 7
T=3.2,MARK 8
T=3.3,MARK 9
T=3.4,MARK A
T=3.5,MARK B
T=2.8,MARK 0
T=2.9,MARK 1
T=3.0,MARK 2
T=3.1.MARK 3
T=3.2,MARK 4
T=3.3,MARK 5
T=3.4,MARK 6
T=3.5,MARK 7
T=3.6,MARK 8
T=3.7,MARK 9
T=3.8,MARK A
35659SLEEVE, REVERSE CLUTCH REACTION
35659ARING, SNAP (FOR REVERSE CLUTCH REACTION SLEEVE)
35668ARING, SNAP(FOR CLUTCH BALANCER)
35668BRING, O(FOR CLUTCH BALANCER)
35669ARING, O (FOR CLUTCH BALANCER NO.2)
35672APLATE, CLUTCH CUSHION (FOR DIRECT MULTIPLE DISC CLUTCH)
35675BRING, HOLE SNAP (FOR FORWARD CLUTCH FLANGE)
35675CFLANGE, DIRECT CLUTCH
T=3.0,MARK 0
T=3.1,MARK 1
T=3.2,MARK 2
T=3.3,MARK 3
T=3.4,MARK 4
T=3.5,MARK 5
T=3.6,MARK 6
T=3.7,MARK 7
T=3.8,MARK 8
35675JFLANGE, COAST CLUTCH
MARK 0
MARK 1
MARK 2
MARK 3
MARK 4
MARK 5
MARK 6
MARK 7
MARK 8
MARK 9
T=3.0
T=3.1
T=3.2
T=3.3
T=3.4
T=3.5
T=3.6
T=3.7
T=3.8
T=3.9
35675KRING, SNAP (FOR COAST CLUTCH FLANGE)
35686WASHER, CLUTCH DRUM THRUST (FOR INPUT SHAFT)
35688ARING, SNAP (FOR REVERSE CLUTCH RETURN SPRING)
35701JBEARING, THRUST NEEDLE ROLLER (FOR INPUT SHAFT FRONT)
35786ARACE, THRUST BEARING, NO.1
35786GBEARING,THRUST NEEDLE ROLLER
35787CRACE, THRUST BEARING, NO.2
35787DBEARING, THRUST NEEDLE ROLLER
35787EBEARING, THRUST NEEDLE ROLLER
35789JRACE, THRUST BEARING (FOR INPUT SHAFT FRONT)
35789TRACE, THRUST BEARING (INPUT SHAFT REAR)
NO.1
NO.2
35789ZBEARING, THRUST NEEDLE ROLLER
35790HCLUTCH ASSY, 1WAY NO.4
60 parts on this diagram · 2 diagrams in section
