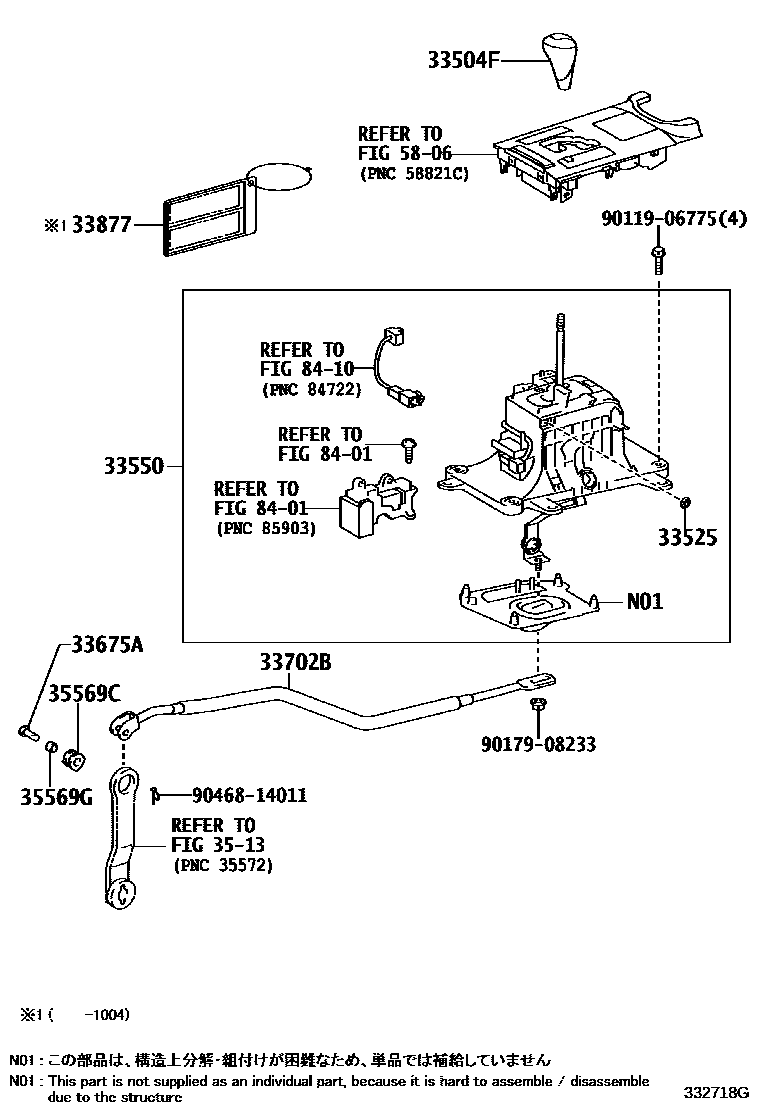

SHIFT LEVER & RETAINER

0001 1 0002 1

33504FKNOB SUB-ASSY, SHIFT LEVER

main33504-30341-C2iGSE20..RHD200508-201304

BLACK,TRIM0#,1#,2#

sub33504-30341

main33504-30341-C2iGSE20..RHD201008-201108

BLACK,TRIM0#,1#,21,23,24

sub33504-30341

main33504-30341-H0iGSE20..RHD201008-201108

DARK BLUE,TRIM24

sub33504-30341

main33504-53070-C0iALE20,GSE20..MTM200509-201208

BLACK,TRIM0#,1#,2#

33525SUPPORT, SHIFT LEVER

main33525-50020iGSE20..ATM200508-201008

33550FLOOR SHIFT ASSY, TRANSMISSION

main33550-53190iGSE2#..RHD200508-201304

main33550-53200iGSE20..LHD200508-201304

33675APIN, W/HOLE (FOR TRANSMISSION CONTROL ROD)

main33726-35010iGSE20..ATM200508-201008

33702BROD SUB-ASSY, GEAR SHIFTING, NO.1 (FOR FLOOR SHIFT)

main33702-22140iGSE20..ATM200508-201304

main33702-30580iGSE21201008-201304

33877LABEL, SHIFT LOCK INFORMATION, NO.1

main33877-50030iGSE20..ATM200508-201004

3513

35569CGROMMET (FOR TRANSMISSION CONTROL ROD)

main90480-17013iGSE20..ATM200508-201304

35569GBUSH (FOR TRANSMISSION CONTROL ROD)

main90560-08091iGSE20..ATM200508-201304

5806

8401

8410

9011906775

main90119-06775

9017908233

main90179-08233

9046814011

main90468-14011

15 parts on this diagram · 2 diagrams in section
