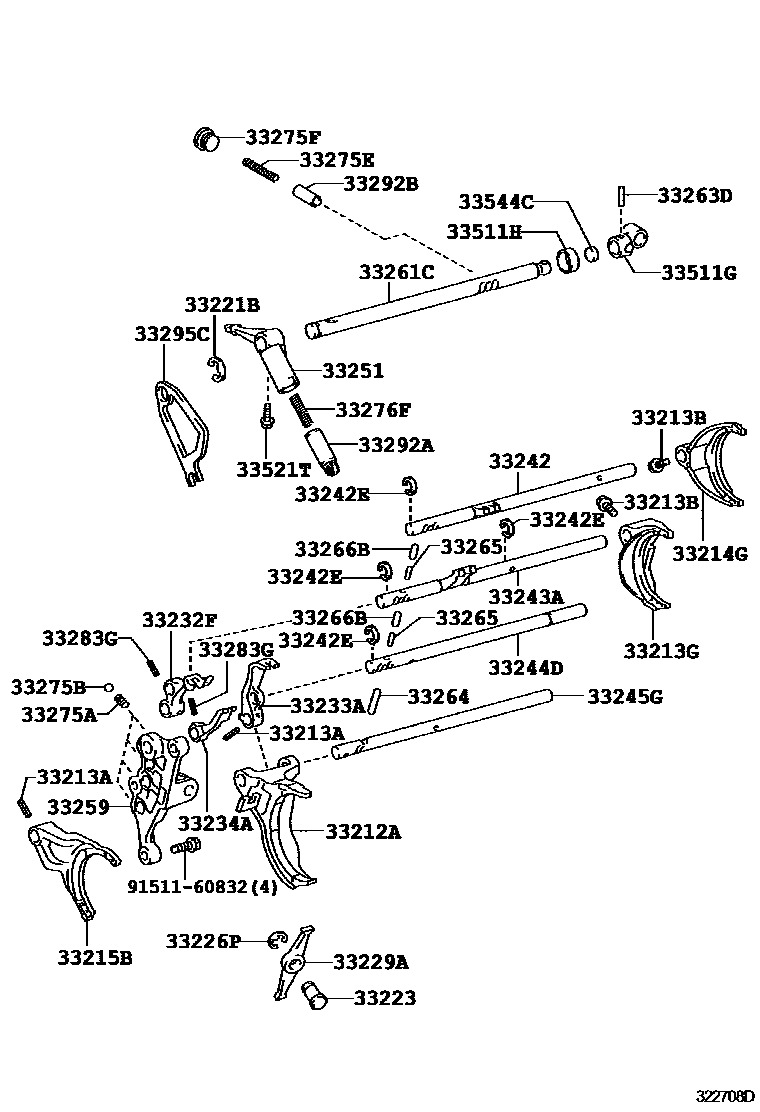

GEAR SHIFT FORK & LEVER SHAFT (MTM)
33212AFORK, GEAR SHIFT, NO.1
33213APIN, SLOTTED SPRING(FOR SHIFT FORK SET)
33213BBOLT(FOR SHIFT FORK SET)
33213GFORK, GEAR SHIFT, NO.2
33214GFORK, GEAR SHIFT, NO.3
33221BRING, E(FOR REVERSE SHIFT ARM)
33223PIVOT, SHIFT ARM
NO.1
NO.2
33226PRING, E(FOR 1ST & 2ND SHIFT RETURN PLUNGER)
33229AARM, RELEASE, NO.1
33232FHEAD, GEAR SHIFT, NO.1
33233AHEAD, GEAR SHIFT, NO.2
33234AHEAD, GEAR SHIFT, NO.3
33242ERING, SHAFT SNAP (FOR SHIFT FORK SHAFT)
33259BRACKET, SHIFT INTERLOCK
33261CSHAFT, SHIFT & SELECT LEVER
33263DPIN (FOR SHIFT LEVER SHAFT)
33264PIN, OR BALL, SHIFT INTERLOCK, NO.1
L=24.6,OD=6
33265PIN, SHIFT INTERLOCK, NO.2
L=11.2,OD=4
33266BPIN, SHIFT INTERLOCK, NO.3
33275ASPRING, COMPRESSION (FOR SHIFT DETENT BALL LOW SIDE)
L=15.35
L=13.5
33275BBALL, SHAFT DETENT
33275ESPRING, COMPRESSION (FOR SHIFT DETENT BALL)
33275FPLUG (FOR SHIFT DETENT BALL)
33276FSPRING, COMPRESSION, NO.1 (FOR SELECT RETURN)
33283GPIN, SLOTTED SPRING (FOR REVERSE RESTRICT PIN)
33292APIN, LOCK BALL
33295CCAM, SHIFT & SELECT
33511GSHAFT, CONTROL
33511HCOLLAR (FOR CONTROL SHAFT)
33521TBOLT (FOR SHIFT LEVER HOUSING)
33544CDAMPER, SHIFT LEVER
9151160832
main91511-60832
39 parts on this diagram · 2 diagrams in section
