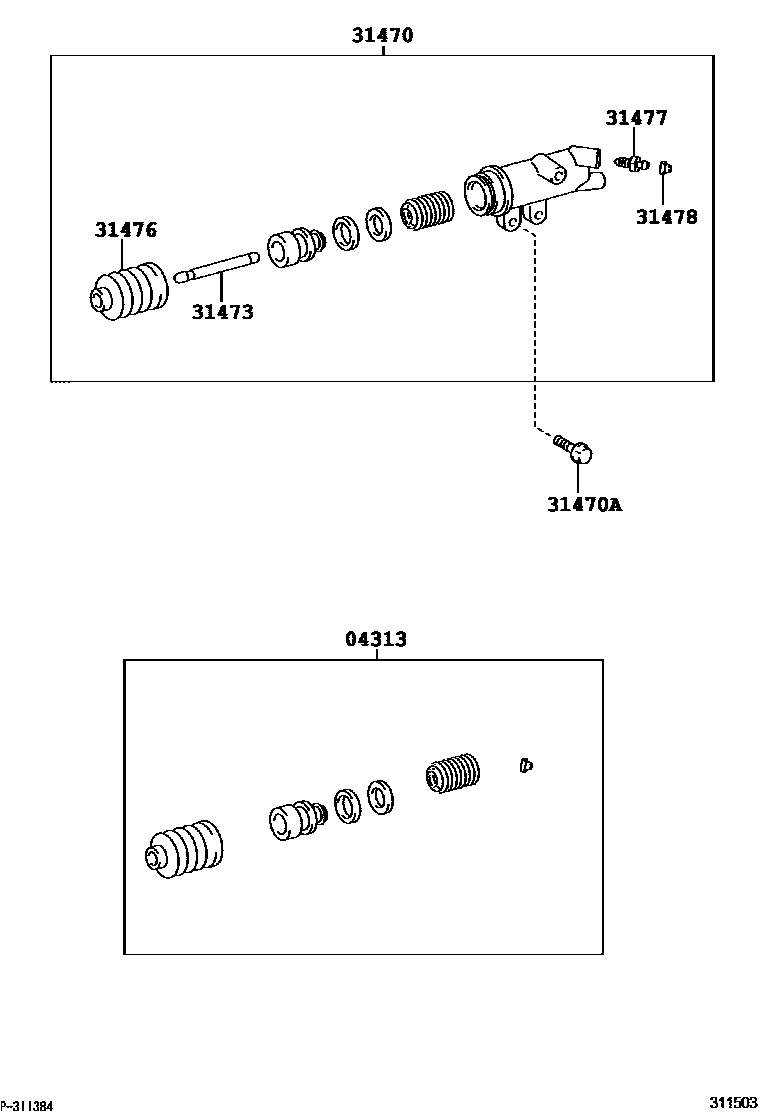

CLUTCH RELEASE CYLINDER

0001 1 0002 1

04313CYLINDER KIT, CLUTCH RELEASE

main04313-53040iGSE20..MTM200509-201008

sub04313-53041

main04313-60170iALE20200511-201208

31470CYLINDER ASSY, CLUTCH RELEASE

main31470-53040iALE20..LUX;ALE20..LHD..SPO200511-201208

main31470-60340iGSE20..MTM200509-201008

31470ABOLT(FOR CLUTCH RELEASE CYLINDER SETTING)

main91611-B0825iGSE20..MTM200509-201008

*8-1.25PX25-25

main91611-G0820iALE20200511-201208

*8-1.25PX20-20

31473ROD, CLUTCH RELEASE CYLINDER PUSH, NO.1

main31473-14030iGSE20..MTM200509-201008

main31473-35050iALE20..RHD..SPO200511-201208

31476BOOT, CLUTCH RELEASE CYLINDER

main31476-22010iALE20,GSE20..MTM200509-201208

31477PLUG, BLEEDER(FOR RELEASE CYLINDER)

main47547-12010iALE20,GSE20..MTM200509-201208

31478CAP, BLEEDER PLUG(FOR RELEASE CYLINDER)

main31478-30010iALE20,GSE20..MTM200509-201208

7 parts on this diagram · 2 diagrams in section
