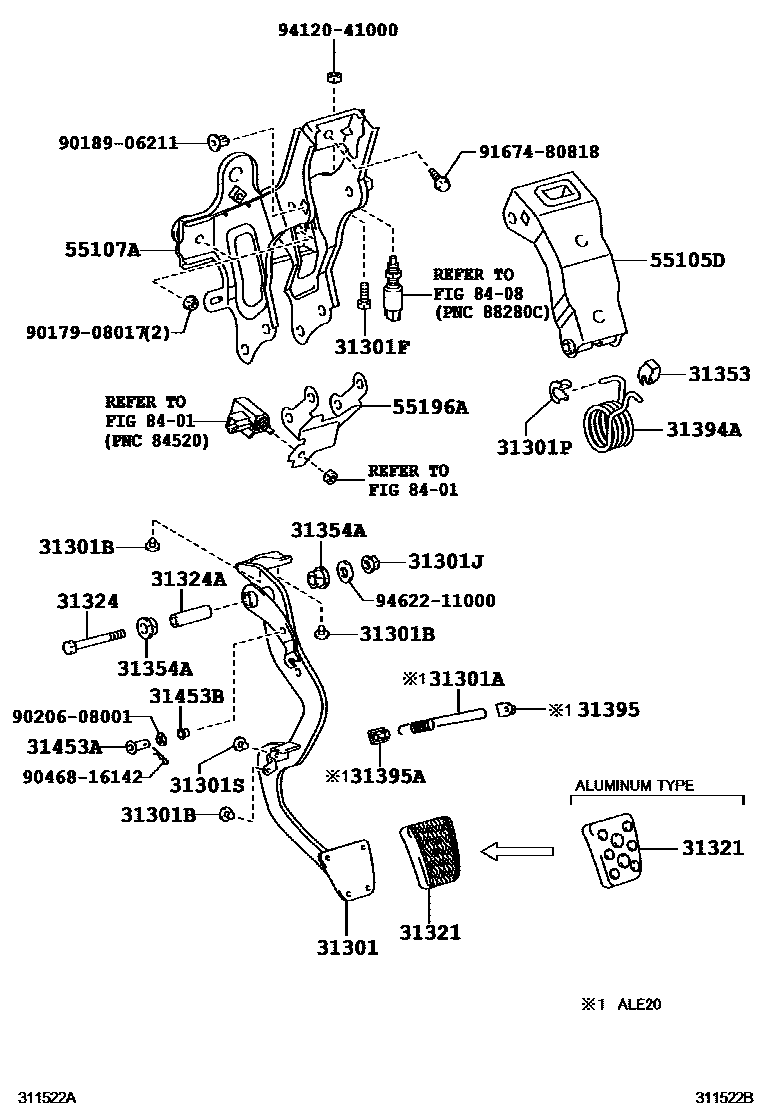

CLUTCH PEDAL & FLEXIBLE HOSE
31301PEDAL SUB-ASSY, CLUTCH
31301ASPRING(FOR CLUTCH PEDAL)
31301BCUSHION, NO.1(FOR CLUTCH PEDAL)
31301FBOLT(FOR CLUTCH PEDAL STOPPER)
31301JNUT(FOR CLUTCH PEDAL STOPPER)
31301PBUSH(FOR CLUTCH PEDAL TURNOVER)
31301SCUSHION, NO.2(FOR CLUTCH PEDAL)
31321PAD, CLUTCH PEDAL
31324SHAFT, CLUTCH PEDAL
31324ACOLLAR, CLUTCH PEDAL SHAFT
31353HOLDER, CLUTCH PEDAL SPRING
31354ABUSH(FOR CLUTCH PEDAL SPRING SEAT UPPER)
31395HOOK, PEDAL SPRING
31395AHOOK, PEDAL SPRING, NO.1
31453APIN, W/HOLE(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)
L=23.5
31453BBUSH(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)
55105DBRACKET SUB-ASSY, CLUTCH PEDAL
55107ASUPPORT SUB-ASSY, CLUTCH PEDAL
55196ABRACKET, CLUTCH START SWITCH MOUNTING
8401
8408
9017908017
main90179-08017
9018906211
main90189-06211
9020608001
main90206-08001
9046816142
main90468-16142
9167480818
main91674-80818
9412041000
main94120-41000
9462211000
main94622-11000
29 parts on this diagram · 6 diagrams in section
