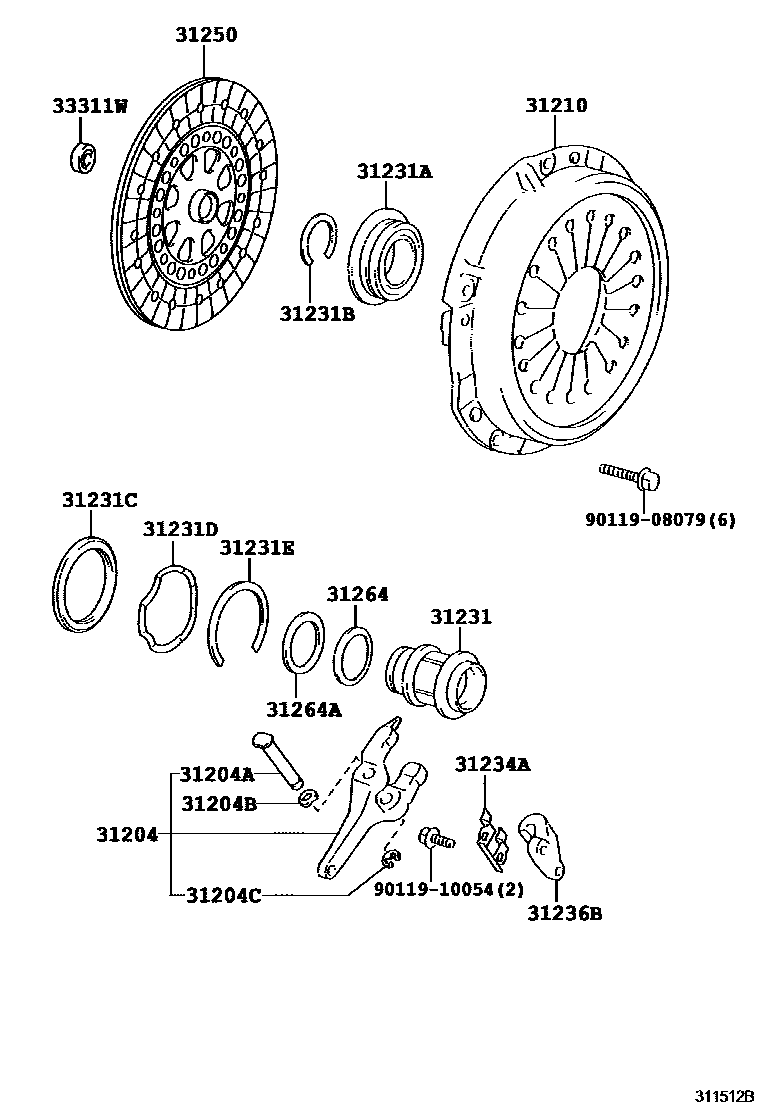

CLUTCH & RELEASE FORK

0001 1 0002 1

31204FORK SUB-ASSY, CLUTCH RELEASE

main31204-22050iALE20200511-201208

main31204-53010iGSE20..MTM200509-201008

31204APIN(FOR CLUTCH RELEASE FORK)

main90249-12044iGSE20..MTM200509-201008

31204BWASHER, WAVE(FOR CLUTCH RELEASE FORK)

main90206-80001iGSE20..MTM200509-201008

31204CRING, E(FOR CLUTCH RELEASE FORK)

main96160-00900iGSE20..MTM200509-201008

31210COVER ASSY, CLUTCH

main31210-53031iGSE20..MTM200509-200802

sub31210-53032

main31210-53032iGSE20..MTM200803-201008

31231HUB, CLUTCH RELEASE BEARING

main31231-53040iGSE20..MTM200509-201008

31231ABEARING, BALL(FOR CLUTCH RELEASE HUB)

main90903-63001iGSE20..MTM200509-201008

31231BRING, SNAP(FOR CLUTCH RELEASE HUB)

main96152-00500iGSE20..MTM200509-201008

31231CWASHER, PLATE(FOR CLUTCH RELEASE BEARING)

main90560-79001iGSE20..MTM200509-201008

31231DWASHER, WAVE(FOR CLUTCH RELEASE BEARING)

main90206-12006iGSE20..MTM200509-201008

31231ERING, SHAFT SNAP(FOR CLUTCH RELEASE BEARING)

main90520-75001iGSE20..MTM200509-201008

31234ASPRING, RELEASE FORK SUPPORT

main31234-14020iGSE20..MTM200509-201008

31236BSUPPORT, RELEASE FORK

main31236-14030iGSE20..MTM200509-201008

main31236-35050iALE20201008-201208

main31236-60060iALE20200511-201008

31250DISC ASSY, CLUTCH

main31250-53040iGSE20..MTM200509-200805

sub31250-53050

main31250-53050iGSE20..MTM200806-201008

31264SPRING, CLUTCH THRUST CONE

main31264-14060iGSE20..MTM200509-201008

31264AWASHER, PLATE(FOR CLUTCH THRUST CONE SPRING)

main90560-50001iGSE20..MTM200509-201008

33311WBEARING (FOR INPUT SHAFT)

main90363-12002iGSE20..MTM200509-201008

sub90363-12024

9011908079

main90119-08079

9011910054

main90119-10054

19 parts on this diagram · 2 diagrams in section
