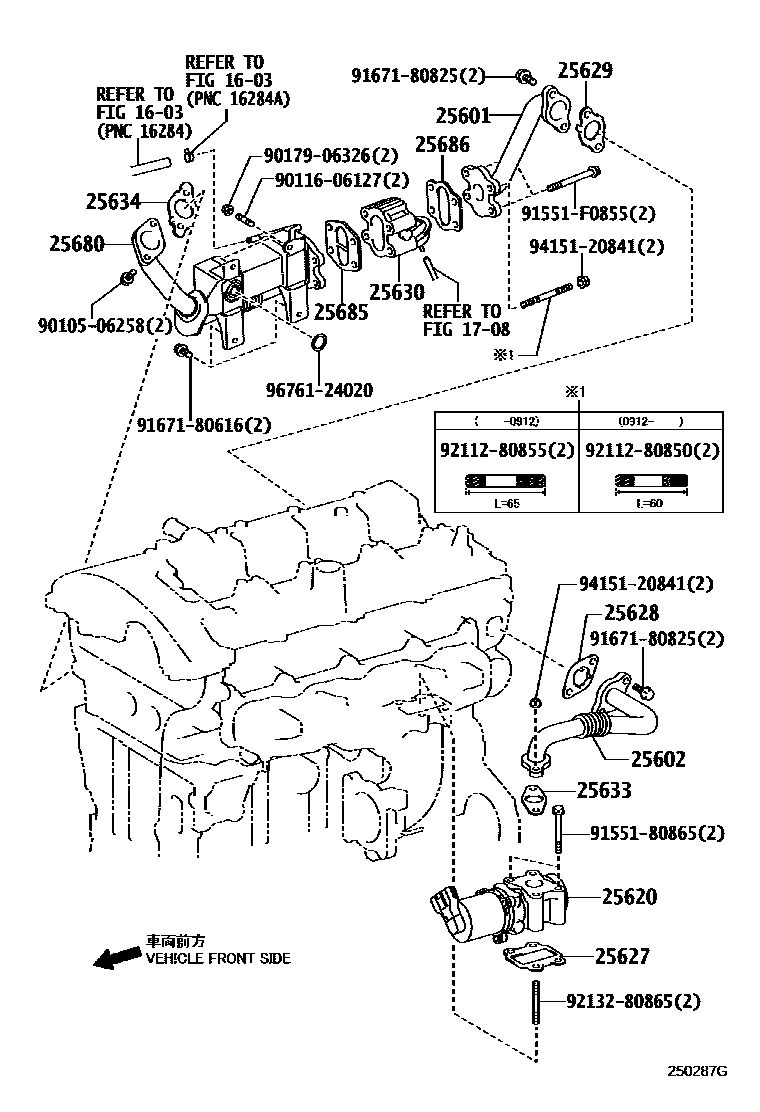

EXHAUST GAS RECIRCULATION SYSTEM
1603
1708
25601PIPE SUB-ASSY, EGR, NO.1
(L)
(J)
25602PIPE SUB-ASSY, EGR, NO.2
25627GASKET, EGR VALVE
(L)
(J)
25629GASKET, EGR VALVE ADAPTER
(L)
(J)
25633GASKET, EGR VALVE
(L)
(J)
25634GASKET, EGR PIPE
25686GASKET, EGR COOLER, NO.2
9010506258
main90105-06258
9011606127
main90116-06127
9017906326
main90179-06326
9155180865
main91551-80865
91551F0855
main91551-F0855
9167180616
main91671-80616
9167180825
main91671-80825
9211280850
main92112-80850
9211280855
main92112-80855
9213280865
main92132-80865
9415120841
main94151-20841
9676124020
main96761-24020
26 parts on this diagram · 2 diagrams in section
