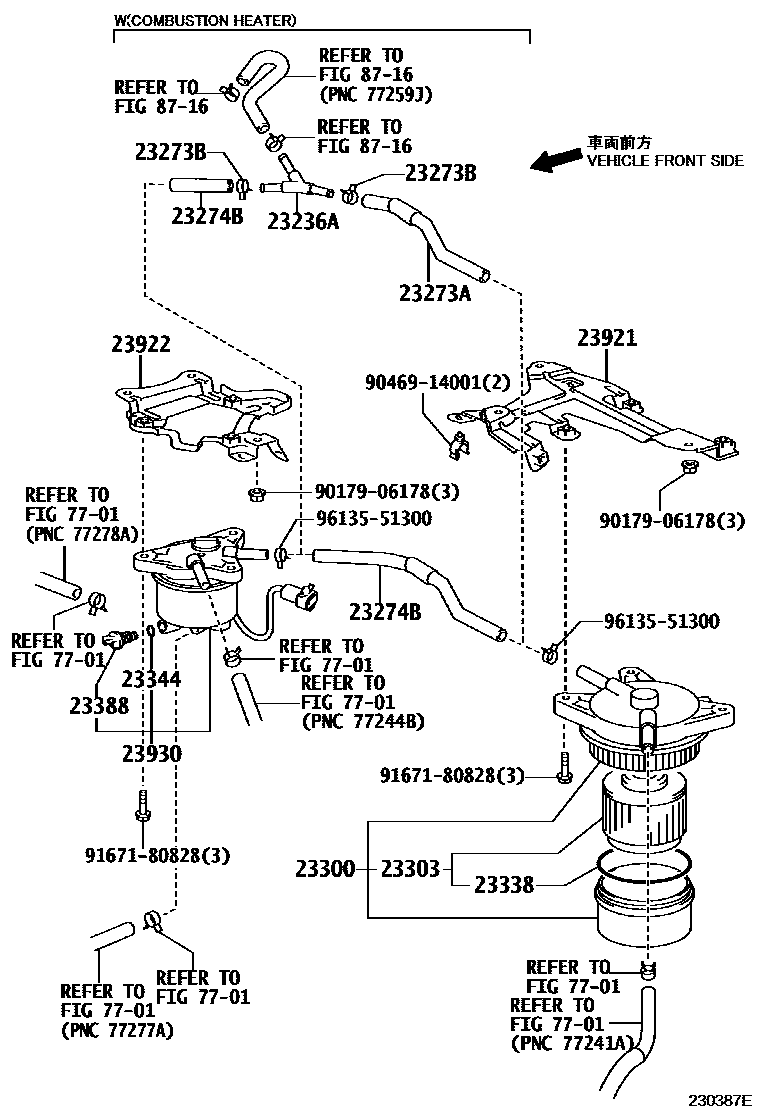

FUEL FILTER

23236ATUBE, FUEL

main77252-53080i2ADFHV..ALE20200511-201208

ADDITIONAL HEATER-COMBUSTION HEATER

23273AHOSE, FUEL, NO.2

main23271-26150i2ADFHV..ALE20200511-201208

ADDITIONAL HEATER-COMBUSTION HEATER

23273BCLIP, HOSE

main96135-51300i2ADFHV..ALE20200511-201208

ADDITIONAL HEATER-COMBUSTION HEATER

23274BHOSE, FUEL, NO.3

main23271-26160i2ADFHV..ALE20200511-201208

ADDITIONAL HEATER-COMBUSTION HEATER

main23274-26070i2ADFHV..ALE20..RHD..SPO200511-201208

23300FILTER ASSY, FUEL

main23300-26100i2ADFHV..ALE20200511-200901

sub23300-26101

main23300-26101i2ADFHV..ALE20..RHD..SPO200902-201208

23303ELEMENT SUB-ASSY, FUEL FILTER

main23390-0L010i2ADFHV..ALE20200511-200902

sub23390-0L041

main23390-0L030i2ADFHV..ALE20..LUX;2ADFHV..ALE20..LHD..SPO200902-201208

23338GASKET(FOR WARNING SWITCH)

main23344-0L010i2ADFHV..ALE20200511-201208

23344GASKET, CLAMPING NUT(FOR FUEL FILTER)

main23344-0L041i2ADFHV..ALE20200511-201208

23388PLUG, FUEL FILTER DRAIN

main23388-0L041i2ADFHV..ALE20200511-201008

23921SUPPORT, FUEL FILTER

main23921-26030i2ADFHV..ALE20200511-201208

23922SUPPORT, FUEL SEDIMENTER

main23922-26010i2ADFHV..ALE20200511-201208

23930SEDIMENTER ASSY, FUEL

main23930-26010i2ADFHV..ALE20200511-201107

sub23930-26011

main23930-26011i2AD#..ALE20201108-201208

7701

8716

9017906178

main90179-06178

9046914001

main90469-14001

9167180828

main91671-80828

9613551300

main96135-51300

18 parts on this diagram · 1 diagram in section
