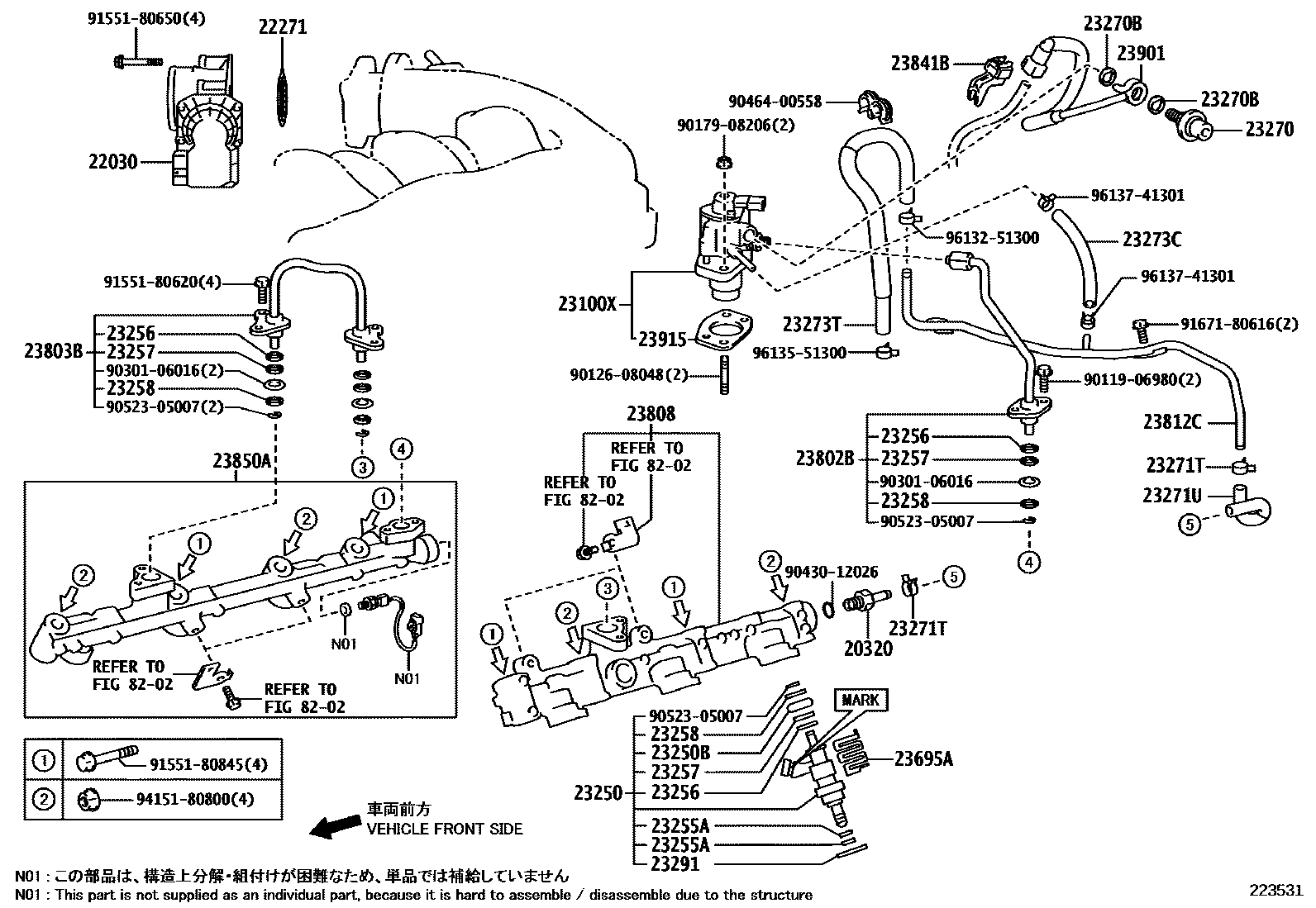

FUEL INJECTION SYSTEM

0001 1 0002 1

20320VALVE ASSY, FUEL RELIEF

main20320-31010i2GRFSE,4GRFSE..GSE2#200508-201008

22030BODY ASSY, THROTTLE W/THROTTLE POSITION SENSOR

main22030-31020i4GRFSE..GSE20200508-201008

main22030-31040i2GRFSE..GSE21201008

22271GASKET, THROTTLE BODY

main22271-31020i2GRFSE..GSE21201008

main22271-31030i4GRFSE..GSE20200508-201008

23100XPUMP ASSY, FUEL (ENGINE ROOM SIDE)

main23100-39615i4GRFSE..GSE20200508-200601

sub23100-39617

main23100-39617i4GRFSE..GSE20200601-200909

sub23100-39618

main23100-39618i2GRFSE,4GRFSE..GSE2#200909-201108

sub23100-39645

main23100-39645i2GRFSE,4GRFSE..GSE2#201108

sub23100-39646

23250INJECTOR ASSY, FUEL

main23209-31070i2GRFSE..GSE21201008

NO.2

main23209-39057-A0i4GRFSE..GSE20200508-201008

MARK BLACK

main23209-39057-B0i4GRFSE..GSE20200508-201008

MARK BROWN

main23209-39155-A0i2GRFSE..GSE21201008

MARK YELLOW,NO.1

main23209-39155-B0i2GRFSE..GSE21201008

MARK BLACK,NO.1

main23209-39155-C0i2GRFSE..GSE21201008

MARK BROWN,NO.1

main23209-39155-D0i2GRFSE..GSE21201008

MARK GREEN,NO.1

23250BRING, O(FOR FUEL INJECTOR)

main90301-06017i2GRFSE..GSE21201008

NO.2

main90301-06018i4GRFSE..GSE20200508-201008

main90301-06018i4GRFSE..GSE20201008

NO.1

23255ASEAL, FUEL INJECTOR

main23255-31010i4GRFSE..GSE20200508-201008

23256RING, FUEL INJECTOR BACK-UP, NO.1

main23256-74010i4GRFSE..GSE20200508-201008

23257RING, FUEL INJECTOR BACK-UP, NO.2

main23257-74010i4GRFSE..GSE20200508-201008

23258RING, FUEL INJECTOR BACK-UP, NO.3

main23258-28011i4GRFSE..GSE20200508-201008

23270DAMPER ASSY, FUEL PRESSURE PULSATION

main23207-31010i4GRFSE..GSE20200508-201112

sub23207-31021

main23207-31020i2GRFSE..GSE21201112

sub23207-31021

23270BGASKET(FOR PULSATION DAMPER HOSE)

main23279-74010i4GRFSE..GSE20200508-201008

23271TCLAMP OR CLIP(FOR FUEL HOSE)

main96137-51501i2GRFSE,4GRFSE..GSE2#200508-201008

23271UHOSE, FUEL, NO.1

main23271-31060i4GRFSE..GSE20200508-201008

23273CHOSE, FUEL, NO.2

main23273-31050i4GRFSE..GSE20200508-201008

23273THOSE, FUEL, NO.3

main23273-31060i4GRFSE..GSE20200508-201304

23291INSULATOR, INJECTOR VIBRATION

main23291-31011i4GRFSE..GSE20200508-201008

23695ACLAMP, NOZZLE HOLDER

main23695-31010i4GRFSE..GSE20200508-201008

23802BPIPE SUB-ASSY, FUEL, NO.2

main23802-31042i4GRFSE..GSE20200508-200611

sub23802-31043

main23802-31043i4GRFSE..GSE20200611-201008

23803BPIPE SUB-ASSY, FUEL, NO.3

main23803-31012i4GRFSE..GSE20200508-200611

sub23803-31013

main23803-31013i4GRFSE..GSE20200611-201008

23808PIPE SUB-ASSY, FUEL DELIVERY, NO.2

main23808-31010i4GRFSE..GSE20200508-201008

main23808-31070i2GRFSE..GSE21201008

23812CPIPE, FUEL, NO.2

main23812-31020i4GRFSE..GSE20200508-201110

sub23812-31050

main23812-31050i2GRFSE,4GRFSE..GSE2#201110

23841BCLAMP, FUEL PIPE, NO.1(FOR EFI)

main23841-21050i4GRFSE..GSE20200705-201008

main23841-28010i4GRFSE..GSE20200508-200704

sub23841-21050

23850APIPE ASSY, FUEL DELIVERY W/SENSOR, RH

main23850-31010i2GRFSE..GSE21201008

main23850-31020i4GRFSE..GSE20200508-201008

23901TUBE SUB-ASSY, FUEL

main23901-31140i4GRFSE..GSE20200508-201110

sub23901-31310

main23901-31310i2GRFSE,4GRFSE..GSE2#201110

23915INSULATOR, FUEL PUMP

main23915-46011i4GRFSE..GSE20200508-201008

8202

9011906980

main90119-06980

9012608048

main90126-08048

9017908206

main90179-08206

9030106016

main90301-06016

9043012026

main90430-12026

9046400558

main90464-00558

9052305007

main90523-05007

9155180620

main91551-80620

9155180650

main91551-80650

9155180845

main91551-80845

9167180616

main91671-80616

9415180800

main94151-80800

9613251300

main96132-51300

9613551300

main96135-51300

9613741301

main96137-41301

42 parts on this diagram · 2 diagrams in section
