INJECTION NOZZLE

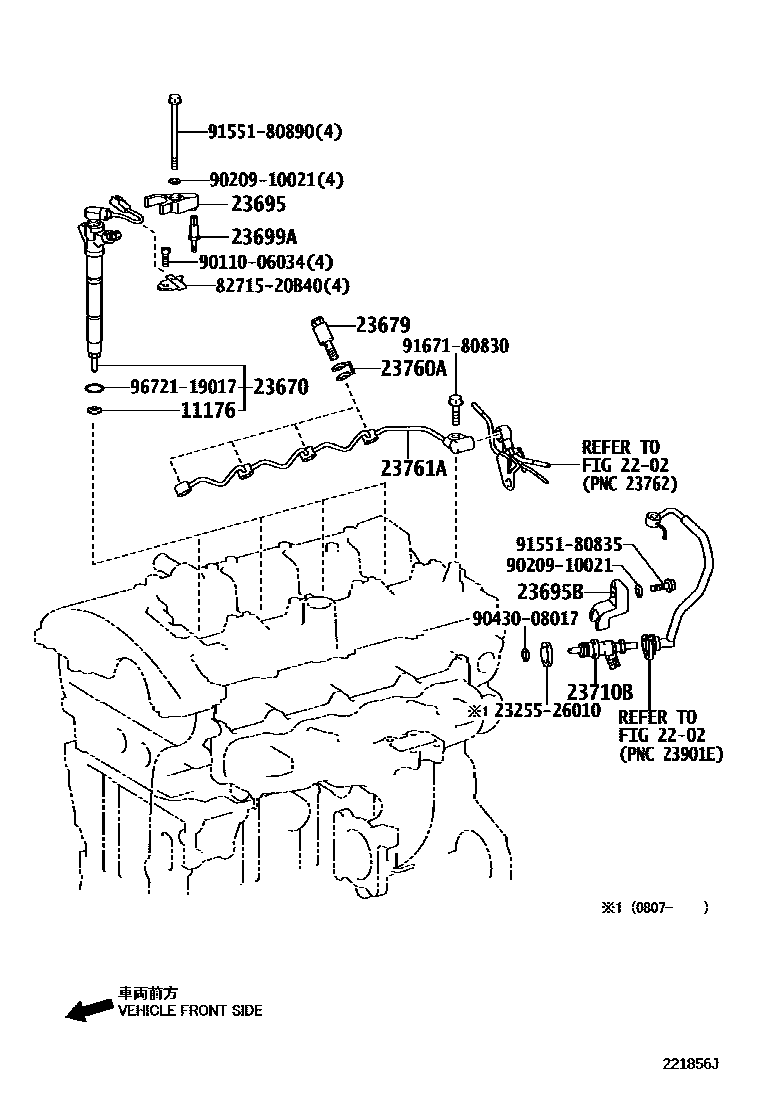

Parts diagram
11176SEAT, INJECTION NOZZLE
main11176-26010i¥480200511-200811
sub11176-51010¥480
main11176-26020i¥300201008-201208
main11176-26030i200811-200905
sub11176-51010¥480
main11176-51010i¥480200905-201008
2202
23670INJECTOR ASSY
main23670-29055i200511-200710
sub23670-29105¥88,700
main23670-29105i¥88,700200710-201008
main23670-29125i201008-201208
sub23670-29126
main23670-29135i¥88,700201008-201208
sub23670-29136
23679SCREW, INJECTOR FOLLOW
main23679-26010i200511-200911
sub23679-26020¥370
main23679-26020i¥370200911-201208
23695CLAMP, NOZZLE HOLDER, NO.1
main23695-0R020i200511-200808
sub23695-0R021¥1,140
main23695-0R021i¥1,140200808-201008
main23695-0R021i¥1,140201008-201208
TYPE A:REFER ILLUST.
main23695-26020i201008-201208
TYPE B:REFER ILLUST.
23695BCLAMP, NOZZLE HOLDER, NO.2
main23695-26011i¥1,070200511-201208
23699ASEAT, NOZZLE HOLDER CLAMP
main23699-26021i¥460200511-201008
main23699-26021i¥460201008-201208
TYPE A:REFER ILLUST.
main23699-26030i201008-201208
TYPE B:REFER ILLUST.
23710BINJECTOR ASSY, EXHAUST FUEL ADDITION
main23710-26010i200511-200704
sub23710-26011¥28,400
main23710-26011i¥28,400200704-201002
sub23710-26012¥23,700
main23710-26012i¥23,700201002-201208
23760AGASKET
main90904-30008i¥360200511-201208
23761APIPE, NOZZLE LEAKAGE, NO.1
main23761-0R030i¥9,000200511-200704
main23761-0R030i¥9,000200704-200903
(L)
main23761-0R040i201008-201208
(L)
main23761-26020i¥9,000200704-200903
(J)
sub23761-26021¥9,000
main23761-26021i¥9,000200903-201008
main23761-26030i¥8,400201008-201208
(J)
2325526010VALVE, THERMOSTATIC VACUUM TRANSMITTING, NO.1
main23255-26010¥70
8271520B40BRACKET,WIRING HARNESS CLAMP
main82715-20B40¥230
9011006034
main90110-06034¥110
9020910021
main90209-10021¥90
9043008017
main90430-08017¥90
9155180835
main91551-80835¥80
9155180890
main91551-80890¥120
9167180830
main91671-80830¥80
9672119017
main96721-19017¥160

19 parts on this diagram · 2 diagrams in section
