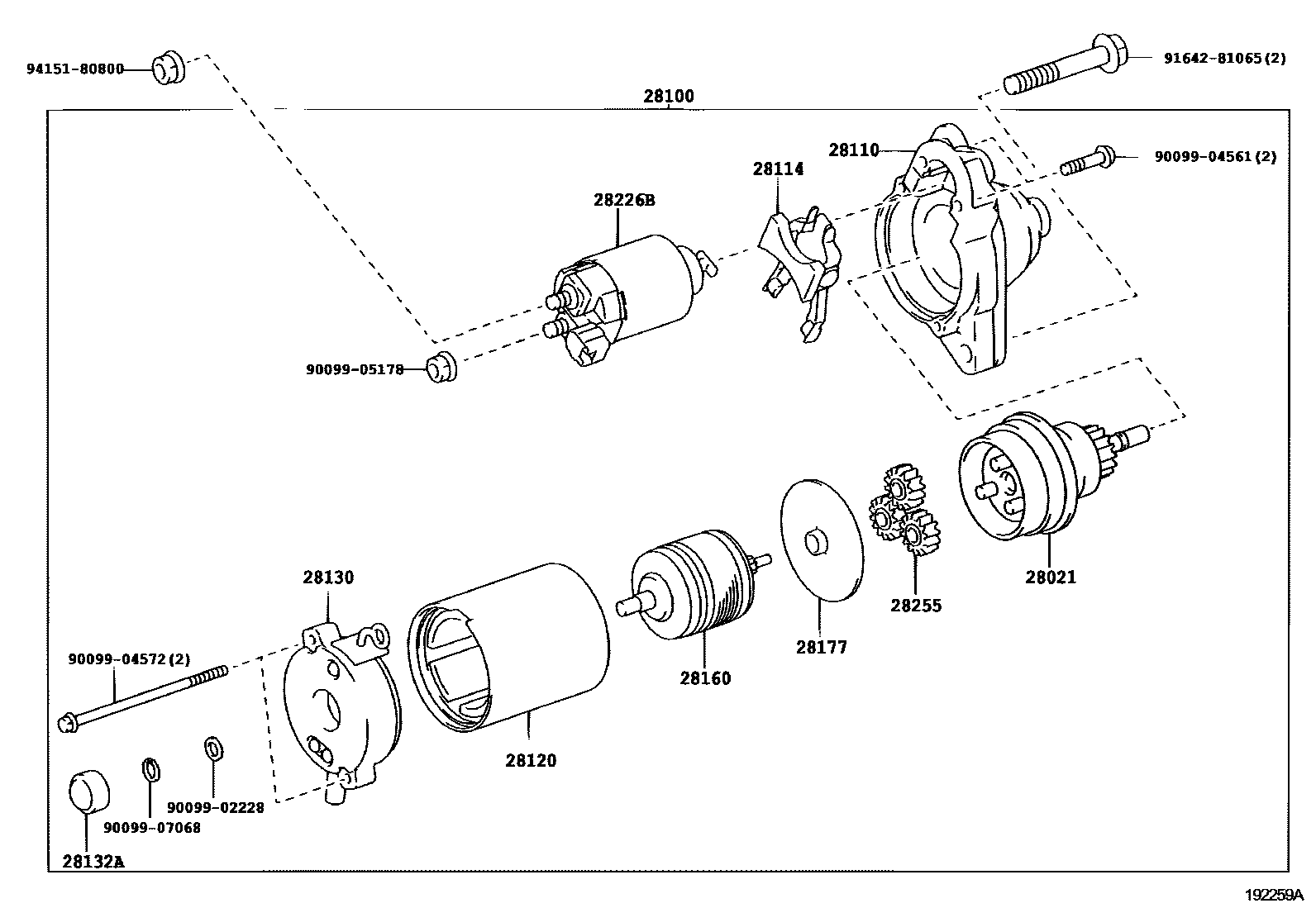

Parts diagram

28021CLUTCH SUB-ASSY, STARTER CENTER BEARING

main28021-0G040i200511-200704

main28021-0R010i200704-201208

main28021-21060i200508-201008

28100STARTER ASSY

main28100-0G040i200511-200704

12V 2.0KW

main28100-0R010i200704-201208

12V 2.0KW

main28100-31070i200508-200909

12V 1.7KW

main28100-31071i200910-201008

12V 1.7KW

28110HOUSING ASSY, STARTER DRIVE

main28110-0G040i200511-200704

main28110-0R010i200704-201208

main28110-31040i200508-201008

28114PIN, STARTER DRIVE LEVER SET

main28114-0R010i200704-201208

main28114-21060i200508-201008

28120YOKE ASSY, STARTER

main28120-0G020i200511-200704

main28120-28040i200508-200808

main28120-28060i200808-201008

main28120-38020i200704-201208

28130FRAME ASSY, STARTER COMMUTATOR END

main28130-0G040i200511-200704

main28130-0R010i200704-201208

main28130-31070i200508-201008

28132ACOVER, STARTER COMMUTATOR END FRAME

main28132-28040i200508-201008

28160ARMATURE ASSY, STARTER

main28160-0G020i200511-201208

main28160-21060i200508-201008

28177PLATE(FOR STARTER ARMATURE)

main28177-0G020i200511-201208

main28177-28040i200508-201008

28226BSTARTER KIT, REPAIR SERVICE

main28226-0G020i200511-200704

main28226-22061i200508-201008

28255GEAR, PLANET

main28255-0G040i200511-201208

main28255-20020i200508-201008

9009902228

main90099-02228

9009904561

main90099-04561

9009904572

main90099-04572

9009905178

main90099-05178

9009907068

main90099-07068

9164281065

main91642-81065

9415180800

main94151-80800

18 parts on this diagram · 3 diagrams in section
