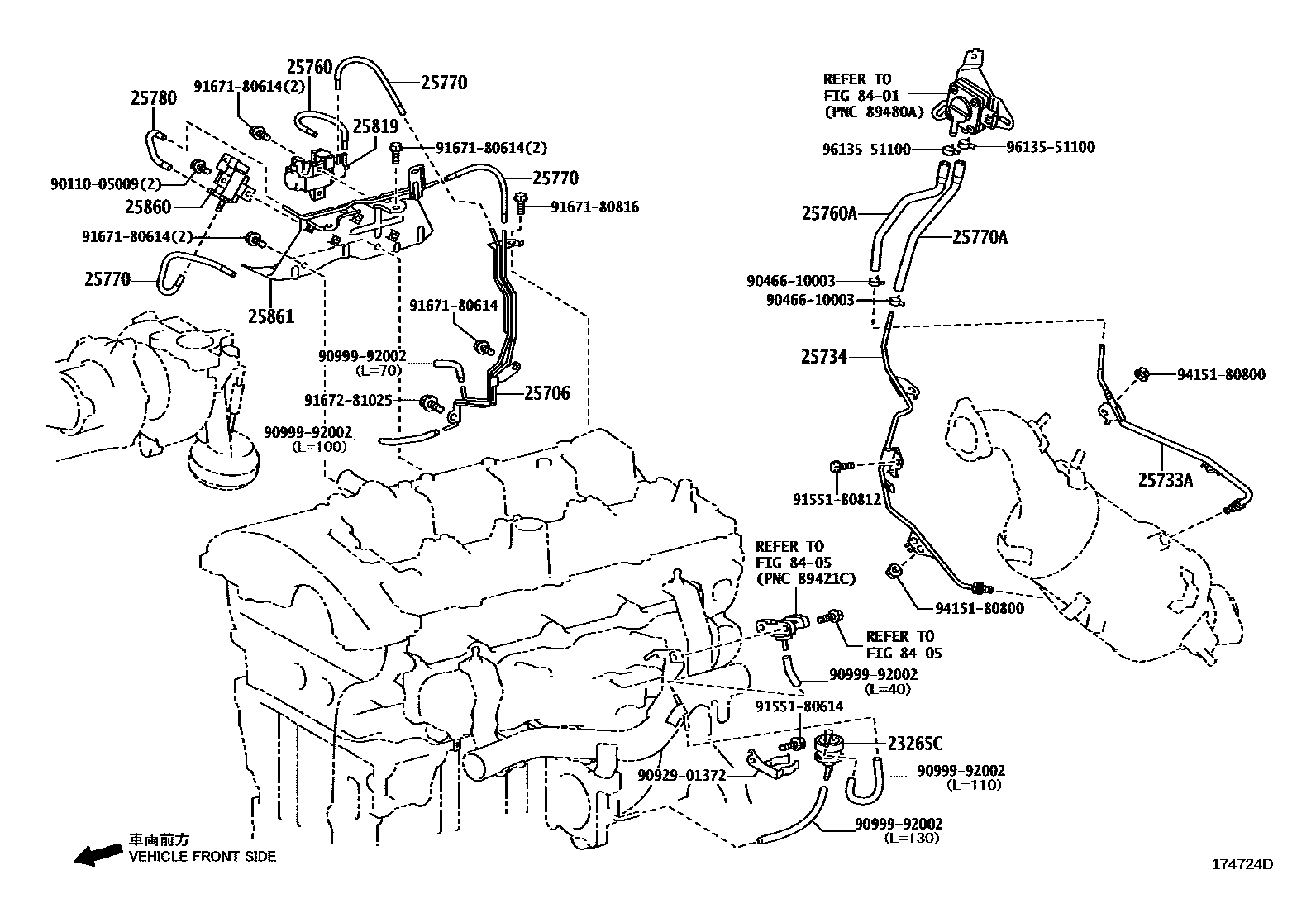

VACUUM PIPING

0001 1 0002 1 0003 1

23265CFILTER, GAS

main90917-11036i2ADFHV..ALE20..RHD..SPO200511-201208

25706PIPE SUB-ASSY, VACUUM TRANSMITTING, NO.1

main25706-26030i2ADFHV..ALE20200511-201001

sub25706-26031

main25706-26031i2ADFHV..ALE20201001-201208

25733APIPE, VACUUM, NO.1

main25733-26020i2ADFHV..ALE20200511-200704

main25733-26021i2ADFHV..ALE20200704-201208

25734PIPE, VACUUM, NO.2

main25734-26020i2ADFHV..ALE20200511-201208

25760HOSE ASSY, VACUUM TRANSMITTING

main25760-26020i2ADFHV..ALE20200511-200604

sub25760-26021

main25760-26021i2AD#..ALE20200604-201208

25760AHOSE ASSY, VACUUM TRANSMITTING

main25760-26060i2ADFHV..ALE20..RHD..SPO200511-201009

sub25760-26061

main25760-26061i2AD#..ALE20201010-201208

25770HOSE ASSY, VACUUM TRANSMITTING, NO.2

main25770-26020i2ADFHV..ALE20200511-201208

25770AHOSE ASSY, VACUUM TRANSMITTING, NO.2

main25770-26040i2ADFHV..ALE20200511-201009

sub25770-26041

main25770-26041i2AD#..ALE20201010-201208

25780HOSE ASSY, VACUUM TRANSMITTING, NO.3

main25780-26010i2ADFHV..ALE20200511-200604

sub25780-26011

main25780-26011i2ADFHV..ALE20..LUX;2ADFHV..ALE20..LHD..SPO200604-201208

25819VALVE ASSY, VACUUM REGULATING

main25819-0R011i2ADFHV..ALE20200511-201208

sub25819-0R012

25860VALVE ASSY, VACUUM SWITCHING, NO.1

main25860-0R010i2ADFHV..ALE20..LUX;2ADFHV..ALE20..LHD..SPO200511-201208

sub25860-0R011

main25860-31060i2GRFSE,4GRFSE..GSE2#200508-201008

25861BRACKET, VACUUM SWITCHING VALVE

main25861-26030i2ADFHV..ALE20..LUX;2ADFHV..ALE20..LHD..SPO200511-201208

8401

8405

9011005009

main90110-05009

9046610003

main90466-10003

9092901372

main90929-01372

9099992002

main90999-92002

9155180614

main91551-80614

9155180812

main91551-80812

9167180614

main91671-80614

9167180816

main91671-80816

9167281025

main91672-81025

9415180800

main94151-80800

9613551100

main96135-51100
