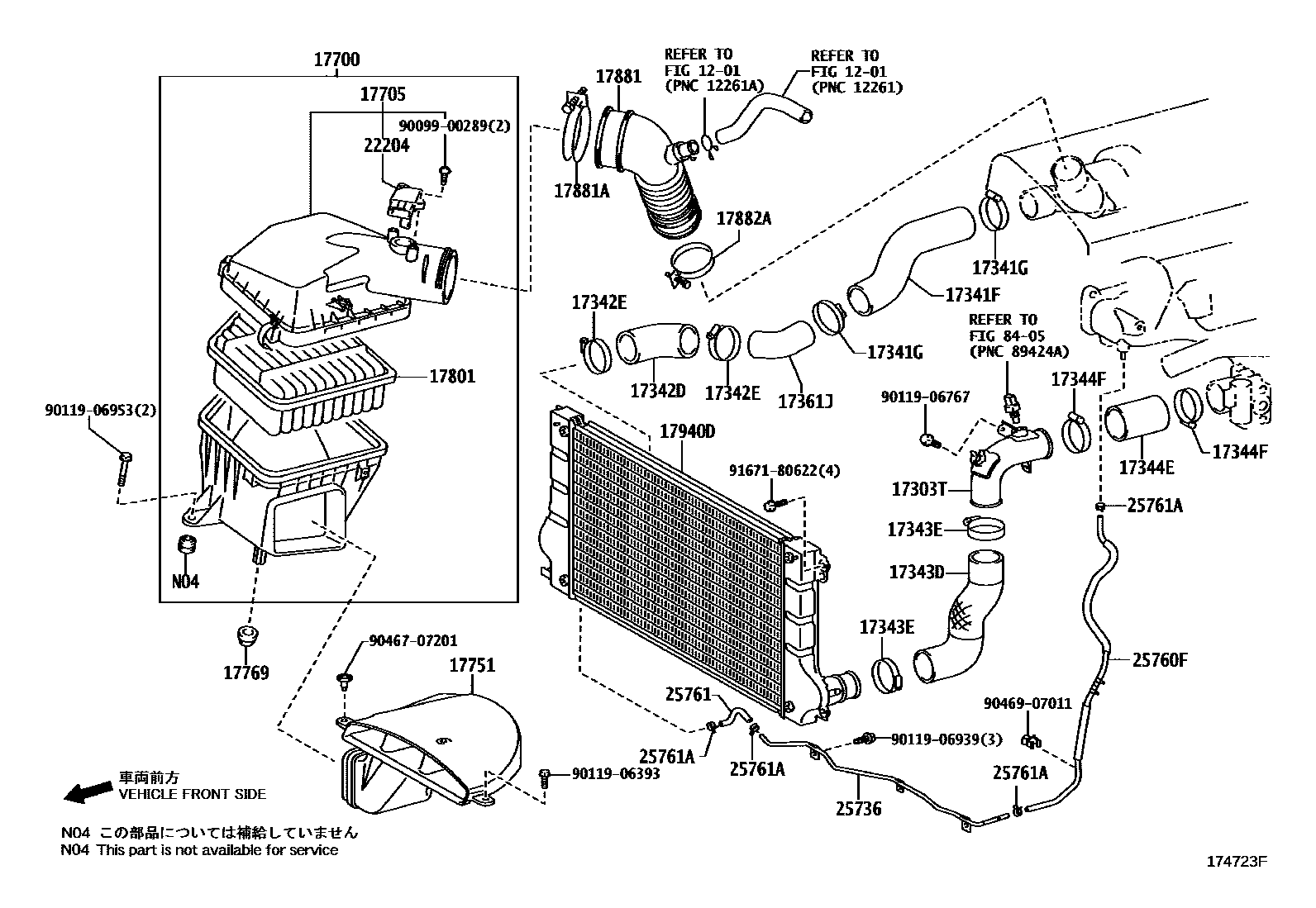

AIR CLEANER
1201
17303TPIPE SUB-ASSY, AIR
17341FHOSE, AIR, NO.1
17341GCLAMP OR CLIP(FOR AIR HOSE, NO.1)
17342DHOSE, AIR, NO.2
17342ECLAMP OR CLIP(FOR AIR HOSE, NO.2)
17343DHOSE, AIR, NO.3
17343ECLAMP, HOSE(FOR AIR HOSE, NO.3)
17344EHOSE, AIR, NO.4
17344FCLAMP, HOSE(FOR AIR HOSE, NO.4)
17361JTUBE, AIR, NO.1
17700CLEANER ASSY, AIR
AUSTRALIA SPEC
THAILAND SPEC
LATIN AMERICA SPEC
sub17700-31651
sub17700-31652
SOUTH AFRICA SPEC
NEW ZEALAND SPEC
17751INLET, AIR CLEANER, NO.1
17769SUPPORT, AIR CLEANER
17801ELEMENT SUB-ASSY, AIR CLEANER FILTER
17881HOSE, AIR CLEANER, NO.1
17881ACLAMP(FOR AIR CLEANER HOSE, NO.1)
NO.1
NO.1
NO.2
17882ACLAMP(FOR AIR CLEANER HOSE, NO.2)
17940DINTERCOOLER ASSY
25736PIPE, VACUUM TRANSMITTING, NO.1
25760FHOSE ASSY, VACUUM TRANSMITTING
25761HOSE, VACCUM TRANSMITTING, NO.1
25761ACLIP(VACCUM TRANSMITTING HOSE NO.1)
8405
9009900289
main90099-00289
9011906393
main90119-06393
9011906767
main90119-06767
9011906939
main90119-06939
9011906953
main90119-06953
9046707201
main90467-07201
9046907011
main90469-07011
9167180622
main91671-80622
34 parts on this diagram · 3 diagrams in section
