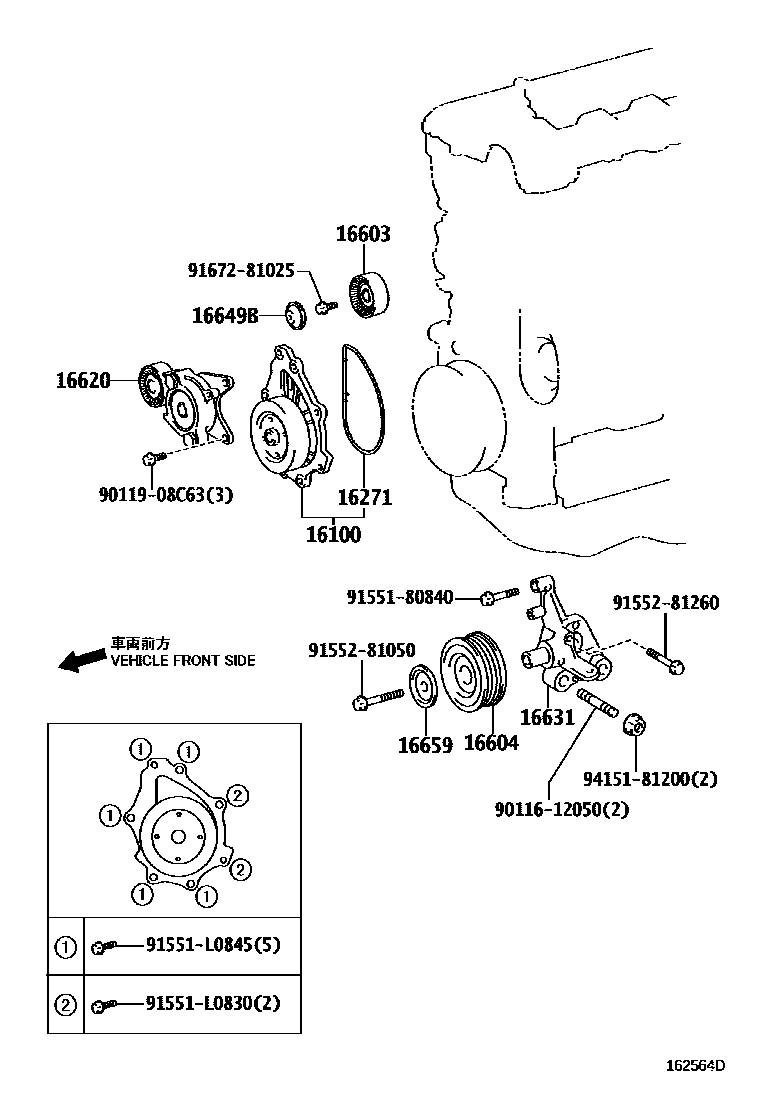

WATER PUMP

0001 1 0002 1

16100PUMP ASSY, ENGINE WATER

main16100-29495i2AD#..ALE20200511-201208

sub16100-29496

main16100-39435i4GRFSE..GSE20200508-200903

sub16100-39436

main16100-39436i4GRFSE..GSE20200903-201008

16271GASKET, WATER PUMP

main16271-26010i2ADFHV..ALE20200511-201208

main16271-31020i4GRFSE..GSE20200508-201008

16603PULLEY SUB-ASSY, IDLER, NO.1

main16603-0R010i2ADFHV..ALE20200511-201208

16604PULLEY SUB-ASSY, IDLER, NO.2

main16604-26010i2ADFHV..ALE20200511-200704

sub16604-26011

main16604-26011i2ADFHV..ALE20..RHD..SPO200704-201208

sub16604-26012

main16604-31010i4GRFSE..GSE20200508-201008

16620TENSIONER ASSY, V-RIBBED BELT

main16620-0R010i2ADFHV..ALE20..RHD..SPO200511-201208

main16620-31021i2GRFSE,4GRFSE..GSE2#200508-201008

main16620-31040i4GRFSE..GSE20..MTM200509-201008

16631BRACKET, IDLER PULLEY

main16631-26010i2ADFHV..ALE20..RHD..SPO200511-201208

16649BPLATE, IDLER PULLEY COVER

main16649-0R010i2ADFHV..ALE20200511-201208

16659PLATE, IDLER PULLEY COVER, NO.2

main16659-26010i2AD#..ALE20200511-201208

main16659-31011i4GRFSE..GSE20200508-201008

9011612050

main90116-12050

9011908C63

main90119-08C63

9155180840

main91551-80840

91551L0830

main91551-L0830

91551L0845

main91551-L0845

9155281050

main91552-81050

9155281260

main91552-81260

9167281025

main91672-81025

9415181200

main94151-81200

17 parts on this diagram · 2 diagrams in section
