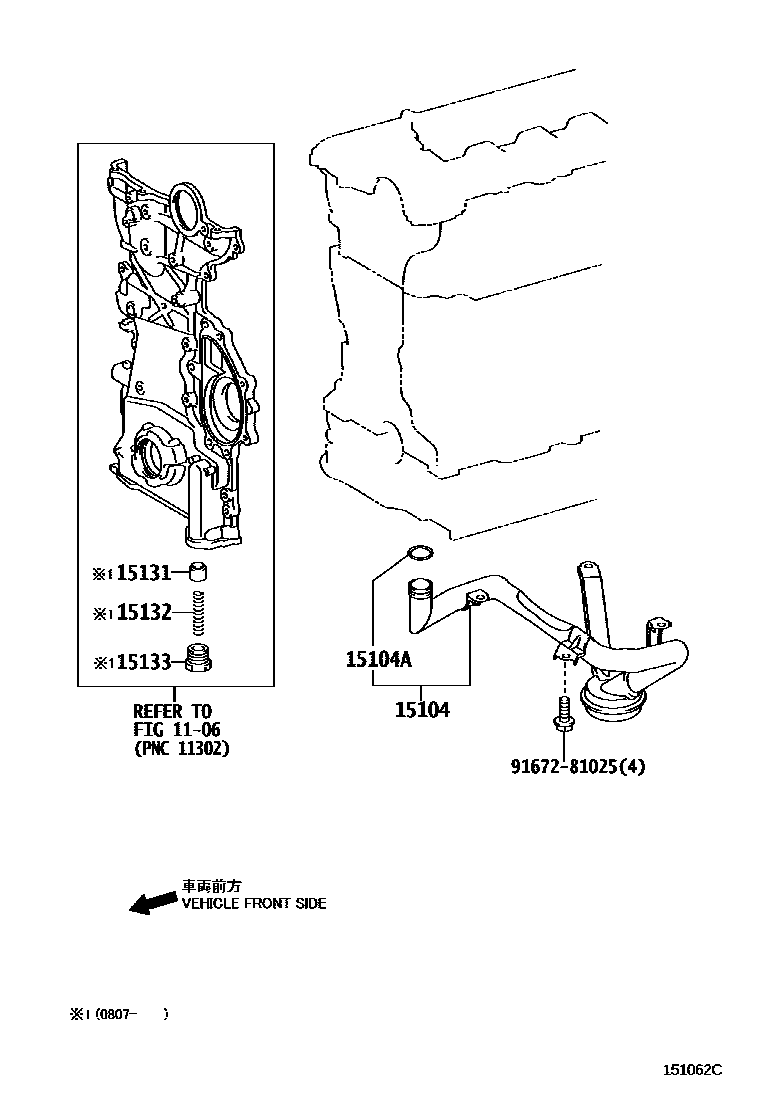

ENGINE OIL PUMP

0001 1 0002 1

1106

15104STRAINER SUB-ASSY, OIL

main15104-26020i2ADFHV..ALE20..RHD..SPO200511-201208

main15104-31080i4GRFSE..GSE20¥6,900200508-201008

15104ARING, O(FOR OIL STRAINER)

main90301-27013i2ADFHV..ALE20¥370200511-201208

15131VALVE, OIL PUMP RELIEF

main15131-0A040i2AD#..ALE20¥360200807-201208

main15131-17010i4GRFSE..GSE20¥360200508-201008

15132SPRING, OIL PUMP RELIEF VALVE

main15132-26030i2ADFHV..ALE20..LUX;2ADFHV..ALE20..LHD..SPO200807-201208

main15132-46020i4GRFSE..GSE20¥210200508-201008

15133PLUG, OIL PUMP RELIEF VALVE

main15133-28020i4GRFSE..GSE20¥260200508-201008

main15133-33040i2ADFHV..ALE20¥260200807-201208

9167281025

main91672-81025¥120

7 parts on this diagram · 2 diagrams in section
