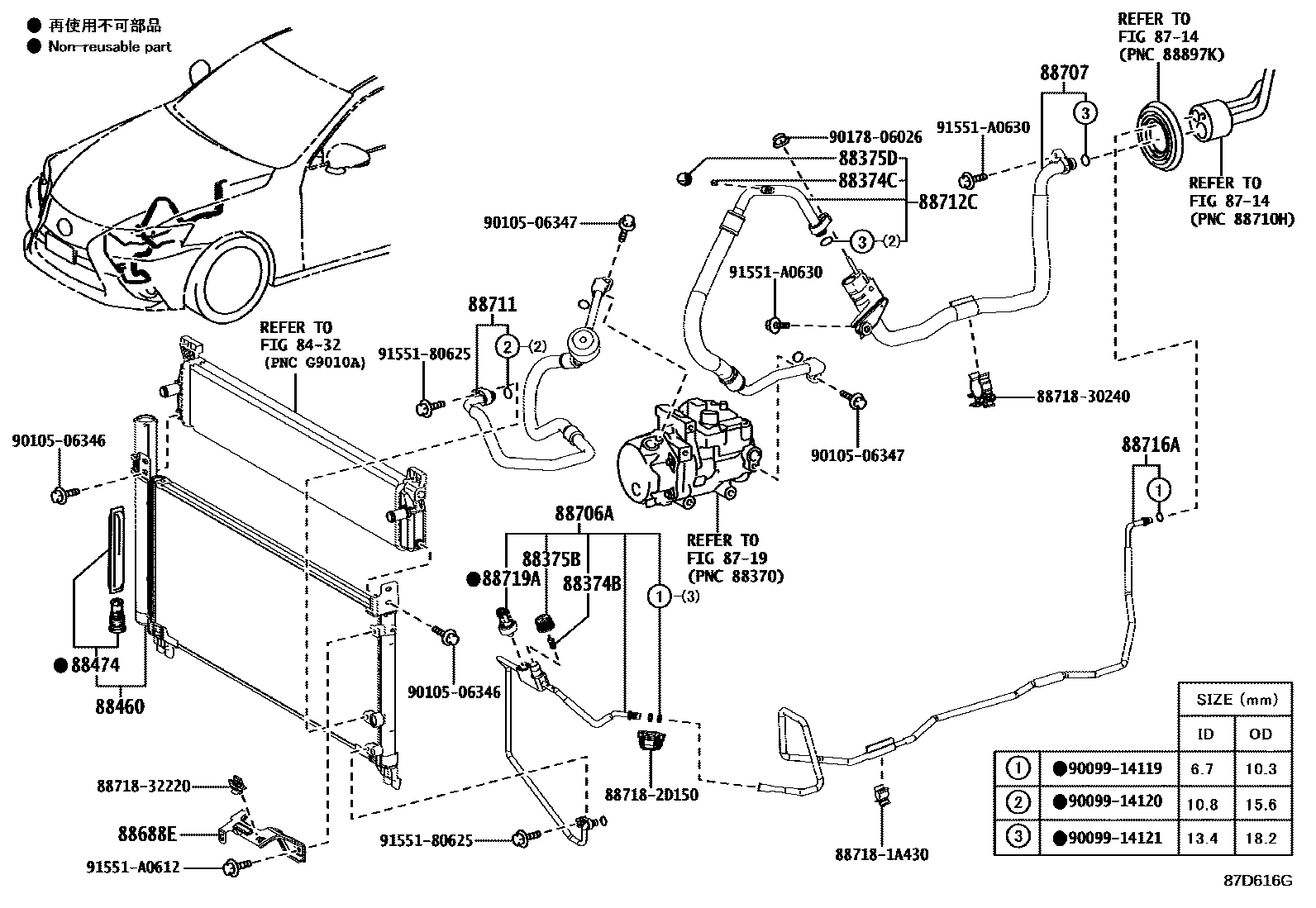

HEATING & AIR CONDITIONING - COOLER PIPING

0001 1 0002 1 0003 1

8432

8714

8719

88374BVALVE, SERVICE, NO.1

main88374-30010iASE30,AVE30,GSE31201304-202310

88374CVALVE, SERVICE, NO.2

main88374-30010iAVE30,GSE3#201304-202310

88375BCAP, SERVICE VALVE, NO.1

main88375-30280iASE30,AVE30,GSE31201304-202310

88375DCAP, SERVICE VALVE, NO.2

main88375-30290iAVE30,GSE3#201304-202310

88460CONDENSER ASSY, COOLER

main88460-53080iGSE3#..ARL,CHI,GEN201304-201508

main88460-53090iGSE3#..GCC201304-201508

main88460-53100iAVE30201304-202110

main88460-53120iGSE31..ARL,GEN201508-202009

main88460-53120iGSE31..ARL202009-202110

MALAYSIA SPEC

main88460-53130iGSE31..GCC201508-202110

main88460-53140iASE30..ARL,CHI,GEN201508-202110

main88460-53150iASE30..GCC201508-202110

88474DRYER, COOLER

main88474-12010iASE30,GSE31201304-202310

main88474-47020iAVE30201304-202110

88688EBRACKET, COOLER REFRIGERANT HOSE, NO.1

main88688-3F020iAVE30,GSE3#201304-202310

main88688-53090iASE30201508-202110

88706ATUBE SUB-ASSY, LIQUID, A

main88706-53140iGSE3#201304-201508

main88706-53160iAVE30201304-202110

main88706-53180iASE30201508-202110

main88706-53200iGSE31201508-202310

88707PIPE SUB-ASSY, SUCTION

main88707-30A31iAVE30202009-202110

main88707-30A41iGSE31..ARL202009-202310

main88707-53110iGSE3#..ARL201304-202009

main88707-53120iAVE30201304-202009

main88707-53130iGSE31..LHD201304-202009

main88707-53140iASE30201508-202110

88711HOSE, COOLER REFRIGERANT DISCHARGE, NO.1

main88711-3A740iGSE3#201304-201508

main88711-3A750iAVE30201304-202404

sub88711-3A751

main88711-3A751iAVE30202405

main88711-53130iGSE31201508-202404

sub88711-53131

main88711-53131iGSE31..LHD202405

main88711-53140iASE30201508-202404

sub88711-53141

main88711-53141iASE30202405

88712CHOSE, SUCTION

main88712-30360iGSE3#201304-201710

main88712-3F070iAVE30201304-202403

main88712-3F071iAVE30202404

main88712-53230iASE30201508-202404

sub88712-53231

main88712-53231iASE30202405

main88712-53240iGSE31201710-202404

sub88712-53241

main88712-53241iGSE31..LHD202405

88716APIPE, COOLER REFRIGERANT LIQUID, A

main88716-53080iGSE3#201304-201710

main88716-53090iAVE30201304-202009

main88716-53160iASE30201508-202009

main88716-53180iGSE31201710-202009

main88716-53200iAVE30202009-202110

main88716-53210iASE30202009-202110

main88716-53220iGSE31202009-202310

88719ASENSOR, AIR CONDITIONER PRESSURE

main88719-33020iAVE30,GSE3#201304-202310

887181A430PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-1A430

887182D150PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-2D150

8871830240PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-30240

8871832220PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-32220

9009914119

main90099-14119

9009914120

main90099-14120

9009914121

main90099-14121

9010506346

main90105-06346

9010506347

main90105-06347

9017806026

main90178-06026

9155180625

main91551-80625

91551A0612

main91551-A0612

91551A0630

main91551-A0630

29 parts on this diagram · 3 diagrams in section
