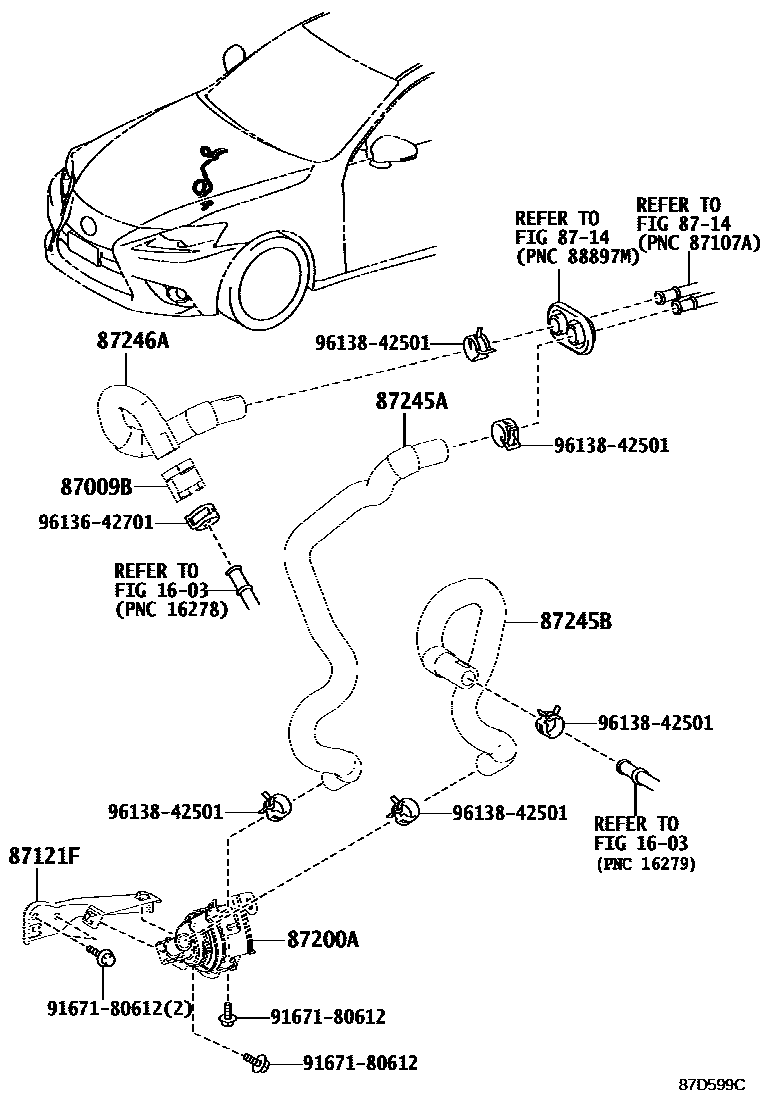

HEATING & AIR CONDITIONING - WATER PIPING

0001 1 0002 1 0003 1 0004 1

1603

87009BHOSE SET, WATER

main87009-11010iASE30201709-202310

main87009-30040iGSE31201304-202110

main87009-50020iASE30201508-201709

87121FBRACKET, HEATER

main87121-30110iAVE30201304-201508

sub87121-53040

main87121-53040iAVE30201508-202110

8714

87200APUMP ASSY, WATER(FOR HEATER)

main87200-30270iAVE30201304-202110

87245AHOSE, HEATER WATER, INLET A

main87245-30C30iAVE30201304-202110

main87245-30D10iGSE31..ARL201710-202310

main87245-53180iGSE31201304-201710

main87245-53200iASE30201610-202009

TAIWAN SPEC&EXHAUST EMISSION CONTROL-EURO5,WITH(ON BOARD DIAGNOSIS)

main87245-53200iASE30202009-202110

main87245-53200iASE30..GEN201508-201610

SOUTH AFRICA SPEC&EXHAUST EMISSION CONTROL-EURO4,WITHOUT(ON BOARD DIAGNOSIS)

87245BHOSE, HEATER WATER, INLET B

main87245-30C80iAVE30201304-202110

87246AHOSE, HEATER WATER, OUTLET A

main87245-30A41iGSE31..ARL201304-201710

main87245-30C40iAVE30201304-202110

main87245-30D20iGSE31..LHD201710-202110

main87245-30D30iGSE31..ARL201710-202310

main87245-53130iGSE3#..LHD201304-201710

main87245-53210iASE30..GEN201508-201610

SOUTH AFRICA SPEC&EXHAUST EMISSION CONTROL-EURO4,WITHOUT(ON BOARD DIAGNOSIS)

main87245-53210iASE30201610-202009

TAIWAN SPEC&EXHAUST EMISSION CONTROL-EURO5,WITH(ON BOARD DIAGNOSIS)

main87245-53210iASE30202009-202110

9167180612

main91671-80612

9613642701

main96136-42701

9613842501

main96138-42501

11 parts on this diagram · 4 diagrams in section
