HEATING & AIR CONDITIONING - CONTROL & AIR DUCT

0001 1HEATER CONTROL 0002 1AIR DUCT 0003 1AIR DUCT 0004 1AIR DUCT 0005 1AIR DUCT 0006 1SENSOR 0007 1SENSOR

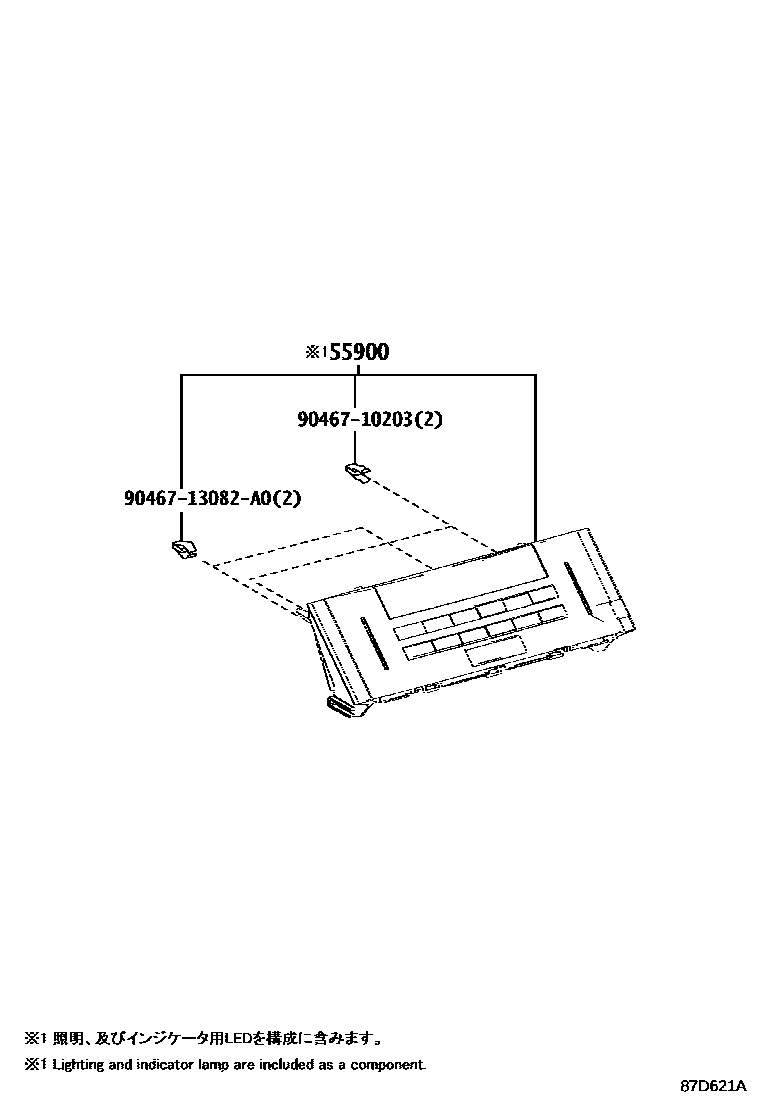

55900CONTROL ASSY, AIR CONDITIONER

main55900-53280iAVE30..GEN201304-201407

main55900-53281iASE30..GEN201508-201610

AIR CONDITIONER-WITH(S-FROW & *356)

main55900-53290iGSE3#..CHI,GEN201304-201407

main55900-53291iGSE3#..CHI,GEN201407-201508

main55900-53300iGSE3#..GCC201304-201407

main55900-53301iASE30,GSE31..GCC201508-201610

main55900-53420iASE30..GEN201610-201809

TAIWAN SPEC&WITH(STOP & START SYSTEM)

main55900-53430iASE30,GSE31..GEN201610-201809

main55900-53440iASE30,GSE31..GCC201610-201809

main55900-53570iASE30..GEN201809-202009

TAIWAN SPEC&WITH(STOP & START SYSTEM)

main55900-53580iASE30,GSE31..GEN201809-202009

main55900-53590iASE30,GSE31..GCC201809-202009

main55900-53680iGSE31..ARL202111-202309

main55900-53690iAVE30..GEN202009-202110

main55900-53700supersedes 55900-53720iASE30,GSE31..GEN202009-202110

EGYPT SPEC

main55900-53200supersedes 55900-53260iAVE30..ARL201304-201407

SOUTH AFRICA SPEC

main55900-53201supersedes 55900-53261iAVE30..ARL201407-201508

SOUTH AFRICA SPEC

main55900-53230supersedes 55900-53270iGSE3#..ARL201304-201407

SOUTH AFRICA SPEC

main55900-53231supersedes 55900-53271iGSE31..ARL201508-201610

SOUTH AFRICA SPEC&AIR CONDITIONER-WITH

main55900-53350supersedes 55900-53400iASE30,AVE30..ARL201610-201809

SOUTH AFRICA SPEC

main55900-53370supersedes 55900-53410iGSE31..ARL201610-201809

SOUTH AFRICA SPEC

main55900-53500supersedes 55900-53550iASE30,AVE30..ARL201809-202009

SOUTH AFRICA SPEC

main55900-53520supersedes 55900-53560iGSE31..ARL201809-202009

SOUTH AFRICA SPEC

main55900-53650supersedes 55900-53670iAVE30..ARL202111

SOUTH AFRICA SPEC

main55900-53660supersedes 55900-53680iASE30,GSE31..ARL202009-202110

SOUTH AFRICA SPEC

main55900-53730supersedes 55900-53670iAVE30..ARL202209

MACAU SPEC

9046710203

main90467-10203

9046713082A0

main90467-13082A0

3 parts on this diagram · 7 diagrams in section
