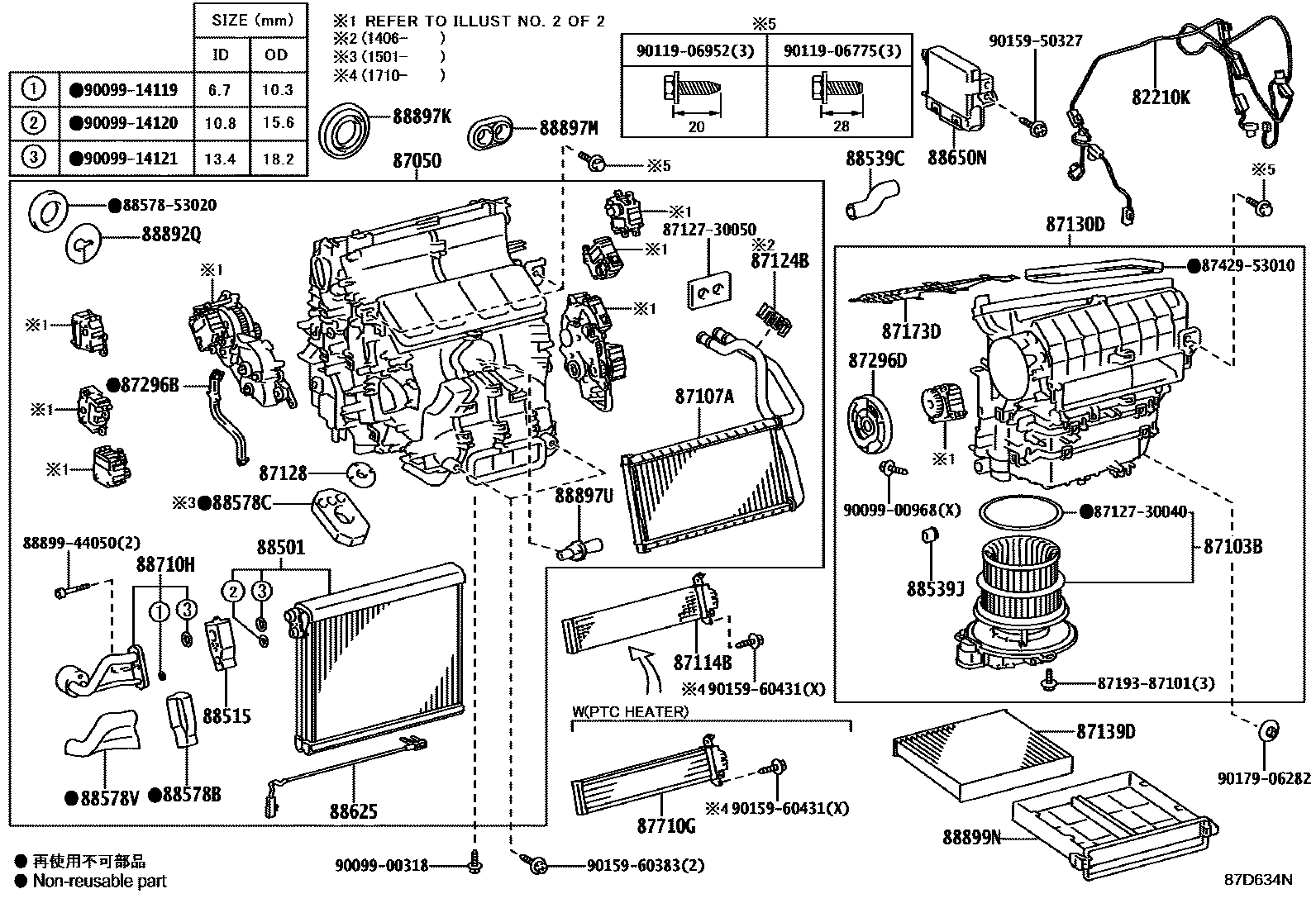

HEATING & AIR CONDITIONING - COOLER UNIT

0001 1 0002 1 0003 1SERVO MOTOR 0004 1SERVO MOTOR

82210KHARNESS ASSY, AIR CONDITIONER

main82212-30100iASE30..CHI;AVE30..GEN201610-202009

WITH(STOP & START SYSTEM)

main82212-30120iAVE30..ARL201304-201508

main82212-53010iASE30,GSE31..LHD202111

main82212-53020iGSE3#..ARL201304-201508

87050RADIATOR ASSY, AIR CONDITIONER

main87050-30460iGSE3#..ARL201304-201308

main87050-30461iGSE3#..ARL201309-201405

main87050-30462iGSE3#..ARL201406-201412

main87050-30463iGSE3#..ARL201501-201503

main87050-30470iAVE30..ARL201304-201309

main87050-30471iAVE30..ARL201309-201405

main87050-30472iAVE30..ARL201406-201412

main87050-30473iAVE30..ARL201501-201503

main87050-30580iAVE30..ARL201508-201610

main87050-30581iAVE30..ARL201610-202009

main87050-30660iAVE30..GEN201503-201508

main87050-30661iAVE30..GEN202111

main87050-30710supersedes 87050-53141iGSE3#..ARL201503-201508

main87050-30711iGSE31..ARL201610-202009

main87050-53070iGSE3#..LHD201304-201308

main87050-53071iGSE3#..LHD201309-201405

main87050-53072iGSE3#..LHD201406-201412

main87050-53073iGSE3#..LHD201501-201503

main87050-53080iAVE30..GEN201304-201308

main87050-53081iAVE30..GEN201309-201405

main87050-53082iAVE30..GEN201406-201412

main87050-53083iAVE30..GEN201501-201503

main87050-53160iASE30..CHI201508-201610

AIR CONDITIONER-WITH(S-FROW & *356)

main87050-53161iASE30..CHI201705-202009

main87050-53180iASE30,GSE31..GCC,GEN201508-201610

main87050-53181iASE30,GSE31..LHD202009-202110

main87050-53270iASE30..ARL202111

main87050-53280iAVE30..ARL202009-202110

87103BMOTOR SUB-ASSY, BLOWER W/FAN

main87103-30470iAVE30,GSE3#..LHD201304-201507

main87103-30471iAVE30,GSE3#..LHD201507-201508

main87103-30480iAVE30,GSE3#..ARL201304-201507

main87103-30481iASE30,AVE30,GSE31..ARL201610-202009

87107AUNIT SUB-ASSY, HEATER RADIATOR

main87107-30570iAVE30,GSE3#..ARL201304-201309

main87107-30571iAVE30,GSE3#201309-201503

main87107-30580iASE30,AVE30,GSE31202009-202110

87114BCOVER, HEATER

main87114-30010iAVE30,GSE3#201304-201508

87124BCLAMP, HEATER

main87124-33070iAVE30,GSE3#201406-201508

87128GROMMET, HEATER

main87128-30050iAVE30,GSE3#201304-201508

87130DBLOWER ASSY

main87130-30801iAVE30,GSE3#..ARL201304-201507

main87130-30802iASE30,AVE30,GSE31..ARL201508-201610

main87130-30821iAVE30,GSE3#..LHD201304-201507

main87130-30822iASE30,AVE30,GSE31..LHD201508-201610

main87130-30830iASE30,AVE30,GSE31..ARL202009-202110

main87130-30840iASE30,AVE30,GSE31..LHD202111

87139DELEMENT, AIR REFINER

main87139-30100iASE30,AVE30,GSE31201610-202009

87173DPROTECTOR HEATER

main87173-53010iASE30,AVE30..ARL202111

main87173-53020iASE30,AVE30,GSE31..LHD202009-202110

87296BLEVER, HEATER AIR DAMPER CONTROL

main87296-53010iASE30,AVE30,GSE31202009-202110

87296DLEVER, HEATER AIR DAMPER CONTROL, NO.2

main87296-53020iASE30,AVE30,GSE31..LHD202111

main87296-53030iASE30,AVE30..ARL202111

87710GQUICK HEATER ASSY

main87710-30050iAVE30201304-201508

COLD AREA SPEC

88501EVAPORATOR SUB-ASSY, COOLER, NO.1

main88501-3A190iASE30,GSE31202009-202110

main88501-3A230iAVE30201610-201806

main88501-3A231iAVE30202111

main88501-53030iASE30..GEN201508-201610

AIR CONDITIONER-WITH(S-FROW & *356)

88515VALVE, COOLER EXPANSION

main88515-30780iGSE3#201304-201508

main88515-30800iAVE30201610-202009

88539CHOSE, COOLER UNIT DRAIN, NO.2

main88839-30010iGSE31..LHD;ASE30,AVE30202111

88539JHOSE, DRAIN COOLER

main88539-30A00iAVE30,GSE3#201304-201508

88578BPACKING, COOLING UNIT, NO.1

main88578-3A010iASE30,AVE30,GSE31201508-201610

88578CPACKING, COOLING UNIT, NO.2

main88578-52131iASE30,AVE30,GSE31202009-202110

88578VPACKING, COOLING UNIT, NO.3

main88578-30890iASE30,AVE30,GSE31202009-202110

88625THERMISTOR, COOLER, NO.1

main88620-30050iGSE3#201304-201508

main88620-30290iAVE30201610-202009

88650NAMPLIFIER ASSY, AIR CONDITIONER

main88650-53400iGSE3#..LHD201304-201407

main88650-53401iGSE3#..LHD201407-201508

main88650-53402iASE30,GSE31..LHD201508-201610

main88650-53403iASE30,GSE31..LHD201610-201710

main88650-53404iASE30,GSE31..LHD201710-202009

main88650-53430iAVE30..GEN201304-201407

main88650-53431iAVE30..GEN201407-201508

main88650-53432iAVE30..GEN201508-201610

main88650-53433iAVE30..GEN201610-201710

main88650-53434iAVE30..GEN201710-202009

main88650-53440iGSE3#..ARL201304-201407

main88650-53441iGSE3#..ARL201407-201508

main88650-53442iASE30,GSE31..ARL201508-201610

main88650-53443iASE30,GSE31..ARL201610-201710

main88650-53444iASE30,GSE31..ARL201710-202009

main88650-53450iAVE30..ARL201304-201407

main88650-53451iAVE30..ARL201407-201508

main88650-53452iAVE30..ARL201508-201610

main88650-53453iAVE30..ARL201610-201710

main88650-53454iAVE30..ARL201710-202009

main88650-53A80iASE30,GSE31..LHD202009-202110

main88650-53A81iASE30,GSE31..LHD202111-202209

main88650-53A82iASE30,GSE31..LHD202209

main88650-53A90iASE30,GSE31..ARL202009-202110

main88650-53A91iASE30,GSE31..ARL202111-202209

main88650-53A92iASE30..ARL202209

main88650-53B00iAVE30..ARL202009-202110

main88650-53B01iAVE30..ARL202209

main88650-53B10iAVE30..GEN202009-202110

main88650-53B11iAVE30..GEN202209

88710HTUBE & ACCESSORY ASSY, AIR CONDITIONER

main88710-3A410iAVE30,GSE3#201304-201508

88892QPLATE, COOLER

main88892-30620iAVE30,GSE3#201304-201508

88897KGROMMET, (FOR COOLER PIPE)

main88897-11020iASE30,AVE30,GSE31201709-202009

main88897-35030iASE30,AVE30,GSE31201508-201610

88897MGROMMET (FOR HEATER PIPE)

main87128-30060iASE30,AVE30,GSE31201610-202009

main87128-35020iAVE30,GSE3#201304-201502

88897UPIPE, ASPIRATOR

main88897-32090iASE30,AVE30,GSE31201610-202009

88899NPLATE, COVER

main88899-3A090iAVE30,GSE3#201304-201508

8712730040PACKING, HEATER AIR DAMPER

main87127-30040

8712730050PACKING, HEATER AIR DAMPER

main87127-30050

8719387101

main87193-87101

8742953010PIPE, COMBUSTION HEATER OUTLET

main87429-53010

8857853020PAKING, COOLER AIR DUCT

main88578-53020

8889944050COVER, EVAPORATOR

main88899-44050

9009900318

main90099-00318

9009900968

main90099-00968

9009914119

main90099-14119

9009914120

main90099-14120

9009914121

main90099-14121

9011906775

main90119-06775

9011906952

main90119-06952

9015950327

main90159-50327

9015960383

main90159-60383

9015960431

main90159-60431

9017906282

main90179-06282

45 parts on this diagram · 4 diagrams in section
