TIRE PRESSURE WARNING SYSTEM
8420
84746ASWITCH, TIRE PRESSURE WARNING, NO.1
MIDDLE & SOUTH AMERICA SPEC
YEMEN SPEC
BRAZIL SPEC
INDONESIA SPEC
BRUNEI SPEC
COLOMBIA SPEC
MACAU SPEC
89760CRECEIVER ASSY, TIRE PRESSURE MONITOR
PHILIPPINE SPEC
LUXURY PACKAGE
8976ADRIVER, TIRE PRESSURE MONITOR INITIATOR
TIRE INFLATION PRESSURE WARNING-WITH(315MHZ & WITH AUTO LOCATION)
sub8976A-53032
MIDDLE & SOUTH AMERICA SPEC&TIRE INFLATION PRESSURE WARNING-WITH(433MHZ & WITH AUTO LOCATION)
sub8976A-53032
ARGENTINA SPEC&TIRE INFLATION PRESSURE WARNING-WITH(433MHZ & WITH AUTO LOCATION)
sub8976A-53032
MIDDLE & SOUTH AMERICA SPEC&TIRE INFLATION PRESSURE WARNING-WITH(433MHZ & WITH AUTO LOCATION)
sub8976A-53033
TIRE INFLATION PRESSURE WARNING-WITH(315MHZ & WITH AUTO LOCATION)
sub8976A-53033
ARGENTINA SPEC&TIRE INFLATION PRESSURE WARNING-WITH(433MHZ & WITH AUTO LOCATION)
sub8976A-53033
BRAZIL SPEC&TIRE INFLATION PRESSURE WARNING-WITH(315MHZ & WITH AUTO LOCATION)
sub8976A-53041
8976BINITIATOR, TIRE PRESSURE MONITOR FRONT
LUXURY PACKAGE
F SPORT
THE CRAFTED LINE
BRAZIL SPEC&TIRE INFLATION PRESSURE WARNING-WITH(315MHZ & WITH AUTO LOCATION)
MIDDLE & SOUTH AMERICA SPEC&TIRE INFLATION PRESSURE WARNING-WITH(433MHZ & WITH AUTO LOCATION)
TIRE INFLATION PRESSURE WARNING-WITH(315MHZ & WITH AUTO LOCATION)
TAIWAN SPEC
ARGENTINA SPEC&TIRE INFLATION PRESSURE WARNING-WITH(433MHZ & WITH AUTO LOCATION)
8976CINITIATOR, TIRE PRESSURE MONITOR REAR
TIRE INFLATION PRESSURE WARNING-WITH(315MHZ & WITH AUTO LOCATION)
LUXURY PACKAGE
F SPORT
MIDDLE & SOUTH AMERICA SPEC&TIRE INFLATION PRESSURE WARNING-WITH(433MHZ & WITH AUTO LOCATION)
TAIWAN SPEC
THE CRAFTED LINE
BRAZIL SPEC&TIRE INFLATION PRESSURE WARNING-WITH(315MHZ & WITH AUTO LOCATION)
ARGENTINA SPEC&TIRE INFLATION PRESSURE WARNING-WITH(433MHZ & WITH AUTO LOCATION)
9011906915
main90119-06915
9017906274
main90179-06274
9415180600
main94151-80600

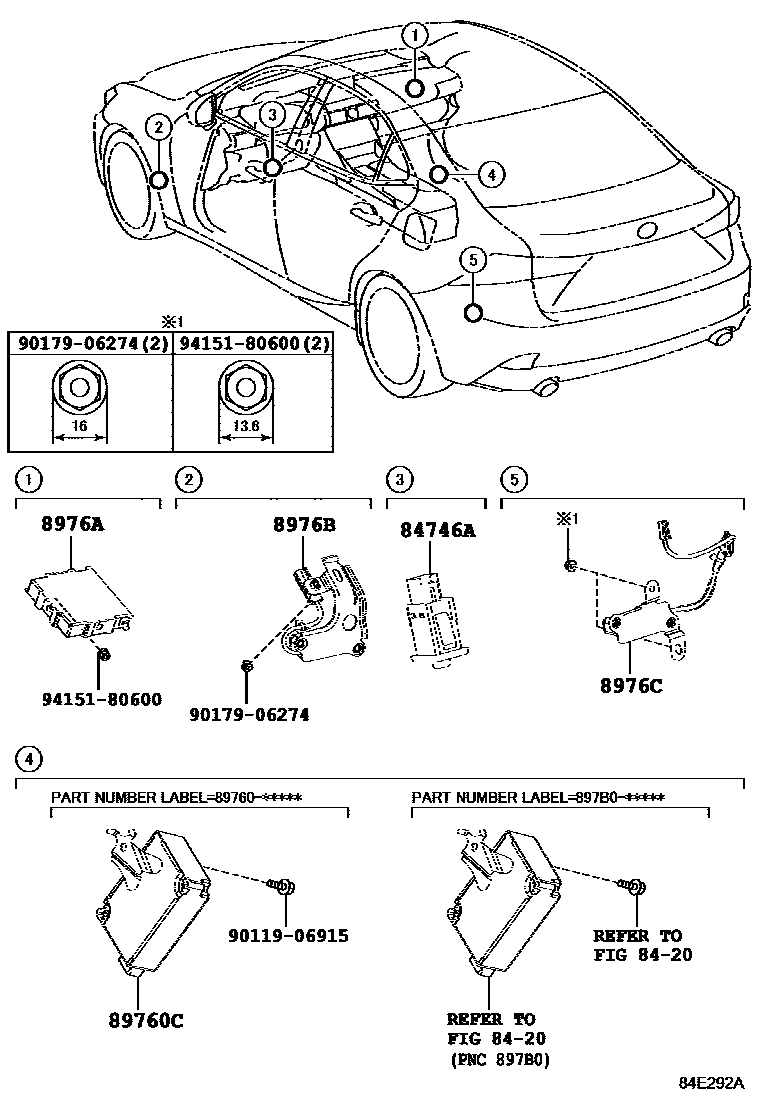

9 parts on this diagram · 4 diagrams in section
