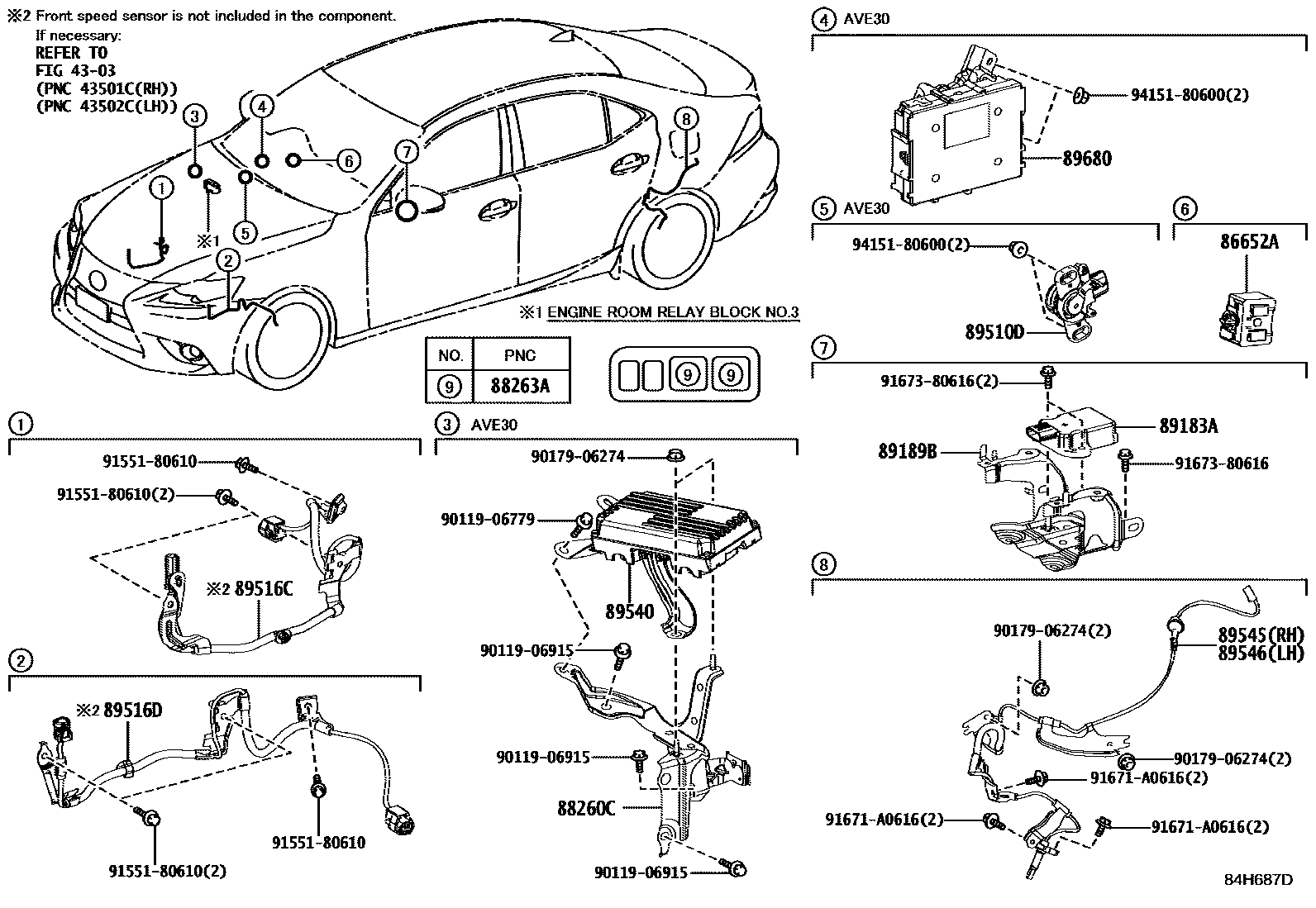

ABS & VSC

0001 1 0002 1 0003 1 0004 1

4303

86652ABUZZER ASSY, SKID CONTROL

main86652-50010iAVE30,GSE30;GSE31..ARL,GCC201304-201508

LANE KEEPING ASSIST-WITH(LANE DEPARTURE ALERT)

88260CBRACKET ASSY, SKID CONTROL COMPUTER

main88260-30040iAVE30..ARL202009-202110

main88260-30050iAVE30..GEN202009-202110

main88260-53010iAVE30..GEN201304-201508

main88260-53020iAVE30..ARL201508-201610

88263ARELAY, SKID CONTROL

main88263-21010×2iAVE30202111

89183ASENSOR, YAWRATE

main89183-48020iASE30..CHI201610-202009

main89183-50030iASE30,AVE30,GSE31..ARL,GCC,GEN201809-202009

89189BBRACKET, YAWRATE SENSOR

main89189-53010iASE30,AVE30,GSE31202009-202110

89510DSENSOR ASSY, BRAKE PEDAL STROKE

main89510-33020iAVE30..ARL201304-201508

main89510-33030iAVE30..GEN202111

89516CWIRE, SKID CONTROL SENSOR, RH

main89516-30180iAVE30,GSE3#201304-201508

main89516-30220iASE30,AVE30,GSE31202009-202110

89516DWIRE, SKID CONTROL SENSOR, LH

main89516-30030iAVE30,GSE3#201304-201508

main89516-30170iASE30,AVE30,GSE31202009-202110

89540COMPUTER ASSY, SKID CONTROL

main895B0-53310iAVE30..GEN202009-202110

main895B0-53330iAVE30..ARL202111

main895B0-53130supersedes 895B0-53260iAVE30..GEN201304-201508

F SPORT

main895B0-53150supersedes 895B0-53290iAVE30..ARL201304-201508

F SPORT&AVS-WITH

main895B0-53170supersedes 895B0-53260iAVE30..GEN201508-201610

F SPORT

main895B0-53200supersedes 895B0-53290iAVE30..ARL201508-201610

F SPORT

main895B0-53240supersedes 895B0-53260iAVE30..GEN201610-202009

F SPORT

main895B0-53270supersedes 895B0-53290iAVE30..ARL201610-202009

F SPORT

89545SENSOR, SPEED, REAR RH

main89545-30080iASE30,AVE30,GSE31201610-202009

main89545-53010iGSE31..LHD;ASE30,AVE30202111

89546SENSOR, SPEED, REAR LH

main89546-30080iASE30,AVE30,GSE31201508-201610

main89546-53010iASE30,AVE30,GSE31202009-202110

89680SUPPLY ASSY, BRAKE CONTROL POWER

main896C0-53010iAVE30..GEN202111

main896C0-53020iAVE30..ARL201610-202009

9011906779

main90119-06779

9011906915

main90119-06915

9017906274

main90179-06274

9155180610

main91551-80610

91671A0616

main91671-A0616

9167380616

main91673-80616

9415180600

main94151-80600

20 parts on this diagram · 4 diagrams in section
