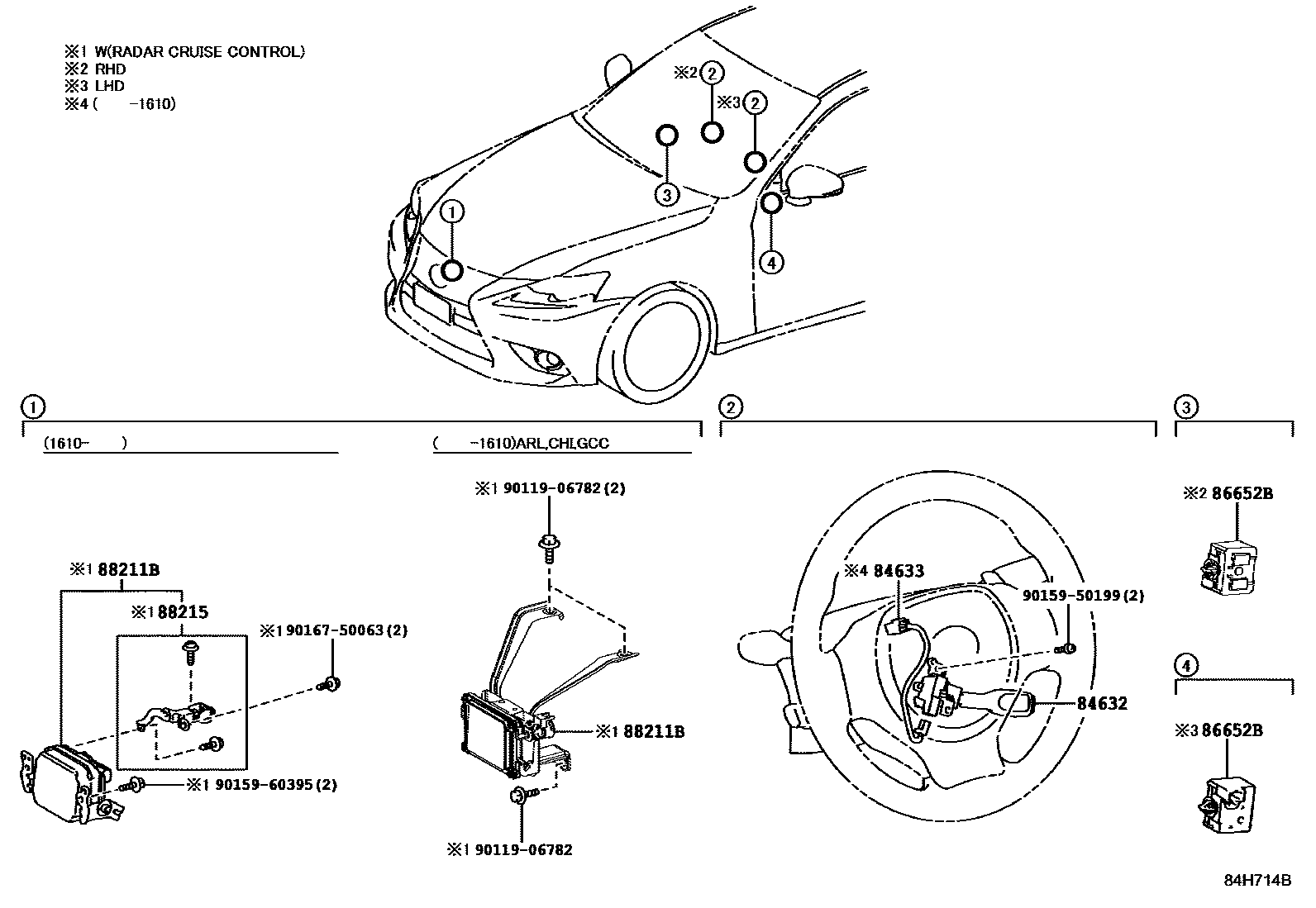

CRUISE CONTROL (AUTO DRIVE)

0001 1 0002 1

84632SWITCH, CRUISE CONTROL MAIN

main84632-30010iGSE30..CHI201304-201508

CRUISE CONTROL-WITH

main84632-48010supersedes 84632-53010iGSE31..ARL202111-202309

main84632-53010supersedes 84632-48010iASE30,AVE30,GSE31..ARL,GCC,GEN201610-202009

main84632-30020iASE30..CHI201508-201610

CRUISE CONTROL-WITH(MICRO WAVE TYPE)

84633WIRE, CRUISE CONTROL SWITCH

main84633-76010iGSE30..CHI201304-201508

CRUISE CONTROL-WITH

main84633-76020iGSE30..CHI201304-201508

CRUISE CONTROL-WITH(MICRO WAVE TYPE)

86652BBUZZER, SKID CONTROL

main86652-50010supersedes 86652-50010iGSE31..ARL202111-202310

88211BSENSOR ASSY, MILLIMETER WAVE RADAR

main88210-62020supersedes 88210-62020iASE30..GEN202111-202310

VIETNAM SPEC

main88210-47090iASE30,AVE30;GSE31..ARL,GCC201610-201709

PRE-COLLISION SYSTEM-WITH

main88210-48070iASE30,AVE30;GSE31..ARL,GCC201710-201907

PRE-COLLISION SYSTEM-WITH

main88210-48071iASE30,AVE30;GSE31..ARL,GCC201908-202009

PRE-COLLISION SYSTEM-WITH

main88210-53140iASE30..CHI201508-201610

PRE-COLLISION SYSTEM-WITH(*PBA & *PB)

sub88210-53141

88215BRACKET, MILLIMETER WAVE RADAR SENSOR, NO.1

main88201-60010iASE30,AVE30;GSE31..ARL,GCC201610-202009

PRE-COLLISION SYSTEM-WITH

9011906782

main90119-06782

9015950199

main90159-50199

9015960395

main90159-60395

9016750063

main90167-50063

9 parts on this diagram · 2 diagrams in section
