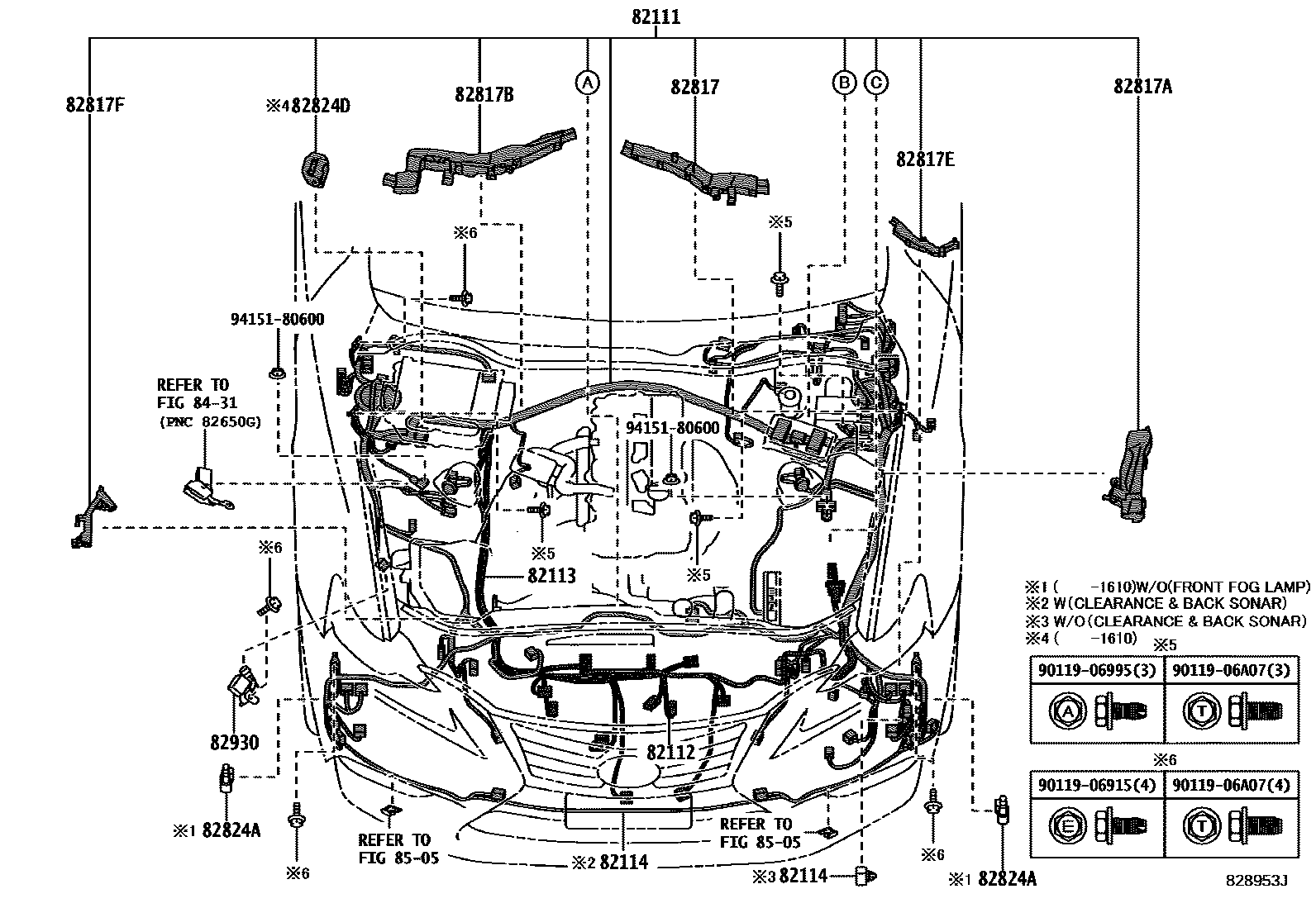

WIRING & CLAMP
82111WIRE, ENGINE ROOM MAIN
TAIWAN SPEC&WITH(STOP & START SYSTEM)&EXHAUST EMISSION CONTROL-EURO5,WITH(ON BOARDDIAGNOSIS)
TAIWAN SPEC&F SPORT&WITH(STOP & START SYSTEM)&EXHAUST EMISSION CONTROL-EURO5,WITH(ON BOARD DIAGNOSIS)&FRONT FOG LAMP-WITHOUT
sub82111-53V61
TAIWAN SPEC&WITH(STOP & START SYSTEM)&EXHAUST EMISSION CONTROL-EURO5,WITH(ON BOARDDIAGNOSIS)&TIRE INFLATION PRESSURE WARNING-WITH(315MHZ & WITH AUTO LOCATION)
NEW ZEALAND SPEC&TOWING PACKAGE-WITH(1500KG)
SOUTH AFRICA SPEC&TOWING PACKAGE-WITH(1500KG)
TAIWAN SPEC&WITH(STOP & START SYSTEM)&EXHAUST EMISSION CONTROL-EURO5,WITH(ON BOARDDIAGNOSIS)&TIRE INFLATION PRESSURE WARNING-WITH(315MHZ & WITH AUTO LOCATION)
TAIWAN SPEC&WITH(STOP & START SYSTEM)&EXHAUST EMISSION CONTROL-EURO5,WITH(ON BOARDDIAGNOSIS)&TIRE INFLATION PRESSURE WARNING-WITH(315MHZ & WITH AUTO LOCATION)
NEW ZEALAND SPEC&TOWING PACKAGE-WITH(1500KG)
SOUTH AFRICA SPEC&TOWING PACKAGE-WITH(1500KG)
NEW ZEALAND SPEC&TOWING PACKAGE-WITH(1500KG)
SOUTH AFRICA SPEC&TOWING PACKAGE-WITH(1500KG)
PERU SPEC
VIETNAM SPEC
PERU SPEC
82112WIRE, ENGINE ROOM, NO.2
ACTIVE SAFETY PACKAGE-LEXUS SAFETY SYSTEM +
ACTIVE SAFETY PACKAGE-LEXUS SAFETY SYSTEM +
ACTIVE SAFETY PACKAGE-LEXUS SAFETY SYSTEM +
ACTIVE SAFETY PACKAGE-WITHOUT
THAILAND SPEC&ACTIVE SAFETY PACKAGE-WITHOUT
HONG KONG SPEC&ACTIVE SAFETY PACKAGE-WITHOUT
SOUTH AFRICA SPEC&ACTIVE SAFETY PACKAGE-WITHOUT
MACAU SPEC&ACTIVE SAFETY PACKAGE-WITHOUT
SINGAPORE SPEC&ACTIVE SAFETY PACKAGE-WITHOUT
MALAYSIA SPEC&ACTIVE SAFETY PACKAGE-WITHOUT
ACTIVE SAFETY PACKAGE-WITHOUT
82113WIRE, ENGINE ROOM, NO.3
82114WIRE, ENGINE ROOM, NO.4
THAILAND SPEC&CLEARANCE & BACK SONAR-WITHOUT & WITH(*RCTA)
CLEARANCE & BACK SONAR-WITHOUT
CLEARANCE & BACK SONAR-WITHOUT & WITH(*RCTA)
SOUTH AFRICA SPEC&CLEARANCE & BACK SONAR-WITHOUT
SOUTH AFRICA SPEC&CLEARANCE & BACK SONAR-WITHOUT & WITH(*RCTA)
MACAU SPEC&CLEARANCE & BACK SONAR-WITHOUT
SINGAPORE SPEC&CLEARANCE & BACK SONAR-WITHOUT
SINGAPORE SPEC&CLEARANCE & BACK SONAR-WITHOUT & WITH(*RCTA)
THAILAND SPEC&CLEARANCE & BACK SONAR-WITHOUT
HONG KONG SPEC&CLEARANCE & BACK SONAR-WITHOUT
CLEARANCE & BACK SONAR-WITH(*RCTA)&BACK MONITOR-WITH
CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE)&BACK MONITOR-WITH
CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB)&BACK MONITOR-WITH
CLEARANCE & BACK SONAR-WITH&BACK MONITOR-WITH
82817PROTECTOR, WIRING HARNESS, NO.1
82817APROTECTOR, WIRING HARNESS, NO.2
82817EPROTECTOR, WIRING HARNESS, NO.6
82817FPROTECTOR, WIRING HARNESS, NO.7
82824CONNECTOR, WIRING HARNESS
CLEARANCE & BACK SONAR-WITHOUT
CLEARANCE & BACK SONAR-WITHOUT & WITH(*RCTA)
82824ACONNECTOR, WIRING HARNESS
82824DCONNECTOR, WIRING HARNESS
82930CONDENSER ASSY, WIRING HARNESS, NO.1
8431
8505
9011906915
9011906995
9011906A07
9415180600
19 parts on this diagram · 51 diagrams in section
