E
EPC Data

REAR COMBINATION LAMP

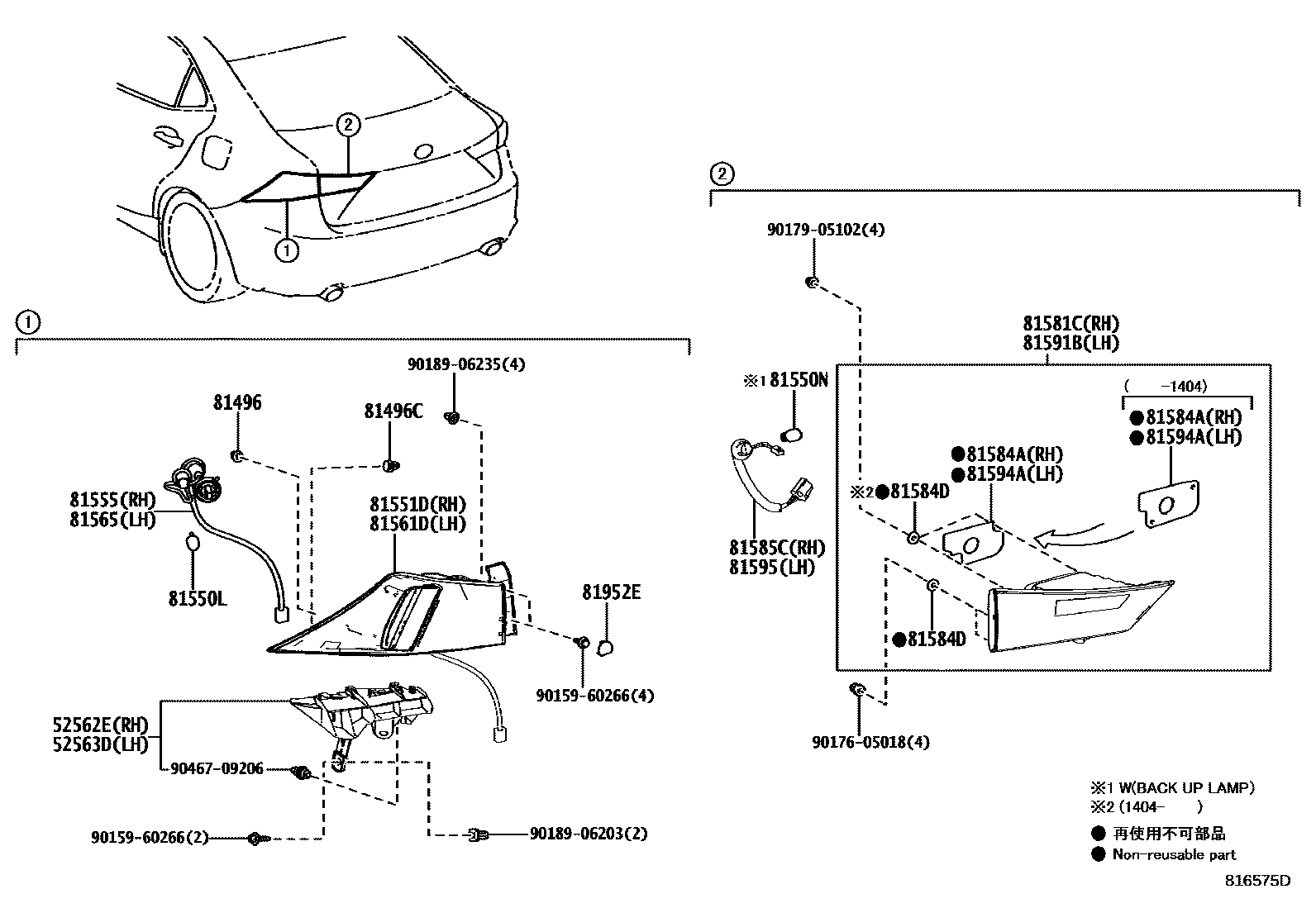

Parts diagram
52562ERETAINER, REAR BUMPER, UPPER RH
main52562-53030i201304-202009
main52562-53040i202009-202309
main52562-53040i202309-202310
BRUNEI SPEC
52563DRETAINER, REAR BUMPER, UPPER LH
main52563-53030i201304-202009
main52563-53040i202009-202309
main52563-53040i202309-202310
BRUNEI SPEC
81496GUIDE, REAR COMBINATION LAMP
main81496-52020i201304-202309
main81496-52020i202309-202310
BRUNEI SPEC
81496CGUIDE, REAR COMBINATION LAMP, NO.2
main81496-60010i201304-202309
main81496-60010i202309-202310
BRUNEI SPEC
81550LBULB, REAR TURN SIGNAL LAMP
main90981-15011i201304-202309
12V 21W,AMBER
main90981-15011i202309-202310
12V 21W,AMBER,BRUNEI SPEC
81550NBULB, BACK UP LAMP
main90981-11059i201304-201610
12V 16W
main90981-11059i201508-201610
12V 16W,HONGKONG SPEC
main90981-11059i201304-201610
12V 16W,SOUTH AFRICA SPEC
main90981-11059i201304-201610
12V 16W,BRUNEI SPEC
main90981-11059i201304-201610
12V 16W,SINGAPORE SPEC
main90981-11059i201304-201610
12V 16W,THAILAND SPEC
main90981-11059i201304-201610
12V 16W,MALAYSIA SPEC
main90981-11059i201304-201610
12V 16W,TAIWAN SPEC
main90981-11059i201304-201610
12V 16W,PHILIPPINE SPEC
main90981-11059i201304-201610
12V 16W,BRAZIL SPEC
main90981-11059i201304-201610
12V 16W,MIDDLE & SOUTH AMERICA SPEC
main90981-11059i201508-201610
12V 16W,MACAU SPEC
main90981-11059i201304-201508
12V 16W,HONG KONG SPEC
main90981-11059i201304-201508
12V 16W,COLOMBIA SPEC
81551DLENS & BODY, REAR COMBINATION LAMP, RH
main81551-53280i201304-201610
main81551-53310i201610-201705
sub81551-53311
main81551-53311i201705-202009
main81551-53360i202009-202102
ARUBA, CURACAO SPEC
sub81551-53361
main81551-53360i202009-202102
ARGENTINA SPEC
sub81551-53361
main81551-53360i202009-202102
PERU SPEC
sub81551-53361
main81551-53360i202009-202102
HONG KONG SPEC
sub81551-53361
main81551-53360i202009-202102
SOUTH AFRICA SPEC
sub81551-53361
main81551-53360i202009-202102
BRUNEI SPEC
sub81551-53361
main81551-53360i202009-202102
MACAU SPEC
sub81551-53361
main81551-53360i202009-202102
SINGAPORE SPEC
sub81551-53361
main81551-53360i202009-202102
THAILAND SPEC
sub81551-53361
main81551-53360i202009-202102
MALAYSIA SPEC
sub81551-53361
main81551-53360i202009-202102
TAIWAN SPEC
sub81551-53361
main81551-53360i202009-202102
PHILIPPINES SPEC
sub81551-53361
main81551-53360i202009-202102
VIETNAM SPEC
sub81551-53361
main81551-53360i202009-202102
MOROCCO SPEC
sub81551-53361
main81551-53360i202009-202102
COSTA RICA SPEC
sub81551-53361
main81551-53360i202009-202102
DOMINICA SPEC
sub81551-53361
main81551-53360i202009-202102
GUATEMALA SPEC
sub81551-53361
main81551-53360i202009-202102
PANAMA SPEC
sub81551-53361
main81551-53360i202009-202102
EL SALVADOR SPEC
sub81551-53361
main81551-53361i202102-202110
MACAU SPEC
main81551-53361i202102-202110
HONG KONG SPEC
main81551-53361i202102-202110
SOUTH AFRICA SPEC
main81551-53361i202102-202310
BRUNEI SPEC
main81551-53361i202102-202110
SINGAPORE SPEC
main81551-53361i202102-202209
THAILAND SPEC
main81551-53361i202102-202110
MALAYSIA SPEC
main81551-53361i202102-202110
TAIWAN SPEC
main81551-53361i202102-202110
PHILIPPINES SPEC
main81551-53361i202102-202310
VIETNAM SPEC
main81551-53361i202102-202110
MOROCCO SPEC
main81551-53361i202102-202411
COSTA RICA SPEC
main81551-53361i202102-202411
DOMINICA SPEC
main81551-53361i202102-202411
GUATEMALA SPEC
main81551-53361i202102-202411
PANAMA SPEC
main81551-53361i202102-202411
EL SALVADOR SPEC
main81551-53361i202102-202411
ARUBA, CURACAO SPEC
main81551-53361i202102-202411
ARGENTINA SPEC
main81551-53361i202102-202411
PERU SPEC
main81551-53361i202310
main81551-53380i202009-202102
sub81551-53381
main81551-53381i202102-202411
81555SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH
main81555-53270i201304-201610
main81555-53310i201610-202009
81561DLENS & BODY, REAR COMBINATION LAMP, LH
main81561-53280i201304-201610
main81561-53310i201610-201705
sub81561-53311
main81561-53311i201705-202009
main81561-53360i202009-202102
COSTA RICA SPEC
sub81561-53361
main81561-53360i202009-202102
HONG KONG SPEC
sub81561-53361
main81561-53360i202009-202102
SOUTH AFRICA SPEC
sub81561-53361
main81561-53360i202009-202102
BRUNEI SPEC
sub81561-53361
main81561-53360i202009-202102
MACAU SPEC
sub81561-53361
main81561-53360i202009-202102
SINGAPORE SPEC
sub81561-53361
main81561-53360i202009-202102
THAILAND SPEC
sub81561-53361
main81561-53360i202009-202102
MALAYSIA SPEC
sub81561-53361
main81561-53360i202009-202102
TAIWAN SPEC
sub81561-53361
main81561-53360i202009-202102
PHILIPPINES SPEC
sub81561-53361
main81561-53360i202009-202102
VIETNAM SPEC
sub81561-53361
main81561-53360i202009-202102
MOROCCO SPEC
sub81561-53361
main81561-53360i202009-202102
DOMINICA SPEC
sub81561-53361
main81561-53360i202009-202102
GUATEMALA SPEC
sub81561-53361
main81561-53360i202009-202102
PANAMA SPEC
sub81561-53361
main81561-53360i202009-202102
EL SALVADOR SPEC
sub81561-53361
main81561-53360i202009-202102
ARUBA, CURACAO SPEC
sub81561-53361
main81561-53360i202009-202102
ARGENTINA SPEC
sub81561-53361
main81561-53360i202009-202102
PERU SPEC
sub81561-53361
main81561-53361i202102-202110
PHILIPPINES SPEC
main81561-53361i202102-202110
HONG KONG SPEC
main81561-53361i202102-202110
SOUTH AFRICA SPEC
main81561-53361i202102-202310
BRUNEI SPEC
main81561-53361i202102-202110
MACAU SPEC
main81561-53361i202102-202110
SINGAPORE SPEC
main81561-53361i202102-202209
THAILAND SPEC
main81561-53361i202102-202110
MALAYSIA SPEC
main81561-53361i202102-202110
TAIWAN SPEC
main81561-53361i202102-202310
VIETNAM SPEC
main81561-53361i202102-202110
MOROCCO SPEC
main81561-53361i202102-202411
COSTA RICA SPEC
main81561-53361i202102-202411
DOMINICA SPEC
main81561-53361i202102-202411
GUATEMALA SPEC
main81561-53361i202102-202411
PANAMA SPEC
main81561-53361i202102-202411
EL SALVADOR SPEC
main81561-53361i202102-202411
ARUBA, CURACAO SPEC
main81561-53361i202102-202411
ARGENTINA SPEC
main81561-53361i202102-202411
PERU SPEC
main81561-53361i202310
main81561-53380i202009-202102
sub81561-53381
main81561-53381i202102-202411
81565SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH
main81565-53270i201304-201610
main81565-53310i201610-202009
81581CLENS AND BODY, REAR LAMP, RH
main81581-53140i201304-201404
sub81581-53141
main81581-53141i201404-201610
main81581-53150i201304-201404
THAILAND SPEC
sub81581-53151
main81581-53150i201304-201404
MALAYSIA SPEC
sub81581-53151
main81581-53150i201304-201404
HONG KONG SPEC
sub81581-53151
main81581-53150i201304-201404
SOUTH AFRICA SPEC
sub81581-53151
main81581-53150i201304-201404
BRUNEI SPEC
sub81581-53151
main81581-53150i201304-201404
SINGAPORE SPEC
sub81581-53151
main81581-53151i201404-201610
BRUNEI SPEC
main81581-53151i201404-201508
HONG KONG SPEC
main81581-53151i201404-201610
SOUTH AFRICA SPEC
main81581-53151i201404-201610
SINGAPORE SPEC
main81581-53151i201404-201610
THAILAND SPEC
main81581-53151i201404-201610
MALAYSIA SPEC
main81581-53151i201508-201610
HONGKONG SPEC
main81581-53151i201508-201610
MACAU SPEC
81584AGASKET, REAR LAMP RH
main81584-53140i201304-201404
main81584-53141i201404-201610
main81584-53160i201610-202009
81584DGASKET, REAR LAMP
main81584-22040i201304-202309
main81584-22040i202309-202310
BRUNEI SPEC
81585CSOCKET & WIRE, REAR LAMP, RH
main81585-53140i201304-201610
main81585-53150i201304-201610
BRUNEI SPEC
main81585-53150i201304-201610
SINGAPORE SPEC
main81585-53150i201304-201610
THAILAND SPEC
main81585-53150i201304-201610
MALAYSIA SPEC
main81585-53150i201304-201508
HONG KONG SPEC
main81585-53150i201304-201610
SOUTH AFRICA SPEC
main81585-53150i201508-201610
HONGKONG SPEC
main81585-53150i201508-201610
MACAU SPEC
main81585-53160i201610-202009
main81585-53170i201610-202009
HONGKONG SPEC
main81585-53170i201610-202009
SOUTH AFRICA SPEC
main81585-53170i201610-202009
BRUNEI SPEC
main81585-53170i201610-202009
SINGAPORE SPEC
main81585-53170i201610-202009
THAILAND SPEC
main81585-53170i201610-202009
MALAYSIA SPEC
main81585-53170i201610-202009
MACAU SPEC
81591BLENS AND BODY, REAR LAMP, LH
main81591-53140i201304-201404
sub81591-53141
main81591-53141i201404-201610
main81591-53150i201304-201404
MIDDLE & SOUTH AMERICA SPEC
sub81591-53151
main81591-53150i201304-201404
COLOMBIA SPEC
sub81591-53151
main81591-53150i201304-201404
TAIWAN SPEC
sub81591-53151
main81591-53150i201304-201404
PHILIPPINE SPEC
sub81591-53151
main81591-53150i201304-201404
BRAZIL SPEC
sub81591-53151
main81591-53151i201404-201610
MIDDLE & SOUTH AMERICA SPEC
main81591-53151i201404-201610
TAIWAN SPEC
main81591-53151i201404-201610
PHILIPPINE SPEC
main81591-53151i201404-201610
BRAZIL SPEC
main81591-53151i201404-201508
COLOMBIA SPEC
81594AGASKET, REAR LAMP LH
main81594-53140i201304-201404
main81594-53141i201404-201610
main81594-53160i201610-202009
81595SOCKET & WIRE, REAR LAMP, LH
main81585-53140i201304-201610
main81585-53150i201304-201610
BRAZIL SPEC
main81585-53150i201304-201610
TAIWAN SPEC
main81585-53150i201304-201610
PHILIPPINE SPEC
main81585-53150i201304-201610
MIDDLE & SOUTH AMERICA SPEC
main81585-53150i201304-201508
COLOMBIA SPEC
main81585-53160i201610-202009
main81585-53170i201610-202009
TAIWAN SPEC
main81585-53170i201610-202009
PHILIPPINE SPEC
main81585-53170i201610-202009
MIDDLE & SOUTH AMERICA SPEC
main81585-53170i201809-202009
ARGENTINA SPEC
main81585-53170i201610-201809
BRAZIL SPEC
81952ECOVER, REAR LAMP
main81952-22010i201304-201610
9015960266
main90159-60266
9017605018
main90176-05018
9017905102
main90179-05102
9018906203
main90189-06203
9018906235
main90189-06235
9046709206
main90467-09206

24 parts on this diagram · 3 diagrams in section

REAR COMBINATION LAMP — Toyota Parts Diagram with OEM Numbers & Prices | EPC Data
