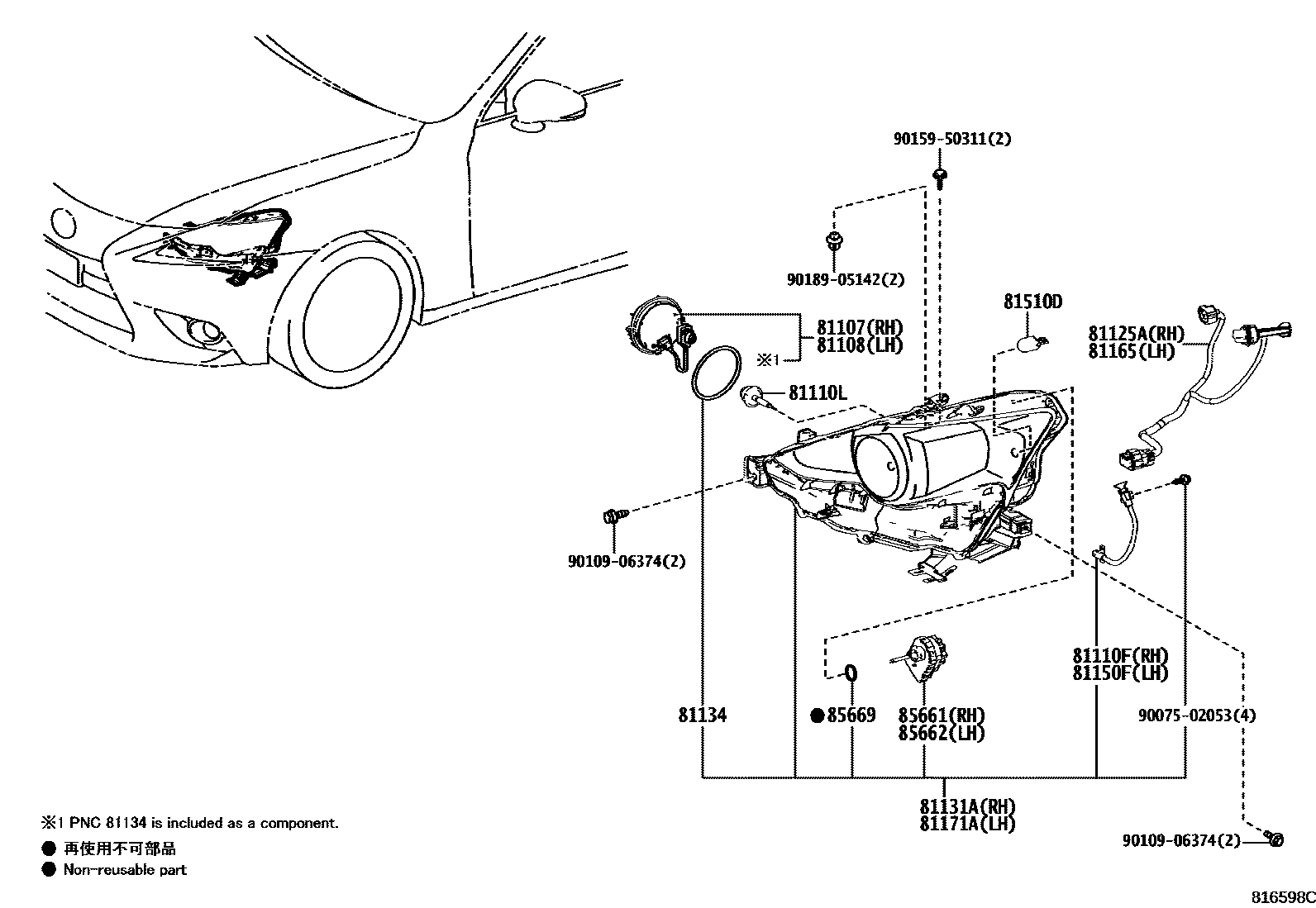

HEADLAMP

0001 1DISCHARGE 0002 1LED 0003 1LED 0004 1TRINOCULAR FULL LED 0005 1LED 0006 1TRINOCULAR FULL LED

81107COMPUTER SUB-ASSY, HEADLAMP LIGHT CONTROL, RH

main81107-53750×2supersedes 81107-60F10iAVE30,GSE3#201304-201508

HEADLAMP-LED & WITH(AUTOMATIC HIGH BEAM)

81108COMPUTER SUB-ASSY, HEADLAMP LIGHT CONTROL, LH

main81107-53750×2supersedes 81107-60F10iASE30,AVE30;GSE31..ARL,GCC201508-201610

HEADLAMP-LED & WITH(AUTOMATIC HIGH BEAM)

81110FGEAR UNIT ASSY, RH NO.1

main90075-50028supersedes 90075-50029iASE30,AVE30;GSE31..ARL,GCC201508-201610

HEADLAMP-LED & WITH(AUTOMATIC HIGH BEAM)

81110LBULB, DISCHARGE HEADLAMP

main90981-20024×2iAVE30,GSE3#201304-201508

42V 35W

81125ACORD, HEADLAMP, RH

main81125-53A00iGSE31..LHD;ASE30,AVE30202111

main81125-53730supersedes 81125-53700iAVE30,GSE3#201304-201508

HEADLAMP-LED & WITH(AUTOMATIC HIGH BEAM)

81131AUNIT, HEADLAMP, RH

main81130-53A50supersedes 81130-53A10iAVE30..GEN202411

ARUBA, CURACAO SPEC&HEADLAMP-LED(TRINOCULAR FULL LED)

main81130-53A60supersedes 81130-53A20iAVE30..ARL202310

SOUTH AFRICA SPEC&HEADLAMP-LED(TRINOCULAR FULL LED)

main81145-53730supersedes 81145-53701iAVE30,GSE3#..ARL201304-201501

HEADLAMP-LED & WITH(AUTOMATIC HIGH BEAM)

main81145-53731supersedes 81145-53701iAVE30,GSE3#..ARL201501-201508

HEADLAMP-LED & WITH(AUTOMATIC HIGH BEAM)

main81145-53740supersedes 81145-53711iGSE31..GCC;AVE30,GSE30..LHD201304-201501

HEADLAMP-LED & WITH(AUTOMATIC HIGH BEAM)

main81145-53741supersedes 81145-53800iASE30,AVE30,GSE31..LHD201508-201610

HEADLAMP-LED & WITH(AUTOMATIC HIGH BEAM)

main81145-53830supersedes 81145-53790iASE30,AVE30,GSE31..ARL201610-202009

HEADLAMP-LED(TRINOCULAR FULL LED) & WITH(*AHB)

main81145-53850supersedes 81145-53800iASE30,AVE30,GSE31..LHD201610-202009

HEADLAMP-LED(TRINOCULAR FULL LED) & WITH(*AHB)

81134GASKET, HEADLAMP

main90075-23003×2iASE30,AVE30,GSE31202009-202110

main81134-53750supersedes 90075-23002iAVE30,GSE3#201304-201508

HEADLAMP-LED & WITH(AUTOMATIC HIGH BEAM)

81150FGEAR UNIT ASSY, LH NO.1

main90075-50028supersedes 90075-50029iASE30,AVE30;GSE31..ARL,GCC201508-201610

HEADLAMP-LED & WITH(AUTOMATIC HIGH BEAM)

81165CORD, HEADLAMP, LH

main81125-53A00iGSE31..LHD;ASE30,AVE30202111

main81165-53730supersedes 82225-53010iASE30,AVE30;GSE31..ARL,GCC201508-201610

HEADLAMP-LED & WITH(AUTOMATIC HIGH BEAM)

81171AUNIT, HEADLAMP, LH

main81170-53A50supersedes 81170-53A10iAVE30..GEN202411

ARUBA, CURACAO SPEC&HEADLAMP-LED(TRINOCULAR FULL LED)

main81170-53A60supersedes 81170-53A20iAVE30..ARL202310

SOUTH AFRICA SPEC&HEADLAMP-LED(TRINOCULAR FULL LED)

main81185-53730supersedes 81185-53701iAVE30,GSE3#..ARL201304-201501

HEADLAMP-LED & WITH(AUTOMATIC HIGH BEAM)

main81185-53731supersedes 81185-53701iAVE30,GSE3#..ARL201501-201508

HEADLAMP-LED & WITH(AUTOMATIC HIGH BEAM)

main81185-53740iGSE31..GCC;AVE30,GSE30..LHD201304-201501

HEADLAMP-LED & WITH(AUTOMATIC HIGH BEAM)

main81185-53741supersedes 81185-53711iGSE31..GCC;AVE30,GSE30..LHD201501-201508

HEADLAMP-LED & WITH(AUTOMATIC HIGH BEAM)

main81185-53830supersedes 81185-53790iASE30,AVE30,GSE31..ARL201610-202009

HEADLAMP-LED(TRINOCULAR FULL LED) & WITH(*AHB)

main81185-53850supersedes 81185-53800iASE30,AVE30,GSE31..LHD201610-202009

HEADLAMP-LED(TRINOCULAR FULL LED) & WITH(*AHB)

81510DBULB (FOR FRONT TURN SIGNAL LAMP)

main90981-15021×2iGSE31..ARL202111-202309

12V 21W,AMBER

85661MOTOR, HEADLAMP LEVELING, RH

main85661-12020iAVE30,GSE3#201304-201508

85662MOTOR, HEADLAMP LEVELING, LH

main85661-12020iAVE30,GSE3#201304-201508

85669PACKING, HEADLAMP LEVELING MOTOR BASE

main90075-99120×2iAVE30,GSE3#201304-201508

9007502053

main90075-02053

9010906374

main90109-06374

9015950311

main90159-50311

9018905142

main90189-05142

18 parts on this diagram · 6 diagrams in section
