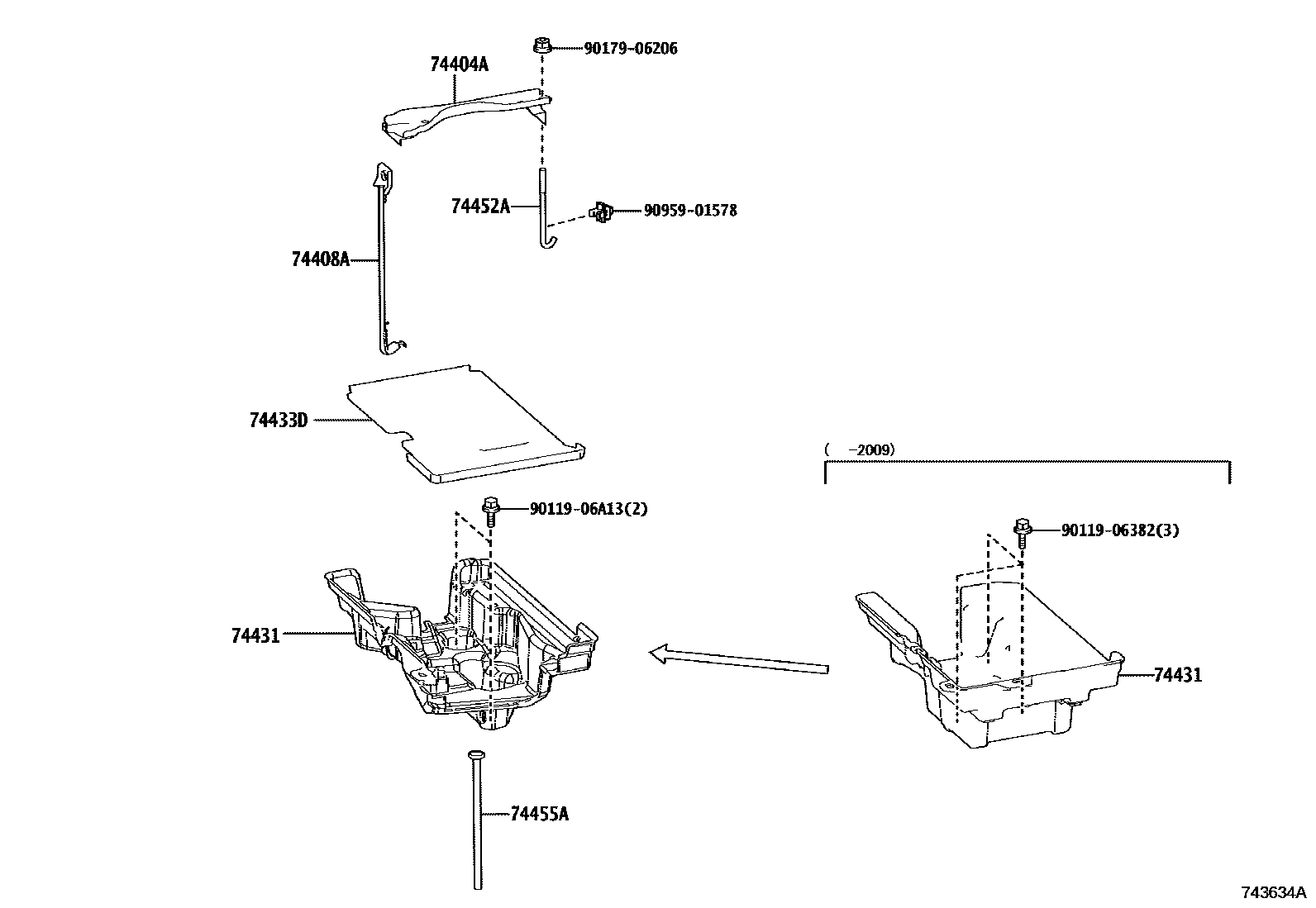

BATTERY CARRIER

0001 1 0002 1 0003 1

74404ACLAMP SUB-ASSY, BATTERY

main74404-22370iASE30,GSE31201304-202310

main74404-53030iAVE30201304-202110

74408ABOLT SUB-ASSY, BATTERY CLAMP, NO.2

main74408-22031iGSE3#201304-202310

74431TRAY, BATTERY

main74431-30222iGSE31..ARL202009-202310

main74431-30232iASE30,GSE31..LHD202009-202110

main74431-53090iASE30,GSE31..LHD201304-202009

main74431-53100iASE30,GSE31..ARL201304-202009

74433DSUPPORT, BATTERY TRAY,NO.1

main74433-30022iASE30,GSE31..ARL202009-202310

main74433-30032iASE30,GSE31..LHD202009-202110

main74433-53050iASE30,GSE31..LHD201304-202009

main74433-53060iASE30,GSE31..ARL201304-202009

74452ABOLT, BATTERY CLAMP, NO.2

main74452-30010iASE30;GSE31..LHD202009-202310

main74452-53040iGSE3#201304-202009

74455AHOSE, BATTERY DRAIN

main74455-30020iGSE3#201304-202310

9011906382

main90119-06382

9011906A13

main90119-06A13

9017906206

main90179-06206

9095901578

main90959-01578

10 parts on this diagram · 3 diagrams in section
