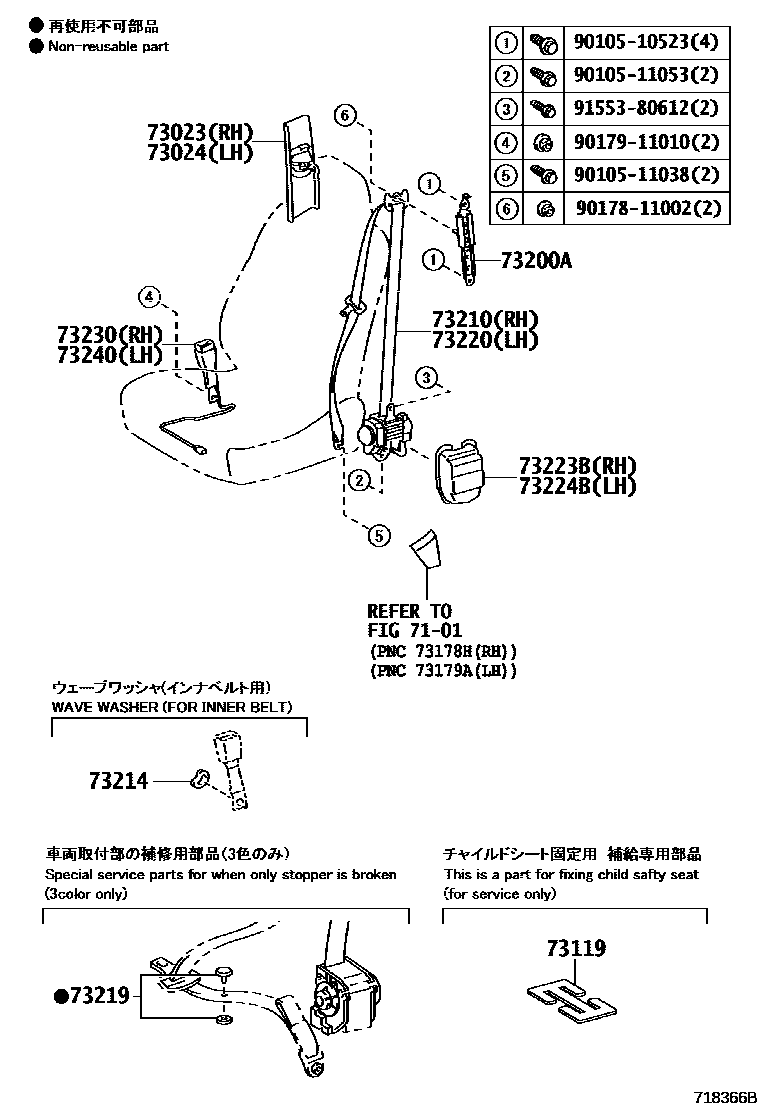

SEAT BELT & CHILD RESTRAINT SEAT
7101
73023PLATE SUB-ASSY, FRONT SHOULDER BELT ANCHOR, RH
ECRU,TRIM01,02,03,11,12,13,4#,5#
sub73023-58010
73024PLATE SUB-ASSY, FRONT SHOULDER BELT ANCHOR, LH
LT.GRAY,TRIM21,22,23,91,92,93
sub73024-58010
73119PLATE, SEAT BELT WEBBING CLIP
73200AADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR
73210BELT ASSY, FRONT SEAT OUTER, RH
IVORY,TRIM0#,5#
LT.GRAY,TRIM10,11,12,13,20,21,22,23
BLACK,TRIM10,14,20,24,3#
IVORY,TRIM0#,5#
LT.GRAY,TRIM10,11,20,21
BLACK,TRIM10,20,3#
IVORY,TRIM0#,5#
ECRU,TRIM01,02,03,11,12,13,4#,5#
LT.GRAY,TRIM21,22,23,91,92,93
MOON STONE,TRIM10,11,12,14,20,21,22,24
BLACK,TRIM04,05,24,25,26,27,3#
ECRU,TRIM1#,4#
LT.GRAY,TRIM21,22,23,91,92,93
BLACK,TRIM14,15,3#
BLACK,TRIM0#,2#,3#,4#,6#,7#
IVORY,TRIM0#,5#
F SPORT&POWER SEAT-WITH & WITHOUT(SEAT MEMORY),LT.GRAY,TRIM10,11,12,13,20,21,22,23
IVORY,TRIM0#
HER PACKAGE&SEAT COVER MATERIAL-SYNTHETIC LEATHER&FRONT SEAT SLIDE-POWER & WITHOUT(SEAT MEMORY),ECRU,TRIM0#,1#,4#,5#
F SPORT&FRONT SEAT SLIDE-POWER & WITHOUT(SEAT MEMORY),LT.GRAY,TRIM22,23
MOON STONE,TRIM1#,2#
HER PACKAGE&SEAT COVER MATERIAL-SYNTHETIC LEATHER&POWER SEAT-WITH & WITHOUT(SEAT MEMORY),BLACK,TRIM14,20,24,3#
F SPORT&FRONT SEAT SLIDE-POWER & WITHOUT(SEAT MEMORY),BLACK,TRIM24,25,26,27,3#
73214PLATE, FRONT SEAT BELT ANCHOR
73219STOPPER, TONGUE PLATE
BLACK
GRAY
BEIGE
73220BELT ASSY, FRONT SEAT OUTER, LH
IVORY,TRIM0#,5#
LT.GRAY,TRIM10,11,12,13,20,21,22,23
BLACK,TRIM10,14,20,24,3#
IVORY,TRIM0#,5#
LT.GRAY,TRIM10,11,20,21
BLACK,TRIM10,20,3#
IVORY,TRIM0#,5#
ECRU,TRIM01,02,03,11,12,13,4#,5#
LT.GRAY,TRIM21,22,23,91,92,93
MOON STONE,TRIM10,11,12,14,20,21,22,24
BLACK,TRIM04,05,24,25,26,27,3#
ECRU,TRIM1#,4#
LT.GRAY,TRIM21,22,23,91,92,93
BLACK,TRIM24,25,3#
BLACK,TRIM0#,6#,7#
IVORY,TRIM0#,5#
F SPORT&POWER SEAT-WITH & WITHOUT(SEAT MEMORY),LT.GRAY,TRIM10,11,12,13,20,21,22,23
IVORY,TRIM0#
HER PACKAGE&SEAT COVER MATERIAL-SYNTHETIC LEATHER&FRONT SEAT SLIDE-POWER & WITHOUT(SEAT MEMORY),ECRU,TRIM0#,1#,4#,5#
F SPORT&FRONT SEAT SLIDE-POWER & WITHOUT(SEAT MEMORY),LT.GRAY,TRIM22,23
MOON STONE,TRIM1#,2#
HER PACKAGE&SEAT COVER MATERIAL-SYNTHETIC LEATHER&POWER SEAT-WITH & WITHOUT(SEAT MEMORY),BLACK,TRIM14,20,24,3#
F SPORT&FRONT SEAT SLIDE-POWER & WITHOUT(SEAT MEMORY),BLACK,TRIM24,25,26,27,3#
73223BCOVER, FRONT SEAT BELT RETRACTOR, RH
73224BCOVER, FRONT SEAT BELT RETRACTOR, LH
73230BELT ASSY, FRONT SEAT INNER, RH
LUXURY PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER(SMOOTH)&POWER SEAT-WITH(SEAT MEMORY = DRIVER SIDE),BLACK,TRIM0#,1#,2#,3#,5#
BLACK,TRIM0#,1#,2#,3#
BLACK,TRIM0#,2#,3#,4#,6#,7#
SEAT COVER MATERIAL-FABRIC&POWER SEAT-WITHOUT,BLACK,TRIM0#,1#,2#,5#
73240BELT ASSY, FRONT SEAT INNER, LH
BLACK,TRIM0#,6#,7#
BLACK,TRIM0#,1#,2#
BLACK,TRIM0#,2#,3#,4#,6#,7#
SEAT COVER MATERIAL-FABRIC&POWER SEAT-WITHOUT,BLACK,TRIM0#,1#,2#
9010510523
main90105-10523
9010511038
main90105-11038
9010511053
main90105-11053
9017811002
main90178-11002
9017911010
main90179-11010
9155380612
main91553-80612
19 parts on this diagram · 3 diagrams in section
