LOCK CYLINDER SET

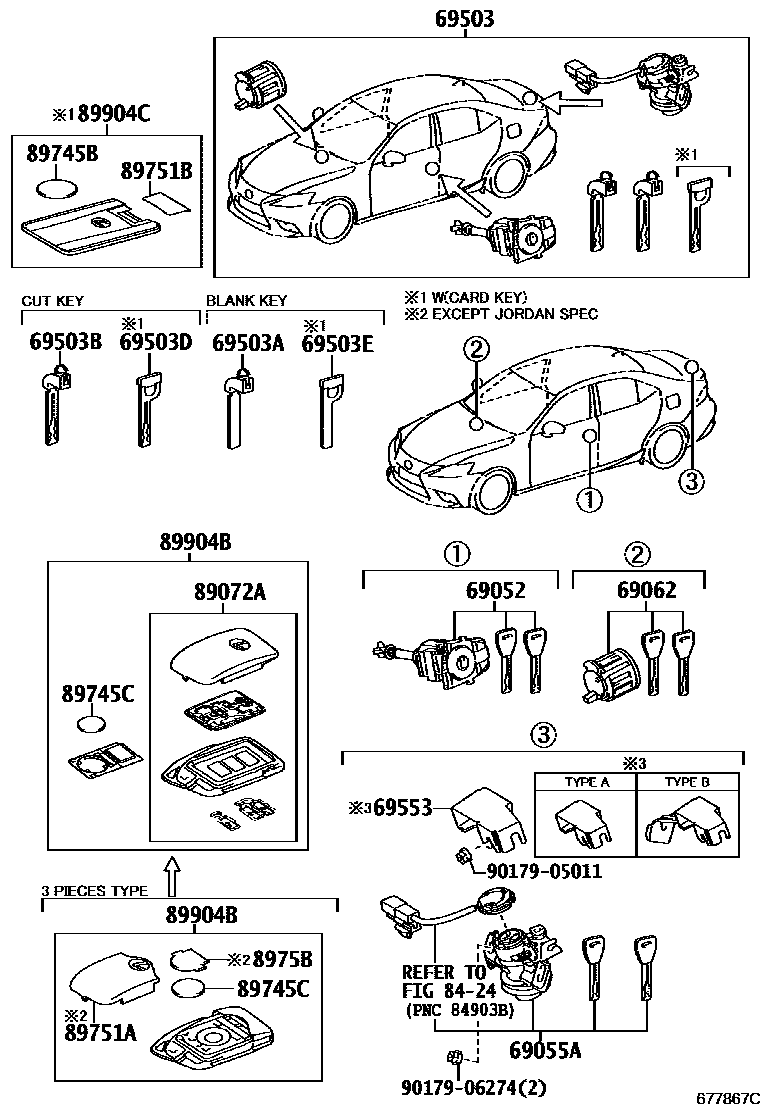

Parts diagram
69052CYLINDER & KEY SET, DOOR LOCK, LH
main69052-53080i202111
main69052-53090i201705-202009
69055ACYLINDER & KEY SET, LUGGAGE COMPARTMENT LOCK
main69055-30480i201304-201508
main69055-33540i202009-202110
69062CYLINDER & KEY SET, GLOVE COMPARTMENT LOCK
main69056-50160i201508-201610
69503CYLINDER SET, LOCK
main69005-53510supersedes 69005-53470i201304-201508
SMART CARD KEY-WITH
main69005-53520supersedes 69005-53480i201304-201508
SMART CARD KEY-WITH
main69005-53530supersedes 69005-53590i201610-201709
SMART CARD KEY-WITH
main69005-53540supersedes 69005-53570i201710-202009
SMART CARD KEY-WITH
main69005-53550supersedes 69005-53580i201710-202009
SMART CARD KEY-WITH
main69005-53560supersedes 69005-53590i202009-202110
SMART CARD KEY-WITH
69503AKEY, BLANK
main69515-30380i202111
MASTER KEY,W(*68)
69503BKEY, CUT
main69515-30370×2i202009-202110
MASTER KEY,W(*68)
69503DKEY, CUT(CARD KEY)
main69515-30330i201610-202009
MASTER KEY,SMART CARD KEY-WITH
69503EKEY, BLANK(CARD KEY)
main69515-30350i201610-202009
MASTER KEY
69553PROTECTOR, LUGGAGE COMPARTMENT KEY CYLINDER
main69553-30010i201304-201508
main69553-30021i201809-202009
TYPE B:REFER ILLUST.
8424
89072AHOUSING SET, DOOR CONTROL TRANSMITTER
main89072-30660×2i202009-202110
main89072-30720×2i202009-202110
main89072-53460×2i201304-201508
main89072-53470×2i201304-201508
THAILAND SPEC&TIRE & DISC WHEEL-225/45R17 RUNFLAT TIRE 7.5J
main89072-53480×2i201304-201508
THAILAND SPEC
main89072-53560×2i201705-202009
main89072-53570×2i201508-201610
THAILAND SPEC&TIRE & DISC WHEEL-225/45R17 RUNFLAT TIRE 7.5J
main89072-53580×2supersedes 89072-53512i201508-201610
THAILAND SPEC
main89072-53590×2i201508-201610
BRAZIL SPEC&F SPORT&TIRE & DISC WHEEL-225/40R18+255/35R18,SUMMER TIRE,F-SPORTS
main89072-53591×2i201701-202009
main89072-30302×2supersedes 89072-53550i201304-201508
HONG KONG SPEC
main89072-30342×2supersedes 89072-53512i201304-201508
HONG KONG SPEC
main89072-30530×2i201610-201809
BRAZIL SPEC&TIRE INFLATION PRESSURE WARNING-WITH(315MHZ & WITH AUTO LOCATION)
main89072-53630×2i202111-202209
TAIWAN SPEC
89745BBATTERY, TRANSMITTER(CARD KEY)
main89745-50030i202009-202110
CR2412,ARGENTINA SPEC&SMART CARD KEY-WITH
89745CBATTERY, TRANSMITTER
main89745-45010i201304-201508
CR2032
main89745-50020i201610-202009
CR2032,SOUTH AFRICA SPEC
89751ACOVER, TRANSMITTER HOUSING
main89751-48290×2supersedes 89751-48290i201610-202009
MALAYSIA SPEC&LUXURY PACKAGE&TIRE & DISC WHEEL-225/40R18+255/35R18,SUMMER TIRE,MESH
main89751-48370×2i202111-202209
SOUTH AFRICA SPEC
main89751-53080×2i201304-201508
MALAYSIA SPEC&LUXURY PACKAGE&TIRE & DISC WHEEL-225/40R18+255/35R18,SUMMER TIRE,MESH
main89751-53090×2i201304-201508
MALAYSIA SPEC
main89751-53100×2i201304-201305
PHILIPPINE SPEC
main89751-53103×2supersedes 89751-53150i201305-201508
PHILIPPINE SPEC
sub89751-53104
main89751-53110×2i201304-201508
PHILIPPINE SPEC
sub89751-53111
main89751-53120×2i201304-201508
SOUTH AFRICA SPEC&LUXURY PACKAGE&TIRE & DISC WHEEL-225/40R18+255/35R18,SUMMER TIRE,MESH
main89751-53130×2i201304-201508
SOUTH AFRICA SPEC
89751BCOVER, TRANSMITTER HOUSING
main8975B-50020i201610-202009
PHILIPPINE SPEC&SMART CARD KEY-WITH
main8975B-50030i202009-202110
MALAYSIA SPEC&SMART CARD KEY-WITH
8975BCOVER, TRANSMITTER BATTERY HOUSING
main8975B-33010×2supersedes 8975B-33010i201508-201610
MALAYSIA SPEC&WITHOUT(STOP & START SYSTEM)&TIRE & DISC WHEEL-225/45R17 SUMMER TIRE7.5J
89904BTRANSMITTER SUB-ASSY, ELECTRICAL KEY
main89904-53690×2i201304-201406
main89904-53691×2i201407-201508
main89904-53700×2i201304-201406
THAILAND SPEC&TIRE & DISC WHEEL-225/45R17 RUNFLAT TIRE 7.5J
main89904-53701×2i201407-201508
THAILAND SPEC&TIRE & DISC WHEEL-225/45R17 RUNFLAT TIRE 7.5J
main89904-53A20×2i201508-201610
main89904-53E80×2i202009-202110
main89904-53E90×2i202009-202110
main89904-53F40×2supersedes 89904-53F40i202009-202110
PERU SPEC
main89904-53610×2i201610-201809
BRAZIL SPEC&TIRE INFLATION PRESSURE WARNING-WITH(315MHZ & WITH AUTO LOCATION)
main89904-53720×2supersedes 89904-53891i201304-201406
HONG KONG SPEC
main89904-53721×2supersedes 89904-53891i201407-201508
HONG KONG SPEC
main89904-53730×2supersedes 89904-53742i201304-201406
HONG KONG SPEC
main89904-53731×2supersedes 89904-53742i201407-201508
HONG KONG SPEC
main89904-53750×2i201304-201406
MALAYSIA SPEC&LUXURY PACKAGE&TIRE & DISC WHEEL-225/40R18+255/35R18,SUMMER TIRE,MESH
main89904-53751×2i201407-201508
MALAYSIA SPEC&LUXURY PACKAGE&TIRE & DISC WHEEL-225/40R18+255/35R18,SUMMER TIRE,MESH
main89904-53760×2supersedes 89904-53742i201304-201407
MALAYSIA SPEC
main89904-53761×2supersedes 89904-53742i201407-201508
MALAYSIA SPEC
main89904-53770×2supersedes 89904-53891i201304-201305
PHILIPPINE SPEC
main89904-53771×2i201305-201407
PHILIPPINE SPEC
sub89904-53772
main89904-53774×2supersedes 89904-53831i201407-201508
PHILIPPINE SPEC
sub89904-53775
main89904-53780×2supersedes 89904-53742i201304-201407
PHILIPPINE SPEC
main89904-53781×2supersedes 89904-53A40i201407-201508
PHILIPPINE SPEC
sub89904-53782
main89904-53790×2i201304-201407
SOUTH AFRICA SPEC&F SPORT&TIRE & DISC WHEEL-225/40R18+255/35R18,SUMMER TIRE,F-SPORTS
main89904-53791×2i201407-201508
SOUTH AFRICA SPEC&F SPORT&TIRE & DISC WHEEL-225/40R18+255/35R18,SUMMER TIRE,F-SPORTS
main89904-53800×2supersedes 89904-53742i201304-201407
SOUTH AFRICA SPEC
main89904-53801×2supersedes 89904-53742i201407-201508
SOUTH AFRICA SPEC
main89904-53810×2supersedes 89904-53831i201304-201407
JORDAN SPEC
main89904-53811×2supersedes 89904-53831i201407-201508
JORDAN SPEC&LUXURY PACKAGE
main89904-53840×2i202209-202310
HONG KONG SPEC
main89904-53A50×2i201508-201608
HONGKONG SPEC
main89904-53A60×2supersedes 89904-53742i201610-202009
HONGKONG SPEC
main89904-53A70×2i201508-201610
MALAYSIA SPEC&WITHOUT(STOP & START SYSTEM)&TIRE & DISC WHEEL-225/45R17 RUNFLAT TIRE 7.5J
main89904-53A80×2supersedes 89904-53742i201610-201808
MALAYSIA SPEC
main89904-53A81×2supersedes 89904-53742i201809-202009
MALAYSIA SPEC
main89904-53A90×2supersedes 89904-53A30i201508-201610
INDONESIA SPEC&F SPORT&TIRE & DISC WHEEL-225/40R18+255/35R18,SUMMER TIRE,F-SPORTS
sub89904-53A91
main89904-53A92×2supersedes 89904-53B50i201901-202009
MIDDLE & SOUTH AMERICA SPEC&TIRE & DISC WHEEL-225/40R18+255/35R18,SUMMER TIRE,F-SPORTS&TIRE INFLATION PRESSURE WARNING-WITH(433MHZ & WITH AUTO LOCATION)
sub89904-53A93
main89904-53B00×2supersedes 89904-53A40i201508-201610
SOUTH AFRICA SPEC
main89904-53B01×2supersedes 89904-53A40i201901-202009
SOUTH AFRICA SPEC
main89904-53B10×2i202209-202310
TAIWAN SPEC
main89904-53B30×2supersedes 89904-53B50i201610-202009
JORDAN SPEC&LUXURY PACKAGE
main89904-53B70×2i202310
TAIWAN SPEC
main89904-53F20×2i202009-202110
TAIWAN SPEC
main89904-53F30×2i202009-202110
MACAU SPEC
main89904-53F80×2i202111-202310
JORDAN SPEC
main89904-53G80×2i202209-202310
MOROCCO SPEC
main89904-53G90×2supersedes 89904-53F50i202009-202110
MOROCCO SPEC
89904CTRANSMITTER SUB-ASSY, ELECTRICAL KEY(CARD KEY)
main89904-48X70i202111-202302
SMART CARD KEY-WITH
main89904-48X71i202303-202411
SMART CARD KEY-WITH
main89904-48X80i202111-202209
SMART CARD KEY-WITH
main89904-48X90i202009-202110
TAIWAN SPEC&SMART CARD KEY-WITH
main89904-48Y10i202209-202310
HONG KONG SPEC&SMART CARD KEY-WITH
main89904-48Y20i202111-202209
HONG KONG SPEC&SMART CARD KEY-WITH
main89904-48Y30i202009-202110
DOMINICA SPEC&SMART CARD KEY-WITH
main89904-48Y31i202208-202212
DOMINICA SPEC&SMART CARD KEY-WITH
main89904-48Y32i202301-202310
DOMINICA SPEC&SMART CARD KEY-WITH
main89904-48Y33i202411
SMART CARD KEY-WITH
main89904-48Y40i202009-202110
MOROCCO SPEC&SMART CARD KEY-WITH
main89904-48Y50i202009-202110
JORDAN SPEC&SMART CARD KEY-WITH
main89904-53510i201304-201406
SMART CARD KEY-WITH
main89904-53511i201610-201806
MIDDLE & SOUTH AMERICA SPEC&SMART CARD KEY-WITH
main89904-53512i201807-202009
MIDDLE & SOUTH AMERICA SPEC&SMART CARD KEY-WITH
main89904-53520i201304-201406
SMART CARD KEY-WITH
main89904-53521i201710-201806
MIDDLE & SOUTH AMERICA SPEC&SMART CARD KEY-WITH
main89904-53522i201807-202009
MIDDLE & SOUTH AMERICA SPEC&SMART CARD KEY-WITH
main89904-53550i201304-201406
SMART CARD KEY-WITH
main89904-53551i201705-202009
SMART CARD KEY-WITH
main89904-53560i201304-201406
SMART CARD KEY-WITH
main89904-53561i201610-202009
SMART CARD KEY-WITH
main89904-53570i201304-201406
SMART CARD KEY-WITH
main89904-53571i201610-202009
SMART CARD KEY-WITH
main89904-53580i201304-201406
HONG KONG SPEC&SMART CARD KEY-WITH
main89904-53581i201508-201610
HONGKONG SPEC&SMART CARD KEY-WITH
main89904-53590i201304-201406
PHILIPPINE SPEC&SMART CARD KEY-WITH
main89904-53591i201508-201610
PHILIPPINE SPEC&SMART CARD KEY-WITH
main89904-53592i201707-201811
PHILIPPINE SPEC&SMART CARD KEY-WITH
main89904-53593i201812-202006
PHILIPPINE SPEC&SMART CARD KEY-WITH
main89904-53594i202007-202009
PHILIPPINE SPEC&SMART CARD KEY-WITH
sub89904-53595
main89904-53600i201304-201406
PHILIPPINE SPEC&SMART CARD KEY-WITH
main89904-53601i201407-201508
PHILIPPINE SPEC&SMART CARD KEY-WITH
main89904-53603i201707-201811
PHILIPPINE SPEC&SMART CARD KEY-WITH
main89904-53604i201812-202006
PHILIPPINE SPEC&SMART CARD KEY-WITH
main89904-53605i202007-202009
PHILIPPINE SPEC&SMART CARD KEY-WITH
main89904-53620i201304-201406
JORDAN SPEC&SMART CARD KEY-WITH
main89904-53621i201610-202009
JORDAN SPEC&SMART CARD KEY-WITH
main89904-53630i201304-201406
SMART CARD KEY-WITH
main89904-53631i201610-202009
SMART CARD KEY-WITH
main89904-53640i201304-201406
HONG KONG SPEC&SMART CARD KEY-WITH
main89904-53641i201610-201909
HONGKONG SPEC&SMART CARD KEY-WITH
9017905011
main90179-05011
9017906274
main90179-06274

20 parts on this diagram · 2 diagrams in section
