PACKAGE TRAY PANEL & LUGGAGE COMPARTMENT MAT
0901
58416MBRACKET, DECK BOARD, NO.1 RH
58417ABRACKET, DECK BOARD, NO.1 LH
58418GBRACKET, DECK BOARD, NO.2
58419DBRACKET, DECK BOARD, NO.3
58795BCLAMP, JACK
6101
61721DCOVER, BATTERY SERVICE HOLE, LH
DARK GRAY,TRIM0#,1#,2#,3#,5#
BLACK,TRIM0#,1#,2#,3#,4#,5#,8#,9#
BLACK,TRIM0#,1#,2#,3#,5#
BLACK,TRIM0#,1#,2#,3#,4#,5#,9#
BLACK,TRIM0#,2#,3#,4#,6#,7#
63429CBAND, ROOM RACK
63709CBAND SUB-ASSY, ROOM RACK
BLACK,TRIM0#,1#,2#,3#,5#
64075CCLIP, LUGGAGE COMPARTMENT TRIM COVER
64206EPANEL SUB-ASSY, ROOM PARTITION
64273BCLIP
64330PANEL ASSY, PACKAGE TRAY TRIM
NEW ZEALAND SPEC&F SPORT&SEAT COVER MATERIAL-FABRIC,BLACK,TRIM0#,1#,2#,3#,5#
NEW ZEALAND SPEC&SEAT COVER MATERIAL-FABRIC&AUDIO-EMV & AM/FM & DVD & *MAR & 15SPEAKER,BLACK,TRIM0#,1#,2#,3#,5#
SOUTH AFRICA SPEC&SEAT COVER MATERIAL-FABRIC&AUDIO-EMV & AM/FM & DVD & *MAR & 15SPEAKER,BLACK,TRIM0#,1#,2#,3#,5#
BRUNEI SPEC&F SPORT&SEAT COVER MATERIAL-FABRIC&AUDIO-EMV & AM/FM & DVD & 8SPEAKER,BLACK,TRIM0#,1#,2#,3#,5#
BRUNEI SPEC&F SPORT&SEAT COVER MATERIAL-FABRIC&AUDIO-*DA & AM/FM & DVD & 8SPEAKER,BLACK,TRIM0#,1#,2#,3#,5#
BRUNEI SPEC&SEAT COVER MATERIAL-FABRIC&AUDIO-EMV & AM/FM & DVD & *MAR & 15SPEAKER,BLACK,TRIM0#,1#,2#,3#,5#
BLACK,TRIM0#,2#
BLACK,TRIM0#,1#,2#,3#,5#
BLACK,TRIM0#,2#,3#,5#
BLACK,TRIM1#,2#,3#,5#,9#
BLACK,TRIM1#,2#,3#,5#,8#,9#
BLACK,TRIM1#,5#,9#
BLACK,TRIM1#,2#,3#,4#,8#,9#
BLACK,TRIM1#,2#,3#,4#
BLACK,TRIM0#,6#,7#
BLACK,TRIM0#,2#,3#,4#,6#,7#
64330ACLIP(FOR PACKAGE TRAY TRIM PANEL)
SUN SHADE-WITH&AUDIO-*DA(L1) & CD & 17SPEAKER(*MAR)
NEW ZEALAND SPEC&F SPORT&SEAT COVER MATERIAL-FABRIC
NEW ZEALAND SPEC&SEAT COVER MATERIAL-FABRIC&AUDIO-EMV & AM/FM & DVD & *MAR & 15SPEAKER
SOUTH AFRICA SPEC&SEAT COVER MATERIAL-FABRIC&AUDIO-EMV & AM/FM & DVD & *MAR & 15SPEAKER
BRUNEI SPEC&F SPORT&SEAT COVER MATERIAL-FABRIC&AUDIO-EMV & AM/FM & DVD & 8SPEAKER
BRUNEI SPEC&F SPORT&SEAT COVER MATERIAL-FABRIC&AUDIO-*DA & AM/FM & DVD & 8SPEAKER
BRUNEI SPEC&SEAT COVER MATERIAL-FABRIC&AUDIO-EMV & AM/FM & DVD & *MAR & 15SPEAKER
NEW ZEALAND SPEC&F SPORT&SUN SHADE-WITH&SEAT COVER MATERIAL-FABRIC
NEW ZEALAND SPEC&F SPORT&SUN SHADE-WITH&SEAT COVER MATERIAL-FABRIC&AUDIO-EMV & AM/FM & DVD & *MAR & 15SPEAKER
BRUNEI SPEC&F SPORT&SUN SHADE-WITH&SEAT COVER MATERIAL-FABRIC&AUDIO-EMV & AM/FM &DVD & 8SPEAKER
BRUNEI SPEC&F SPORT&SUN SHADE-WITH&SEAT COVER MATERIAL-FABRIC&AUDIO-*DA & AM/FM &DVD & 8SPEAKER
LUXURY PACKAGE&SUN SHADE-WITH
LUXURY PACKAGE&SUN SHADE-WITH&AUDIO-EMV & AM/FM & DVD & 8SPEAKER
LUXURY PACKAGE&SUN SHADE-WITH&AUDIO-EMV & AM/FM & DVD & *MAR & 15SPEAKER
F SPORT&SUN SHADE-WITH
F SPORT&SUN SHADE-WITH&AUDIO-EMV & AM/FM & DVD & *MAR & 15SPEAKER
SUN SHADE-WITH
SUN SHADE-WITH&AUDIO-EMV & AM/FM & DVD & *MAR & 15SPEAKER
SUN SHADE-WITH(FOR BACK WINDOW)
SUN SHADE-WITH(FOR BACK WINDOW)&AUDIO-EMV & AM/FM & DVD & *MAR & 15SPEAKER
SUN SHADE-WITH&AUDIO-*EMV(L2) & DVD & 17SPEAKER(*MAR)
SUN SHADE-WITH&AUDIO-*DA(L1) & DVD & 17SPEAKER(*MAR)
64330JCLIP(FOR PACKAGE TRAY TRIM PANEL)
SOUTH AFRICA SPEC&SEAT COVER MATERIAL-FABRIC&AUDIO-EMV & AM/FM & DVD & *MAR & 15SPEAKER,BLACK
BRUNEI SPEC&SEAT COVER MATERIAL-FABRIC&AUDIO-EMV & AM/FM & DVD & *MAR & 15SPEAKER,BLACK
NEW ZEALAND SPEC&SEAT COVER MATERIAL-FABRIC&AUDIO-EMV & AM/FM & DVD & *MAR & 15SPEAKER,BLACK
64340BPANEL ASSY, PACKAGE TRAY TRIM, NO.2
64350ASHADE ASSY, REAR WINDOW
64385BCLIP
64429FBOX, LUGGAGE COMPARTMENT TRIM
64439FCOVER, LUGGAGE ROOM, REAR
BLACK,TRIM1#,2#,3#,5#,8#,9#
BLACK,TRIM1#,3#,5#,9#
BLACK,TRIM1#,2#,3#,4#,8#,9#
BLACK,TRIM0#,1#,2#,3#,4#,5#,8#,9#
BLACK,TRIM0#,1#,2#,3#,4#,5#,9#
BLACK,TRIM1#,2#,3#,5#,9#
BLACK,TRIM1#,2#,3#,4#
BLACK,TRIM0#,6#,7#
BLACK,TRIM0#,2#,3#,4#,6#,7#
BLACK,TRIM0#,1#,2#,3#,5#
BLACK,TRIM0#,2#,3#,5#
64711MAT, LUGGAGE COMPARTMENT FLOOR
DARK GRAY,TRIM0#,1#,2#,3#,5#
BLACK,TRIM0#,1#,2#,3#,4#,5#,9#
BLACK,TRIM0#,1#,2#,3#,4#,5#,8#,9#
BLACK,TRIM0#,1#,2#,3#,5#
BLACK,TRIM1#,3#,5#,9#
BLACK,TRIM0#,2#,3#,5#
BLACK,TRIM0#,1#,2#,3#,5#
BLACK,TRIM1#,2#,3#,5#,9#
BLACK,TRIM1#,2#,3#,5#,8#,9#
BLACK,TRIM1#,2#,3#,4#,8#,9#
BLACK,TRIM1#,2#,3#,4#
BLACK,TRIM0#,2#,3#,4#,6#,7#
BLACK,TRIM0#,6#,7#
BLACK,TRIM0#,2#,3#,4#,6#,7#
TAIWAN SPEC,BLACK,TRIM0#,2#,3#,4#,6#,7#
64711ACLIP(FOR LUGGAGE COMPARTMENT FLOOR MAT)
64712CCLIP(FOR LUGGAGE COMPARTMENT TRIM COVER)
64713KCOVER, LUGGAGE COMPARTMENT TRIM, FRONT UPPER
BLACK,TRIM1#,3#,5#,9#
BLACK,TRIM1#,2#,3#,4#,8#,9#
BLACK,TRIM1#,2#,3#,5#,9#
BLACK,TRIM1#,2#,3#,5#,8#,9#
BLACK,TRIM1#,2#,3#,4#
BLACK,TRIM0#,1#,2#,3#,5#
BLACK,TRIM0#,2#,3#,5#
BLACK,TRIM0#,6#,7#
BLACK,TRIM0#,2#,3#,4#,6#,7#
64714DCOVER, LUGGAGE COMPARTMENT TRIM, SIDE, RH
DARK GRAY,TRIM0#,1#,2#,3#,5#
BLACK,TRIM0#,1#,2#,3#,5#
BLACK,TRIM0#,1#,2#,3#,4#,5#,9#
BLACK,TRIM1#,2#,3#,5#,9#
BLACK,TRIM1#,2#,3#,4#,8#,9#
BLACK,TRIM1#,2#,3#,5#,8#,9#
BLACK,TRIM1#,3#,5#,9#
BLACK,TRIM1#,2#,3#,4#,8#,9#
BLACK,TRIM1#,2#,3#,5#,9#
BLACK,TRIM0#,1#,2#,3#,5#
BLACK,TRIM0#,2#,3#,5#
BLACK,TRIM1#,2#,3#,4#
BLACK,TRIM0#,6#,7#
BLACK,TRIM0#,2#,3#,4#,6#,7#
BLACK,TRIM0#,2#,3#,4#,6#,7#
64714GCLIP(FOR LUGGAGE COMPARTMENT TRIM SIDE COVER)
64715DCOVER, LUGGAGE COMPARTMENT TRIM, SIDE, LH
DARK GRAY,TRIM0#,1#,2#,3#,5#
BLACK,TRIM0#,1#,2#,3#,4#,5#,8#,9#
BLACK,TRIM0#,1#,2#,3#,4#,5#,9#
BLACK,TRIM0#,1#,2#,3#,5#
BLACK,TRIM1#,2#,3#,4#,8#,9#
BLACK,TRIM0#,2#,3#,5#
BLACK,TRIM0#,1#,2#,3#,5#
BLACK,TRIM1#,2#,3#,5#,9#
BLACK,TRIM1#,2#,3#,5#,8#,9#
BLACK,TRIM1#,3#,5#,9#
BLACK,TRIM1#,2#,3#,4#
BLACK,TRIM0#,2#,3#,4#,6#,7#
BLACK,TRIM0#,6#,7#
BLACK,TRIM0#,2#,3#,4#,6#,7#
64716GCOVER, LUGGAGE COMPARTMENT TRIM, REAR
BLACK,TRIM0#,1#,2#,3#,5#
BLACK,TRIM0#,6#,7#
BLACK,TRIM0#,2#,3#,4#,6#,7#
BLACK,TRIM0#,2#,3#,4#,6#,7#
64717ACOVER, LUGGAGE COMPARTMENT TRIM, FRONT
F SPORT&SEAT COVER MATERIAL-FABRIC,DARK GRAY,TRIM0#,1#,2#,3#,5#
F SPORT&SEAT COVER MATERIAL-FABRIC,BLACK,TRIM0#,1#,2#,3#,5#
DARK GRAY,TRIM0#,1#,2#,3#,5#
F SPORT&SEAT COVER MATERIAL-FABRIC,DARK GRAY,TRIM0#,1#,2#,3#,5#
BLACK,TRIM0#,1#,2#,3#,4#,5#,9#
BLACK,TRIM0#,1#,2#,3#,5#
F SPORT&SEAT COVER MATERIAL-FABRIC,BLACK,TRIM0#,1#,2#,3#,5#
BLACK,TRIM0#,1#,2#,3#,4#,5#,8#,9#
BLACK,TRIM0#,2#,3#,4#,6#,7#
BLACK,TRIM1#,2#,3#,5#,8#,9#
BLACK,TRIM0#,1#,2#,3#,5#
BLACK,TRIM0#,2#,3#,5#
BLACK,TRIM1#,2#,3#,5#,9#
BLACK,TRIM1#,3#,5#,9#
BLACK,TRIM1#,2#,3#,4#,8#,9#
BLACK,TRIM1#,2#,3#,4#
BLACK,TRIM0#,2#,3#,4#,6#,7#
BLACK,TRIM0#,6#,7#
64718CCOVER, LUGGAGE TRIM SERVICE HOLE
BLACK,TRIM0#,1#,2#,3#,5#
BLACK,TRIM0#,1#,2#,3#,4#,5#,8#,9#
BLACK,TRIM0#,1#,2#,3#,4#,5#,9#
BLACK,TRIM0#,2#,3#,4#,6#,7#
64719ACOVER, LUGGAGE COMPARTMENT DOOR
BLACK,TRIM1#,2#,3#,5#,9#
BLACK,TRIM0#,1#,2#,3#,5#
BLACK,TRIM0#,2#,3#,5#
BLACK,TRIM1#,2#,3#,5#,8#,9#
BLACK,TRIM1#,3#,5#,9#
BLACK,TRIM1#,2#,3#,4#,8#,9#
BLACK,TRIM1#,2#,3#,4#
BLACK,TRIM0#,6#,7#
BLACK,TRIM0#,2#,3#,4#,6#,7#
64719BCLIP(FOR LUGGAGE COMPARTMENT DOOR)
64721CCLIP(LUGGAGE COMPARTMENT)
64721HCLIP(LUGGAGE COMPARTMENT)
F SPORT&SEAT COVER MATERIAL-FABRIC
SEAT COVER MATERIAL-FABRIC
64725DHOOK, LUGGAGE COMPARTMENT TRIM, NO.1
TAIWAN SPEC
64726ACLIP, LUGGAGE TRIM, REAR
64726DCLIP, LUGGAGE TRIM, REAR
66310DHOOK ASSY, ROPE
73717BCOVER, CHILD RESTRAINT SEAT TETHER ANCHOR
SINGAPORE SPEC,BLACK,TRIM0#,1#,2#,3#,5#
THAILAND SPEC,BLACK,TRIM0#,1#,2#,3#,5#
MALAYSIA SPEC,BLACK,TRIM0#,1#,2#,3#,5#
MACAU SPEC,BLACK,TRIM0#,1#,2#,3#,5#
BLACK,TRIM0#,1#,2#,3#,5#
NEW ZEALAND SPEC,BLACK,TRIM0#,1#,2#,3#,5#
HONGKONG SPEC,BLACK,TRIM0#,1#,2#,3#,5#
SOUTH AFRICA SPEC,BLACK,TRIM0#,1#,2#,3#,5#
BRUNEI SPEC,BLACK,TRIM0#,1#,2#,3#,5#
INDONESIA SPEC,BLACK,TRIM0#,1#,2#,3#,5#
BLACK,TRIM0#,1#,2#,3#,4#,5#,9#
NEW ZEALAND SPEC,BLACK,TRIM0#,1#,2#,3#,4#,5#,9#
HONGKONG SPEC,BLACK,TRIM0#,1#,2#,3#,4#,5#,9#
SOUTH AFRICA SPEC,BLACK,TRIM0#,1#,2#,3#,4#,5#,9#
BRUNEI SPEC,BLACK,TRIM0#,1#,2#,3#,4#,5#,9#
INDONESIA SPEC,BLACK,TRIM0#,1#,2#,3#,4#,5#,9#
SINGAPORE SPEC,BLACK,TRIM0#,1#,2#,3#,4#,5#,9#
THAILAND SPEC,BLACK,TRIM0#,1#,2#,3#,4#,5#,9#
MALAYSIA SPEC,BLACK,TRIM0#,1#,2#,3#,4#,5#,9#
MACAU SPEC,BLACK,TRIM0#,1#,2#,3#,4#,5#,9#
HONG KONG SPEC,BLACK,TRIM0#,1#,2#,3#,5#
SINGAPORE SPEC,BLACK,TRIM0#,2#,3#,4#,6#,7#
THAILAND SPEC,BLACK,TRIM0#,2#,3#,4#,6#,7#
MALAYSIA SPEC,BLACK,TRIM0#,2#,3#,4#,6#,7#
BLACK,TRIM0#,2#,3#,4#,6#,7#
NEW ZEALAND SPEC,BLACK,TRIM0#,2#,3#,4#,6#,7#
HONG KONG SPEC,BLACK,TRIM0#,2#,3#,4#,6#,7#
SOUTH AFRICA SPEC,BLACK,TRIM0#,2#,3#,4#,6#,7#
BRUNEI SPEC,BLACK,TRIM0#,2#,3#,4#,6#,7#
MACAU SPEC,BLACK,TRIM0#,2#,3#,4#,6#,7#
BLACK,TRIM0#,6#,7#
BLACK,TRIM1#,2#,3#,5#,9#
BLACK,TRIM1#,2#,3#,5#,8#,9#
BLACK,TRIM1#,3#,5#,9#
NEW ZEALAND SPEC,BLACK,TRIM1#,2#,3#,4#,8#,9#
HONGKONG SPEC,BLACK,TRIM1#,2#,3#,4#,8#,9#
SOUTH AFRICA SPEC,BLACK,TRIM1#,2#,3#,4#,8#,9#
BRUNEI SPEC,BLACK,TRIM1#,2#,3#,4#,8#,9#
SINGAPORE SPEC,BLACK,TRIM1#,2#,3#,4#,8#,9#
THAILAND SPEC,BLACK,TRIM1#,2#,3#,4#,8#,9#
MALAYSIA SPEC,BLACK,TRIM1#,2#,3#,4#,8#,9#
MACAU SPEC,BLACK,TRIM1#,2#,3#,4#,8#,9#
BLACK,TRIM1#,2#,3#,4#
7401
7402
8401
9011906018
9011906767
9011906A44
9011910886
9017810021
9046400562
9046710161
9155380614

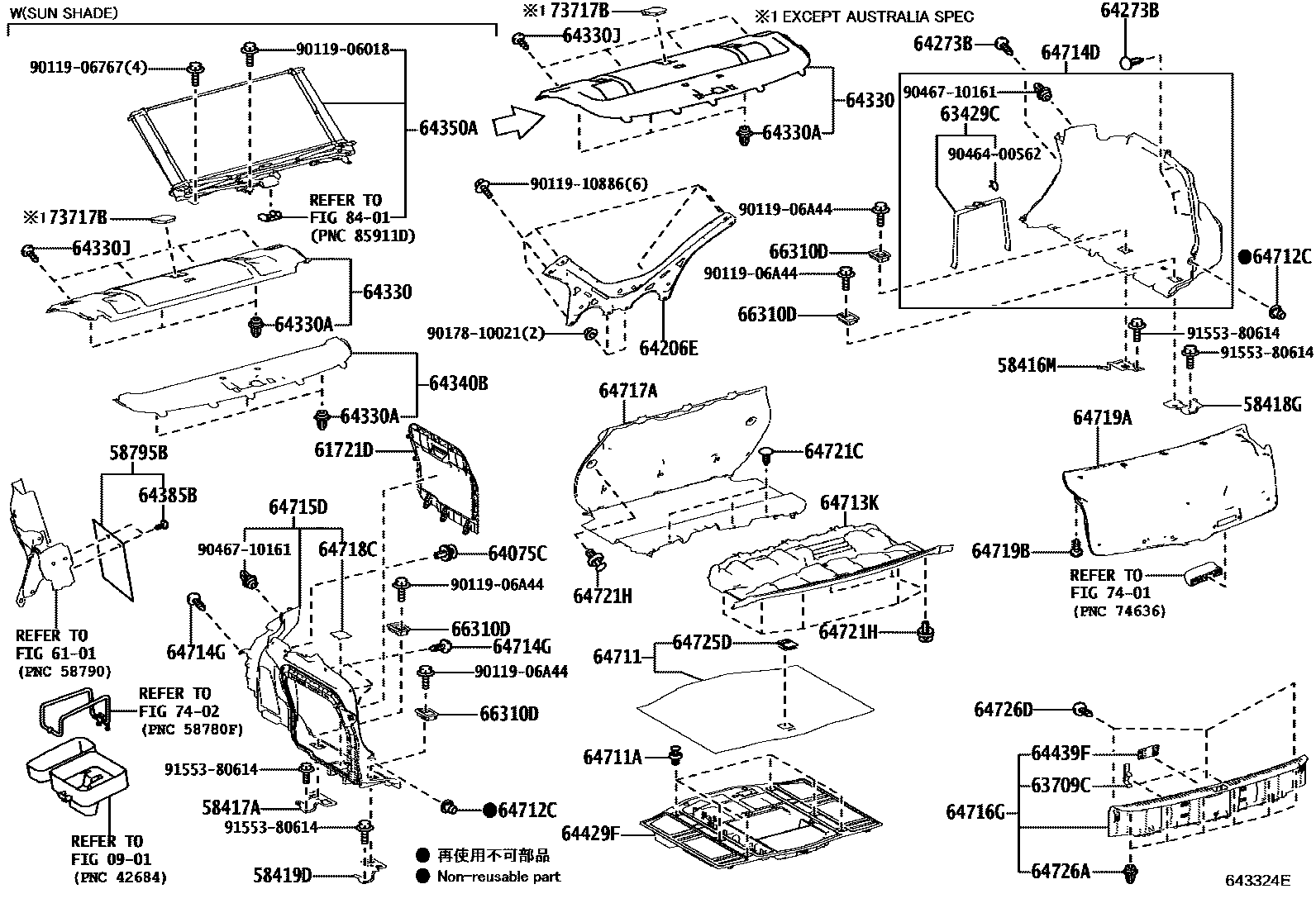

51 parts on this diagram · 4 diagrams in section
