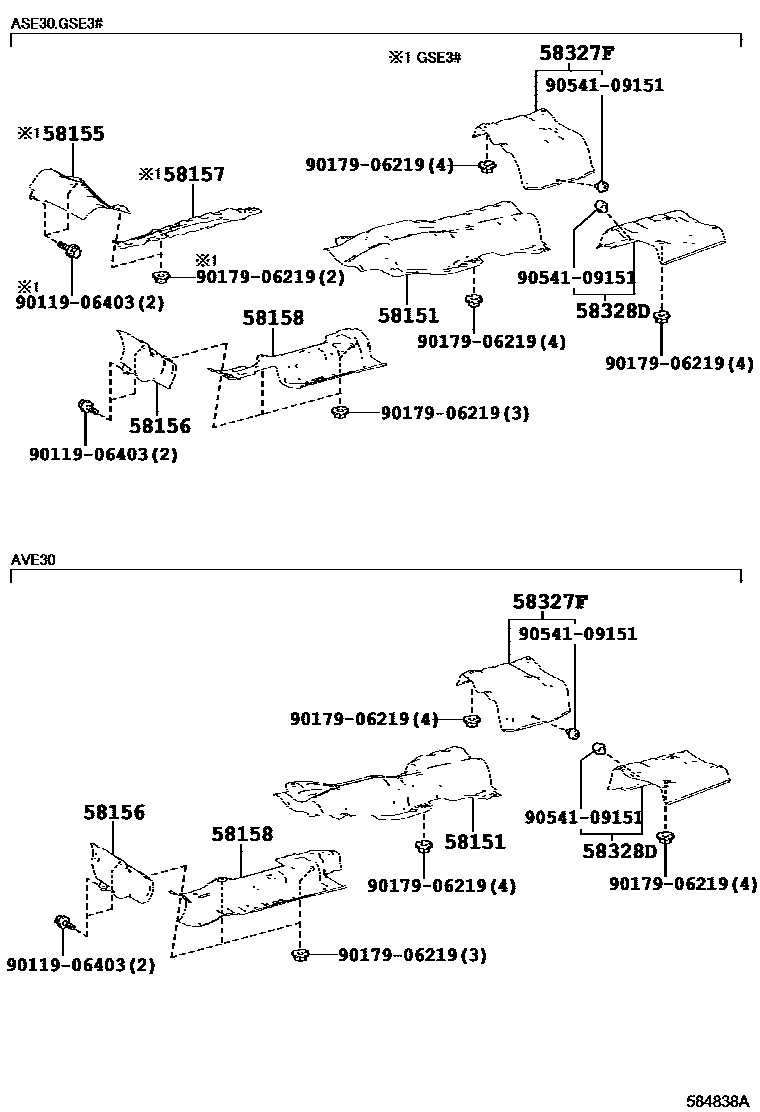

FLOOR INSULATOR

58151INSULATOR, FRONT FLOOR HEAT, NO.1

main58151-53040iASE30,GSE31201304-202011

sub58151-53041

main58151-53041iASE30;GSE31..LHD202012-202310

main58151-53060iAVE30201304-202110

58155INSULATOR, FRONT FLOOR HEAT, NO.3

main58155-30060iGSE31..ARL201710-202310

main58155-30070iGSE31201304-201710

58156INSULATOR, FRONT FLOOR HEAT, NO.4

main58156-30100iGSE31201304-201710

main58156-30140iAVE30201304-202110

main58156-30150iGSE31201710-202310

main58156-30160iASE30201508-202110

58157INSULATOR, FRONT FLOOR HEAT, NO.5

main58157-30073iGSE31201304-202310

58158INSULATOR, FRONT FLOOR HEAT, NO.6

main58158-30070iGSE3#201304-202310

main58158-30080iAVE30201304-202110

58327FINSULATOR, MAIN MUFFLER HEAT, RH

main58327-53030iASE30;GSE31..LHD201304-202310

main58327-53040iAVE30201304-202110

58328DINSULATOR, MAIN MUFFLER HEAT, LH

main58328-53030iASE30,GSE31201304-202310

main58328-53040iAVE30201304-202110

9011906403

main90119-06403

9017906219

main90179-06219

9054109151

main90541-09151

10 parts on this diagram · 1 diagram in section
