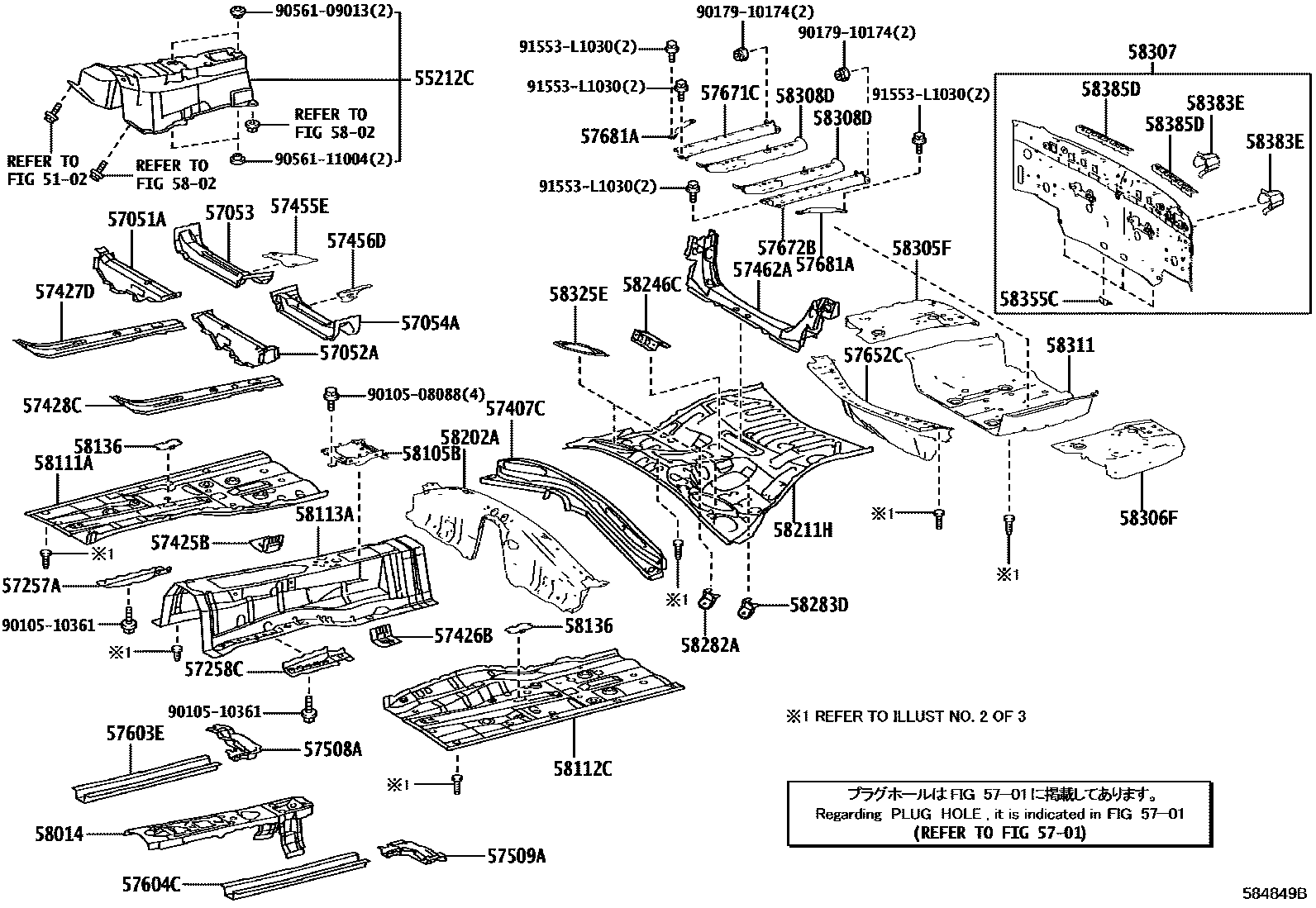

FLOOR PAN & LOWER BACK PANEL
5102
55212CSILENCER, FRONT PANEL, LOWER
5701
57051AMEMBER SUB-ASSY, FRONT FLOOR CROSS, RH
57052AMEMBER SUB-ASSY, FRONT FLOOR CROSS, LH
57053REINFORCEMENT SUB-ASSY, FRONT FLOOR CROSSMEMBER, RH
57054AREINFORCEMENT SUB-ASSY, FRONT FLOOR CROSSMEMBER, LH
57257ABRACKET, ENGINE REAR MOUNTING MEMBER, RH
57258CBRACKET, ENGINE REAR MOUNTING MEMBER, LH
57407CMEMBER SUB-ASSY, CENTER FLOOR CROSS, NO.1
57425BREINFORCEMENT, FRONT FLOOR, NO.2 RH
57426BREINFORCEMENT, FRONT FLOOR, NO.2 LH
57427DREINFORCEMENT, FRONT FLOOR, NO.3 RH
57428CREINFORCEMENT, FRONT FLOOR, NO.3 LH
57455EPLATE, FRONT FLOOR CROSSMEMBER, NO.3 RH
57456DPLATE, FRONT FLOOR CROSSMEMBER, NO.3 LH
57462AMEMBER, CENTER FLOOR CROSS, NO.2
57508AREINFORCEMENT SUB-ASSY, FRONT FLOOR, RH
57509AREINFORCEMENT SUB-ASSY, FRONT FLOOR, LH
57603EEXTENSION SUB-ASSY, REAR SIDE MEMBER, RH
57604CEXTENSION SUB-ASSY, REAR SIDE MEMBER, LH
57652CMEMBER, REAR FLOOR CROSS, NO.1
57671CBRACE, REAR FLOOR NO.1 CROSSMEMBER, RH
57672BBRACE, REAR FLOOR NO.1 CROSSMEMBER, LH
57681ABRACE, REAR FLOOR NO.2 CROSSMEMBER, OUTER
58014PANEL SUB-ASSY, FRONT FLOOR, REAR LOWER
58105BPANEL SUB-ASSY, FRONT FLOOR REAR UPPER SUB
58111APAN, FRONT FLOOR, RH
58112CPAN, FRONT FLOOR, LH
58113APANEL, FRONT FLOOR, CENTER
58136COVER, FRONT FLOOR HOLE
58202APAN SUB-ASSY, CENTER FLOOR, FRONT
58211HPAN, CENTER FLOOR
58246CBRACKET, REAR SEAT HINGE, CENTER NO.2
58282ABASE, BELT ANCHOR TO FLOOR PAN, NO.3 RH
58283DBASE, BELT ANCHOR TO FLOOR PAN, NO.3 LH
58305FPANEL SUB-ASSY, REAR FLOOR SIDE, RH
58306FPANEL SUB-ASSY, REAR FLOOR SIDE, LH
58307PANEL SUB-ASSY, BODY LOWER BACK
58308DBRACKET SUB-ASSY, REAR FLOOR CROSSMEMBER
58311PAN, REAR FLOOR
58325ECOVER, REAR FLOOR SERVICE HOLE
58355CBRACKET, REAR BUMPER ARM
58383EREINFORCEMENT, BODY LOWER BACK, NO.2 RH
58385DBRACKET, REAR BUMPER COVER
9010508088
9010510361
9017910174
9056109013
9056111004
91553L1030
51 parts on this diagram · 6 diagrams in section
