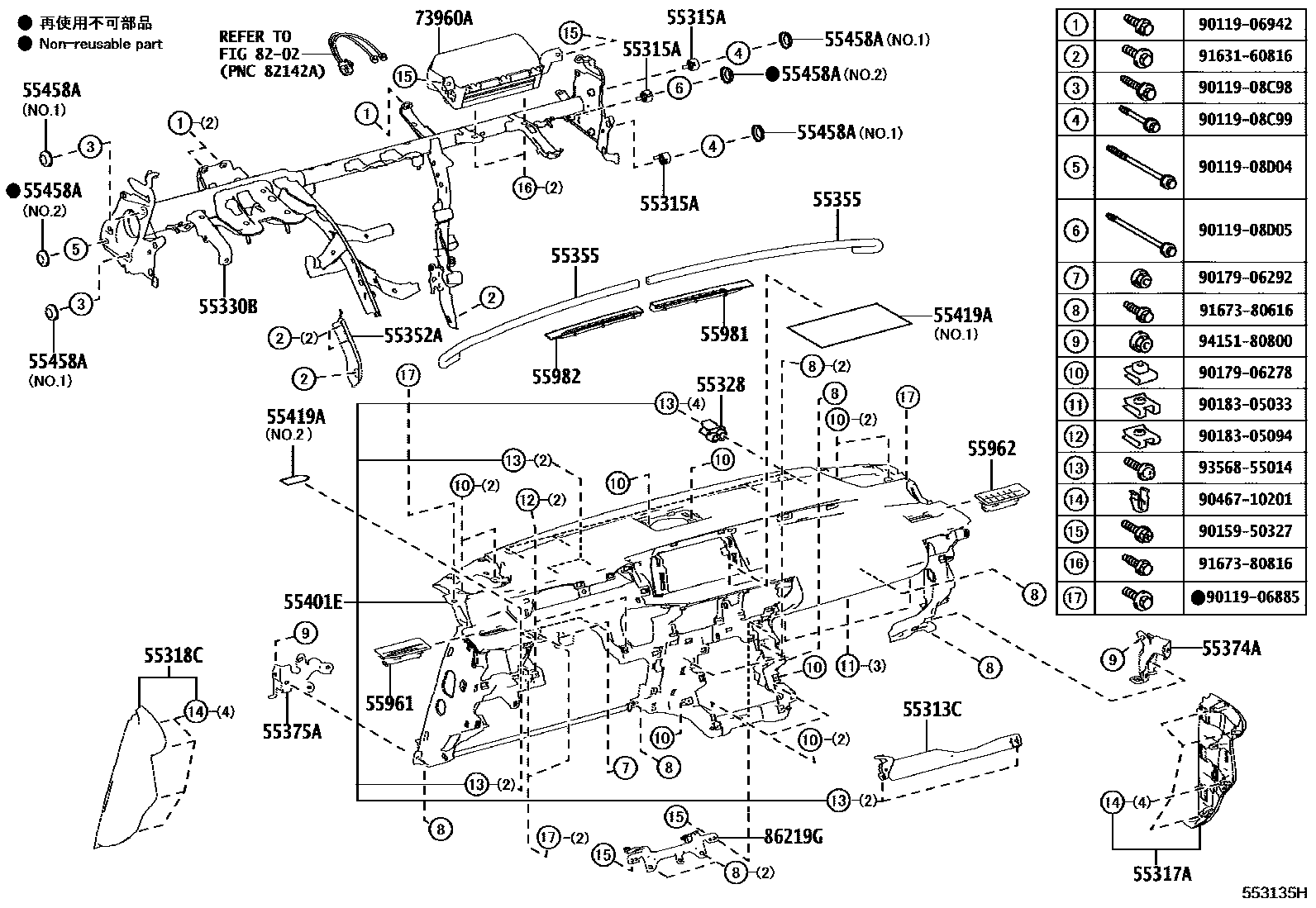

INSTRUMENT PANEL & GLOVE COMPARTMENT

0001 1 0002 1 0003 1 0004 1 0005 1DRIVER SIDE 0006 1DRIVER SIDE 0007 1DRIVER SIDE 0008 1DRIVER SIDE 0009 1CENTER 0010 1CENTER 0011 1CENTER 0012 1CENTER 0013 1PASSENGER SIDE 0014 1PASSENGER SIDE 0015 1PASSENGER SIDE 0016 1PASSENGER SIDE

55313CBRACKET, GLOVE COMPARTMENT

main55313-53030iASE30,AVE30,GSE31..LHD201610-202009

main55313-53040iASE30,AVE30..ARL202111

55315ASPACER, INSTRUMENT PANEL, NO.1

main55315-53040×3iASE30,AVE30,GSE31201508-201610

55317APANEL, INSTRUMENT SIDE, RH

main55317-53100-C0iASE30,AVE30,GSE31201508-201610

BLACK,TRIM0#,1#,2#,3#,5#

main55317-53140-C1iGSE31..GCC;ASE30,AVE30202111

BLACK,TRIM0#,2#,3#,4#,6#

main55317-53140-D0iGSE31..ARL202111-202310

RED,TRIM7#

55318CPANEL, INSTRUMENT SIDE, LH

main55318-53070-C0iASE30..CHI201705-202009

BLACK,TRIM0#,1#,2#,3#,4#,5#

main55318-53110-C1iGSE31..GEN202009-202110

BLACK,TRIM0#,6#

main55318-53110-D0iGSE31..LHD;ASE30,AVE30202111

RED,TRIM7#

main55318-53080-C0iASE30,AVE30,GSE31..ARL201508-201610

SOUTH AFRICA SPEC,BLACK,TRIM0#,1#,2#,3#,5#

main55318-53120-C1iASE30,AVE30,GSE31..ARL202009-202110

SOUTH AFRICA SPEC,BLACK,TRIM0#,2#,31,32,33,4#,6#

main55318-53120-D0iAVE30..ARL202111

SOUTH AFRICA SPEC,RED,TRIM7#

55328PIN, INSTRUMENT PANEL, NO.1

main55328-60090×4iASE30,AVE30,GSE31202009-202110

55330BREINFORCEMENT ASSY, INSTRUMENT PANEL

main55330-53320iASE30,GSE31..LHD201508-201610

main55330-53330iAVE30..GEN201304-201508

BRAZIL SPEC&LUXURY PACKAGE

main55330-53340iGSE3#..ARL201304-201508

main55330-53350iGSE31..ARL201304-201508

STEERING COLUMN-POWER(TILT & TELESCOPIC)

main55330-53370supersedes 55330-53360iASE30,AVE30,GSE31..GEN201610-202009

F SPORT

main55330-53390iASE30,AVE30,GSE31..ARL201610-201911

main55330-53391iASE30,AVE30,GSE31..ARL201912-202009

main55330-53410supersedes 55330-53400iASE30,AVE30,GSE31..GEN202111

STEERING COLUMN-POWER(TILT & TELESCOPIC), W(PROTECTOR)

main55330-53420iASE30,AVE30,GSE31..ARL202009-202110

55352ABRACE, INSTRUMENT PANEL TO FLOOR, NO.2

main55352-53070iASE30,AVE30,GSE31201610-202009

55355CUSHION, INSTRUMENT PANEL, NO.1

main55355-30100×2iGSE31..LHD;ASE30,AVE30202111

55374ABRACKET, INSTRUMENT PANEL LOWER MOUNTING, RH

main55375-53060iAVE30,GSE3#201304-201508

55375ABRACKET, INSTRUMENT PANEL LOWER MOUNTING, LH

main55374-53030iGSE31..ARL202111-202310

55401EPAD SUB-ASSY, INSTRUMENT PANEL SAFETY

main55401-53901-C0iASE30,AVE30,GSE31..LHD201508-201512

BLACK,TRIM0#,1#,2#,3#,5#

main55401-53902-C0iASE30,AVE30,GSE31..ARL201610-201912

BLACK,TRIM1#,2#,3#,4#,8#,9#

main55401-53903-C0iASE30..GEN201610-201912

BLACK,TRIM1#,3#,5#,9#

main55401-53904-C0iASE30..GEN201912-202009

BLACK,TRIM1#,3#,5#,9#

main55401-53905-C0iASE30,AVE30,GSE31..ARL201912-202009

BLACK,TRIM1#,2#,3#,4#,8#,9#

main55401-53906-C1iASE30,AVE30,GSE31..LHD202009-202110

BLACK/RED(F SPORT),TRIM7#

main55401-53906-C2iGSE31..GEN202009-202110

BLACK/LT.GRAY,TRIM0#,6#

main55401-53906-C3iGSE31..GCC;ASE30,AVE30..LHD202111

BLACK/ROYAL BROWN,TRIM4#

main55401-53906-C4iGSE31..GCC;ASE30,AVE30..LHD202009-202110

BLACK/RED,TRIM3#

main55401-53907-C1iASE30,AVE30,GSE31..ARL202009-202110

BLACK/RED(F SPORT),TRIM7#

main55401-53907-C2iASE30,AVE30,GSE31..ARL202009-202110

BLACK/LT.GRAY,TRIM0#,2#,6#

main55401-53907-C3iASE30,AVE30..ARL202111

BLACK/ROYAL BROWN,TRIM4#

main55401-53907-C4iASE30,AVE30..ARL202111

BLACK/RED,TRIM3#

55419ACUSHION, INSTRUMENT CLUSTER FINISH PANEL

main55419-53030iASE30,AVE30,GSE31201610-202009

NO.1:REFER ILLUST.

main55419-53040iAVE30,GSE3#201304-201508

NO.2:REFER ILLUST.

main55419-53090iGSE31..LHD;ASE30,AVE30202111

55458ACAP, INSTRUMENT PANEL SAFETY PAD

main55458-22110×4iASE30,AVE30,GSE31201610-202009

NO.1:REFER ILLUST.

main55458-53011×2iGSE31..LHD;ASE30,AVE30202111

NO.2:REFER ILLUST.

55961NOZZLE, SIDE DEFROSTER, NO.1

main55961-53010-C0iASE30,AVE30..GEN201508-201610

BLACK,TRIM0#,2#,3#,5#,DRIVER SIDE

main55961-53020-C0iAVE30,GSE3#..ARL201304-201508

BLACK,TRIM0#,1#,2#,3#,5#,DRIVER SIDE

main55961-53030-C1iGSE31..GCC;ASE30,AVE30..LHD202111

BLACK,TRIM0#,2#,3#,6#,7#,DRIVER SIDE

main55961-53030-E0iGSE31..GCC;ASE30,AVE30..LHD202111

OCHER,TRIM4#,DRIVER SIDE

main55961-53040-C1iGSE31..ARL202111-202310

BLACK,TRIM0#,2#,3#,6#,7#,DRIVER SIDE

main55961-53040-E0iASE30,AVE30,GSE31..ARL202009-202110

OCHER,TRIM4#,DRIVER SIDE

55962NOZZLE, SIDE DEFROSTER, NO.2

main55962-53030-C0iGSE31..LHD;ASE30..CHI,GCC201508-201610

BLACK,TRIM0#,2#,3#,5#,PASSENGER SIDE

main55962-53040-C0iAVE30,GSE3#..ARL201304-201508

BLACK,TRIM0#,1#,2#,3#,5#,PASSENGER SIDE

main55962-53050-C1iGSE31..GEN202009-202110

BLACK,TRIM0#,6#,7#,PASSENGER SIDE

main55962-53050-E0iGSE31..GCC;ASE30,AVE30..LHD202111

OCHER,TRIM4#,PASSENGER SIDE

main55962-53060-C1iASE30,AVE30,GSE31..ARL202009-202110

BLACK,TRIM0#,2#,3#,6#,7#,PASSENGER SIDE

main55962-53060-E0iASE30,AVE30,GSE31..ARL202009-202110

OCHER,TRIM4#,PASSENGER SIDE

55981GARNISH, DEFROSTER NOZZLE, NO.1

main55981-53020-C0iASE30..GEN201610-202009

BLACK,TRIM1#,2#,3#,5#,9#

55982GARNISH, DEFROSTER NOZZLE, NO.2

main55982-53010-C0iGSE31..ARL;ASE30,AVE30..ARL,GEN201508-201610

BLACK,TRIM0#,2#,3#,5#

73960AAIRBAG ASSY, INSTRUMENT PANEL PASSENGER W/O DOOR

main73960-53050iASE30,AVE30,GSE31201508-201610

main73960-53051iASE30,AVE30,GSE31201805-202009

sub73960-53052

main73960-53080iASE30,AVE30,GSE31202111-202207

main73960-53081iGSE31..LHD;ASE30,AVE30202208

8202

86219GBRACKET, SPEAKER

main86219-53010iGSE31..ARL202111-202310

9011906885

main90119-06885

9011906942

main90119-06942

9011908C98

main90119-08C98

9011908C99

main90119-08C99

9011908D04

main90119-08D04

9011908D05

main90119-08D05

9015950327

main90159-50327

9017906278

main90179-06278

9017906292

main90179-06292

9018305033

main90183-05033

9018305094

main90183-05094

9046710201

main90467-10201

9163160816

main91631-60816

9167380616

main91673-80616

9167380816

main91673-80816

9356855014

main93568-55014

9415180800

main94151-80800

37 parts on this diagram · 16 diagrams in section
