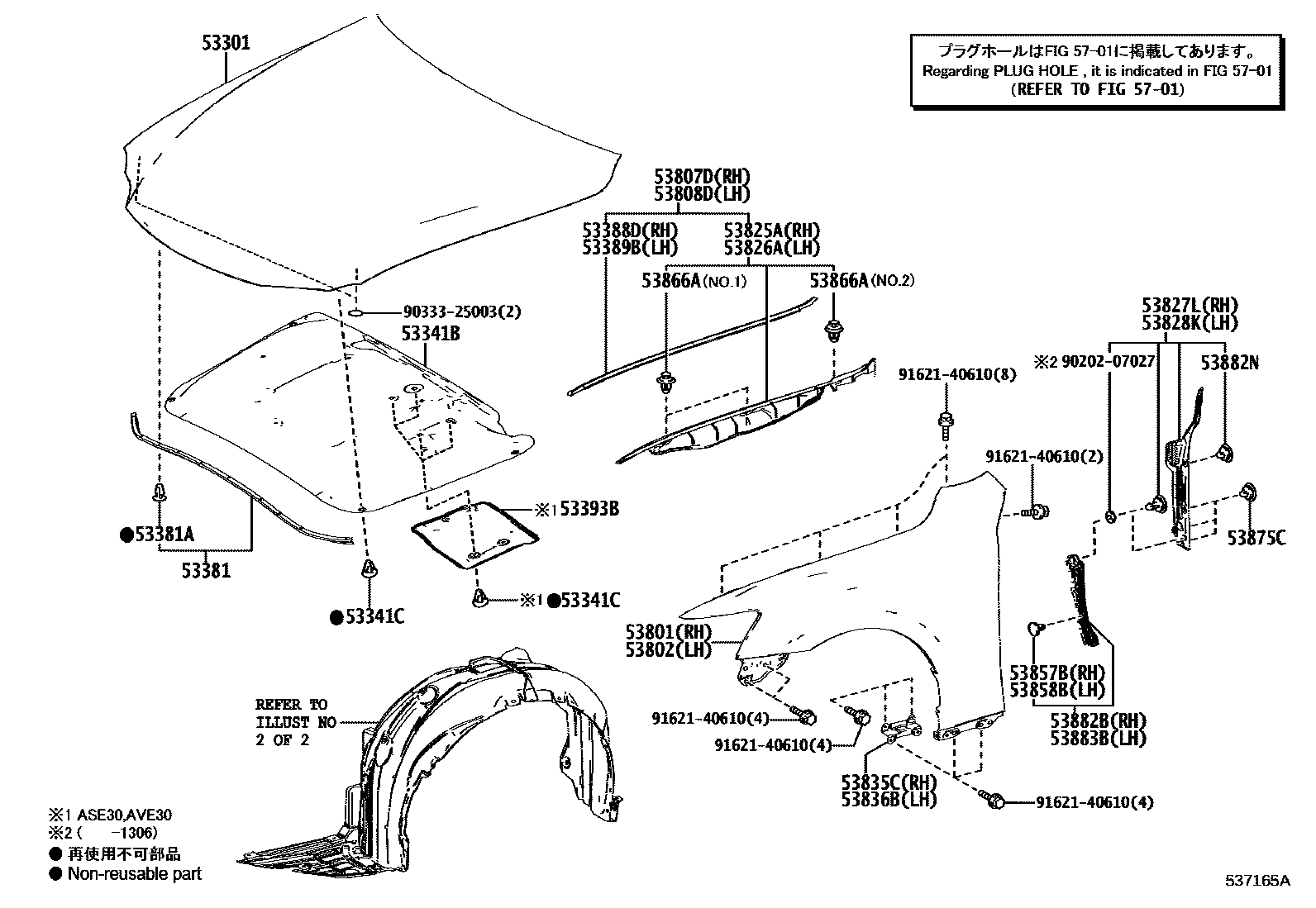

HOOD & FRONT FENDER

0001 1 0002 1FENDER LINER 0003 1 0004 1FENDER LINER

53301HOOD SUB-ASSY

main53301-53090iAVE30,GSE3#¥137,000201304-201502

sub53301-53091¥113,000

main53301-53091iAVE30,GSE3#¥113,000201502-202009

main53301-53100iASE30,AVE30,GSE31¥85,600202009-202310

53341BINSULATOR, HOOD

main53341-53060iASE30,AVE30¥7,600201304-202009

main53341-53070iGSE31¥7,600201304-202009

main53341-53080iASE30,AVE30¥5,700202009-202110

main53341-53090iGSE31..LHD¥5,700202009-202310

53341CCLIP(FOR HOOD INSULATOR)

main90467-09050iASE30,AVE30¥120201304-202310

53381SEAL, HOOD TO RADIATOR SUPPORT

main53381-53050iAVE30,GSE3#¥2,490201304-202009

main53381-53060iASE30¥1,040201508-202009

main53381-53080iAVE30,GSE31¥1,200202009-202310

main53381-53090iASE30¥790202009-202110

53381ACLIP(FOR HOOD TO RADIATOR SUPPORT SEAL)

main90467-08011iAVE30,GSE31¥100201304-202310

53388DSEAL, HOOD TO FRONT FENDER, RH

main53388-53040iAVE30,GSE3#¥2,630201304-202009

main53388-53050iASE30,AVE30,GSE31¥1,630202009-202511

53389BSEAL, HOOD TO FRONT FENDER, LH

main53389-53040iAVE30,GSE3#¥2,630201304-202009

main53389-53050iASE30,AVE30,GSE31¥1,630202009-202511

53393BPROTECTOR, HOOD, FRONT

main53393-53010iAVE30¥2,360201304-202009

main53393-53020iASE30,AVE30¥1,780202009-202110

53801FENDER SUB-ASSY, FRONT RH

main53801-53170iAVE30,GSE3#¥59,300201304-202009

main53801-53210iASE30,AVE30,GSE31¥44,900202009-202310

53802FENDER SUB-ASSY, FRONT LH

main53802-53170iAVE30,GSE3#¥59,300201304-202009

main53802-53210iASE30,AVE30,GSE31¥44,900202009-202310

53807DREINFORCEMENT SUB-ASSY, FRONT FENDER, TOP RH

main53807-53030iAVE30,GSE3#¥6,200201304-201604

sub53807-53031¥5,100

main53807-53031iASE30,AVE30,GSE31¥5,100201605-202009

main53807-53040iASE30,AVE30,GSE31¥3,230202009-202510

53808DREINFORCEMENT SUB-ASSY, FRONT FENDER, TOP LH

main53808-53030iAVE30,GSE3#¥6,200201304-201604

sub53808-53031¥5,100

main53808-53031iASE30,AVE30,GSE31¥5,100201605-202009

main53808-53040iASE30,AVE30,GSE31¥3,230202009-202510

53825APROTECTOR, FRONT FENDER, UPPER RH

main53825-53030iAVE30,GSE3#¥3,030201304-202009

main53825-53040iASE30,AVE30,GSE31¥2,330202009-202511

53826APROTECTOR, FRONT FENDER, UPPER LH

main53826-53030iAVE30,GSE3#¥3,030201304-202009

main53826-53040iGSE31..ARL¥2,330202009-202511

53827LPROTECTOR, FRONT FENDER SIDE PANEL, RH

main53827-53040iAVE30,GSE3#¥2,570201304-202009

main53827-53050iASE30,AVE30,GSE31¥1,950202009-202310

53828KPROTECTOR, FRONT FENDER SIDE PANEL, LH

main53828-53040iASE30,AVE30,GSE31¥2,570201304-202009

main53828-53050iASE30,AVE30,GSE31¥1,950202009-202310

53835CBRACKET, FRONT SIDE PANEL, RH

main53835-53020iAVE30,GSE3#¥700201304-202009

main53835-53030iASE30,AVE30,GSE31¥820202009-202310

53836BBRACKET, FRONT SIDE PANEL, LH

main53836-53020iAVE30,GSE3#¥700201304-202009

main53836-53030iASE30,AVE30,GSE31¥820202009-202310

53857RETAINER, FRONT WHEEL OPENING EXTENSION, RH

main53857-47011iASE30,AVE30,GSE31¥60202009-202310

53857BRETAINER, FRONT WHEEL OPENING EXTENSION, RH

main53857-47011iAVE30,GSE3#¥60201304-202009

53858BRETAINER, FRONT WHEEL OPENING EXTENSION, LH

main53857-47011iGSE31..LHD;ASE30,AVE30¥60201304-202310

53866ACLIP(FOR FRONT FENDER TO COWL SIDE SEAL)

main90467-10162iAVE30,GSE3#¥90201304-202009

NO.1:REFER ILLUST.

main90467-10204iAVE30,GSE3#¥90201304-202009

NO.2:REFER ILLUST.

53875CCLIP, FRONT FENDER LINER

main90467-06205-C0iASE30,AVE30,GSE31201304-201710

BLACK

main90467-07214iGSE31..LHD;ASE30,AVE30¥70202009-202310

main90467-07223iASE30,AVE30,GSE31¥60201710-202009

53882BSEAL, FRONT FENDER, RH

main53882-53030iAVE30,GSE3#¥1,370201304-202009

main53882-53040iASE30,AVE30,GSE31¥1,110202009-202310

53882NCLIP(FOR FRONT FENDER SEAL)

main90467-06205-C0iAVE30,GSE3#201304-201709

BLACK

main90467-07223iASE30,AVE30,GSE31¥60201710-202009

53883BSEAL, FRONT FENDER, LH

main53883-53030iAVE30,GSE3#¥1,370201304-202009

main53883-53050iASE30,AVE30,GSE31¥1,110202009-202310

5701

9020207027

main90202-07027¥60

9033325003

main90333-25003¥70

9162140610

main91621-40610¥70

30 parts on this diagram · 4 diagrams in section
