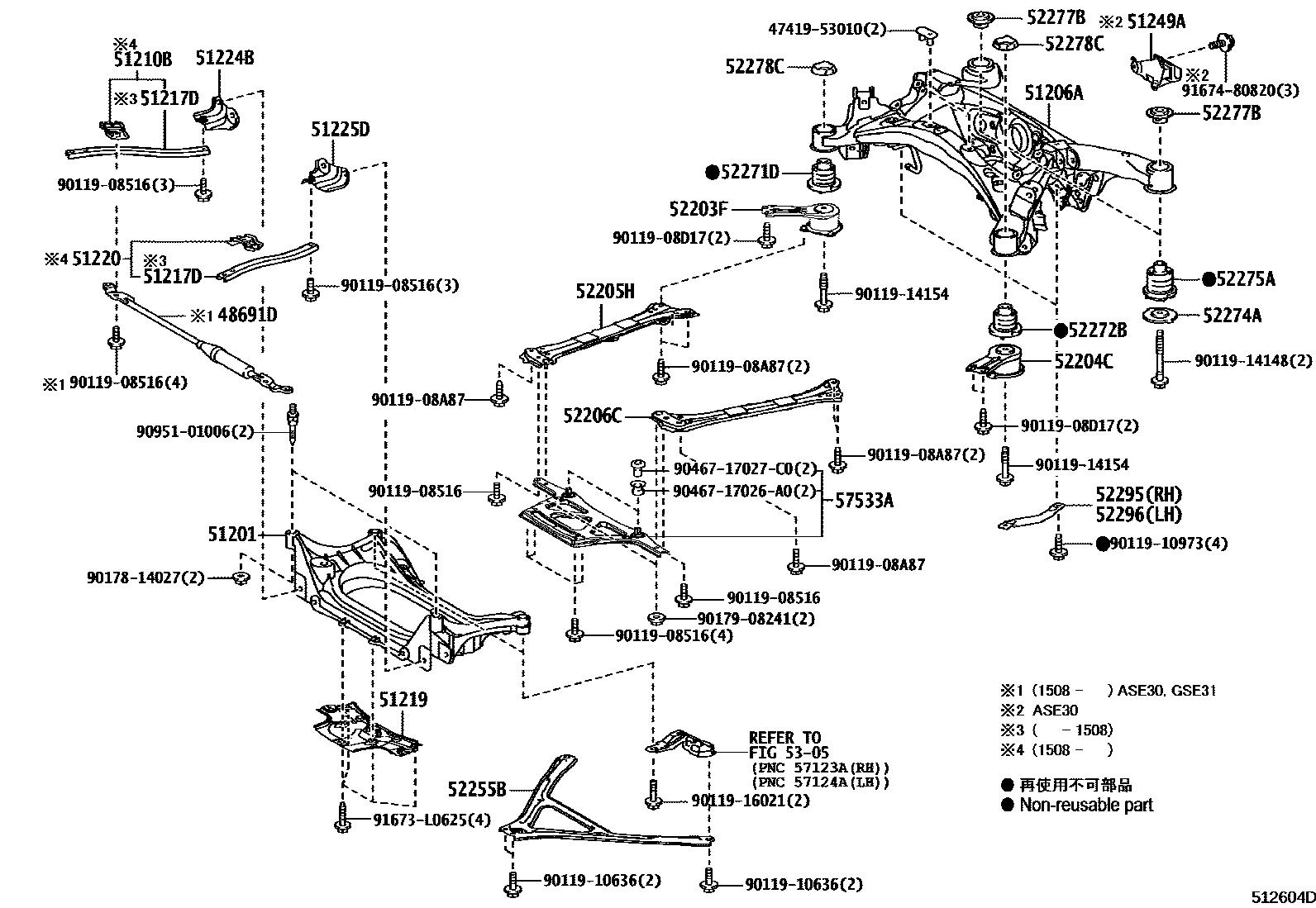

SUSPENSION CROSSMEMBER & UNDER COVER

0001 1SUSPENSION CROSSMEMBER 0002 1SUSPENSION CROSSMEMBER 0003 1UNDER COVER 0004 1UNDER COVER 0005 1UNDER COVER 0006 1UNDER COVER 0007 1UNDER COVER 0008 1UNDER COVER

48691DDAMPER, SUSPENSION TOWER

main48691-53010iASE30,GSE31201508-201512

sub48691-53011

main48691-53011iASE30,GSE31201601-202310

51201CROSSMEMBER SUB-ASSY, FRONT SUSPENSION

main51201-30140iGSE31..LHD;ASE30,AVE30201304-202310

51206AMEMBER SUB-ASSY, REAR SUSPENSION

main51206-30130iGSE30201304-201310

sub51206-30131

main51206-30131iGSE30201310-201508

main51206-30140iAVE30,GSE31201304-201310

sub51206-30141

main51206-30141iAVE30,GSE31201310-201505

sub51206-30142

main51206-30142iASE30,AVE30,GSE31201506-202310

51210BCROSSMEMBER ASSY, FRAME, NO.1

main51210-53020iASE30,AVE30,GSE31201508-202310

51217DMEMBER, FRONT SUSPENSION, NO.2 UPPER

main51217-53010iAVE30,GSE3#201304-201508

51219PROTECTOR, FRONT SUSPENSION MEMBER, LWR

main51219-30050iAVE30,GSE3#201304-202103

sub51219-30051

main51219-30051iASE30,AVE30,GSE31202103-202310

51220CROSSMEMBER ASSY, FRAME, NO.2

main51210-53020iASE30,AVE30,GSE31201508-202310

51224BPLATE, FRONT SUSPENSION MENBER BRACE, RH

main51224-53020iAVE30,GSE3#201304-202310

51225DPLATE, FRONT SUSPENSION MENBER BRACE, LH

main51225-53020iGSE31..ARL201304-202310

51249ADAMPER, REAR SUSPENSION MEMBER

main51249-30040iASE30201508-202110

52203FSTOPPER SUB-ASSY, REAR SUSPENSION MEMBER, LOWER RH

main52203-30080iAVE30,GSE3#201304-202310

52204CSTOPPER SUB-ASSY, REAR SUSPENSION MEMBER, LOWER LH

main52204-30060iAVE30,GSE3#201304-202310

52205HCUSHION SUB-ASSY, BODY MOUNTING, REAR RH

main52205-30250iASE30,AVE30,GSE31201304-202310

52206CCUSHION SUB-ASSY, BODY MOUNTING, REAR LH

main52206-30070iAVE30,GSE3#201304-202310

52255BBRACE, FRONT SUSPENSION MEMBER

main52255-24010iASE30..ARL202111-202310

main52255-30050iASE30,AVE30,GSE31201304-202102

sub52255-30051

main52255-30051iASE30,AVE30,GSE31202102-202110

52271DCUSHION, REAR SUSPENSION MEMBER BODY MOUNTING, FRONT

main52271-30150iAVE30,GSE3#201304-201403

sub52271-30151

main52271-30151iAVE30,GSE3#201403-202310

52272BCUSHION, REAR SUSPENSION MEMBER BODY MOUNTING, FRONT LOWER

main52272-30010iAVE30,GSE3#201304-201403

sub52272-30011

main52272-30011iAVE30,GSE3#201403-202310

52274ASTOPPER, REAR SUSPENSION MEMBER, LOWER LH

main52274-30010iAVE30,GSE3#201304-202310

52275ACUSHION, REAR SUSPENSION MEMBER BODY MOUNTING, REAR

main52275-30160iAVE30,GSE3#201304-201403

sub52275-30161

main52275-30161iAVE30,GSE3#201403-202310

52277BSTOPPER, REAR SUSPENSION MEMBER, REAR UPPER

main52277-30090iAVE30,GSE3#201304-202310

52278CSTOPPER, REAR SUSPENSION MEMBER, REAR LOWER

main52278-30090iAVE30,GSE3#201304-201403

sub52278-30091

main52278-30091iAVE30,GSE3#201403-202310

52295BRACE, REAR SUSPENSION MEMBER, RH

main52295-30040iAVE30,GSE3#201304-201709

sub52295-30041

main52295-30041iASE30,AVE30,GSE31201710-202310

52296BRACE, REAR SUSPENSION MEMBER, LH

main52295-30040iAVE30,GSE3#201304-201709

sub52295-30041

main52295-30041iASE30,AVE30,GSE31201710-202310

5305

57533ABRACE, FRONT FLOOR, CENTER

main57533-53020iAVE30,GSE3#201304-202310

4741953010PLUG, HOLE(FOR FRONT BRAKE)

main47419-53010

9011908516

main90119-08516

9011908A87

main90119-08A87

9011908D17

main90119-08D17

9011910636

main90119-10636

9011910973

main90119-10973

9011914148

main90119-14148

9011914154

main90119-14154

9011916021

main90119-16021

9017814027

main90178-14027

9017908241

main90179-08241

9046717026A0

main90467-17026A0

9046717027C0

main90467-17027C0

9095101006

main90951-01006

91673L0625

main91673-L0625

9167480820

main91674-80820

41 parts on this diagram · 8 diagrams in section
