E
EPC Data

REAR SPRING & SHOCK ABSORBER

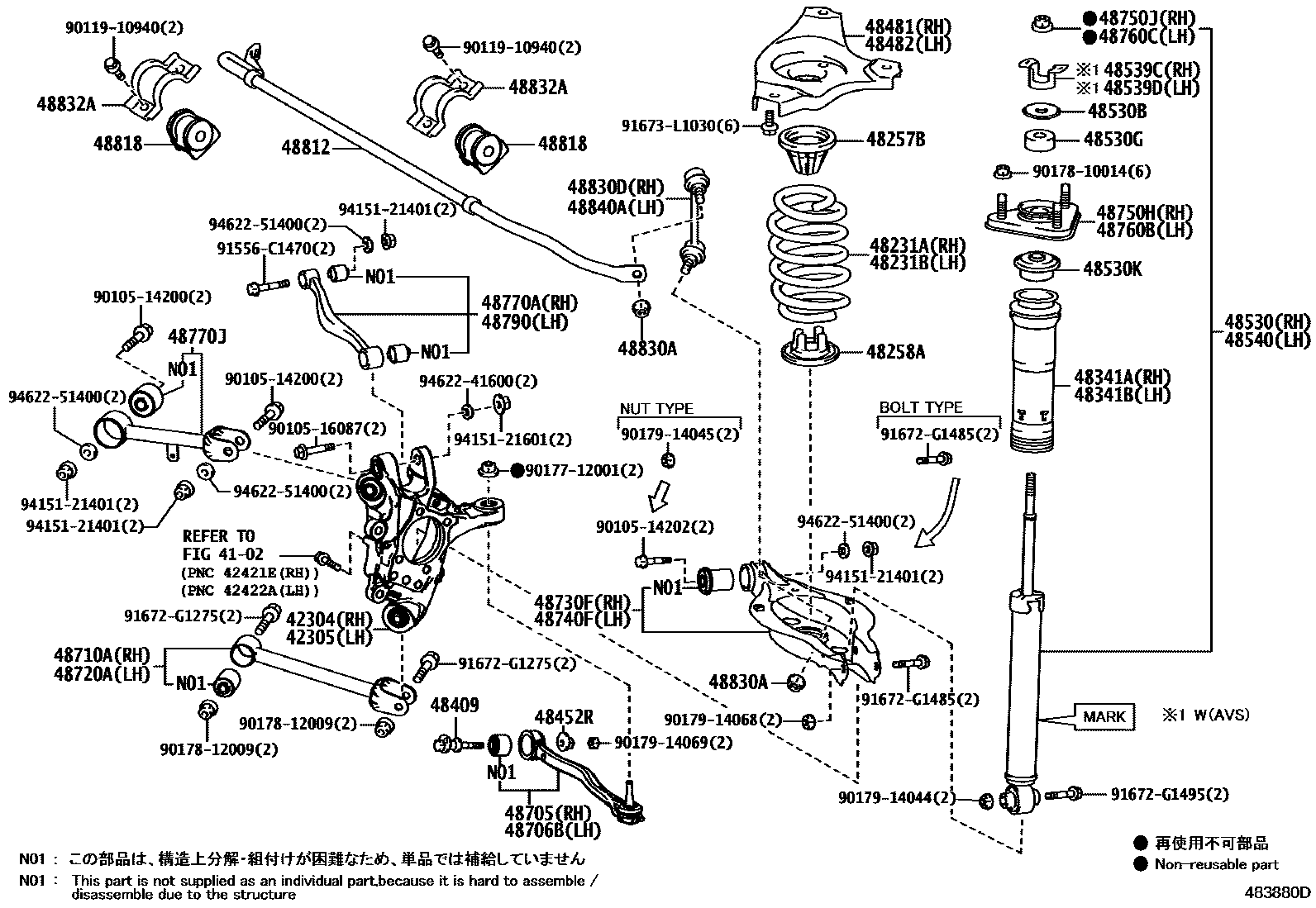

Parts diagram
4102
42304CARRIER SUB-ASSY, REAR AXLE, RH
main42304-30130i202009-202309
main42304-53020i201304-202009
42305CARRIER SUB-ASSY, REAR AXLE, LH
main42305-30130i202009-202309
main42305-53020i201304-202009
48231ASPRING, COIL, REAR RH
main48231-53300i201304-201407
THAILAND SPEC&TIRE & DISC WHEEL-225/45R17 SUMMER TIRE 7.5J
sub48231-53301
main48231-53300i201304-201407
THAILAND SPEC&LUXURY PACKAGE&TIRE & DISC WHEEL-225/40R18+255/35R18,SUMMER TIRE,MESH
sub48231-53301
main48231-53300i201304-201407
THAILAND SPEC&F SPORT&AVS-WITH&TIRE & DISC WHEEL-225/40R18+255/35R18,SUMMER TIRE,F-SPORTS
sub48231-53301
main48231-53300i201304-201508
BRUNEI SPEC&LUXURY PACKAGE&EXHAUST EMISSION CONTROL-EURO4,WITHOUT(ON BOARD DIAGNOSIS)&TIRE & DISC WHEEL-225/40R18+255/35R18,SUMMER TIRE,MESH
sub48231-53301
main48231-53300i201304-201508
BRUNEI SPEC&F SPORT&EXHAUST EMISSION CONTROL-EURO4,WITHOUT(ON BOARD DIAGNOSIS)&AVS-WITH&TIRE & DISC WHEEL-225/40R18+255/35R18,SUMMER TIRE,F-SPORTS
sub48231-53301
main48231-53300i201304-201508
BRUNEI SPEC&EXHAUST EMISSION CONTROL-EURO4,WITHOUT(ON BOARD DIAGNOSIS)&TIRE & DISCWHEEL-225/45R17 SUMMER TIRE 7.5J
sub48231-53301
main48231-53300i201304-201508
INDONESIA SPEC&LUXURY PACKAGE&EXHAUST EMISSION CONTROL-EURO4,WITHOUT(ON BOARD DIAGNOSIS)&TIRE & DISC WHEEL-225/40R18+255/35R18,SUMMER TIRE,MESH
sub48231-53301
main48231-53300i201304-201508
INDONESIA SPEC&F SPORT&EXHAUST EMISSION CONTROL-EURO4,WITHOUT(ON BOARD DIAGNOSIS)&AVS-WITH&TIRE & DISC WHEEL-225/40R18+255/35R18,SUMMER TIRE,F-SPORTS
sub48231-53301
main48231-53300i201304-201508
INDONESIA SPEC&EXHAUST EMISSION CONTROL-EURO4,WITHOUT(ON BOARD DIAGNOSIS)&TIRE & DISC WHEEL-225/45R17 SUMMER TIRE 7.5J
sub48231-53301
main48231-53300i201304-201508
MALAYSIA SPEC&LUXURY PACKAGE&EXHAUST EMISSION CONTROL-EURO4,WITHOUT(ON BOARD DIAGNOSIS)&TIRE & DISC WHEEL-225/40R18+255/35R18,SUMMER TIRE,MESH
sub48231-53301
main48231-53300i201304-201508
MALAYSIA SPEC&F SPORT&EXHAUST EMISSION CONTROL-EURO4,WITHOUT(ON BOARD DIAGNOSIS)&AVS-WITH&TIRE & DISC WHEEL-225/40R18+255/35R18,SUMMER TIRE,F-SPORTS
sub48231-53301
main48231-53300i201304-201508
MALAYSIA SPEC&EXHAUST EMISSION CONTROL-EURO4,WITHOUT(ON BOARD DIAGNOSIS)&TIRE & DISC WHEEL-225/45R17 SUMMER TIRE 7.5J
sub48231-53301
main48231-53300i201304-201508
LUXURY PACKAGE&TIRE & DISC WHEEL-225/40R18+255/35R18,SUMMER TIRE,MESH
sub48231-53301
main48231-53300i201304-201508
F SPORT&AVS-WITH&TIRE & DISC WHEEL-225/40R18+255/35R18,SUMMER TIRE,F-SPORTS
sub48231-53301
main48231-53300i201304-201508
TIRE & DISC WHEEL-225/45R17 SUMMER TIRE 7.5J
sub48231-53301
main48231-53300i201304-201508
TIRE & DISC WHEEL-225/45R17 RUNFLAT TIRE 7.5J
sub48231-53301
main48231-53300i201407-201508
THAILAND SPEC&LUXURY PACKAGE&EXHAUST EMISSION CONTROL-EURO5,WITH(ON BOARD DIAGNOSIS)&TIRE & DISC WHEEL-225/40R18+255/35R18,SUMMER TIRE,MESH
sub48231-53301
main48231-53300i201407-201508
THAILAND SPEC&F SPORT&EXHAUST EMISSION CONTROL-EURO5,WITH(ON BOARD DIAGNOSIS)&AVS-WITH&TIRE & DISC WHEEL-225/40R18+255/35R18,SUMMER TIRE,F-SPORTS
sub48231-53301
main48231-53300i201407-201508
THAILAND SPEC&EXHAUST EMISSION CONTROL-EURO5,WITH(ON BOARD DIAGNOSIS)&TIRE & DISCWHEEL-225/45R17 SUMMER TIRE 7.5J
sub48231-53301
main48231-53300i201508-201901
sub48231-53301
main48231-53301i201902-202009
main48231-53310i201508-201610
LUXURY PACKAGE&AVS(TEMS)-WITH&TIRE & DISC WHEEL-225/40R18+255/35R18,SUMMER TIRE,5-SPOKE
sub48231-53311
main48231-53310i201508-201610
F SPORT&AVS(TEMS)-WITH&TIRE & DISC WHEEL-225/40R18+255/35R18,SUMMER TIRE,F-SPORTS
sub48231-53311
main48231-53310i201508-201610
INDONESIA SPEC&LUXURY PACKAGE&AVS(TEMS)-WITH&TIRE & DISC WHEEL-225/40R18+255/35R18,SUMMER TIRE,5-SPOKE
sub48231-53311
main48231-53310i201508-201610
INDONESIA SPEC&F SPORT&AVS(TEMS)-WITH&TIRE & DISC WHEEL-225/40R18+255/35R18,SUMMERTIRE,F-SPORTS
sub48231-53311
main48231-53310i201610-201901
AVS(TEMS)-WITH&TIRE & DISC WHEEL-225/40R18+255/35R18,SUMMER TIRE,5-SPOKE
sub48231-53311
main48231-53310i201610-201901
AVS(TEMS)-WITH&TIRE & DISC WHEEL-225/40R18+255/35R18,SUMMER TIRE,F-SPORTS
sub48231-53311
main48231-53310i201304-201508
LUXURY PACKAGE&AVS-WITH&TIRE & DISC WHEEL-225/40R18+255/35R18,SUMMER TIRE,5-SPOKE
sub48231-53311
main48231-53310i201304-201508
F SPORT&AVS-WITH&TIRE & DISC WHEEL-225/40R18+255/35R18,SUMMER TIRE,F-SPORTS
sub48231-53311
main48231-53310i201304-201508
INDONESIA SPEC&LUXURY PACKAGE&AVS-WITH&TIRE & DISC WHEEL-225/40R18+255/35R18,SUMMER TIRE,5-SPOKE
sub48231-53311
main48231-53310i201304-201508
INDONESIA SPEC&F SPORT&AVS-WITH&TIRE & DISC WHEEL-225/40R18+255/35R18,SUMMER TIRE,F-SPORTS
sub48231-53311
main48231-53310i201407-201410
THE CRAFTED LINE&AVS-WITH&TIRE & DISC WHEEL-FOR THE CRAFTED LINE(SUMMER TIRE)
sub48231-53311
main48231-53310i201407-201508
THE CRAFTED LINE&AVS-WITH&TIRE & DISC WHEEL-225/40R18+255/35R18,SUMMER TIRE,F-SPORTS
sub48231-53311
main48231-53311i201902-202009
AVS(TEMS)-WITH&TIRE & DISC WHEEL-225/40R18+255/35R18,SUMMER TIRE,5-SPOKE
main48231-53311i201902-202009
AVS(TEMS)-WITH&TIRE & DISC WHEEL-225/40R18+255/35R18,SUMMER TIRE,F-SPORTS
main48231-53311i201909-202009
AVS(TEMS)-WITH&TIRE & DISC WHEEL-FOR F SPORT(BLACK SPUTTERING)
main48231-53320i201304-201508
TAIWAN SPEC&EXHAUST EMISSION CONTROL-EURO5,WITH(ON BOARD DIAGNOSIS)&TIRE & DISC WHEEL-205/55R16 SUMMER TIRE 7.0J
main48231-53320i201304-201508
BRAZIL SPEC&EXHAUST EMISSION CONTROL-TIER1.5,WITH(ON BOARD DIAGNOSIS)
main48231-53320i201304-201508
TIRE & DISC WHEEL-205/55R16 SUMMER TIRE 7.0J
main48231-53330i201304-201610
main48231-53400i201610-201901
sub48231-53401
main48231-53401i201902-202009
main48231-53420i202009-202309
main48231-53430i202009-202110
48231BSPRING, COIL, REAR LH
main48231-53300i201304-201508
TIRE & DISC WHEEL-225/45R17 SUMMER TIRE 7.5J
sub48231-53301
main48231-53300i201304-201407
THAILAND SPEC&LUXURY PACKAGE&TIRE & DISC WHEEL-225/40R18+255/35R18,SUMMER TIRE,MESH
sub48231-53301
main48231-53300i201304-201407
THAILAND SPEC&F SPORT&AVS-WITH&TIRE & DISC WHEEL-225/40R18+255/35R18,SUMMER TIRE,F-SPORTS
sub48231-53301
main48231-53300i201304-201407
THAILAND SPEC&TIRE & DISC WHEEL-225/45R17 SUMMER TIRE 7.5J
sub48231-53301
main48231-53300i201304-201508
BRUNEI SPEC&LUXURY PACKAGE&EXHAUST EMISSION CONTROL-EURO4,WITHOUT(ON BOARD DIAGNOSIS)&TIRE & DISC WHEEL-225/40R18+255/35R18,SUMMER TIRE,MESH
sub48231-53301
main48231-53300i201304-201508
BRUNEI SPEC&F SPORT&EXHAUST EMISSION CONTROL-EURO4,WITHOUT(ON BOARD DIAGNOSIS)&AVS-WITH&TIRE & DISC WHEEL-225/40R18+255/35R18,SUMMER TIRE,F-SPORTS
sub48231-53301
main48231-53300i201304-201508
BRUNEI SPEC&EXHAUST EMISSION CONTROL-EURO4,WITHOUT(ON BOARD DIAGNOSIS)&TIRE & DISCWHEEL-225/45R17 SUMMER TIRE 7.5J
sub48231-53301
main48231-53300i201304-201508
INDONESIA SPEC&LUXURY PACKAGE&EXHAUST EMISSION CONTROL-EURO4,WITHOUT(ON BOARD DIAGNOSIS)&TIRE & DISC WHEEL-225/40R18+255/35R18,SUMMER TIRE,MESH
sub48231-53301
main48231-53300i201304-201508
INDONESIA SPEC&F SPORT&EXHAUST EMISSION CONTROL-EURO4,WITHOUT(ON BOARD DIAGNOSIS)&AVS-WITH&TIRE & DISC WHEEL-225/40R18+255/35R18,SUMMER TIRE,F-SPORTS
sub48231-53301
main48231-53300i201304-201508
INDONESIA SPEC&EXHAUST EMISSION CONTROL-EURO4,WITHOUT(ON BOARD DIAGNOSIS)&TIRE & DISC WHEEL-225/45R17 SUMMER TIRE 7.5J
sub48231-53301
main48231-53300i201304-201508
MALAYSIA SPEC&LUXURY PACKAGE&EXHAUST EMISSION CONTROL-EURO4,WITHOUT(ON BOARD DIAGNOSIS)&TIRE & DISC WHEEL-225/40R18+255/35R18,SUMMER TIRE,MESH
sub48231-53301
main48231-53300i201304-201508
MALAYSIA SPEC&F SPORT&EXHAUST EMISSION CONTROL-EURO4,WITHOUT(ON BOARD DIAGNOSIS)&AVS-WITH&TIRE & DISC WHEEL-225/40R18+255/35R18,SUMMER TIRE,F-SPORTS
sub48231-53301
main48231-53300i201304-201508
MALAYSIA SPEC&EXHAUST EMISSION CONTROL-EURO4,WITHOUT(ON BOARD DIAGNOSIS)&TIRE & DISC WHEEL-225/45R17 SUMMER TIRE 7.5J
sub48231-53301
main48231-53300i201304-201508
LUXURY PACKAGE&TIRE & DISC WHEEL-225/40R18+255/35R18,SUMMER TIRE,MESH
sub48231-53301
main48231-53300i201304-201508
F SPORT&AVS-WITH&TIRE & DISC WHEEL-225/40R18+255/35R18,SUMMER TIRE,F-SPORTS
sub48231-53301
main48231-53300i201304-201508
TIRE & DISC WHEEL-225/45R17 RUNFLAT TIRE 7.5J
sub48231-53301
main48231-53300i201407-201508
THAILAND SPEC&LUXURY PACKAGE&EXHAUST EMISSION CONTROL-EURO5,WITH(ON BOARD DIAGNOSIS)&TIRE & DISC WHEEL-225/40R18+255/35R18,SUMMER TIRE,MESH
sub48231-53301
main48231-53300i201407-201508
THAILAND SPEC&F SPORT&EXHAUST EMISSION CONTROL-EURO5,WITH(ON BOARD DIAGNOSIS)&AVS-WITH&TIRE & DISC WHEEL-225/40R18+255/35R18,SUMMER TIRE,F-SPORTS
sub48231-53301
main48231-53300i201407-201508
THAILAND SPEC&EXHAUST EMISSION CONTROL-EURO5,WITH(ON BOARD DIAGNOSIS)&TIRE & DISCWHEEL-225/45R17 SUMMER TIRE 7.5J
sub48231-53301
main48231-53300i201508-201901
sub48231-53301
main48231-53301i201902-202009
main48231-53310i201407-201410
THE CRAFTED LINE&AVS-WITH&TIRE & DISC WHEEL-FOR THE CRAFTED LINE(SUMMER TIRE)
sub48231-53311
main48231-53310i201304-201508
F SPORT&AVS-WITH&TIRE & DISC WHEEL-225/40R18+255/35R18,SUMMER TIRE,F-SPORTS
sub48231-53311
main48231-53310i201508-201610
F SPORT&AVS(TEMS)-WITH&TIRE & DISC WHEEL-225/40R18+255/35R18,SUMMER TIRE,F-SPORTS
sub48231-53311
main48231-53310i201508-201610
LUXURY PACKAGE&AVS(TEMS)-WITH&TIRE & DISC WHEEL-225/40R18+255/35R18,SUMMER TIRE,5-SPOKE
sub48231-53311
main48231-53310i201508-201610
INDONESIA SPEC&F SPORT&AVS(TEMS)-WITH&TIRE & DISC WHEEL-225/40R18+255/35R18,SUMMERTIRE,F-SPORTS
sub48231-53311
main48231-53310i201508-201610
INDONESIA SPEC&LUXURY PACKAGE&AVS(TEMS)-WITH&TIRE & DISC WHEEL-225/40R18+255/35R18,SUMMER TIRE,5-SPOKE
sub48231-53311
main48231-53310i201304-201508
LUXURY PACKAGE&AVS-WITH&TIRE & DISC WHEEL-225/40R18+255/35R18,SUMMER TIRE,5-SPOKE
sub48231-53311
main48231-53310i201304-201508
INDONESIA SPEC&LUXURY PACKAGE&AVS-WITH&TIRE & DISC WHEEL-225/40R18+255/35R18,SUMMER TIRE,5-SPOKE
sub48231-53311
main48231-53310i201304-201508
INDONESIA SPEC&F SPORT&AVS-WITH&TIRE & DISC WHEEL-225/40R18+255/35R18,SUMMER TIRE,F-SPORTS
sub48231-53311
main48231-53310i201407-201508
THE CRAFTED LINE&AVS-WITH&TIRE & DISC WHEEL-225/40R18+255/35R18,SUMMER TIRE,F-SPORTS
sub48231-53311
main48231-53310i201610-201901
AVS(TEMS)-WITH&TIRE & DISC WHEEL-225/40R18+255/35R18,SUMMER TIRE,F-SPORTS
sub48231-53311
main48231-53310i201610-201901
AVS(TEMS)-WITH&TIRE & DISC WHEEL-225/40R18+255/35R18,SUMMER TIRE,5-SPOKE
sub48231-53311
main48231-53311i201909-202009
AVS(TEMS)-WITH&TIRE & DISC WHEEL-FOR F SPORT(BLACK SPUTTERING)
main48231-53311i201902-202009
AVS(TEMS)-WITH&TIRE & DISC WHEEL-225/40R18+255/35R18,SUMMER TIRE,5-SPOKE
main48231-53311i201902-202009
AVS(TEMS)-WITH&TIRE & DISC WHEEL-225/40R18+255/35R18,SUMMER TIRE,F-SPORTS
main48231-53320i201304-201508
TIRE & DISC WHEEL-205/55R16 SUMMER TIRE 7.0J
main48231-53320i201304-201508
BRAZIL SPEC&EXHAUST EMISSION CONTROL-TIER1.5,WITH(ON BOARD DIAGNOSIS)
main48231-53320i201304-201508
TAIWAN SPEC&EXHAUST EMISSION CONTROL-EURO5,WITH(ON BOARD DIAGNOSIS)&TIRE & DISC WHEEL-205/55R16 SUMMER TIRE 7.0J
main48231-53330i201304-201610
main48231-53400i201610-201901
sub48231-53401
main48231-53401i201902-202009
main48231-53420i202009-202309
main48231-53430i202009-202110
48257BINSULATOR, REAR COIL SPRING, UPPER
main48257-30080i201304-202309
48258AINSULATOR, REAR COIL SPRING, LOWER
main48258-30050i201304-202309
48341ABUMPER, REAR SPRING, NO.1 RH
main48341-30170i201304-202009
main48341-53060i202009-202309
48341BBUMPER, REAR SPRING, NO.1 LH
main48341-30170i201304-202009
main48341-53060i202009-202309
48409CAM SUB-ASSY, REAR SUSPENSION TOE ADJUST
main48409-30031i201304-202309
48452RPLATE, REAR SUSPENSION TOE ADJUST, NO.2
main48452-30051i201304-202309
48481SEAT, REAR SPRING, UPPER
main48481-30010i201304-202309
48482SEAT, REAR SPRING, UPPER LH
main48482-30030i201304-202309
48530ABSORBER ASSY, SHOCK, REAR RH
main48530-80584i201610-201711
MARK 48530-53420
sub48530-80837
main48530-80585i201610-201801
MARK 48530-53430,F SPORT
sub48530-80838
main48530-80586i201610-201801
MARK 48530-53440,F SPORT&AVS(TEMS)-WITH
sub48530-80839
main48530-80586i201610-201801
MARK 48530-53440,LUXURY PACKAGE&AVS(TEMS)-WITH
sub48530-80839
main48530-80587i201703-202009
MARK 48530-53450
main48530-80665i201304-201610
MARK 48530-53300
sub48530-80847
main48530-80666i201304-201610
MARK 48530-53310,F SPORT
sub48530-80848
main48530-80666i201407-201508
MARK 48530-53310,THE CRAFTED LINE
sub48530-80848
main48530-80667i201304-201508
MARK 48530-53320,LUXURY PACKAGE&AVS-WITH
sub48530-80849
main48530-80667i201304-201508
MARK 48530-53320,F SPORT&AVS-WITH
sub48530-80849
main48530-80667i201407-201508
MARK 48530-53320,THE CRAFTED LINE&AVS-WITH
sub48530-80849
main48530-80667i201508-201610
MARK 48530-53320,LUXURY PACKAGE&AVS(TEMS)-WITH
sub48530-80849
main48530-80667i201508-201610
MARK 48530-53320,F SPORT&AVS(TEMS)-WITH
sub48530-80849
main48530-80668i201304-201610
MARK 48530-53330
main48530-80669i201304-201610
MARK 48530-53340
sub48530-80850
main48530-80670i201304-201610
MARK 48530-53350,TAIWAN SPEC&F SPORT
sub48530-80851
main48530-80671i201304-201403
MARK 48530-53400,LUXURY PACKAGE&AVS-WITH
sub48530-80667
main48530-80671i201304-201403
MARK 48530-53400,F SPORT&AVS-WITH
sub48530-80667
main48530-80837i201711-202009
MARK 48530-53421
main48530-80838i201801-202009
MARK 48530-53431,F SPORT
main48530-80839i201801-202009
MARK 48530-53441,LUXURY PACKAGE&AVS(TEMS)-WITH
main48530-80839i201801-202009
MARK 48530-53441,F SPORT&AVS(TEMS)-WITH
main48530-80A60i202009-202310
MARK 48530-53490
main48530-80A62i202009-202310
MARK 48530-53510
main48530-80A63i202009-202309
MARK 48530-53520,LUXURY PACKAGE&AVS-WITH
main48530-80A63i202009-202309
MARK 48530-53520,F SPORT&AVS-WITH
main48530-80A63i202009-202110
MARK 48530-53520
main48530-80A64i202009-202110
MARK 48530-53570,LUXURY PACKAGE&AVS-WITH
main48530-80A64i202009-202110
MARK 48530-53570,F SPORT&AVS-WITH
main48530-80A78i202009-202310
MARK 48530-53600,EGYPT SPEC
main48530-80A79i202009-202310
MARK 48530-53610,EGYPT SPEC&AVS-WITH
main48530-80A79i202310
MARK 48530-53610,EGYPT SPEC&F SPORT&AVS-WITH
main48530-80A79i202310
MARK 48530-53610,EGYPT SPEC&LUXURY PACKAGE&AVS-WITH
main48530-80B88i202310
MARK 48530-53630
main48530-80B89i202310
MARK 48530-53640
main48530-80B93i202310
MARK 48530-53680,EGYPT SPEC
48530BWASHER, REAR SHOCK ABSORBER CUSHION, NO.1
main90948-03021i201304-202309
48530GCUSHION, REAR SHOCK ABSORBER, NO.1
main90948-01101i201304-202009
main90948-01104i202009-202309
48530KCUSHION, REAR SHOCK ABSORBER, NO.2
main48752-53010i202009-202309
main90948-01102i201304-202009
48539CBRACKET, ACTUATOR SUPPORT, REAR RH
main48539-30030i201304-202110
LUXURY PACKAGE&AVS-WITH
main48539-30030i201304-202110
F SPORT&AVS-WITH
main48539-30030i202009-202309
AVS-WITH
main48539-30030i201610-202009
AVS(TEMS)-WITH
main48539-30030i201610-202009
F SPORT
main48539-30030i201508-201610
F SPORT&AVS(TEMS)-WITH
main48539-30030i201508-201610
LUXURY PACKAGE&AVS(TEMS)-WITH
main48539-30030i201407-201508
THE CRAFTED LINE&AVS-WITH
48539DBRACKET, ACTUATOR SUPPORT, REAR LH
main48539-30030i201304-202110
F SPORT&AVS-WITH
main48539-30030i201304-202110
LUXURY PACKAGE&AVS-WITH
main48539-30030i201407-201508
THE CRAFTED LINE&AVS-WITH
main48539-30030i201508-201610
LUXURY PACKAGE&AVS(TEMS)-WITH
main48539-30030i201508-201610
F SPORT&AVS(TEMS)-WITH
main48539-30030i201610-202009
F SPORT
main48539-30030i201610-202009
AVS(TEMS)-WITH
main48539-30030i202009-202309
AVS-WITH
48540ABSORBER ASSY, SHOCK, REAR LH
main48530-80584i201610-201711
MARK 48530-53420
sub48530-80837
main48530-80585i201610-201801
MARK 48530-53430,F SPORT
sub48530-80838
main48530-80586i201610-201801
MARK 48530-53440,LUXURY PACKAGE&AVS(TEMS)-WITH
sub48530-80839
main48530-80586i201610-201801
MARK 48530-53440,F SPORT&AVS(TEMS)-WITH
sub48530-80839
main48530-80587i201703-202009
MARK 48530-53450
main48530-80665i201304-201610
MARK 48530-53300
sub48530-80847
main48530-80666i201407-201508
MARK 48530-53310,THE CRAFTED LINE
sub48530-80848
main48530-80666i201304-201610
MARK 48530-53310,F SPORT
sub48530-80848
main48530-80667i201508-201610
MARK 48530-53320,F SPORT&AVS(TEMS)-WITH
sub48530-80849
main48530-80667i201508-201610
MARK 48530-53320,LUXURY PACKAGE&AVS(TEMS)-WITH
sub48530-80849
main48530-80667i201407-201508
MARK 48530-53320,THE CRAFTED LINE&AVS-WITH
sub48530-80849
main48530-80667i201304-201508
MARK 48530-53320,F SPORT&AVS-WITH
sub48530-80849
main48530-80667i201304-201508
MARK 48530-53320,LUXURY PACKAGE&AVS-WITH
sub48530-80849
main48530-80668i201304-201610
MARK 48530-53330
main48530-80669i201304-201610
MARK 48530-53340
sub48530-80850
main48530-80670i201304-201610
MARK 48530-53350,TAIWAN SPEC&F SPORT
sub48530-80851
main48530-80671i201304-201403
MARK 48530-53400,F SPORT&AVS-WITH
sub48530-80667
main48530-80671i201304-201403
MARK 48530-53400,LUXURY PACKAGE&AVS-WITH
sub48530-80667
main48530-80837i201711-202009
MARK 48530-53421
main48530-80838i201801-202009
MARK 48530-53431,F SPORT
main48530-80839i201801-202009
MARK 48530-53441,F SPORT&AVS(TEMS)-WITH
main48530-80839i201801-202009
MARK 48530-53441,LUXURY PACKAGE&AVS(TEMS)-WITH
main48530-80A60i202009-202310
MARK 48530-53490
main48530-80A62i202009-202310
MARK 48530-53510
main48530-80A63i202009-202309
MARK 48530-53520,LUXURY PACKAGE&AVS-WITH
main48530-80A63i202009-202110
MARK 48530-53520
main48530-80A63i202009-202309
MARK 48530-53520,F SPORT&AVS-WITH
main48530-80A64i202009-202110
MARK 48530-53570,LUXURY PACKAGE&AVS-WITH
main48530-80A64i202009-202110
MARK 48530-53570,F SPORT&AVS-WITH
main48530-80A78i202009-202310
MARK 48530-53600,EGYPT SPEC
main48530-80A79i202310
MARK 48530-53610,EGYPT SPEC&LUXURY PACKAGE&AVS-WITH
main48530-80A79i202009-202310
MARK 48530-53610,EGYPT SPEC&AVS-WITH
main48530-80A79i202310
MARK 48530-53610,EGYPT SPEC&F SPORT&AVS-WITH
main48530-80B88i202310
MARK 48530-53630
main48530-80B89i202310
MARK 48530-53640
main48530-80B93i202310
MARK 48530-53680,EGYPT SPEC
48705LINK SUB-ASSY, TOE CONTROL, RH
main48705-30120i201304-202309
48706BLINK SUB-ASSY, TOE CONTROL, LH
main48706-30050i201304-202309
48710AARM ASSY, REAR SUSPENSION, NO.1 RH
main48710-30240i201304-202309
48720AARM ASSY, REAR SUSPENSION, NO.1 LH
main48710-30240i201304-202309
48730FARM ASSY, REAR SUSPENSION, NO.2 RH
main48730-30140i201304-202309
48740FARM ASSY, REAR SUSPENSION, NO.2 LH
main48740-30140i201304-202309
48750HSUPPORT ASSY, REAR SUSPENSION, RH
main48750-30200i201304-202309
48750JNUT(FOR REAR SUPPORT TO REAR SHOCK ABSORBER RH)
main90179-12127i201304-202309
48760BSUPPORT ASSY REAR SUSPENSION, LH
main48750-30200i201304-202309
48760CNUT(FOR REAR SUPPORT TO REAR SHOCK ABSORBER LH)
main90179-12127i201304-202309
48770AARM ASSY, UPPER CONTROL, REAR RH
main48790-30130i201304-202009
main48790-53060i202009-202309
48770JARM ASSY, UPPER CONTROL, REAR NO.1
main48770-30120i201304-201405
main48770-30150i201405-201610
sub48770-30151
main48770-30151i201610-202309
48790ARM ASSY, UPPER CONTROL, REAR LH
main48790-30140i201304-202009
main48790-53050i202009-202309
48812BAR, STABILIZER, REAR
main48812-24152i201801-202009
main48812-53050i201304-201610
main48812-53110i202009-202110
main48812-53120i201304-201610
sub48812-53122
main48812-53140i202009-202110
F SPORT
main48812-53140i202111-202309
main48812-53150i202009-202309
F SPORT
48818BUSH, STABILIZER, REAR
main48818-24040i201801-202110
main48818-53080i201304-201610
main48818-53090i202111-202309
main48818-53090i202009-202110
F SPORT
main48818-53100i201304-201610
48830ANUT(FOR REAR STABILIZER LINK)
main90179-12151i201304-202309
48830DLINK ASSY, REAR STABILIZER, RH
main48830-30100i201304-202309
48832ABRACKET, REAR STABILIZER BAR, NO.1
main48832-30070i201304-202309
48840ALINK ASSY, REAR STABILIZER, LH
main48840-30030i201304-202309
9010514200
main90105-14200
9010514202
main90105-14202
9010516087
main90105-16087
9011910940
main90119-10940
9017712001
main90177-12001
9017810014
main90178-10014
9017812009
main90178-12009
9017914044
main90179-14044
9017914045
main90179-14045
9017914068
main90179-14068
9017914069
main90179-14069
91556C1470
main91556-C1470
91672G1275
main91672-G1275
91672G1485
main91672-G1485
91672G1495
main91672-G1495
91673L1030
main91673-L1030
9415121401
main94151-21401
9415121601
main94151-21601
9462241600
main94622-41600
9462251400
main94622-51400

59 parts on this diagram · 2 diagrams in section

REAR SPRING & SHOCK ABSORBER — Toyota Parts Diagram with OEM Numbers & Prices | EPC Data
