FRONT SPRING & SHOCK ABSORBER

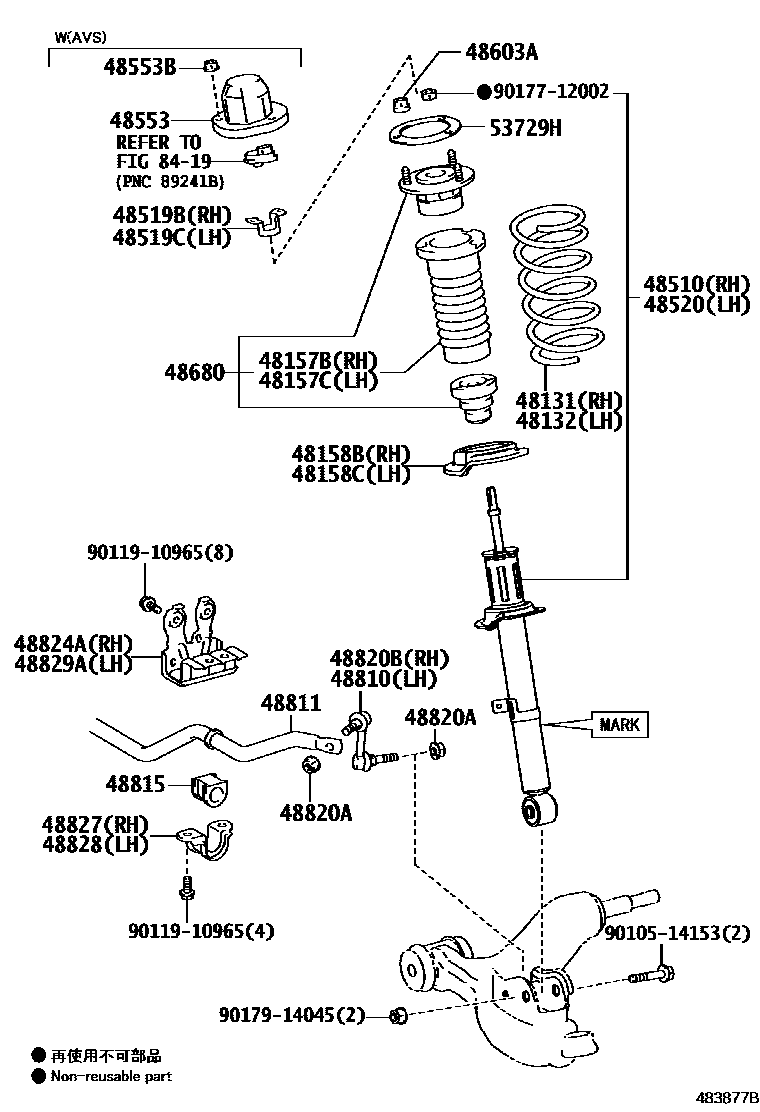

Parts diagram
48131SPRING, FRONT COIL, RH
main48131-53370i201610-201901
sub48131-53371
main48131-53371i201902-202009
main48131-53380i201304-201407
THAILAND SPEC&TIRE & DISC WHEEL-225/45R17 SUMMER TIRE 7.5J
main48131-53380i201304-201407
THAILAND SPEC&LUXURY PACKAGE&TIRE & DISC WHEEL-225/40R18+255/35R18,SUMMER TIRE,MESH
main48131-53380i201304-201407
THAILAND SPEC&F SPORT&AVS-WITH&TIRE & DISC WHEEL-225/40R18+255/35R18,SUMMER TIRE,F-SPORTS
main48131-53380i201304-201508
BRUNEI SPEC&LUXURY PACKAGE&EXHAUST EMISSION CONTROL-EURO4,WITHOUT(ON BOARD DIAGNOSIS)&TIRE & DISC WHEEL-225/40R18+255/35R18,SUMMER TIRE,MESH
main48131-53380i201304-201508
BRUNEI SPEC&F SPORT&EXHAUST EMISSION CONTROL-EURO4,WITHOUT(ON BOARD DIAGNOSIS)&AVS-WITH&TIRE & DISC WHEEL-225/40R18+255/35R18,SUMMER TIRE,F-SPORTS
main48131-53380i201304-201508
BRUNEI SPEC&EXHAUST EMISSION CONTROL-EURO4,WITHOUT(ON BOARD DIAGNOSIS)&TIRE & DISCWHEEL-225/45R17 SUMMER TIRE 7.5J
main48131-53380i201304-201508
INDONESIA SPEC&LUXURY PACKAGE&EXHAUST EMISSION CONTROL-EURO4,WITHOUT(ON BOARD DIAGNOSIS)&TIRE & DISC WHEEL-225/40R18+255/35R18,SUMMER TIRE,MESH
main48131-53380i201304-201508
INDONESIA SPEC&F SPORT&EXHAUST EMISSION CONTROL-EURO4,WITHOUT(ON BOARD DIAGNOSIS)&AVS-WITH&TIRE & DISC WHEEL-225/40R18+255/35R18,SUMMER TIRE,F-SPORTS
main48131-53380i201304-201508
INDONESIA SPEC&EXHAUST EMISSION CONTROL-EURO4,WITHOUT(ON BOARD DIAGNOSIS)&TIRE & DISC WHEEL-225/45R17 SUMMER TIRE 7.5J
main48131-53380i201304-201508
MALAYSIA SPEC&LUXURY PACKAGE&EXHAUST EMISSION CONTROL-EURO4,WITHOUT(ON BOARD DIAGNOSIS)&TIRE & DISC WHEEL-225/40R18+255/35R18,SUMMER TIRE,MESH
main48131-53380i201304-201508
MALAYSIA SPEC&F SPORT&EXHAUST EMISSION CONTROL-EURO4,WITHOUT(ON BOARD DIAGNOSIS)&AVS-WITH&TIRE & DISC WHEEL-225/40R18+255/35R18,SUMMER TIRE,F-SPORTS
main48131-53380i201304-201508
MALAYSIA SPEC&EXHAUST EMISSION CONTROL-EURO4,WITHOUT(ON BOARD DIAGNOSIS)&TIRE & DISC WHEEL-225/45R17 SUMMER TIRE 7.5J
main48131-53380i201304-201508
LUXURY PACKAGE&TIRE & DISC WHEEL-225/40R18+255/35R18,SUMMER TIRE,MESH
main48131-53380i201304-201508
F SPORT&AVS-WITH&TIRE & DISC WHEEL-225/40R18+255/35R18,SUMMER TIRE,F-SPORTS
main48131-53380i201304-201508
TIRE & DISC WHEEL-225/45R17 SUMMER TIRE 7.5J
main48131-53380i201304-201508
TIRE & DISC WHEEL-225/45R17 RUNFLAT TIRE 7.5J
main48131-53380i201407-201508
THAILAND SPEC&LUXURY PACKAGE&EXHAUST EMISSION CONTROL-EURO5,WITH(ON BOARD DIAGNOSIS)&TIRE & DISC WHEEL-225/40R18+255/35R18,SUMMER TIRE,MESH
main48131-53380i201407-201508
THAILAND SPEC&F SPORT&EXHAUST EMISSION CONTROL-EURO5,WITH(ON BOARD DIAGNOSIS)&AVS-WITH&TIRE & DISC WHEEL-225/40R18+255/35R18,SUMMER TIRE,F-SPORTS
main48131-53380i201407-201508
THAILAND SPEC&EXHAUST EMISSION CONTROL-EURO5,WITH(ON BOARD DIAGNOSIS)&TIRE & DISCWHEEL-225/45R17 SUMMER TIRE 7.5J
main48131-53380i201508-201610
main48131-53390i201304-201508
BRAZIL SPEC&EXHAUST EMISSION CONTROL-TIER1.5,WITH(ON BOARD DIAGNOSIS)
main48131-53390i201304-201508
TAIWAN SPEC&EXHAUST EMISSION CONTROL-EURO5,WITH(ON BOARD DIAGNOSIS)&TIRE & DISC WHEEL-205/55R16 SUMMER TIRE 7.0J
main48131-53390i201304-201508
TIRE & DISC WHEEL-205/55R16 SUMMER TIRE 7.0J
main48131-53390i201508-201610
main48131-53400i201304-201508
INDONESIA SPEC&LUXURY PACKAGE&AVS-WITH&TIRE & DISC WHEEL-225/40R18+255/35R18,SUMMER TIRE,5-SPOKE
main48131-53400i201304-201508
INDONESIA SPEC&F SPORT&AVS-WITH&TIRE & DISC WHEEL-225/40R18+255/35R18,SUMMER TIRE,F-SPORTS
main48131-53400i201304-201508
LUXURY PACKAGE&AVS-WITH&TIRE & DISC WHEEL-225/40R18+255/35R18,SUMMER TIRE,5-SPOKE
main48131-53400i201304-201508
F SPORT&AVS-WITH&TIRE & DISC WHEEL-225/40R18+255/35R18,SUMMER TIRE,F-SPORTS
main48131-53400i201407-201410
THE CRAFTED LINE&AVS-WITH&TIRE & DISC WHEEL-FOR THE CRAFTED LINE(SUMMER TIRE)
main48131-53400i201407-201508
THE CRAFTED LINE&AVS-WITH&TIRE & DISC WHEEL-225/40R18+255/35R18,SUMMER TIRE,F-SPORTS
main48131-53400i201508-201610
INDONESIA SPEC&LUXURY PACKAGE&AVS(TEMS)-WITH&TIRE & DISC WHEEL-225/40R18+255/35R18,SUMMER TIRE,5-SPOKE
main48131-53400i201508-201610
INDONESIA SPEC&F SPORT&AVS(TEMS)-WITH&TIRE & DISC WHEEL-225/40R18+255/35R18,SUMMERTIRE,F-SPORTS
main48131-53400i201508-201610
LUXURY PACKAGE&AVS(TEMS)-WITH&TIRE & DISC WHEEL-225/40R18+255/35R18,SUMMER TIRE,5-SPOKE
main48131-53400i201508-201610
F SPORT&AVS(TEMS)-WITH&TIRE & DISC WHEEL-225/40R18+255/35R18,SUMMER TIRE,F-SPORTS
main48131-53470i201610-201901
sub48131-53471
main48131-53471i201902-202009
main48131-53480i201610-201901
LUXURY PACKAGE&AVS(TEMS)-WITH&TIRE & DISC WHEEL-225/40R18+255/35R18,SUMMER TIRE,5-SPOKE
sub48131-53481
main48131-53480i201610-201901
F SPORT&AVS(TEMS)-WITH&TIRE & DISC WHEEL-225/40R18+255/35R18,SUMMER TIRE,F-SPORTS
sub48131-53481
main48131-53481i201902-202009
LUXURY PACKAGE&AVS(TEMS)-WITH&TIRE & DISC WHEEL-225/40R18+255/35R18,SUMMER TIRE,5-SPOKE
main48131-53481i201902-202009
F SPORT&AVS(TEMS)-WITH&TIRE & DISC WHEEL-225/40R18+255/35R18,SUMMER TIRE,F-SPORTS
main48131-53481i201909-202009
F SPORT&AVS(TEMS)-WITH&TIRE & DISC WHEEL-FOR F SPORT(BLACK SPUTTERING)
main48131-53510i202009-202309
main48131-53520i202009-202110
48132SPRING, FRONT COIL, LH
main48131-53370i201610-201901
sub48131-53371
main48131-53371i201902-202009
main48131-53380i201304-201508
INDONESIA SPEC&EXHAUST EMISSION CONTROL-EURO4,WITHOUT(ON BOARD DIAGNOSIS)&TIRE & DISC WHEEL-225/45R17 SUMMER TIRE 7.5J
main48131-53380i201304-201407
THAILAND SPEC&LUXURY PACKAGE&TIRE & DISC WHEEL-225/40R18+255/35R18,SUMMER TIRE,MESH
main48131-53380i201304-201407
THAILAND SPEC&F SPORT&AVS-WITH&TIRE & DISC WHEEL-225/40R18+255/35R18,SUMMER TIRE,F-SPORTS
main48131-53380i201304-201407
THAILAND SPEC&TIRE & DISC WHEEL-225/45R17 SUMMER TIRE 7.5J
main48131-53380i201304-201508
BRUNEI SPEC&LUXURY PACKAGE&EXHAUST EMISSION CONTROL-EURO4,WITHOUT(ON BOARD DIAGNOSIS)&TIRE & DISC WHEEL-225/40R18+255/35R18,SUMMER TIRE,MESH
main48131-53380i201304-201508
BRUNEI SPEC&F SPORT&EXHAUST EMISSION CONTROL-EURO4,WITHOUT(ON BOARD DIAGNOSIS)&AVS-WITH&TIRE & DISC WHEEL-225/40R18+255/35R18,SUMMER TIRE,F-SPORTS
main48131-53380i201304-201508
BRUNEI SPEC&EXHAUST EMISSION CONTROL-EURO4,WITHOUT(ON BOARD DIAGNOSIS)&TIRE & DISCWHEEL-225/45R17 SUMMER TIRE 7.5J
main48131-53380i201304-201508
INDONESIA SPEC&LUXURY PACKAGE&EXHAUST EMISSION CONTROL-EURO4,WITHOUT(ON BOARD DIAGNOSIS)&TIRE & DISC WHEEL-225/40R18+255/35R18,SUMMER TIRE,MESH
main48131-53380i201304-201508
INDONESIA SPEC&F SPORT&EXHAUST EMISSION CONTROL-EURO4,WITHOUT(ON BOARD DIAGNOSIS)&AVS-WITH&TIRE & DISC WHEEL-225/40R18+255/35R18,SUMMER TIRE,F-SPORTS
main48131-53380i201304-201508
MALAYSIA SPEC&LUXURY PACKAGE&EXHAUST EMISSION CONTROL-EURO4,WITHOUT(ON BOARD DIAGNOSIS)&TIRE & DISC WHEEL-225/40R18+255/35R18,SUMMER TIRE,MESH
main48131-53380i201304-201508
MALAYSIA SPEC&F SPORT&EXHAUST EMISSION CONTROL-EURO4,WITHOUT(ON BOARD DIAGNOSIS)&AVS-WITH&TIRE & DISC WHEEL-225/40R18+255/35R18,SUMMER TIRE,F-SPORTS
main48131-53380i201304-201508
MALAYSIA SPEC&EXHAUST EMISSION CONTROL-EURO4,WITHOUT(ON BOARD DIAGNOSIS)&TIRE & DISC WHEEL-225/45R17 SUMMER TIRE 7.5J
main48131-53380i201304-201508
LUXURY PACKAGE&TIRE & DISC WHEEL-225/40R18+255/35R18,SUMMER TIRE,MESH
main48131-53380i201304-201508
F SPORT&AVS-WITH&TIRE & DISC WHEEL-225/40R18+255/35R18,SUMMER TIRE,F-SPORTS
main48131-53380i201304-201508
TIRE & DISC WHEEL-225/45R17 SUMMER TIRE 7.5J
main48131-53380i201304-201508
TIRE & DISC WHEEL-225/45R17 RUNFLAT TIRE 7.5J
main48131-53380i201407-201508
THAILAND SPEC&LUXURY PACKAGE&EXHAUST EMISSION CONTROL-EURO5,WITH(ON BOARD DIAGNOSIS)&TIRE & DISC WHEEL-225/40R18+255/35R18,SUMMER TIRE,MESH
main48131-53380i201407-201508
THAILAND SPEC&F SPORT&EXHAUST EMISSION CONTROL-EURO5,WITH(ON BOARD DIAGNOSIS)&AVS-WITH&TIRE & DISC WHEEL-225/40R18+255/35R18,SUMMER TIRE,F-SPORTS
main48131-53380i201407-201508
THAILAND SPEC&EXHAUST EMISSION CONTROL-EURO5,WITH(ON BOARD DIAGNOSIS)&TIRE & DISCWHEEL-225/45R17 SUMMER TIRE 7.5J
main48131-53380i201508-201610
main48131-53390i201304-201508
TIRE & DISC WHEEL-205/55R16 SUMMER TIRE 7.0J
main48131-53390i201304-201508
BRAZIL SPEC&EXHAUST EMISSION CONTROL-TIER1.5,WITH(ON BOARD DIAGNOSIS)
main48131-53390i201304-201508
TAIWAN SPEC&EXHAUST EMISSION CONTROL-EURO5,WITH(ON BOARD DIAGNOSIS)&TIRE & DISC WHEEL-205/55R16 SUMMER TIRE 7.0J
main48131-53390i201508-201610
main48131-53400i201304-201508
INDONESIA SPEC&LUXURY PACKAGE&AVS-WITH&TIRE & DISC WHEEL-225/40R18+255/35R18,SUMMER TIRE,5-SPOKE
main48131-53400i201304-201508
INDONESIA SPEC&F SPORT&AVS-WITH&TIRE & DISC WHEEL-225/40R18+255/35R18,SUMMER TIRE,F-SPORTS
main48131-53400i201304-201508
LUXURY PACKAGE&AVS-WITH&TIRE & DISC WHEEL-225/40R18+255/35R18,SUMMER TIRE,5-SPOKE
main48131-53400i201304-201508
F SPORT&AVS-WITH&TIRE & DISC WHEEL-225/40R18+255/35R18,SUMMER TIRE,F-SPORTS
main48131-53400i201407-201508
THE CRAFTED LINE&AVS-WITH&TIRE & DISC WHEEL-225/40R18+255/35R18,SUMMER TIRE,F-SPORTS
main48131-53400i201508-201610
INDONESIA SPEC&LUXURY PACKAGE&AVS(TEMS)-WITH&TIRE & DISC WHEEL-225/40R18+255/35R18,SUMMER TIRE,5-SPOKE
main48131-53400i201508-201610
INDONESIA SPEC&F SPORT&AVS(TEMS)-WITH&TIRE & DISC WHEEL-225/40R18+255/35R18,SUMMERTIRE,F-SPORTS
main48131-53400i201508-201610
LUXURY PACKAGE&AVS(TEMS)-WITH&TIRE & DISC WHEEL-225/40R18+255/35R18,SUMMER TIRE,5-SPOKE
main48131-53400i201508-201610
F SPORT&AVS(TEMS)-WITH&TIRE & DISC WHEEL-225/40R18+255/35R18,SUMMER TIRE,F-SPORTS
main48131-53400i201407-201410
THE CRAFTED LINE&AVS-WITH&TIRE & DISC WHEEL-FOR THE CRAFTED LINE(SUMMER TIRE)
main48131-53470i201610-201901
sub48131-53471
main48131-53471i201902-202009
main48131-53480i201610-201901
LUXURY PACKAGE&AVS(TEMS)-WITH&TIRE & DISC WHEEL-225/40R18+255/35R18,SUMMER TIRE,5-SPOKE
sub48131-53481
main48131-53480i201610-201901
F SPORT&AVS(TEMS)-WITH&TIRE & DISC WHEEL-225/40R18+255/35R18,SUMMER TIRE,F-SPORTS
sub48131-53481
main48131-53481i201902-202009
F SPORT&AVS(TEMS)-WITH&TIRE & DISC WHEEL-225/40R18+255/35R18,SUMMER TIRE,F-SPORTS
main48131-53481i201902-202009
LUXURY PACKAGE&AVS(TEMS)-WITH&TIRE & DISC WHEEL-225/40R18+255/35R18,SUMMER TIRE,5-SPOKE
main48131-53481i201909-202009
F SPORT&AVS(TEMS)-WITH&TIRE & DISC WHEEL-FOR F SPORT(BLACK SPUTTERING)
main48131-53510i202009-202309
main48131-53520i202009-202110
48157BINSULATOR, FRONT COIL SPRING, UPPER RH
main48157-30080i201407-202009
main48157-30090i202009-202309
main48157-30250i201304-201407
48157CINSULATOR, FRONT COIL SPRING, UPPER LH
main48157-30080i201407-202009
main48157-30090i202009-202309
main48157-30250i201304-201407
48158BINSULATOR, FRONT COIL SPRING, LOWER RH
main48158-30020i201304-202309
48158CINSULATOR, FRONT COIL SPRING, LOWER LH
main48158-30020i201304-202309
48510ABSORBER ASSY, SHOCK, FRONT RH
main48510-80617i201304-201407
MARK 48510-53280
main48510-80618i201304-201407
MARK 48510-53290,F SPORT
main48510-80619i201304-201407
MARK 48510-53300,LUXURY PACKAGE&AVS-WITH
main48510-80619i201304-201407
MARK 48510-53300,F SPORT&AVS-WITH
main48510-80620i201304-201407
MARK 48510-53310
main48510-80621i201304-201403
MARK 48510-53320
sub48510-80617
main48510-80622i201304-201407
MARK 48510-53330,TAIWAN SPEC&F SPORT
main48510-80623i201304-201407
MARK 48510-53370,LUXURY PACKAGE&AVS-WITH
main48510-80623i201304-201407
MARK 48510-53370,F SPORT&AVS-WITH
main48510-80710i201407-201610
MARK 48510-53281
sub48510-80A19
main48510-80711i201407-201610
MARK 48510-53291,F SPORT
sub48510-80A20
main48510-80711i201407-201508
MARK 48510-53291,THE CRAFTED LINE
sub48510-80A20
main48510-80712i201508-201610
MARK 48510-53301,F SPORT&AVS(TEMS)-WITH
sub48510-80A21
main48510-80712i201407-201508
MARK 48510-53301,LUXURY PACKAGE&AVS-WITH
sub48510-80A21
main48510-80712i201407-201508
MARK 48510-53301,F SPORT&AVS-WITH
sub48510-80A21
main48510-80712i201508-201610
MARK 48510-53301,LUXURY PACKAGE&AVS(TEMS)-WITH
sub48510-80A21
main48510-80713i201407-201610
MARK 48510-53311
main48510-80714i201407-201508
MARK 48510-53371,THE CRAFTED LINE&AVS-WITH
sub48510-80A22
main48510-80714i201407-201508
MARK 48510-53371,LUXURY PACKAGE&AVS-WITH
sub48510-80A22
main48510-80714i201407-201508
MARK 48510-53371,F SPORT&AVS-WITH
sub48510-80A22
main48510-80714i201508-201610
MARK 48510-53371,LUXURY PACKAGE&AVS(TEMS)-WITH
sub48510-80A22
main48510-80714i201508-201610
MARK 48510-53371,F SPORT&AVS(TEMS)-WITH
sub48510-80A22
main48510-80716i201407-201610
MARK 48510-53331,TAIWAN SPEC&F SPORT
sub48510-80A24
main48510-80847i201610-201801
MARK 48510-53390
sub48510-80A10
main48510-80848i201610-201801
MARK 48510-53400,F SPORT
sub48510-80A11
main48510-80849i201610-201801
MARK 48510-53410,LUXURY PACKAGE&AVS(TEMS)-WITH
sub48510-80A12
main48510-80849i201610-201801
MARK 48510-53410,F SPORT&AVS(TEMS)-WITH
sub48510-80A12
main48510-80850i201703-202009
MARK 48510-53420
main48510-80A10i201801-202009
MARK 48510-53391
main48510-80A11i201801-202009
MARK 48510-53401,F SPORT
main48510-80A12i201801-202009
MARK 48510-53411,LUXURY PACKAGE&AVS(TEMS)-WITH
main48510-80A12i201801-202009
MARK 48510-53411,F SPORT&AVS(TEMS)-WITH
main48510-80B49i202009-202310
MARK 48510-53490
main48510-80B51i202009-202310
MARK 48510-53510
main48510-80B52i202009-202309
MARK 48510-53520,F SPORT&AVS-WITH
main48510-80B52i202009-202110
MARK 48510-53520
main48510-80B52i202009-202309
MARK 48510-53520,LUXURY PACKAGE&AVS-WITH
main48510-80B65i202009-202310
MARK 48510-53570,EGYPT SPEC
main48510-80B66i202310
MARK 48510-53580,EGYPT SPEC&LUXURY PACKAGE&AVS-WITH
main48510-80B66i202009-202310
MARK 48510-53580,EGYPT SPEC&AVS-WITH
main48510-80B66i202310
MARK 48510-53580,EGYPT SPEC&F SPORT&AVS-WITH
main48510-80C71i202310
MARK 48510-53600
main48510-80C73i202310
MARK 48510-53620
main48510-80C77i202310
MARK 48510-53660,EGYPT SPEC
48519BBRACKET, ACTUATOR SUPPORT, FRONT RH
main48519-30030i201304-202009
F SPORT
main48519-30030i201508-202009
AVS(TEMS)-WITH
main48519-30030i201304-202309
AVS-WITH
main48519-30030i201407-201508
THE CRAFTED LINE
48519CBRACKET, ACTUATOR SUPPORT, FRONT LH
main48519-30030i201508-202009
AVS(TEMS)-WITH
main48519-30030i201304-202009
F SPORT
main48519-30030i201304-202309
AVS-WITH
main48519-30030i201407-201508
THE CRAFTED LINE
48520ABSORBER ASSY, SHOCK, FRONT LH
main48520-59705i201304-201407
MARK 48520-53280
main48520-59715i201304-201407
MARK 48520-53290,F SPORT
main48520-59725i201304-201407
MARK 48520-53300,LUXURY PACKAGE&AVS-WITH
main48520-59725i201304-201407
MARK 48520-53300,F SPORT&AVS-WITH
main48520-59735i201304-201407
MARK 48520-53310
main48520-59745i201304-201403
MARK 48520-53320
sub48520-59705
main48520-59755i201304-201407
MARK 48520-53330,TAIWAN SPEC&F SPORT
main48520-59765i201304-201407
MARK 48520-53210,F SPORT&AVS-WITH
main48520-59765i201304-201407
MARK 48520-53210,LUXURY PACKAGE&AVS-WITH
main48520-59805i201407-201610
MARK 48520-53281
sub48520-59806
main48520-59815i201407-201508
MARK 48520-53291,THE CRAFTED LINE
sub48520-59816
main48520-59815i201407-201610
MARK 48520-53291,F SPORT
sub48520-59816
main48520-59825i201407-201508
MARK 48520-53301,LUXURY PACKAGE&AVS-WITH
sub48520-59826
main48520-59825i201407-201508
MARK 48520-53301,F SPORT&AVS-WITH
sub48520-59826
main48520-59825i201508-201610
MARK 48520-53301,LUXURY PACKAGE&AVS(TEMS)-WITH
sub48520-59826
main48520-59825i201508-201610
MARK 48520-53301,F SPORT&AVS(TEMS)-WITH
sub48520-59826
main48520-59835i201407-201610
MARK 48520-53311
main48520-59845i201407-201508
MARK 48520-53211,LUXURY PACKAGE&AVS-WITH
sub48520-59846
main48520-59845i201407-201508
MARK 48520-53211,F SPORT&AVS-WITH
sub48520-59846
main48520-59845i201407-201508
MARK 48520-53211,THE CRAFTED LINE&AVS-WITH
sub48520-59846
main48520-59845i201508-201610
MARK 48520-53211,LUXURY PACKAGE&AVS(TEMS)-WITH
sub48520-59846
main48520-59845i201508-201610
MARK 48520-53211,F SPORT&AVS(TEMS)-WITH
sub48520-59846
main48520-59865i201407-201610
MARK 48520-53331,TAIWAN SPEC&F SPORT
sub48520-59866
main48520-80520i201610-201801
MARK 48520-53390
sub48520-80576
main48520-80521i201610-201801
MARK 48520-53400,F SPORT
sub48520-80577
main48520-80522i201610-201801
MARK 48520-53410,F SPORT&AVS(TEMS)-WITH
sub48520-80578
main48520-80522i201610-201801
MARK 48520-53410,LUXURY PACKAGE&AVS(TEMS)-WITH
sub48520-80578
main48520-80523i201703-202009
MARK 48520-53420
main48520-80576i201801-202009
MARK 48520-53391
main48520-80577i201801-202009
MARK 48520-53401,F SPORT
main48520-80578i201801-202009
MARK 48520-53411,LUXURY PACKAGE&AVS(TEMS)-WITH
main48520-80578i201801-202009
MARK 48520-53411,F SPORT&AVS(TEMS)-WITH
main48520-80707i202009-202310
MARK 48520-53230
main48520-80709i202009-202310
MARK 48520-53250
main48520-80710i202009-202309
MARK 48520-53260,F SPORT&AVS-WITH
main48520-80710i202009-202110
MARK 48520-53260
main48520-80710i202009-202309
MARK 48520-53260,LUXURY PACKAGE&AVS-WITH
main48520-80723i202009-202310
MARK 48520-53490,EGYPT SPEC
main48520-80724i202310
MARK 48520-53500,EGYPT SPEC&LUXURY PACKAGE&AVS-WITH
main48520-80724i202310
MARK 48520-53500,EGYPT SPEC&F SPORT&AVS-WITH
main48520-80724i202009-202310
MARK 48520-53500,EGYPT SPEC&AVS-WITH
main48520-80815i202310
MARK 48520-53520
main48520-80817i202310
MARK 48520-53540
main48520-80821i202310
MARK 48520-53580,EGYPT SPEC
48553CAP, SHOCK ABSORBER, UPPER
main48553-30100i201508-202009
AVS(TEMS)-WITH
main48553-30100i201304-202009
F SPORT
main48553-30100i201304-202309
AVS-WITH
main48553-30100i201407-201508
THE CRAFTED LINE
main48553-53010i201304-201610
F SPORT
main48553-53010i201610-202009
AVS(TEMS)-WITH
48553BNUT(FOR FRONT SHOCK ABSORBER CAP)
main90179-10174i201304-202309
AVS-WITH
main90179-10174i201304-202009
F SPORT
main90179-10174i201407-201508
THE CRAFTED LINE
main90179-10174i201508-202009
AVS(TEMS)-WITH
48603ANUT(FOR FRONT SUSPENSION SUPPORT)
main90178-10014i201304-202309
48680SUPPORT ASSY, FRONT SUSPENSION
main48680-53060i201304-201407
main48680-53061i201407-201610
main48680-53062i201610-202009
main48680-53070i201304-201407
AVS-WITH
main48680-53070i201304-201407
F SPORT
main48680-53071i201508-201610
AVS(TEMS)-WITH
main48680-53071i201407-201610
F SPORT
main48680-53071i201407-201508
AVS-WITH
main48680-53071i201407-201508
THE CRAFTED LINE
main48680-53072i201610-202009
F SPORT
main48680-53072i201610-202009
AVS(TEMS)-WITH
main48680-53100i202009-202309
main48680-53110i202009-202309
AVS-WITH
48810LINK ASSY, FRONT STABILIZER, LH
main48810-30090i201610-202309
main48810-53020i201304-201610
48811BAR, STABILIZER, FRONT
main48811-53090i201304-201610
main48811-53091i201610-201709
sub48811-53092
main48811-53092i201710-202009
main48811-53110i202009-202309
48815BUSH, FRONT STABILIZER BAR, NO.1
main48815-30650i202009-202309
main48815-53070i201304-202009
48820ANUT(FOR FRONT STABILIZER LINK)
main94151-21241i201304-202309
48820BLINK ASSY, FRONT STABILIZER, RH
main48820-30110i201610-202309
main48820-53020i201304-201610
48824ABRACKET, FRONT STABILIZER, NO.1 RH
main48809-30130i201304-202309
48827BRACKET, FRONT STABILIZER, NO.2 RH
main48824-30150i201304-202309
48828BRACKET, FRONT STABILIZER, NO.2 LH
main48824-30150i201304-202309
48829ABRACKET, FRONT STABILIZER, NO.1 LH
main48809-30130i201304-202309
53729HREINFORCEMENT, FRONT SPRING SUPPORT, NO.3
main53729-53020i201304-202309
8419
9010514153
main90105-14153
9011910965
main90119-10965
9017712002
main90177-12002
9017914045
main90179-14045

29 parts on this diagram · 2 diagrams in section

FRONT SPRING & SHOCK ABSORBER — Toyota Parts Diagram with OEM Numbers & Prices | EPC Data
